6-47 — MUD GUARD AND INSULATOR (#55048) — 94 parça

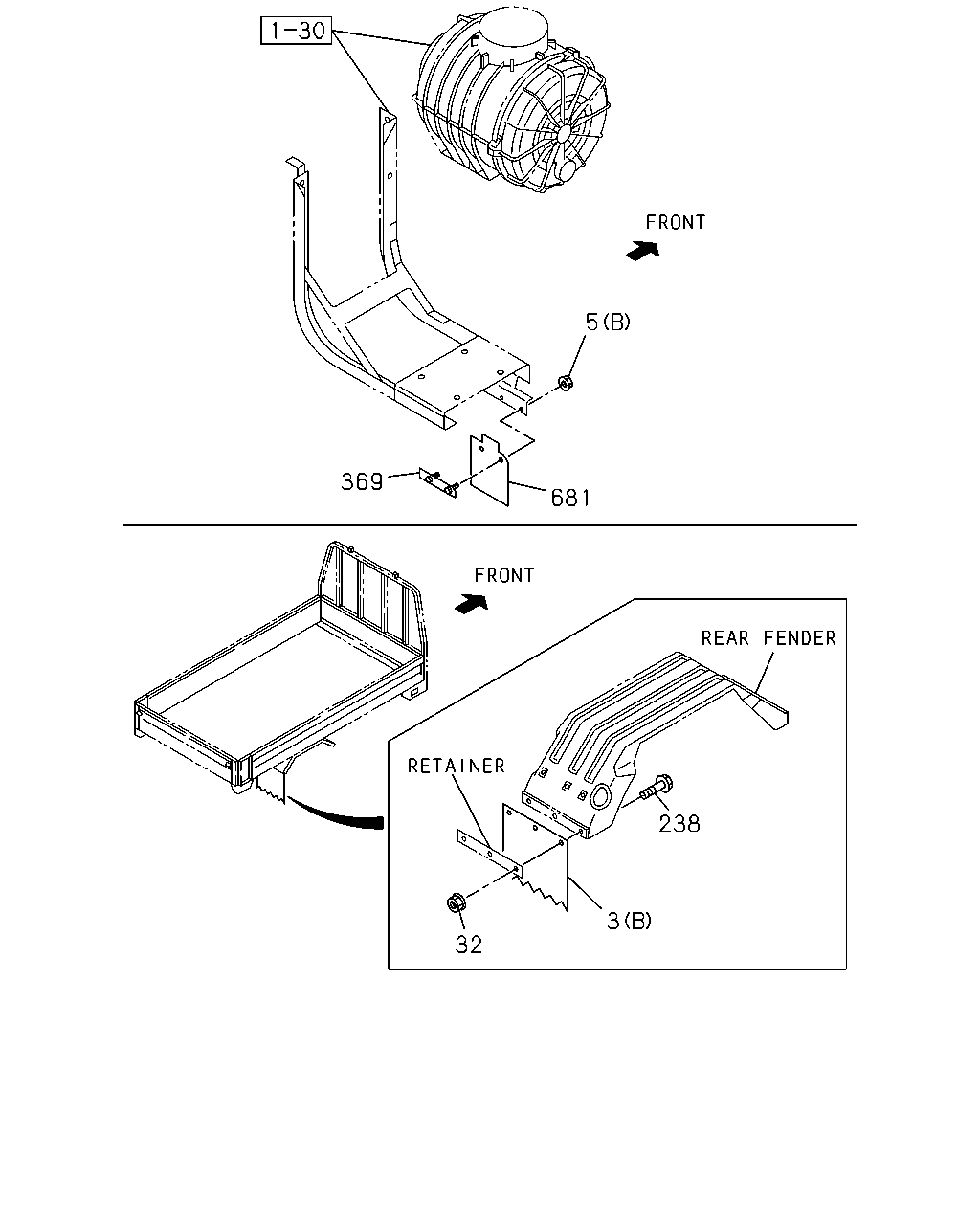

5 369 681 238 3 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	08.153 GUARD; MUD,RR (A)	8-98004-029-5	01	1	1012-	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-98004-030-4	01	1	1012-	●	●	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED<RS6> 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1012-	●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	1012-1209	●	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1210-	●	●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1012-			●
32	08.155 NUT; MUD GUARD RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	1012-	●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED<RS6> 17.208 M6X16 FLANGE	8-98098-459-0	06	1	1012-	●
369	08.155 PLATE	8-98061-674-0	01	1	1012-			●
681	03.402 FLAP; AIR CLEANER	8-98061-671-0	01	1	1012-			●

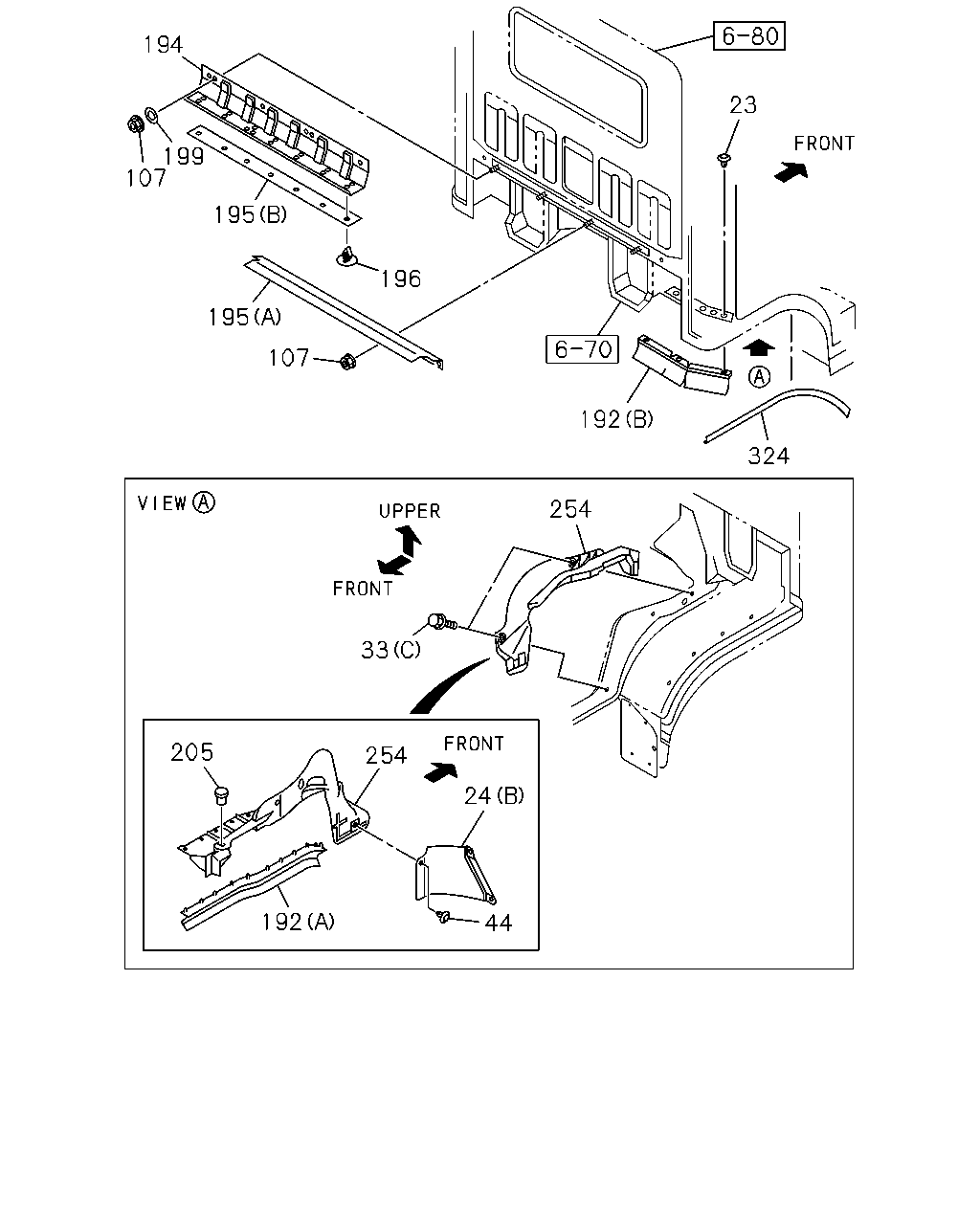

194 23 199 107 195 196 195 107 192 324 254 33 205 254 24 192 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1012-	●	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1012-	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1012-	●	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1012-1209	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1012-	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1012-	●	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1012-	●	●	●
107	08.214 NUT; HEAT PROTECTOR RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D) 03.417 M6 FLANGE	8-94279-514-0	04	1	1012-	●
107	08.214 NUT; HEAT PROTECTOR DUMP CHASSIS(V4D) 03.417 M6 FLANGE	8-94279-514-0	04	1	1012-	●
107	08.214 NUT; HEAT PROTECTOR 03.417 M6 FLANGE	8-94279-514-0	04	1	1012-			●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1012-	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1012-	●	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	1012-	●	●	●
194	03.602 BRACKET; HEAT PROTECTOR	8-98065-107-0	01	1	1012-			●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D) (A)	8-98028-224-1	01	1	1012-	●
195	03.602 PROTECTOR; HEAT DUMP CHASSIS(V4D) (A)	8-98028-224-1	01	1	1012-	●
195	03.602 PROTECTOR; HEAT (B)	8-94272-528-1	01	1	1012-			●
196	03.602 CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	1012-			●
199	03.602 WASHER; PL,HEAT PROTECTOR	8-94292-135-0	04	1	1012-			●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1012-	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	1012-	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	1012-	●	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1012-	●	●	●

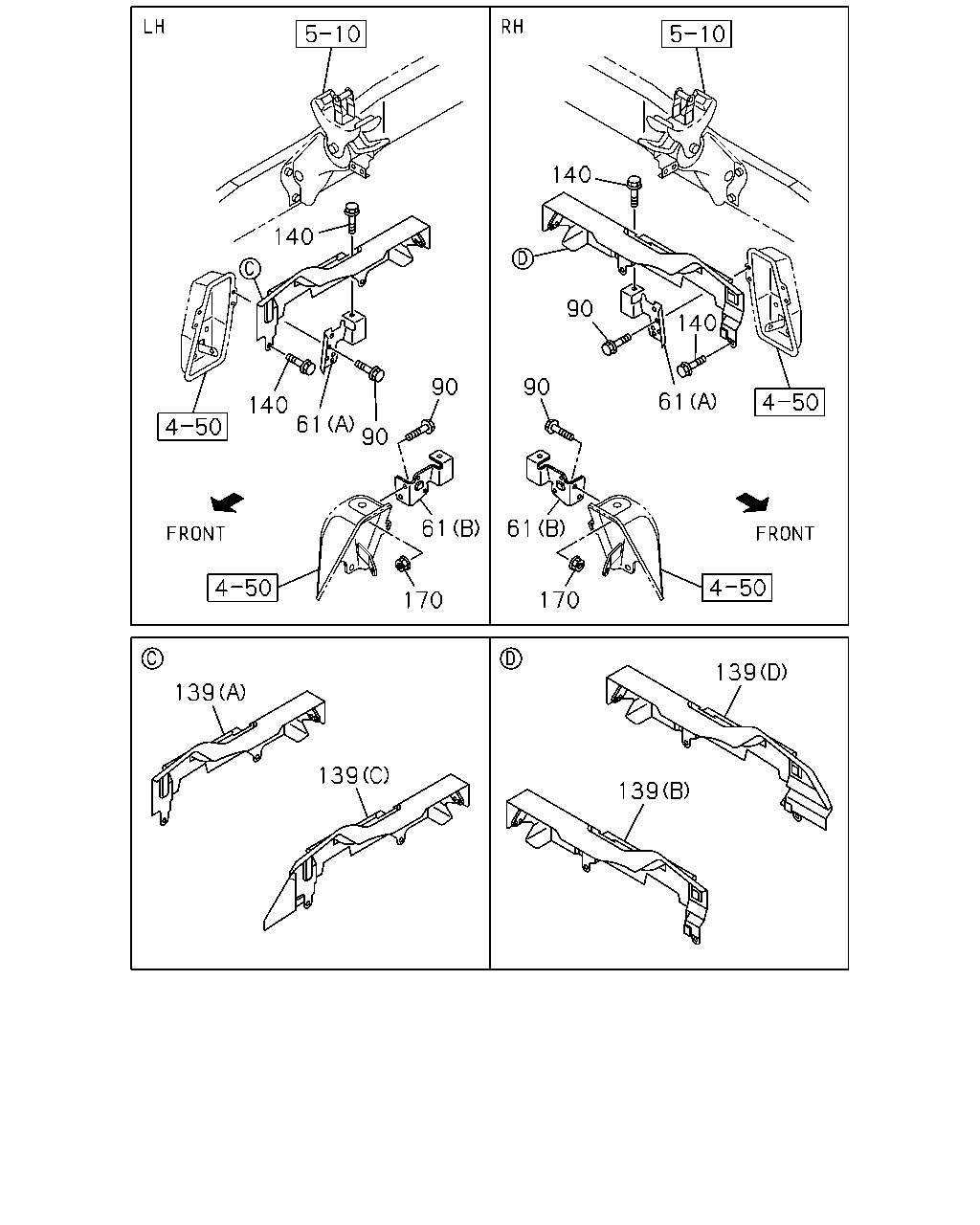

140 140 90 140 90 90 61 140 61 90 61 61 170 170 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	08.155 BRACKET; COVER (A)	8-98040-465-1	01	1	1012-1301	●		●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-465-1	01	1	1012-1301		●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-465-1	01	1	1302-	●	●
61	08.155 BRACKET; COVER (A)	8-98040-465-1	01	1	1302-			●
61	08.155 BRACKET; COVER (A)	8-98040-466-1	01	1	1012-1301	●		●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-466-1	01	1	1012-1301		●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-466-1	01	1	1302-	●	●
61	08.155 BRACKET; COVER (A)	8-98040-466-1	01	1	1302-			●
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-993-0	01	1	1012-1301		●
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-993-0	01	1	1302-	●	●
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-994-0	01	1	1012-1301		●
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-994-0	01	1	1302-	●	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1012-	●	●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	1012-	●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98115-458-1	01	1	1012-	●	●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	1012-	●	●
139	08.153 PANEL; SIDE (D)	8-97387-727-4	01	1	1012-			●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-8	01	1	1012-	●	●
139	08.153 PANEL; SIDE (C)	8-97387-728-8	01	1	1012-			●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1012-	●	●	●
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-1301		●
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	04	1	1302-	●	●

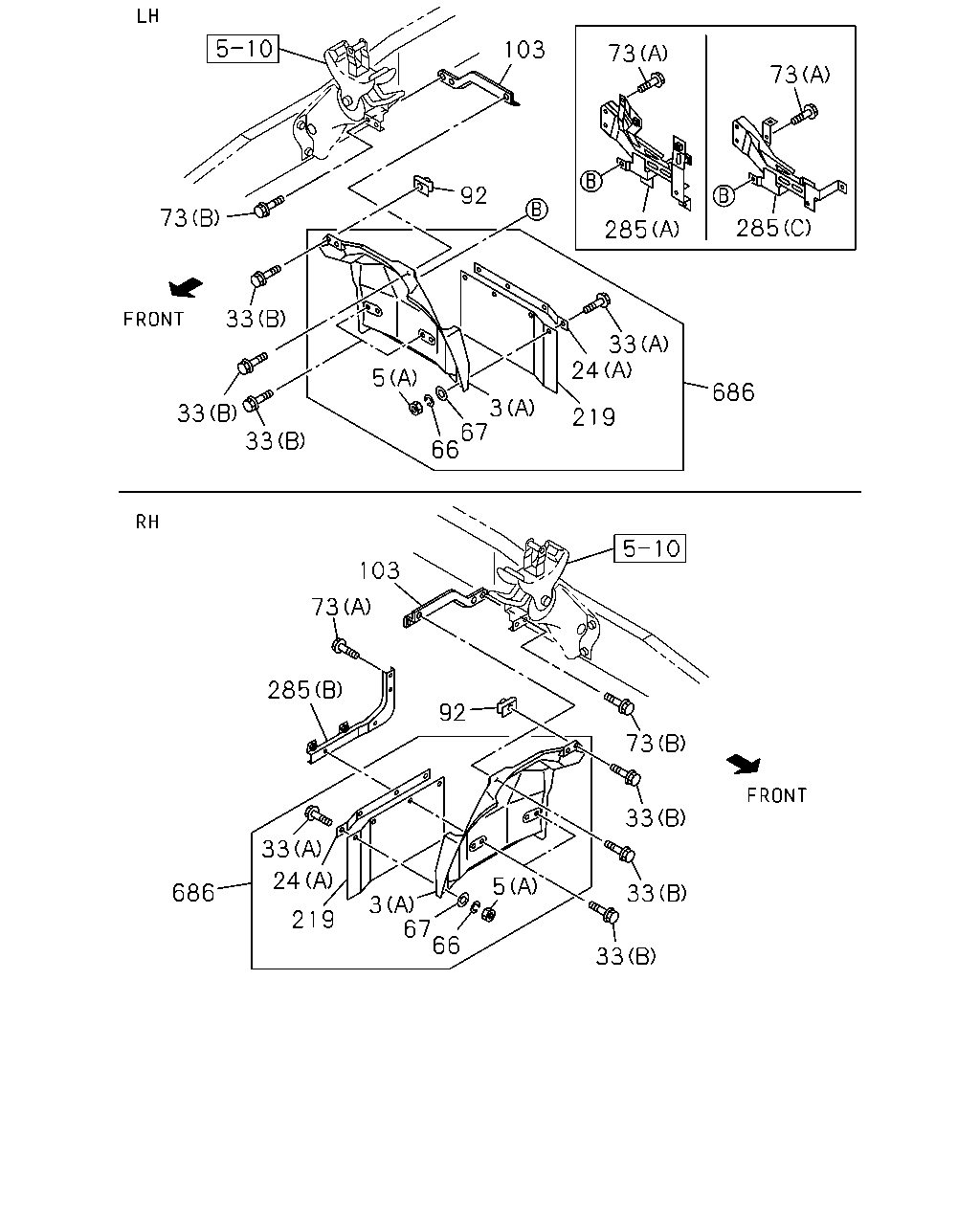

103 73 73 92 73 285 285 33 33 24 5 686 3 67 66 33 33 219 103 73 285 92 73 33 33 24 5 686 33 3 67 66 219 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	08.153 GUARD; MUD,RR (A)	8-98004-029-5	01	1	1012-	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-98004-030-4	01	1	1012-	●	●	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED<RS6> 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1012-	●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	1012-1209	●	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1210-	●	●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1012-			●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1012-	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1012-	●	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1012-1209	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1012-	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1012-	●	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	1012-1209	●	●	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	1012-1209	●	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1012-	●	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1012-	●	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1012-	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	1012-	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	1012-	●	●	●
219	08.155 FLAP; MUD GUARD G.V.W. 6.0-6.5TON(RPV)	8-98004-032-1	02	1	1012-	●
219	08.155 FLAP; MUD GUARD	8-98004-032-1	02	1	1012-			●
219	08.155 FLAP; MUD GUARD G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-98004-033-1	02	1	1012-	●
219	08.155 FLAP; MUD GUARD	8-98004-033-1	02	1	1012-		●
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A)	8-98001-320-3	01	1	1012-	●
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (A)	8-98001-320-3	01	1	1012-	●
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ) (A)	8-98001-320-3	01	1	1012-		●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	1012-			●
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D) (C)	8-98169-721-0	01	1	1012-	●
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-98169-721-0	01	1	1012-		●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1012-	●	●	●
686	08.155 FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-746-7	01	1	1012-	●
686	08.155 FLAP ASM; MUD	8-97387-746-7	01	1	1012-			●
686	08.155 FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-747-6	01	1	1012-	●
686	08.155 FLAP ASM; MUD	8-97387-747-6	01	1	1012-			●
686	08.155 FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97387-750-7	01	1	1012-	●
686	08.155 FLAP ASM; MUD	8-97387-750-7	01	1	1012-		●
686	08.155 FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97387-751-6	01	1	1012-	●
686	08.155 FLAP ASM; MUD	8-97387-751-6	01	1	1012-		●
