◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#55047) — 24 parça

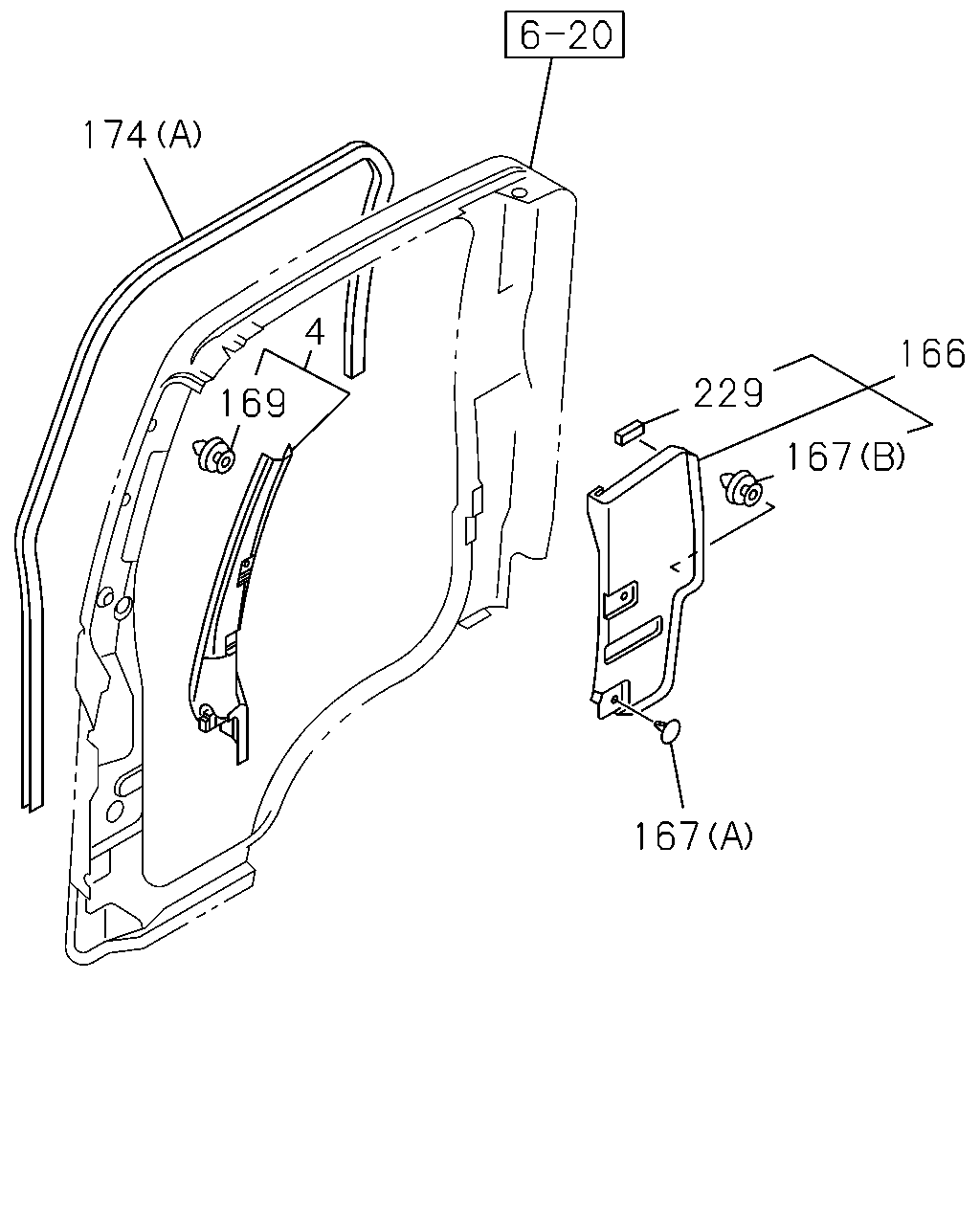

çizim 175757
174 4 166 229 169 167 167
BalonParca AdiParca NoAdetTipApplied Date A B C
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1012- ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1012- ● ● ●
166 16.578 TRIM; RR PILLAR
GRAY 		8-97405-297-2 01 1 1012- ● ●
166 16.578 TRIM; RR PILLAR
GRAY 		8-97412-727-0 01 1 1012- ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(A) GRAY 		8-97406-421-0 04 1 1012- ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 06 1 1012- ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK 		8-94279-974-1 04 1 1012- ● ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2609 		8-98154-665-0 01 1 1012- ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2609 		8-98154-666-0 01 1 1012- ● ●
174 16.507 FINISHER; BODY SIDE
(B) L=3159 		8-98154-667-0 01 1 1012- ●
174 16.507 FINISHER; BODY SIDE
(B) L=3159 		8-98154-668-0 01 1 1012- ●
229 16.585 SEAL 8-98081-818-0 01 1 1012- ● ●

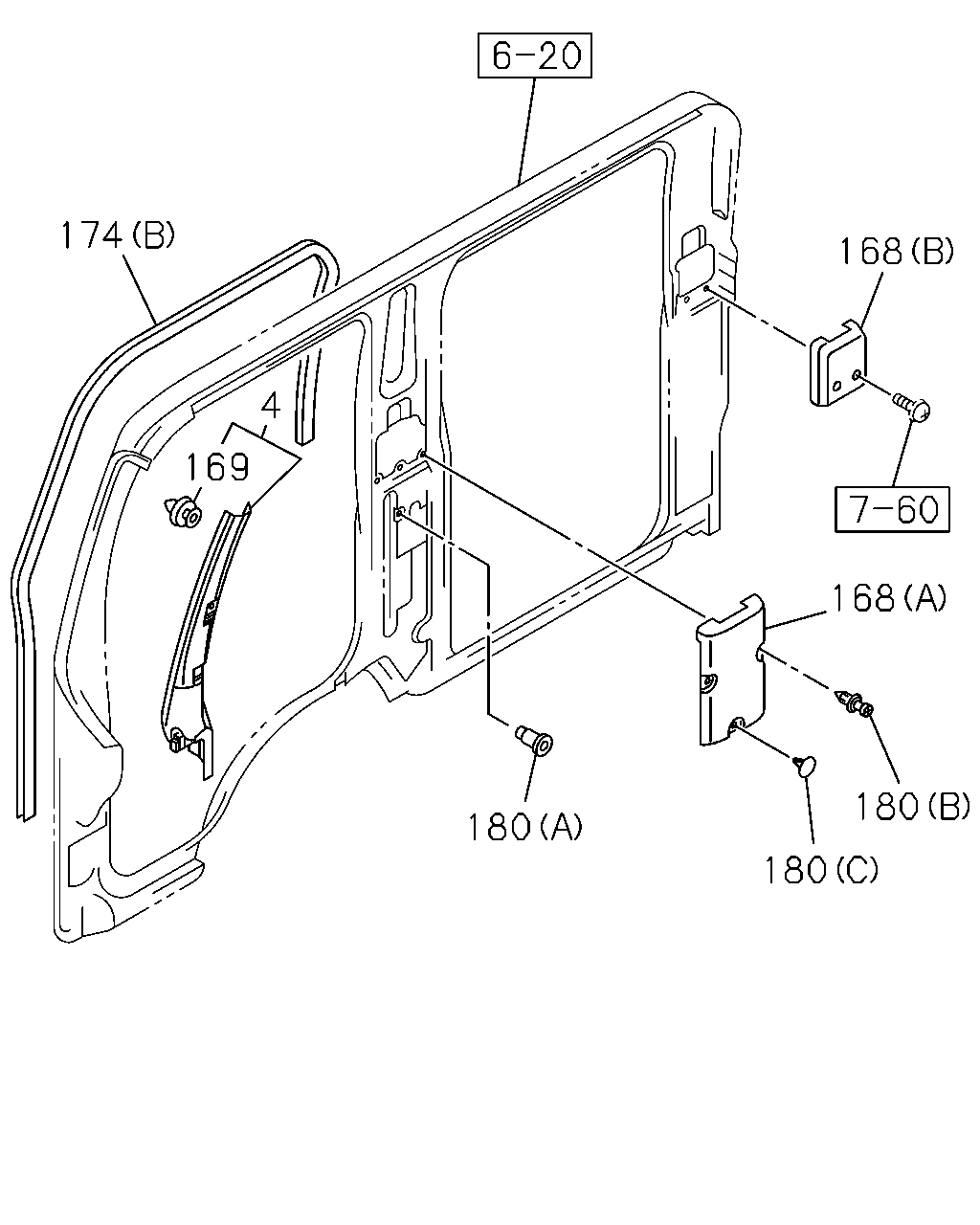

çizim 175768
174 168 4 169 168 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B C
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1012- ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1012- ● ● ●
168 16.578 COVER; SEAT BELT RETRACTOR
(A) GRAY 		8-97405-191-2 02 1 1012- ●
168 16.578 COVER; SEAT BELT RETRACTOR
(B) GRAY 		8-97405-192-3 02 1 1012- ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK 		8-94279-974-1 04 1 1012- ● ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2609 		8-98154-665-0 01 1 1012- ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2609 		8-98154-666-0 01 1 1012- ● ●
174 16.507 FINISHER; BODY SIDE
(B) L=3159 		8-98154-667-0 01 1 1012- ●
174 16.507 FINISHER; BODY SIDE
(B) L=3159 		8-98154-668-0 01 1 1012- ●
180 16.578 FASTENER; COVER
16.125 (A) 		8-97319-495-0 02 1 1012- ●
180 16.578 FASTENER; COVER
(B) GRAY 		8-97405-246-0 04 1 1012- ●
180 16.578 FASTENER; COVER
(C) GRAY 		8-97405-247-0 02 1 1012- ●
