◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#55040) — 195 parça

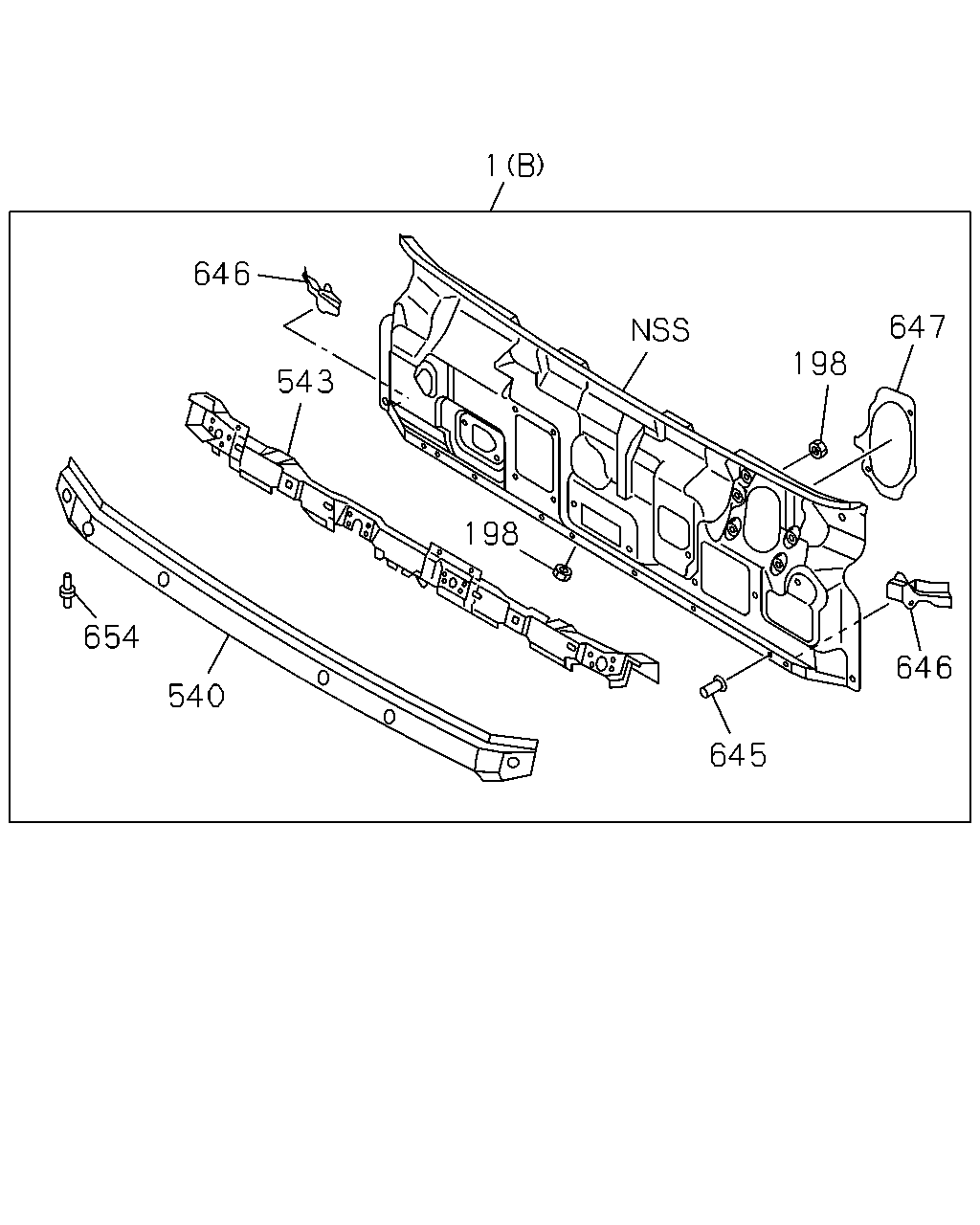

çizim 175744
1 646 647 198 543 198 654 646 540 645
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98042-897-7 01 1 1012-1102 ● ● ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1103-1110 ● ● ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1111- ● ● ●
1 16.550 PANEL ASM; FRT
DUMP CHASSIS(V4D) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1111- ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1012- ● ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-97585-324-9 01 1 1012-1102 ● ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1103-1110 ● ● ●
1 16.550 PANEL ASM; FRT
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1111- ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1111- ● ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1012-1110 ● ● ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1111- ● ● ●
198 16.125 NUT; PANEL
DUMP CHASSIS(V4D) EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1111- ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 04 1 1012-1110 ● ● ●
198 16.125 NUT; PANEL
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 04 1 1111- ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 04 1 1111- ● ●
540 16.588 PANEL; FRONT,OUTER 8-97585-325-3 01 1 1012- ● ● ●
543 16.570 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 1012- ● ● ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1012- ● ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1012- ● ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1012- ● ● ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1012- ● ● ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1012- ● ● ●

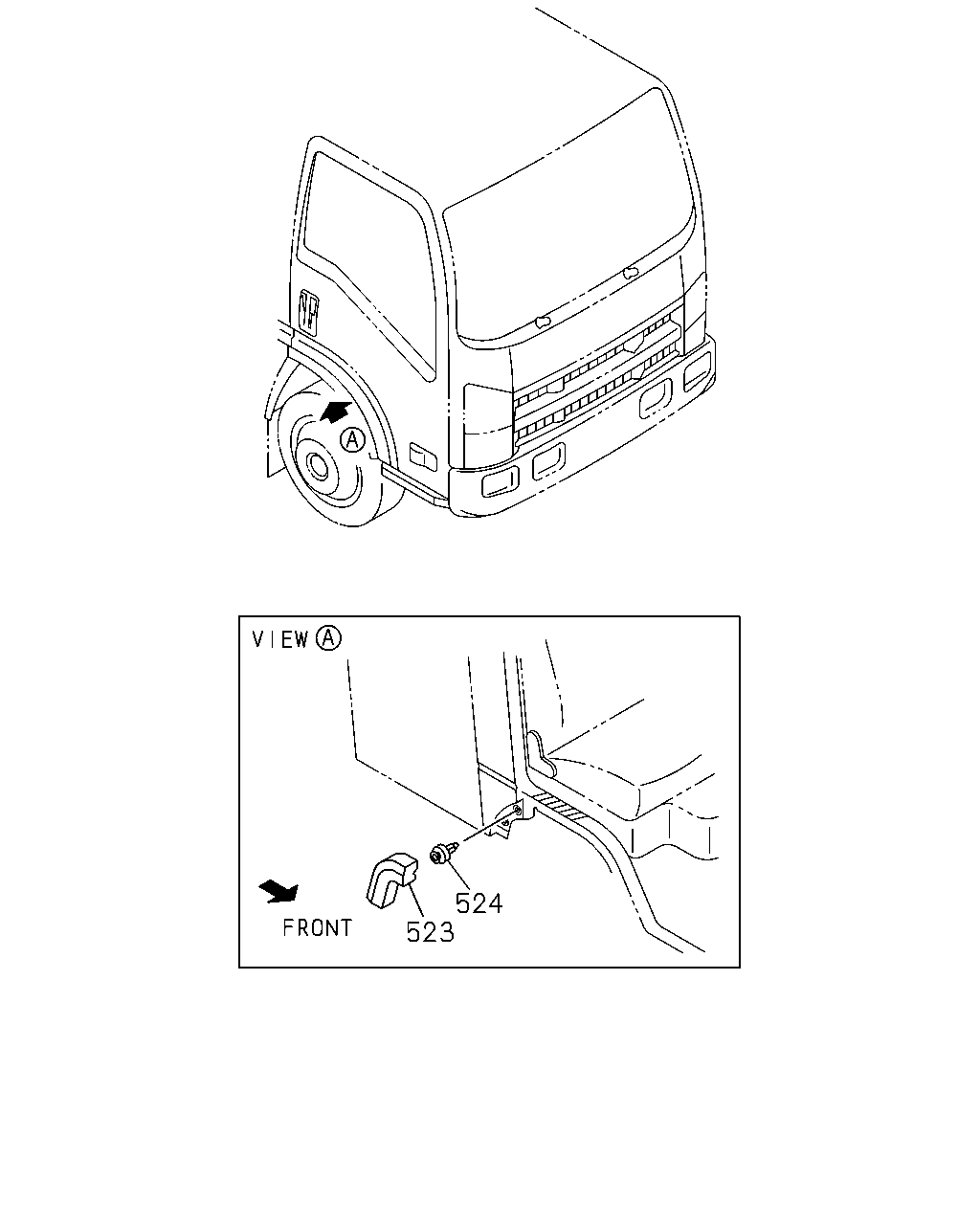

çizim 175747
524 523
BalonParca AdiParca NoAdetTipApplied Date A B C
523 08.212 COVER; FENDER RR 8-97410-295-2 01 1 1012- ●
523 08.212 COVER; FENDER RR 8-97410-296-2 01 1 1012- ●
524 08.212 CLIP; FENDER COVER
OD=8.5 GRAY 		8-97893-482-0 06 1 1012- ●

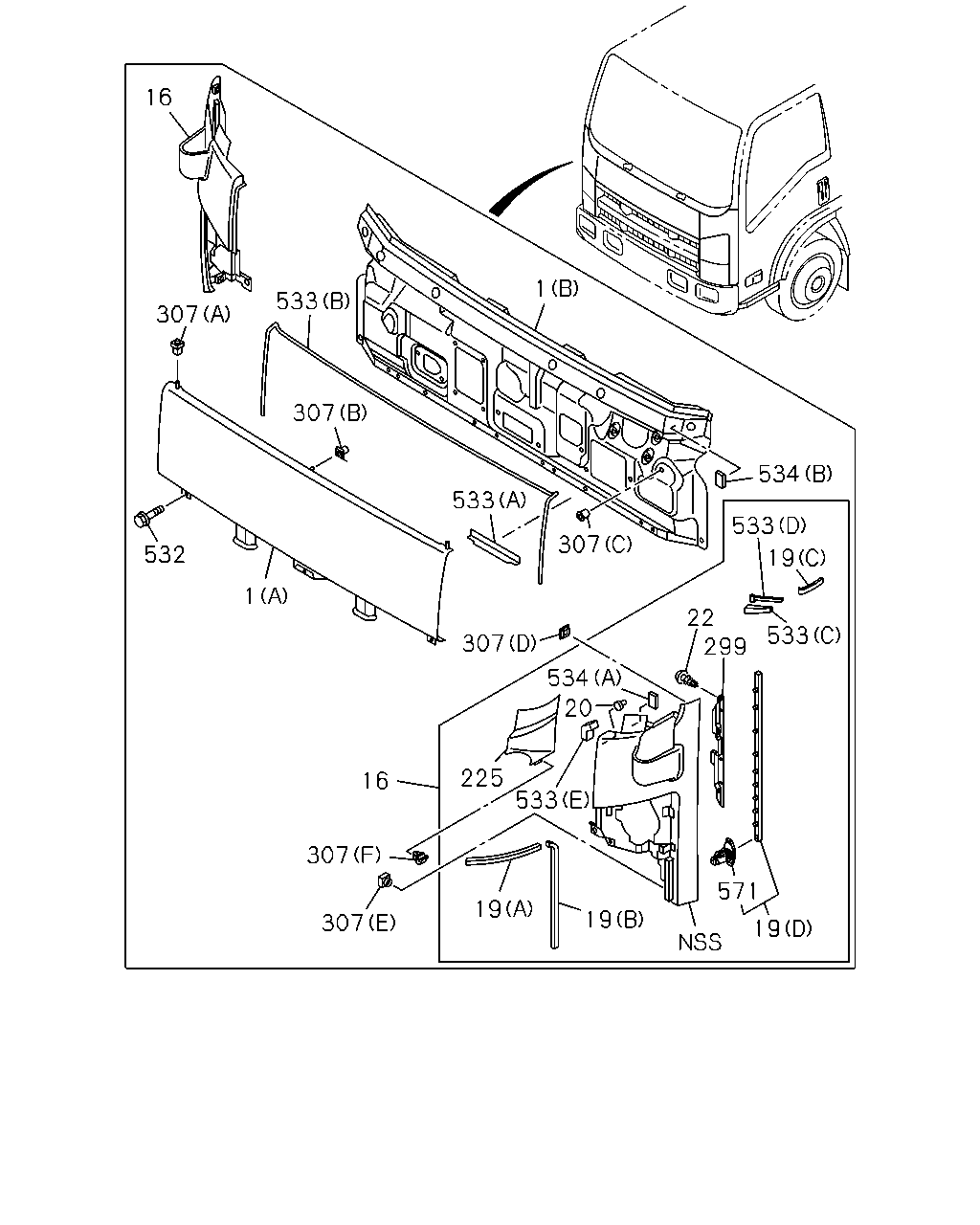

çizim 175766
16 307 533 307 532 1 16 307 307 19 19 571 19 533 225 534 20 307 307 22 299 533 19 533 533 1 534
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98042-897-7 01 1 1012-1102 ● ● ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1103-1110 ● ● ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1111- ● ● ●
1 16.550 PANEL ASM; FRT
DUMP CHASSIS(V4D) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1111- ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1012- ● ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-97585-324-9 01 1 1012-1102 ● ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1103-1110 ● ● ●
1 16.550 PANEL ASM; FRT
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1111- ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1111- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BLACK 		8-97407-904-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BLACK 		8-97407-909-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> GRAY 		8-97417-302-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> GRAY 		8-97417-308-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> WHITE 		8-97417-303-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> WHITE 		8-97417-310-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BLUE 		8-97417-304-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BLUE 		8-97417-311-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> RED 		8-97417-305-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> RED 		8-97417-312-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BLUE 		8-97407-905-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BLUE 		8-97407-910-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> WHITE 		8-97406-039-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> WHITE 		8-97406-040-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> RED 		8-97407-342-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> RED 		8-97407-343-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> DARK GREEN 		8-97407-906-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> DARK GREEN 		8-97407-911-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> YELLOW 		8-97407-907-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> YELLOW 		8-97407-912-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BEIGE 		8-97417-306-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BEIGE 		8-97417-314-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BLUE 		8-97415-715-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BLUE 		8-97415-716-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> ORANGE 		8-97417-307-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> ORANGE 		8-97417-313-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> GREEN 		8-97412-842-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> GREEN 		8-97412-843-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> LIGHT GRAY 		8-97414-635-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> LIGHT GRAY 		8-97414-636-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BLUE 		8-97409-870-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> BLUE 		8-97409-872-9 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-315-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BLACK 		8-97417-315-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-315-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-316-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BLACK 		8-97417-316-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-316-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-096-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> GRAY 		8-97412-096-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-096-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-107-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> GRAY 		8-97412-107-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-107-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-105-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> WHITE 		8-97412-105-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-105-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-116-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> WHITE 		8-97412-116-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-116-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-097-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BLUE 		8-97412-097-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-097-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-108-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BLUE 		8-97412-108-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-108-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-579-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> RED 		8-97409-579-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-579-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-588-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> RED 		8-97409-588-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-588-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-098-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BLUE 		8-97412-098-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-098-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-109-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BLUE 		8-97412-109-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-109-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> WHITE 		8-97405-621-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> WHITE 		8-97405-625-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-099-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> RED 		8-97412-099-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-099-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-110-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> RED 		8-97412-110-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-110-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-100-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> DARK GREEN 		8-97412-100-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-100-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-111-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> DARK GREEN 		8-97412-111-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-111-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-101-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> YELLOW 		8-97412-101-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-101-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-112-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> YELLOW 		8-97412-112-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-112-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-102-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BEIGE 		8-97412-102-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-102-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-113-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BEIGE 		8-97412-113-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-113-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BLUE 		8-97412-103-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BLUE 		8-97412-114-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-104-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> DARK YELLOW 		8-97412-104-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-104-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-115-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> DARK YELLOW 		8-97412-115-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-115-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-106-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> GREEN 		8-97412-106-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-106-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-117-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> GREEN 		8-97412-117-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-117-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 1012-1301 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> LIGHT GRAY 		8-97405-619-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 1012-1301 ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> LIGHT GRAY 		8-97405-623-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BLUE 		8-97405-620-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 1012-1301 ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> BLUE 		8-97405-624-8 01 1 1302- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 1302- ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1012- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1012- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1012- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1012- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1012- ● ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1012- ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1012- ● ● ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1012-1301 ● ● ●
225 16.069 COVER; SIDE,FRT
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1302- ● ● ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1012-1301 ● ● ●
225 16.069 COVER; SIDE,FRT
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1302- ● ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1012- ● ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1012- ● ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1012- ● ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1012- ● ● ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1012- ● ● ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1012- ● ● ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1012- ● ● ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1012- ● ● ●
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1012-1301 ● ● ●
307 16.125 GROMMET; FRT PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (F) 		8-98028-743-0 02 1 1302- ● ●
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1302- ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1012- ● ● ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 1012- ● ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 1012-1506 ● ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507- ● ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1012- ● ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1012- ● ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1012- ● ● ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1012- ● ● ●
534 16.550 FASTENER
BODY COLOR EBONY BLACK(508),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLANDYELLOW(812),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> (A) 40X25 		8-98089-412-1 02 1 1302- ● ●
534 16.550 FASTENER
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF> (B) 40X25 		8-98089-411-1 02 1 1302- ● ●
534 16.550 FASTENER
(A) 20X30 		8-98059-208-1 02 1 1012-1301 ● ● ●
534 16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (A) 20X30 		8-98059-208-1 02 1 1302- ● ● ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 1012- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
