0-38B — AIR COMPRESSOR PIPING; ENGINE SIDE
(#5504) — 65 parça
Tümü
A - 10PE1S
B - 10PE1N
◀
[038B] NO.2 (28 parça)

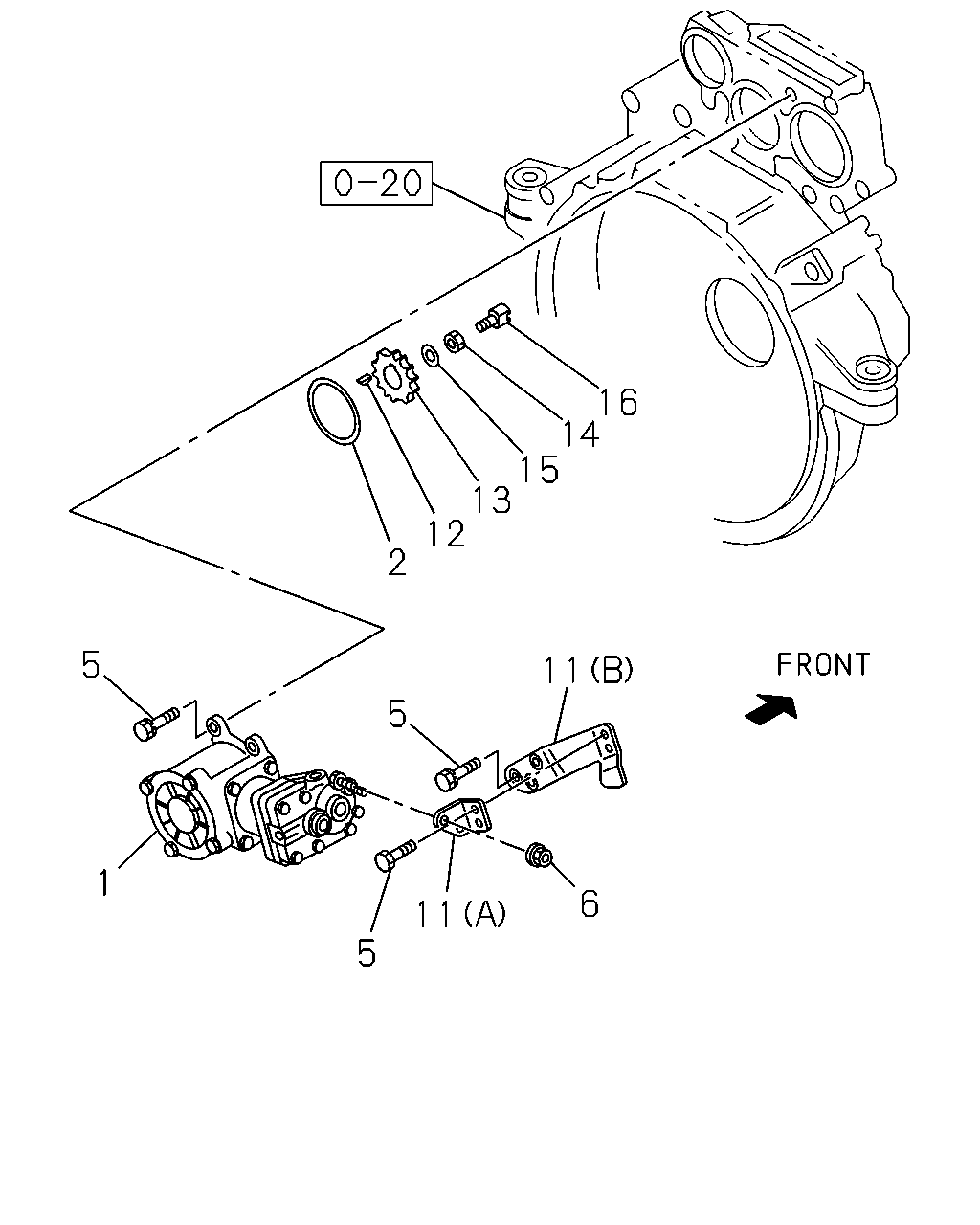

[038B] NO.1 (37 parça)
▶
16
14
15
13
12
2
5
11
5
1
6
11
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-212-6
01
1
9603-9904
●
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-305-2
01
1
9905-
●
●
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
1-09623-423-0
01
1
9603-9904
●
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
1-09623-423-0
01
1
9905-
●
●
5
BOLT; AIR CMPR FIX
M10X18 FLANGE
0-28181-018-0
03
1
9603-9904
●
5
BOLT; AIR CMPR FIX
M10X20 W/LK&PL WASHER
0-50141-020-0
01
1
9603-9904
●
5
BOLT; AIR CMPR FIX
M12X40 W/LK&PL WASHER
0-50151-240-0
04
1
9603-9702
●
5
BOLT; AIR CMPR FIX
M12X35 FLANGE
0-28181-235-0
04
1
9703-9904
●
5
BOLT; AIR CMPR FIX
M10X18 FLANGE
0-28181-018-0
03
1
9905-
●
●
5
BOLT; AIR CMPR FIX
M10X20 W/LK&PL WASHER
0-50141-020-0
01
1
9905-
●
●
5
BOLT; AIR CMPR FIX
M12X90 FLANGE
0-28181-290-0
01
1
9905-
●
●
5
BOLT; AIR CMPR FIX
M12X140 FLANGE
0-28186-214-0
03
1
9905-
●
●
6
NUT; AIR CMPR
M10 FLANGE
0-91150-210-0
02
1
9603-9904
●
6
NUT; AIR CMPR
M10 FLANGE
0-91150-210-0
02
1
9905-
●
●
11
BRACKET; AIR CMPR
(A)
1-19187-018-0
01
1
9603-9904
●
11
BRACKET; AIR CMPR
(B)
1-19187-030-0
01
1
9905-
●
●
11
BRACKET; AIR CMPR
(B)
1-19187-023-1
01
1
9603-9904
●
11
BRACKET; AIR CMPR
(A)
1-19187-031-0
01
1
9905-
●
●
12
KEY; AIR CMPR GEAR
9-08055-516-0
01
1
9603-9904
●
12
KEY; AIR CMPR GEAR
9-08055-516-0
01
1
9905-
●
●
13
GEAR; AIR CMPR DRIVE
Z=26
1-12524-044-0
01
1
9603-9904
●
13
GEAR; AIR CMPR DRIVE
Z=26
1-12524-044-1
01
1
9905-
●
●
14
NUT; GEAR
M20
9-99111-520-0
01
1
9603-9904
●
14
NUT; GEAR
M20
9-99111-520-0
01
1
9905-
●
●
15
WASHER; GEAR
ID=21
9-09164-520-0
01
1
9603-9904
●
15
WASHER; GEAR
ID=21
9-09164-520-0
01
1
9905-
●
●
16
ADAPTER
1-12539-010-0
01
1
9603-9904
●
16
ADAPTER
1-12539-010-0
01
1
9905-
●
●
98
99
62
29
29
28
27
28
32
87
116
62
115
29
29
57
28
1
56
27
28
32
49
52
52
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-212-6
01
1
9603-9904
●
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-305-2
01
1
9905-
●
●
27
HOSE; AIR CMPR,SUCTION
L=55
1-09360-784-0
02
1
9603-9904
●
27
HOSE; AIR CMPR,SUCTION
L=55
1-09360-784-0
02
1
9905-
●
●
28
CLIP; HOSE,AIR CMPR
ID=28.5
1-09707-150-0
04
1
9603-9904
●
28
CLIP; HOSE,AIR CMPR
ID=28.5
1-09707-150-0
04
1
9905-
●
●
29
CLIP; AIR PIPE
(A)
1-09701-193-1
02
1
9603-9904
●
29
CLIP; AIR PIPE
(A)
1-09701-193-1
02
1
9905-
●
●
29
CLIP; AIR PIPE
(B)
1-09701-194-0
02
1
9603-9904
●
29
CLIP; AIR PIPE
(B)
1-09701-194-1
02
1
9905-
●
●
32
PIPE; AIR,AIR CMPR
(B)
1-19192-881-0
01
1
9603-9605
●
32
PIPE; AIR,AIR CMPR
(B)
1-19192-981-0
01
1
9606-9904
●
32
PIPE; AIR,AIR CMPR
(B)
1-19192-984-0
01
1
9905-
●
●
32
PIPE; AIR,AIR CMPR
(A)
1-19192-902-0
01
1
9603-9904
●
32
PIPE; AIR,AIR CMPR
(A)
1-19192-902-0
01
1
9905-
●
●
49
PIPE; AIR,CHARGE
1-19192-882-0
01
1
9603-9904
●
49
PIPE; AIR,CHARGE
1-19193-073-0
01
1
9905-
●
●
51
BOLT; EYE,AIR PIPE TO CMPR
(B) M24X39
1-09675-175-1
01
1
9603-9904
●
51
BOLT; EYE,AIR PIPE TO CMPR
(B) M24X39
1-09675-175-1
01
1
9905-
●
●
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32
9-09571-424-0
02
1
9603-9904
●
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32
9-09571-424-0
02
1
9905-
●
●
56
BRACKET; AIR PIPE FIX
1-19199-228-0
01
1
9603-9904
●
56
BRACKET; AIR PIPE FIX
1-19199-228-0
01
1
9905-
●
●
57
BOLT; BRKT,AIR PIPE
M6X12 FLANGE
0-28080-612-0
02
1
9603-9904
●
57
BOLT; BRKT,AIR PIPE
M6X12 FLANGE
0-28080-612-0
02
1
9905-
●
●
62
BOLT; CLIP
M6X35 FLANGE
0-28080-635-0
02
1
9603-9904
●
62
BOLT; CLIP
M6X35 FLANGE
0-28080-635-0
02
1
9905-
●
●
87
BOLT; BRKT FIX
M8X16 FLANGE
0-28080-816-0
02
1
9603-9904
●
87
BOLT; BRKT FIX
M8X16 FLANGE
0-28080-816-0
02
1
9905-
●
●
98
BRACKET; AIR & OIL PIPE
1-19199-227-0
01
1
9603-9904
●
98
BRACKET; AIR & OIL PIPE
1-19199-227-0
01
1
9905-
●
●
99
BOLT; BRKT AIR PIPE
M8X16 FLANGE
0-28080-816-0
02
1
9603-9904
●
99
BOLT; BRKT AIR PIPE
M8X16 FLANGE
0-28080-816-0
02
1
9905-
●
●
115
BOLT; AIR PIPE
M6X12 FLANGE
0-28080-612-0
03
1
9603-9904
●
115
BOLT; AIR PIPE
M6X12 FLANGE
0-28080-612-0
03
1
9905-
●
●
116
BRACKET; AIR PIPE
1-22196-326-1
01
1
9603-9904
●
116
BRACKET; AIR PIPE
1-22196-326-1
01
1
9905-
●
●
