6-47 — MUD GUARD AND INSULATOR (#55037) — 75 parça

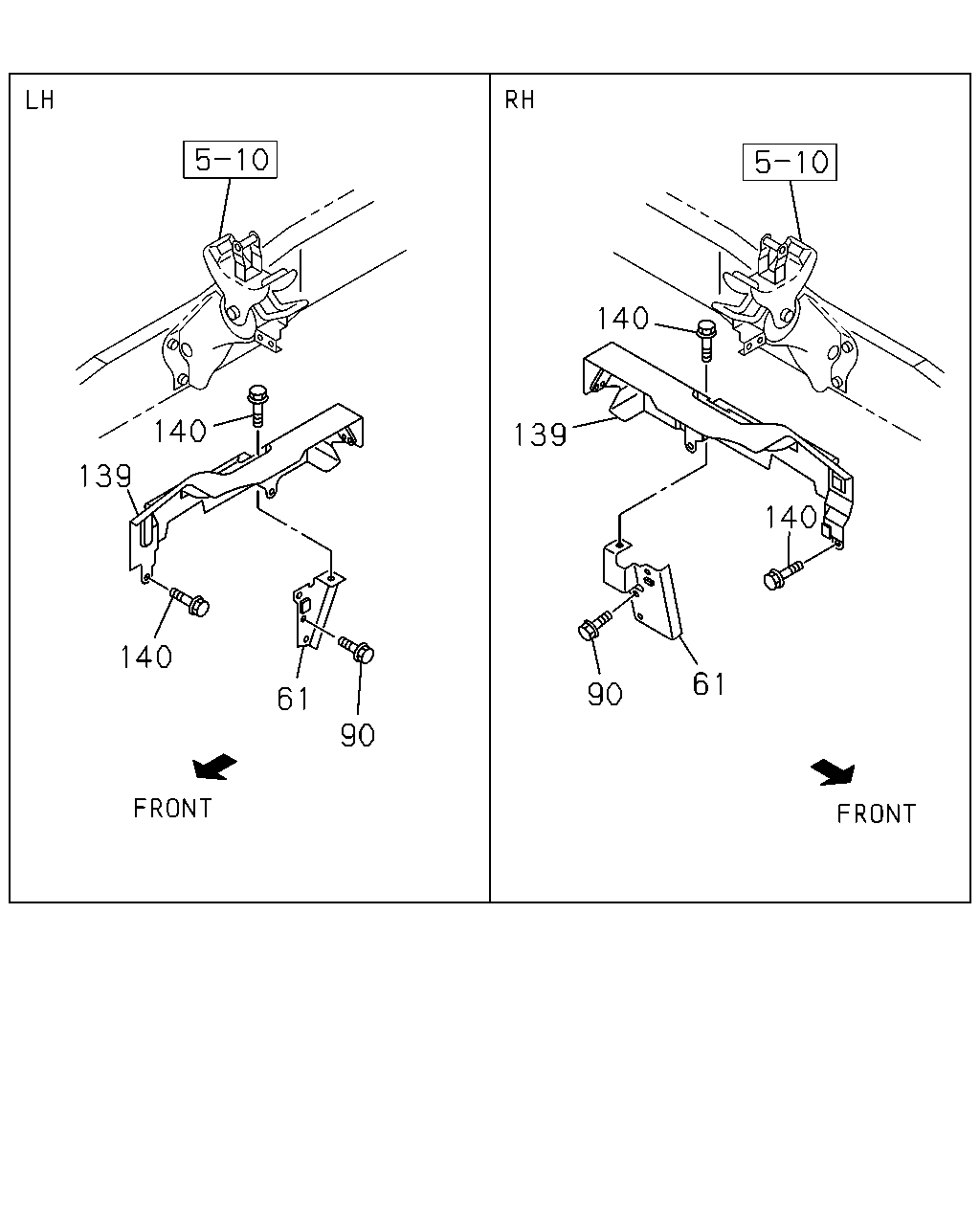

140 140 139 139 140 140 61 90 61 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	08.155 BRACKET; COVER	8-98040-465-1	01	1	0810-	●	●
61	08.155 BRACKET; COVER	8-98040-466-1	01	1	0810-	●	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0810-	●	●
139	08.153 PANEL; SIDE	8-98115-458-1	01	1	0810-	●	●
139	08.153 PANEL; SIDE	8-98043-920-2	01	1	0810-	●	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	0810-	●	●

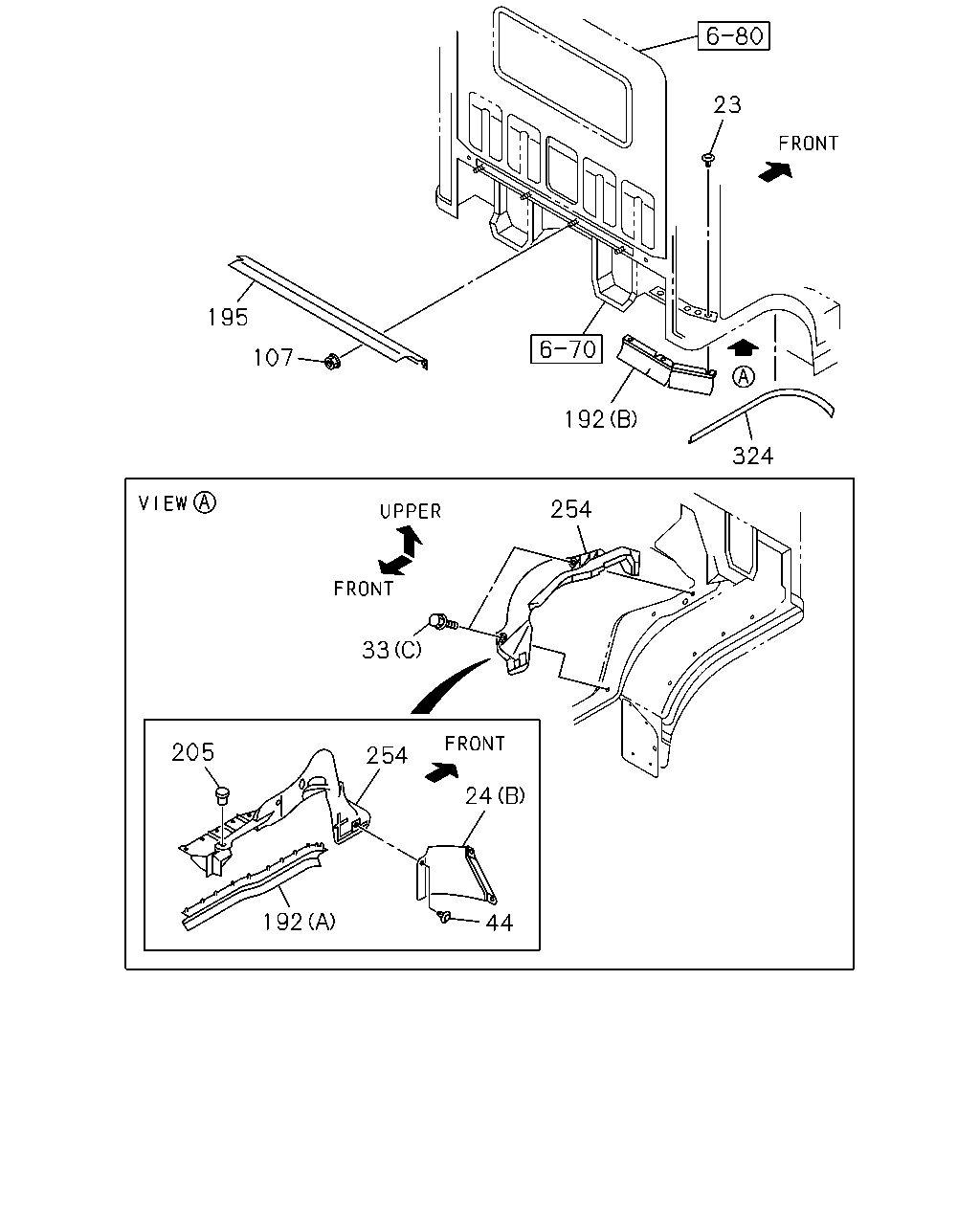

23 195 107 192 324 254 33 205 254 24 192 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0810-	●	●
24	08.155 PLATE; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-031-1	02	1	0810-	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0810-		●
24	08.155 PLATE; MUD COVER (B)	8-98037-561-0	02	1	0810-0910	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	0911-	●	●
33	08.155 BOLT; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0810-1209	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0810-1209		●
33	08.155 BOLT; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-		●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0810-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0810-	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	0810-	●	●
107	08.214 NUT; HEAT PROTECTOR RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D) 03.417 M6 FLANGE	8-94279-514-0	04	1	0810-	●
107	08.214 NUT; HEAT PROTECTOR DUMP CHASSIS(V4D) 03.417 M6 FLANGE	8-94279-514-0	04	1	0810-	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	0810-	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	0810-	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	0810-	●	●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D)	8-98028-224-1	01	1	0810-	●
195	03.602 PROTECTOR; HEAT DUMP CHASSIS(V4D)	8-98028-224-1	01	1	0810-	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0810-	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	0810-	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	0810-	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	0810-	●	●

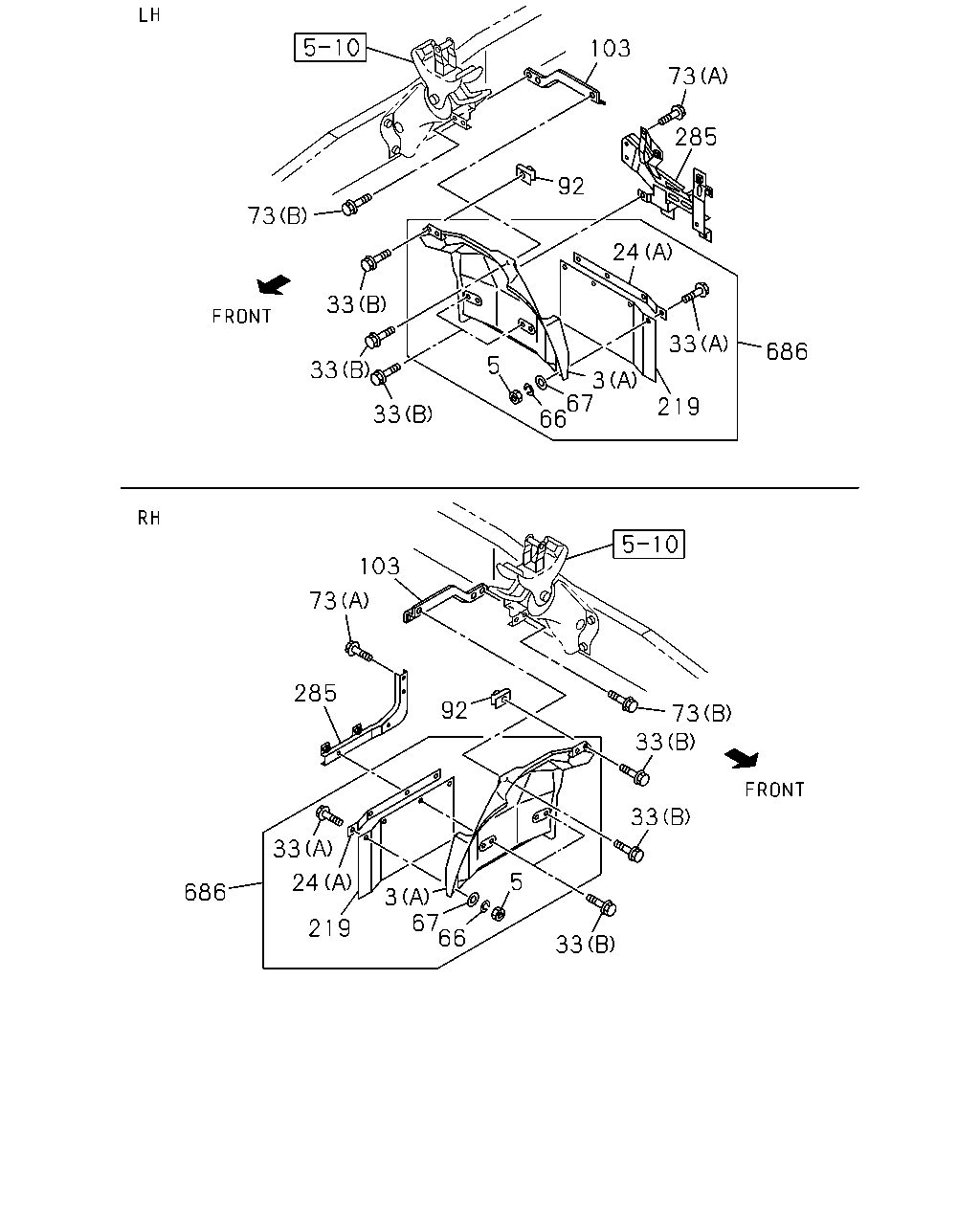

103 73 285 92 73 24 33 33 686 5 33 3 67 66 219 33 103 73 285 92 73 33 33 33 5 24 686 3 67 66 219 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-029-5	01	1	0810-	●
3	08.153 GUARD; MUD,RR (A)	8-98004-029-5	01	1	0810-		●
3	08.153 GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-030-4	01	1	0810-	●
3	08.153 GUARD; MUD,RR (A)	8-98004-030-4	01	1	0810-		●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED<RS6> 08.214 (B) H=440 B=430	8-97214-177-1	02	1	0810-	●
5	08.155 NUT; FLAP RUBBER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 03.330 M6	0-91110-506-0	08	1	0810-1209	●
5	08.155 NUT; FLAP RUBBER 03.330 M6	0-91110-506-0	08	1	0810-1209		●
5	08.155 NUT; FLAP RUBBER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) M6	8-98227-380-0	08	1	1210-	●
5	08.155 NUT; FLAP RUBBER M6	8-98227-380-0	08	1	1210-		●
24	08.155 PLATE; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-031-1	02	1	0810-	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0810-		●
24	08.155 PLATE; MUD COVER (B)	8-98037-561-0	02	1	0810-0910	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	0911-	●	●
33	08.155 BOLT; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0810-1209	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0810-1209		●
33	08.155 BOLT; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-		●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0810-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0810-	●	●
66	08.155 WASHER; LK G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) ID=6.1	0-91510-606-0	08	1	0810-1209	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	0810-1209		●
67	08.155 WASHER; PL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 00.413 ID=6.4	0-91610-606-0	08	1	0810-1209	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	0810-1209		●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0810-	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0810-	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	0810-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	0810-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	0810-	●	●
219	08.155 FLAP; MUD GUARD G.V.W. 6.0-6.5TON(RPV)	8-98004-032-1	02	1	0810-	●
219	08.155 FLAP; MUD GUARD G.V.W. 7.0-7.5TON(RPX)	8-98004-033-1	02	1	0810-	●
219	08.155 FLAP; MUD GUARD	8-98004-033-1	02	1	0810-		●
285	08.155 BRACKET; MUD COVER	8-98001-314-2	01	1	0810-	●	●
285	08.155 BRACKET; MUD COVER	8-98001-320-3	01	1	0810-	●	●
686	08.155 FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-746-7	01	1	0810-	●
686	08.155 FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-747-6	01	1	0810-	●
686	08.155 FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX)	8-97387-750-7	01	1	0810-	●
686	08.155 FLAP ASM; MUD	8-97387-750-7	01	1	0810-		●
686	08.155 FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX)	8-97387-751-6	01	1	0810-	●
686	08.155 FLAP ASM; MUD	8-97387-751-6	01	1	0810-		●

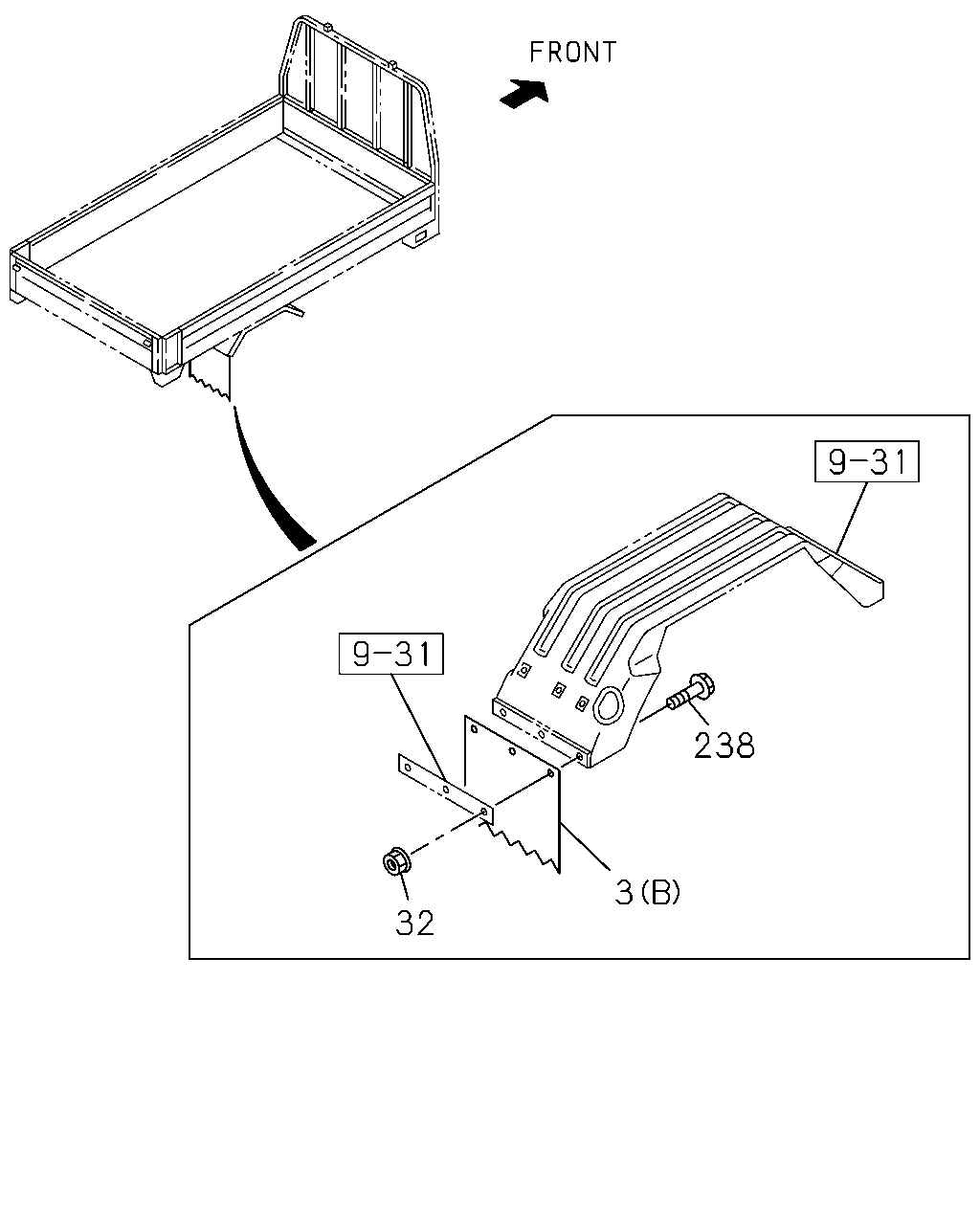

238 3 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-029-5	01	1	0810-	●
3	08.153 GUARD; MUD,RR (A)	8-98004-029-5	01	1	0810-		●
3	08.153 GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-030-4	01	1	0810-	●
3	08.153 GUARD; MUD,RR (A)	8-98004-030-4	01	1	0810-		●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED<RS6> 08.214 (B) H=440 B=430	8-97214-177-1	02	1	0810-	●
32	08.155 NUT; MUD GUARD RR BODY FLAT BED<RS6> 08.212 M6 FLANGE	8-97065-431-0	06	1	0810-	●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED<RS6> 17.208 M6X16 FLANGE	8-98098-459-0	06	1	0810-	●
