◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51187 - NPR/NQR(RHD) EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#55027) — 23 parça

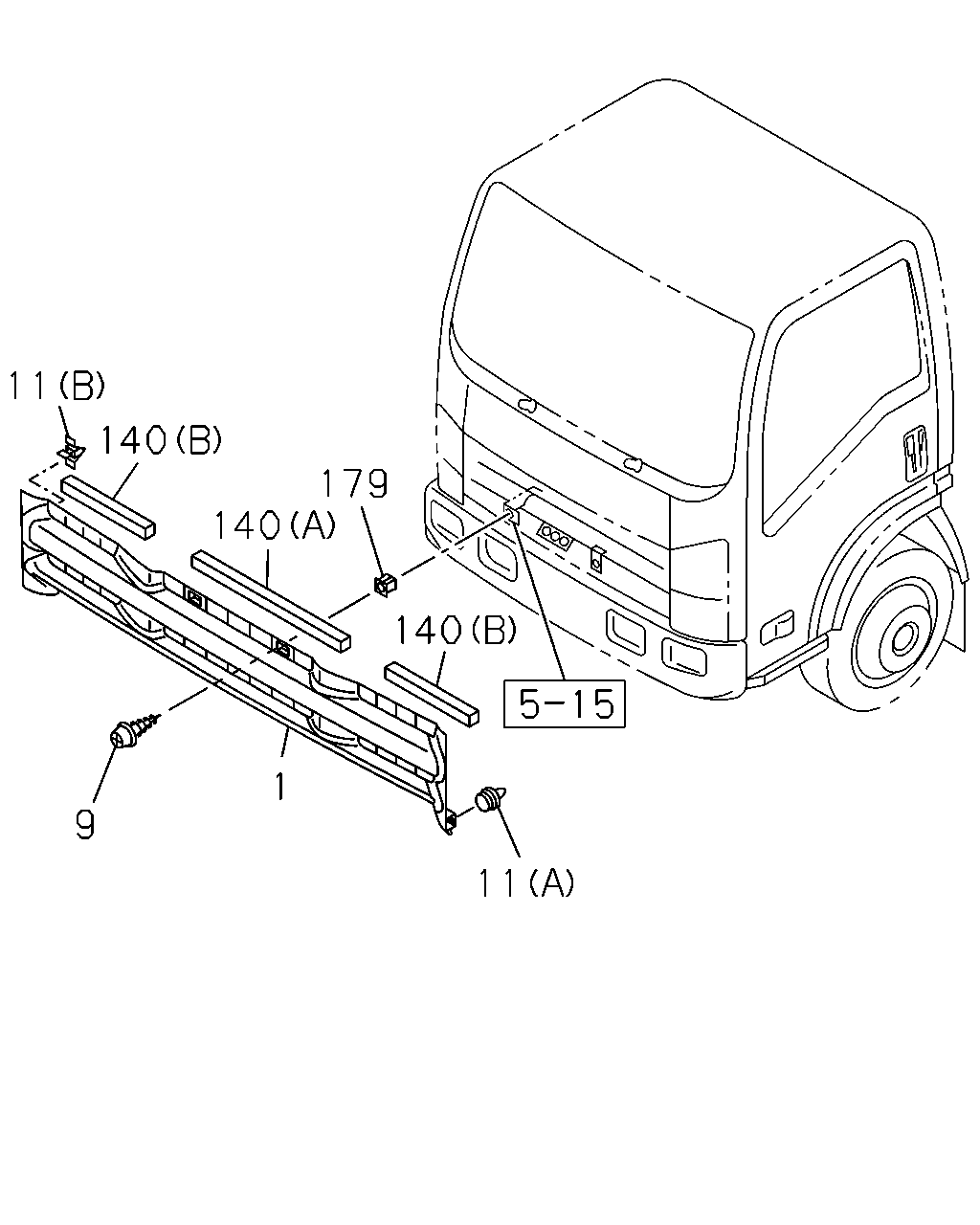

çizim 59869
11 140 179 140 140 1 9 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97408-224-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-394-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-400-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-395-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-396-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97408-225-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97407-344-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97408-226-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97408-227-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-397-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-399-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-401-4 01 1 0904- ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-398-4 01 1 0811- ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-468-4 01 1 0810- ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 0810- ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-293-4 01 1 0810- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 0810- ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 0810- ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 0810- ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 0810- ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-98054-280-0 01 1 0810- ● ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-98054-281-0 02 1 0810- ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0810- ● ●
