2 |

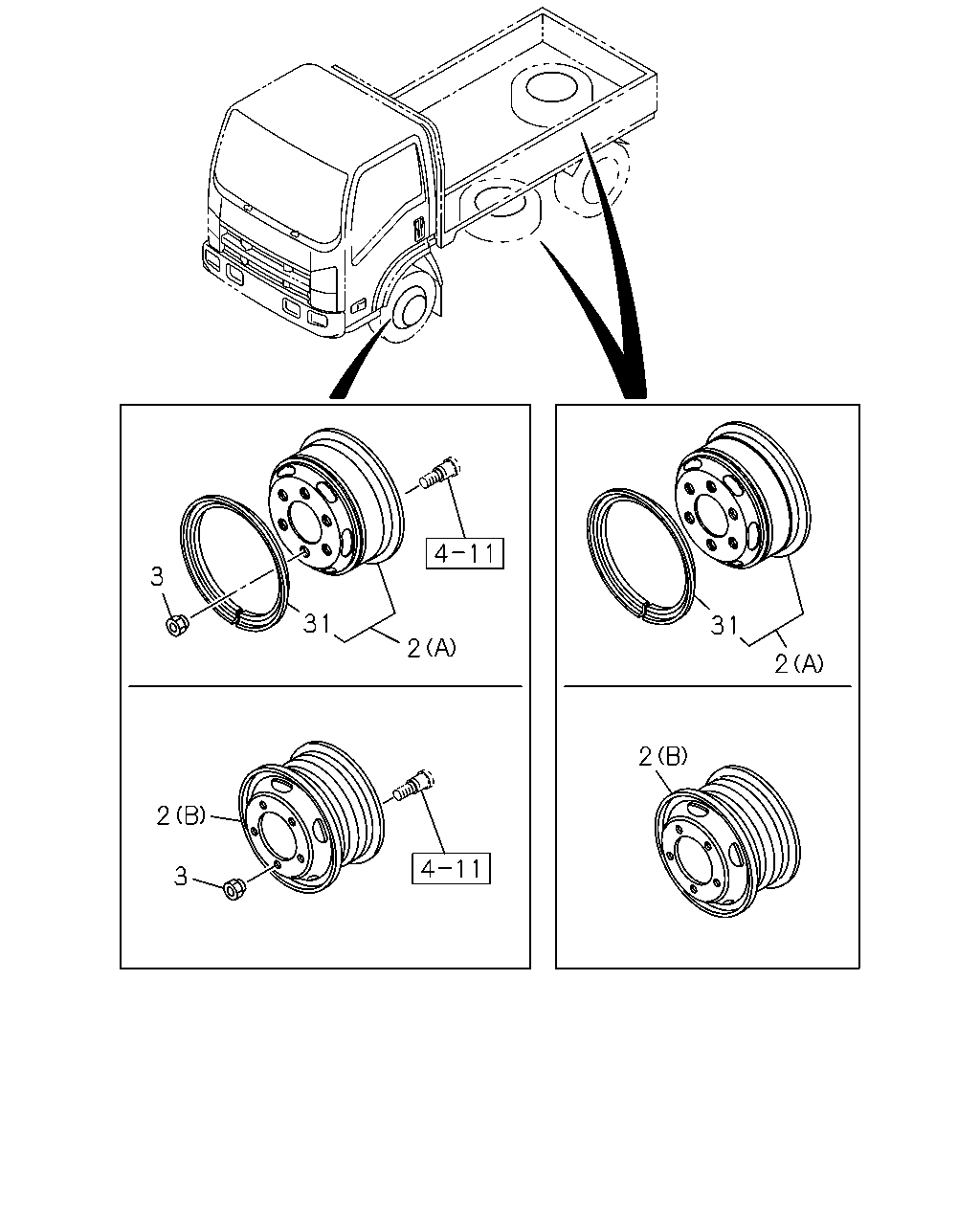

05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
01 |
1 |
0811-1010 |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP)
TIRE & DISC BREAK DOWN FOR KD<6MF>
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
01 |
1 |
0811-1010 |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP)
(B) SPARE
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
01 |
1 |
1011- |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP)
(B) FRONT,REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
06 |
1 |
0811-1010 |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP)
TIRE & DISC BREAK DOWN FOR KD<6MF>
(B) FRONT,REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98012-855-0 |
06 |
1 |
0811-1010 |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 225/80R17.5 17.5X6.00-127(BXP)
(B) FRONT,REAR
17.5X6.00 OFFSET=127 SILVER 6-HOLE
|
8-98168-215-0 |
06 |
1 |
1011- |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC
16-5.5J-116.5(CSA)
(B) SPARE
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
01 |
1 |
0810- |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC
16-5.5J-116.5(CSA)
(B) FRONT,REAR
16X5.5J OFFSET=116.5 PLATINUM SILVER
|
8-97233-664-0 |
06 |
1 |
0810- |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-W
HL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-12
7 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10
6GSX16-127 6-WHL/NUT DYNAMIC(97V)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0810-0810 |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0810-0810 |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0810- |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
(A) SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0810- |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-W
HL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-12
7 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10
6GSX16-127 6-WHL/NUT DYNAMIC(97V)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0810-0810 |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0810-0810 |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0810- |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
(A) FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0810- |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7-16-10 16X5.5F-115 T/VLV TR177A(95H),
FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1
0L 5.5FX16-115 T/VLV TR177A(98H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
0810-0810 |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
(A) SPARE
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
01 |
1 |
0810- |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7-16-10 16X5.5F-115 T/VLV TR177A(95H),
FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1
0L 5.5FX16-115 T/VLV TR177A(98H)
(A) FRONT,REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
0810-0810 |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
(A) FRONT,REAR
5.5FX16 OFFSET=115 BLACK 5-HOLE
|
8-94378-330-1 |
06 |
1 |
0810- |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H)
(A) SPARE
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
01 |
1 |
0810-0810 |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12
6GSX16-127(19H)
(A) SPARE
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
01 |
1 |
0810- |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H)
(A) FRONT,REAR
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
06 |
1 |
0810-0810 |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12
6GSX16-127(19H)
(A) FRONT,REAR
6.0SGX16 OFFSET=127 BLACK 5-HOLE
|
8-94135-596-2 |
06 |
1 |
0810- |
|
● |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT
(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135
6-WHL/NUT(9ZP)
(A) SPARE
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
01 |
1 |
0810-0810 |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU
T(CUZ)
(A) SPARE
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
01 |
1 |
0810- |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT
(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135
6-WHL/NUT(9ZP)
(A) FRONT,REAR
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
06 |
1 |
0810-0810 |
● |
|
| |
2 |
05.803 WHEEL; DISC
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU
T(CUZ)
(A) FRONT,REAR
6.00GSX16 OFFSET=135 BLACK 6-HOLE
|
1-42350-417-0 |
06 |
1 |
0810- |
● |
|
| |
4 |

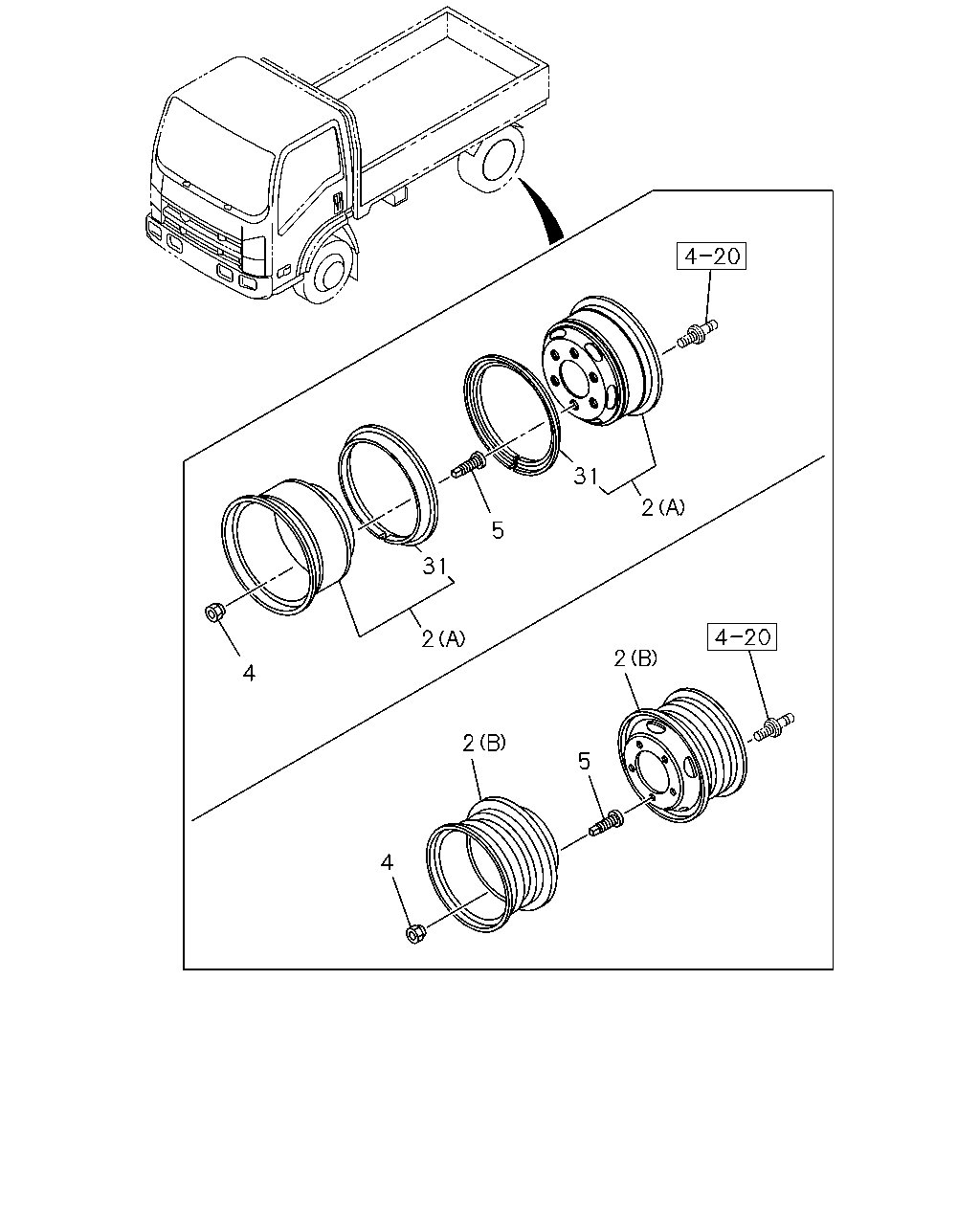

05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC
16-5.5J-116.5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-1
6-10 6GSX16-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FR
T&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),
FRT&RR7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0810-0810 |
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC
16-5.5J-116.5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12 R/L 6.00GSX1
6-127 5-WHL/NUT(CVH),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127
(19H)
M27 RH THREAD
|
8-98007-824-0 |
05 |
1 |
0810- |
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC
16-5.5J-116.5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-1
6-10 6GSX16-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FR
T&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),
FRT&RR7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0810-0810 |
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 195/85R16 DISC
16-5.5J-116.5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12 R/L 6.00GSX1
6-127 5-WHL/NUT(CVH),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127
(19H)
M27 LH THREAD
|
8-98007-825-0 |
05 |
1 |
0810- |
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-W
HL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-12
7 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10
6GSX16-127 6-WHL/NUT DYNAMIC(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810-0810 |
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810-0810 |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810- |
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810- |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-W
HL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-12
7 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10
6GSX16-127 6-WHL/NUT DYNAMIC(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810-0810 |
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810-0810 |
● |
|
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810- |
|
● |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810- |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC
16-5.5J-116.5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-1
6-10 6GSX16-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FR
T&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),
FRT&RR7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0810-0810 |
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC
16-5.5J-116.5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12 R/L 6.00GSX1
6-127 5-WHL/NUT(CVH),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127
(19H)
OUTER M27,INNER M18 RH THREAD
|
8-98007-810-0 |
05 |
1 |
0810- |
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC
16-5.5J-116.5(CSA),FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-1
6-10 6GSX16-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FR
T&RR 7-16-10 16X5.5F-115 T/VLV
TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),
FRT&RR7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0810-0810 |
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 195/85R16 DISC
16-5.5J-116.5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR7.50R-16-12 R/L 6.00GSX1
6-127 5-WHL/NUT(CVH),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127
(19H)
OUTER M27,INNER M18 LH THREAD
|
8-98007-811-0 |
05 |
1 |
0810- |
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-W
HL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-12
7 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10
6GSX16-127 6-WHL/NUT DYNAMIC(97V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810-0810 |
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810-0810 |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810- |
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810- |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-W
HL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-12
7 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10
6GSX16-127 6-WHL/NUT DYNAMIC(97V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810-0810 |
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810-0810 |
● |
|
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810- |
|
● |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810- |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-W
HL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-12
7 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10
6GSX16-127 6-WHL/NUT DYNAMIC(97V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0810-0810 |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0810-0810 |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0810- |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0810- |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-12 6GSX16-127
6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-W
HL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-12
7 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10
6GSX16-127 6-WHL/NUT DYNAMIC(97V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0810-0810 |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0810-0810 |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6
-WHL/NUT(05C),FRT&RR 7.5R-16-10
6GSX16-127 6-WHL/NUT(83V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0810- |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0810- |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7-16-10 16X5.5F-115 T/VLV TR177A(95H),
FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1
0L 5.5FX16-115 T/VLV TR177A(98H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0810-0810 |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
SPARE
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
01 |
1 |
0810- |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR
7-16-10 16X5.5F-115 T/VLV TR177A(95H),
FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1
0L 5.5FX16-115 T/VLV TR177A(98H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0810-0810 |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC
5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)
FRONT,REAR
16X5.50F STAMP, BLACK
|
8-94135-601-0 |
06 |
1 |
0810- |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H)
SPARE
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
01 |
1 |
0810-0810 |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
01 |
1 |
0810- |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
06 |
1 |
0810-0810 |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV)
,FRT&RR7.50R-16-12 R/L 6.00GSX16-127
5-WHL/NUT(CVH),FRT&RR 7.5R-16-12
6GSX16-127(19H)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94135-602-0 |
06 |
1 |
0810- |
|
● |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT
(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135
6-WHL/NUT(9ZP)
SPARE
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
01 |
1 |
0810-0810 |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU
T(CUZ)
SPARE
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
01 |
1 |
0810- |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT
(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135
6-WHL/NUT(9ZP)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
06 |
1 |
0810-0810 |
● |
|
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NU
T(CUZ)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
1-42355-015-2 |
06 |
1 |
0810- |
● |
|
