0-37 — TURBOCHARGER (#5502) — 28 parça
çizim 41292
10 23 18 23 45 17 17 17 17 22
BalonParca AdiParca NoAdetTipApplied Date
10 REPAIR KIT; TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14453-041-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14455-026-0 04 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-09100-015-0 04 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14453-027-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(A) ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14453-025-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(B) ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14453-026-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-09100-014-0 04 1 -

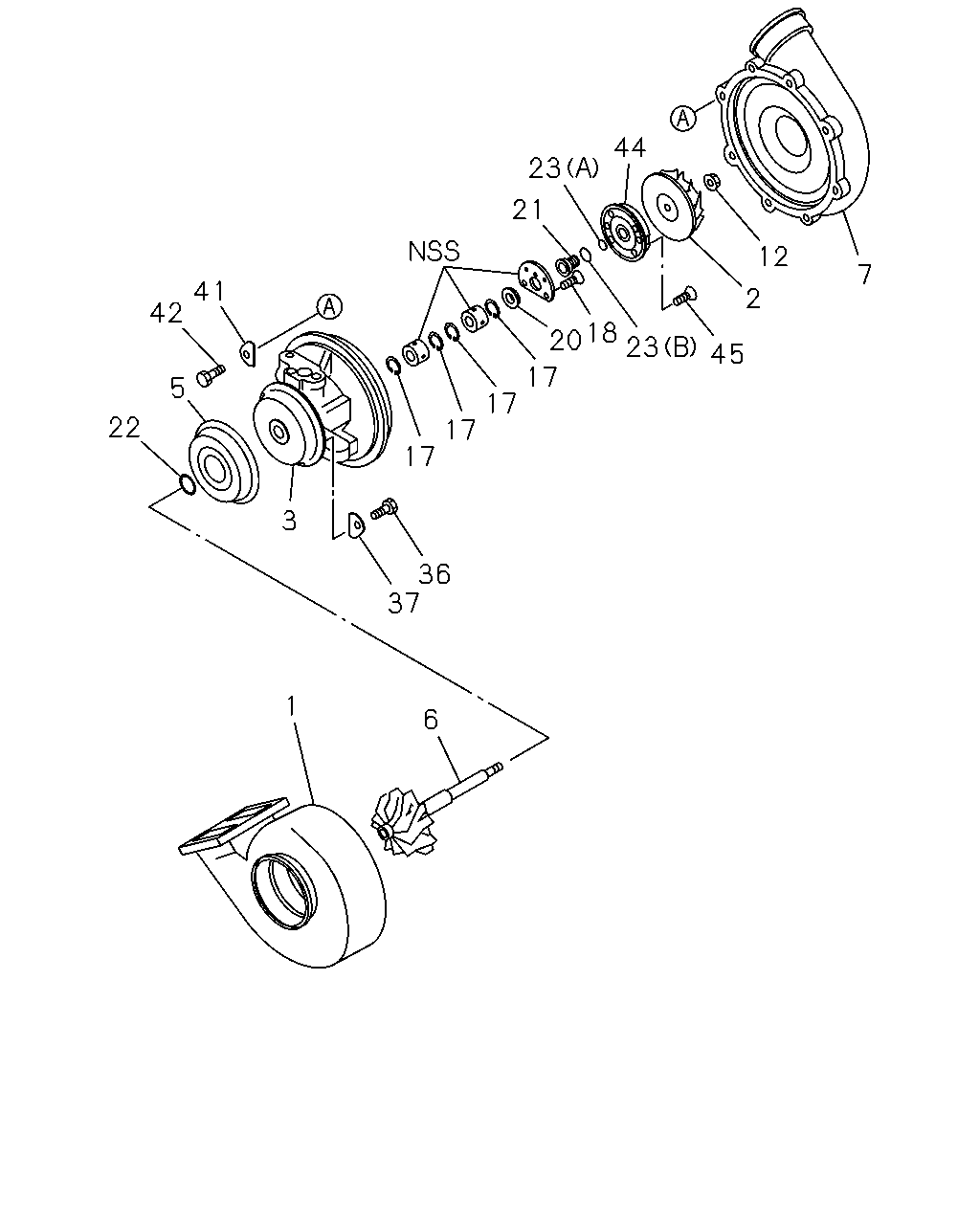

çizim 43980
44 23 21 12 7 41 42 2 18 20 23 45 17 17 5 22 17 17 3 36 37 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-290-2 		1-14415-090-0 01 1 -
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: B = 1-14400-342-4 		1-14415-101-0 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14451-059-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14411-044-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14425-017-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14450-038-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14414-066-0 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-09400-047-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14455-026-0 04 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-09100-015-0 04 1 -
20 BUSHING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14453-028-0 01 1 -
21 THROWER; OIL,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14455-027-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14453-027-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(A) ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14453-025-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(B) ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14453-026-0 01 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-09000-405-0 10 1 -
37 PLATE; LK,TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14421-018-0 10 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14421-016-0 08 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-09000-404-0 08 1 -
44 PLATE; SEAL,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-14425-007-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-290-2, B = 1-14400-342-4 		1-09100-014-0 04 1 -
