4-50 — FRONT SUSPENSION (#55014) — 79 parça

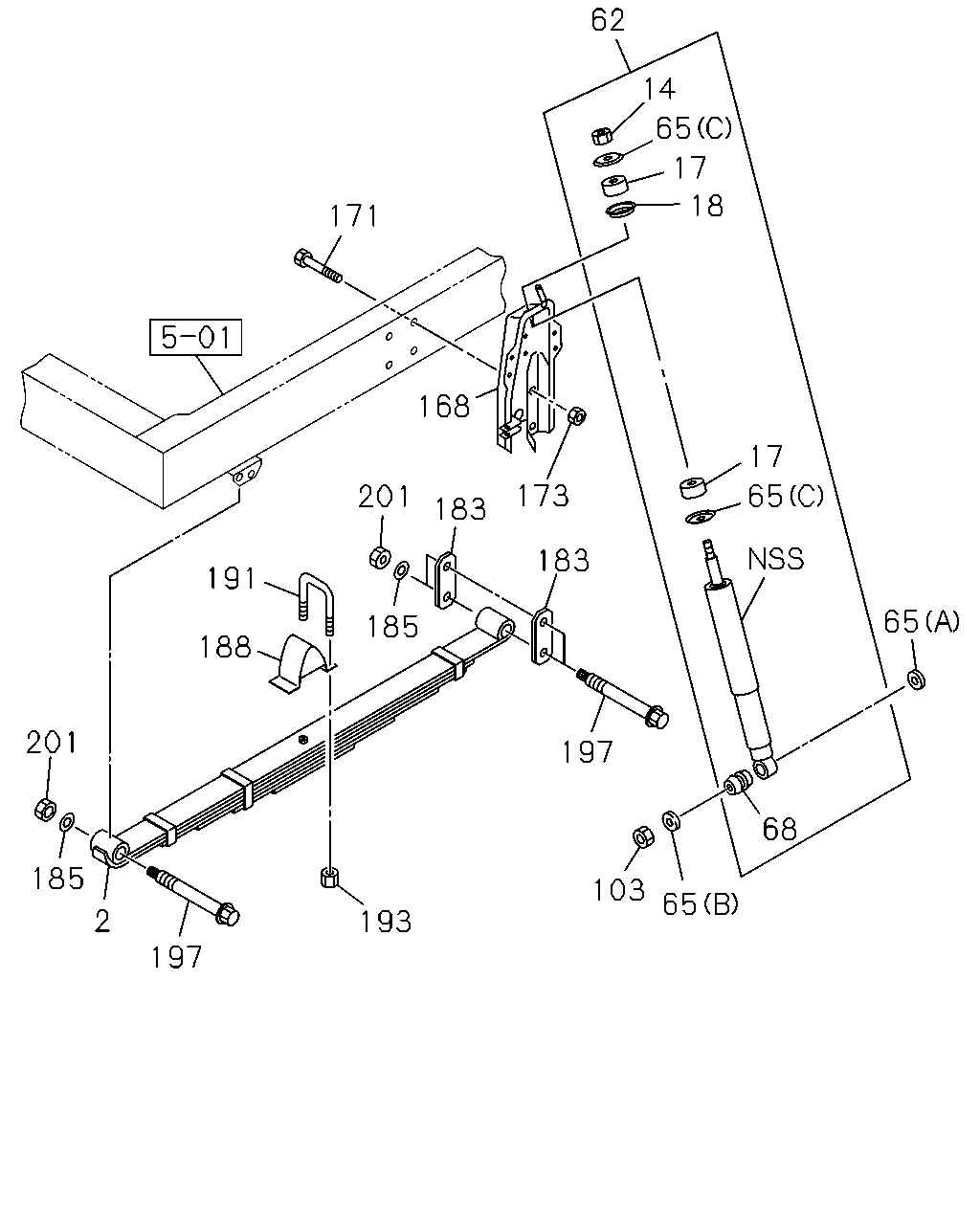

62 14 65 17 18 171 168 17 173 65 201 183 183 191 65 185 188 201 197 68 185 103 65 2 193 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX) 6-LEAF	8-98079-920-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX) 6-LEAF	8-98079-922-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-910-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-912-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98079-923-0	01	1	0810-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98079-924-0	01	1	0810-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98025-026-0	01	1	0810-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98025-027-0	01	1	0810-		●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0810-	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0810-	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0810-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 6.0-6.5TON(RPV)	8-97253-617-1	02	1	0810-	●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 7.0-7.5TON(RPX)	8-98080-129-1	02	1	0810-	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. TIRE SIZE 8.25-16<7QP>	8-98080-129-1	02	1	0810-		●
62	07.345 ABSORBER ASM; SHOCK,FRT TIRE SIZE 8.25-16<7QP>	8-98079-867-1	02	1	0810-		●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS	5-87610-128-1	02	1	1304-	●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS	5-87610-153-0	02	1	1304-	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS	5-87610-153-0	02	1	1304-		●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0810-	●	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0810-	●	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0810-	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0810-	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0810-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98015-001-0	01	1	0810-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98015-002-0	01	1	0810-	●	●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0810-	●	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0810-	●	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0810-	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	0810-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0810-	●	●
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	0810-	●
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	0810-		●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0810-	●
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	0810-		●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0810-	●	●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0810-	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0810-	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0810-	●	●

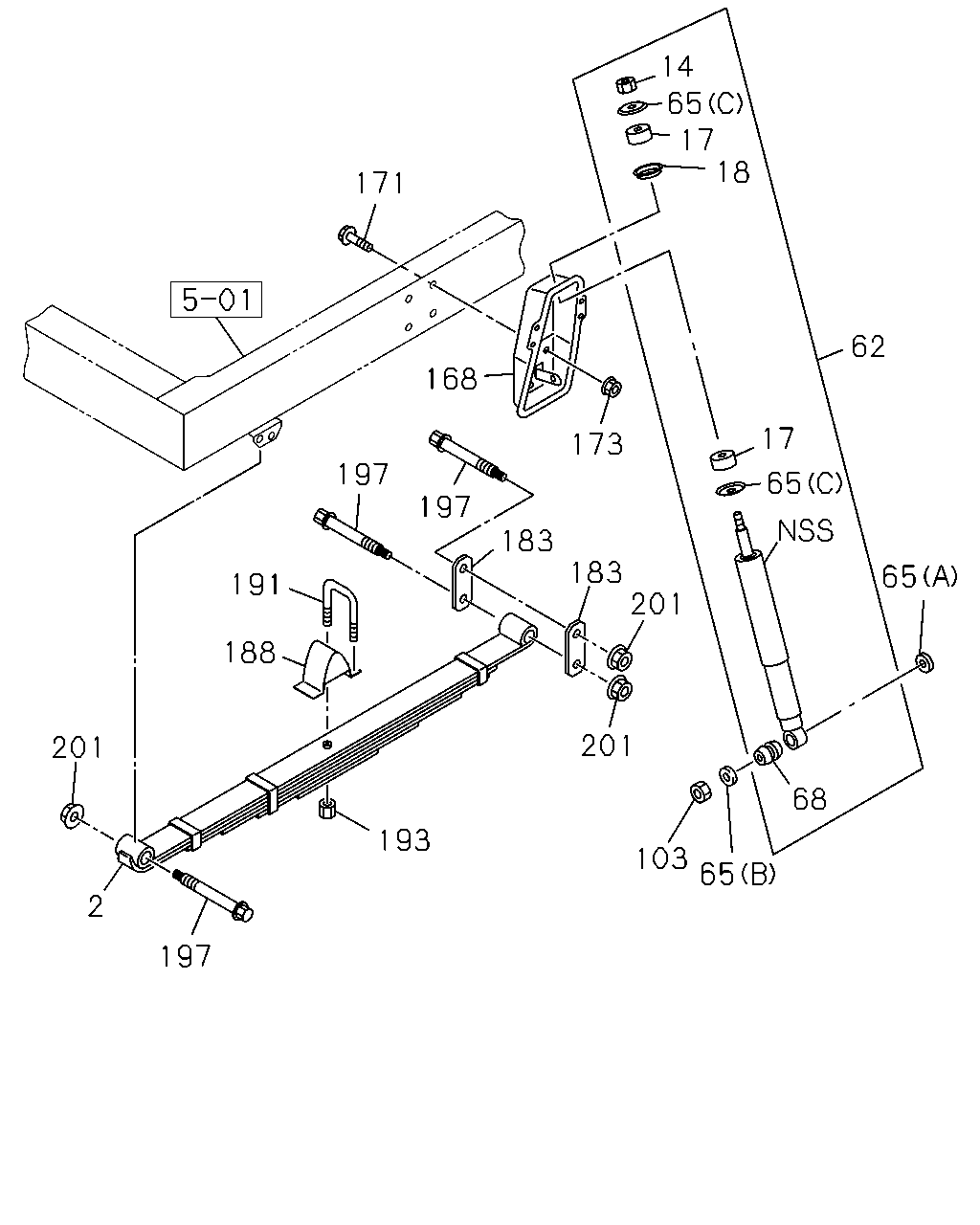

14 65 17 18 171 62 168 17 173 197 65 197 183 183 201 65 191 188 201 201 68 193 103 65 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX) 6-LEAF	8-98079-920-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.0-7.5TON(RPX) 6-LEAF	8-98079-922-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-910-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-912-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-923-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98079-923-0	01	1	0810-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98079-924-0	01	1	0810-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98079-924-0	01	1	0810-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98025-026-0	01	1	0810-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 6-LEAF	8-98025-027-0	01	1	0810-		●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0810-	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0810-	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0810-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 6.0-6.5TON(RPV)	8-97253-617-1	02	1	0810-	●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 7.0-7.5TON(RPX)	8-98080-129-1	02	1	0810-	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. TIRE SIZE 8.25-16<7QP>	8-98080-129-1	02	1	0810-		●
62	07.345 ABSORBER ASM; SHOCK,FRT TIRE SIZE 8.25-16<7QP>	8-98079-867-1	02	1	0810-		●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS	5-87610-128-1	02	1	1304-	●
62	07.345 ABSORBER ASM; SHOCK,FRT G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS	5-87610-153-0	02	1	1304-	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. TIRE SIZE 8.25-16<7QP> BEST VALUE PARTS	5-87610-153-0	02	1	1304-		●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0810-	●	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0810-	●	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0810-	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0810-	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0810-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98015-001-0	01	1	0810-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98015-002-0	01	1	0810-	●	●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0810-	●	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0810-	●	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0810-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0810-	●	●
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	0810-	●
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	0810-		●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0810-	●
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	0810-		●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0810-	●	●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0810-	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0810-	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0810-	●	●
