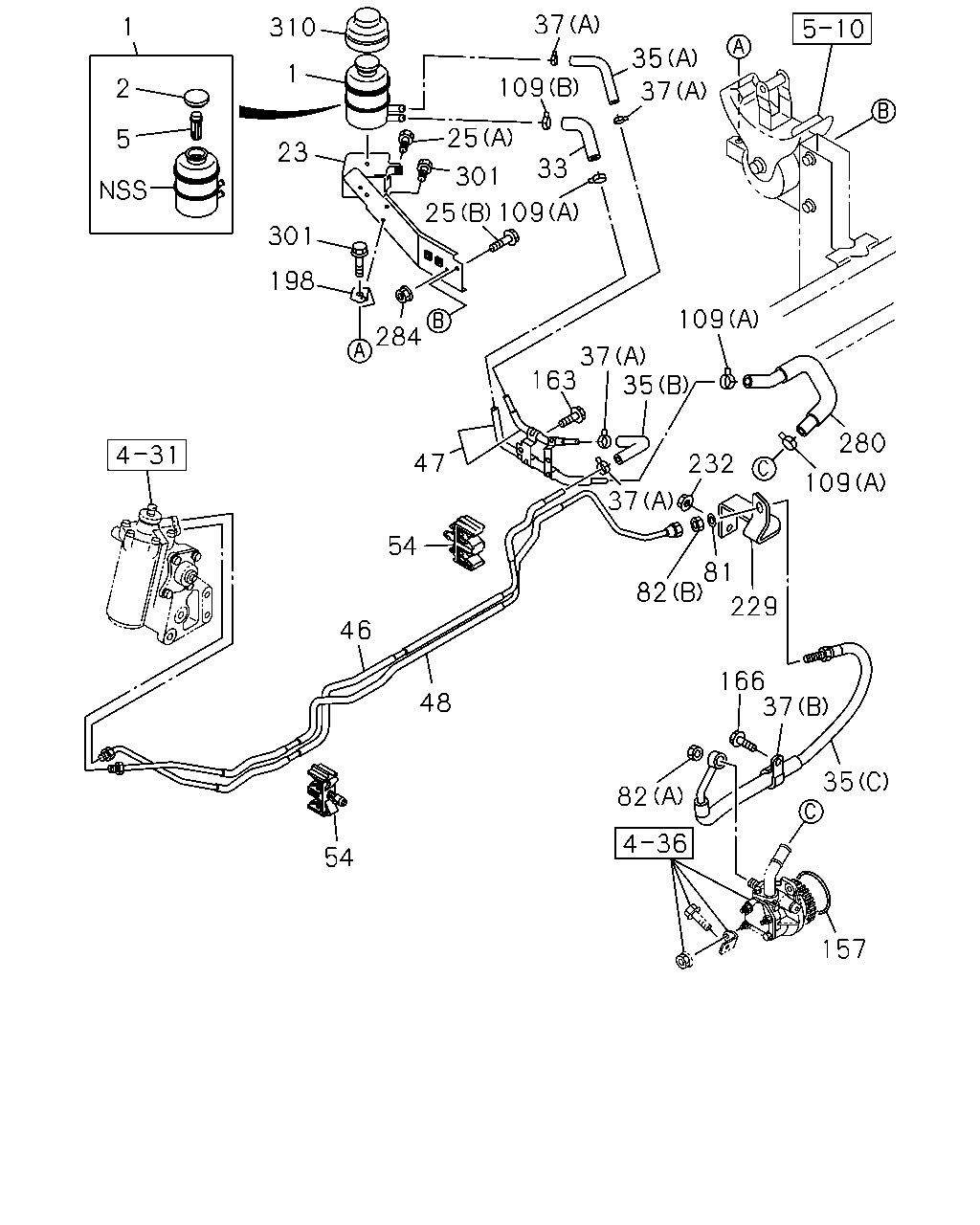

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#55010) — 37 parça

37 1 310 35 1 109 2 37 25 5 23 33 301 301 198 109 284 37 163 35 280 47 232 109 37 54 81 82 229 46 166 37 48 35 82 54 157 25 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0810-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0810-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0810-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0810-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0810-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0810-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0810-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0810-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0810-	●	●
37	01.762 CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	0810-	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0810-0911	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	0810-	●	●
47	06.671 PIPE; RETURN	8-98083-166-1	01	1	0810-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	0810-	●	●
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	0810-	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0810-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0810-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0810-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	03	1	0810-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	03	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0810-1003	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0810-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0810-	●	●
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	0810-	●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	0812-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98082-973-0	01	1	0810-0811	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98082-973-0	01	1	0812-	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	0812-		●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0810-	●	●
