◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51187 - NPR/NQR(RHD) EURO1 ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶

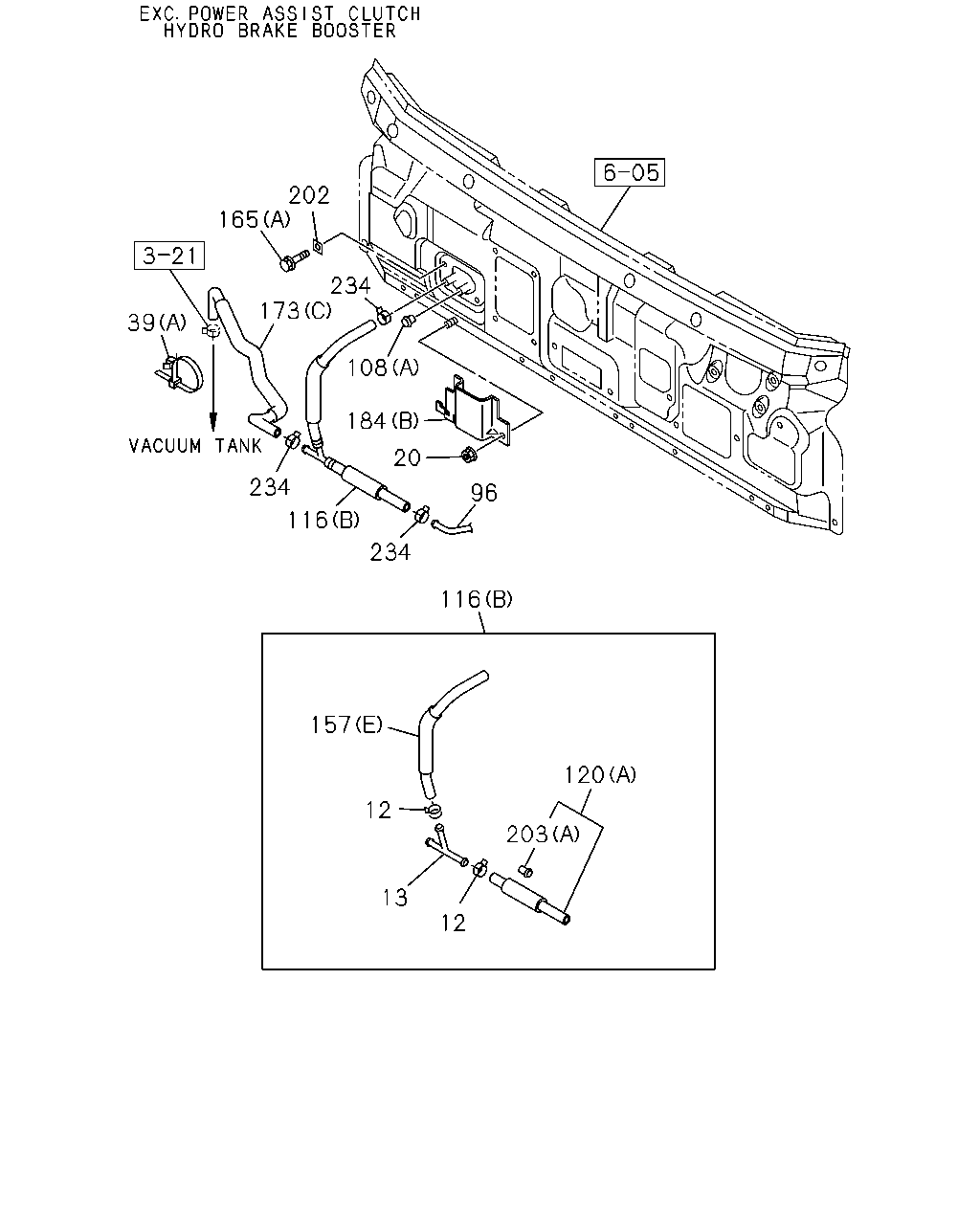

3-60 — BRAKE PIPING; VACUUM (#55001) — 854 parça

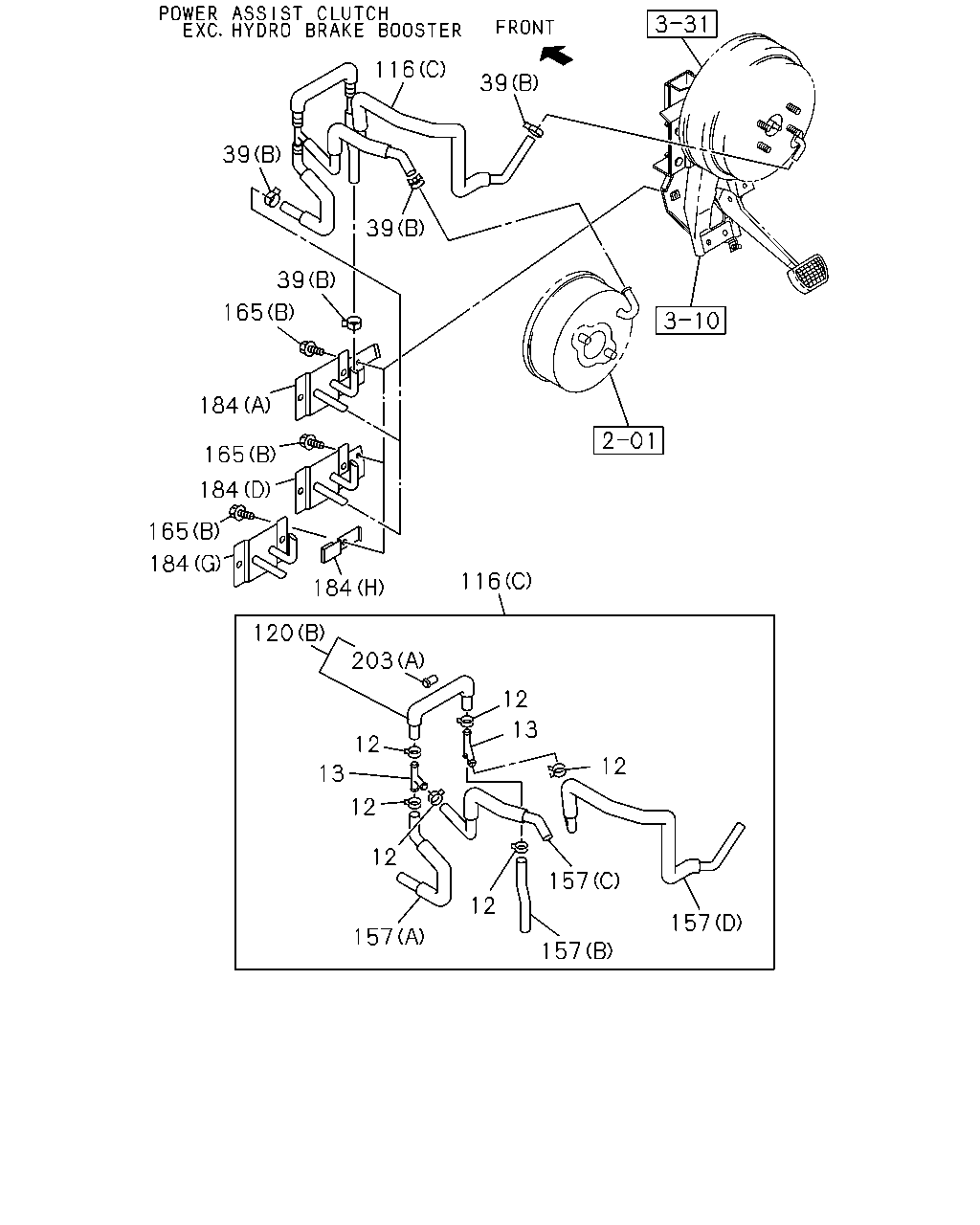

çizim 59439
116 116 39 39 39 39 165 165 165 184 184 184 184 120 12 12 12 12 12 12 157 157 157 157 13 13 203
BalonParca AdiParca NoAdetTipApplied Date A B
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 16 1 0810-0811 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 16 1 0812- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 16 1 0812- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 0810-0811 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0810-0811 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 06 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0812- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0810-0811 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 		8-98035-106-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0812- ●
39 04.681 CLIP; HOSE,VAC
03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0812-1005 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98100-244-1 01 1 0810-1104 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98189-220-0 01 1 1105- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0810-0811 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0810-0811 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0810-0811 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-97389-696-2 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 0812- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0812- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (E) 		8-98022-868-3 01 1 0812- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0810-1001 ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0810- ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0810-0811 ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0810- ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0810-0811 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0812- ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 0812- ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0810-0811 ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0812- ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0812- ●
çizim 59470
39 116 39 165 184 165 184 165 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
39 04.681 CLIP; HOSE,VAC
03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0812-1005 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98100-244-1 01 1 0810-1104 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98189-220-0 01 1 1105- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0812- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0810-1001 ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0810- ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0810-0811 ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0810- ● ●

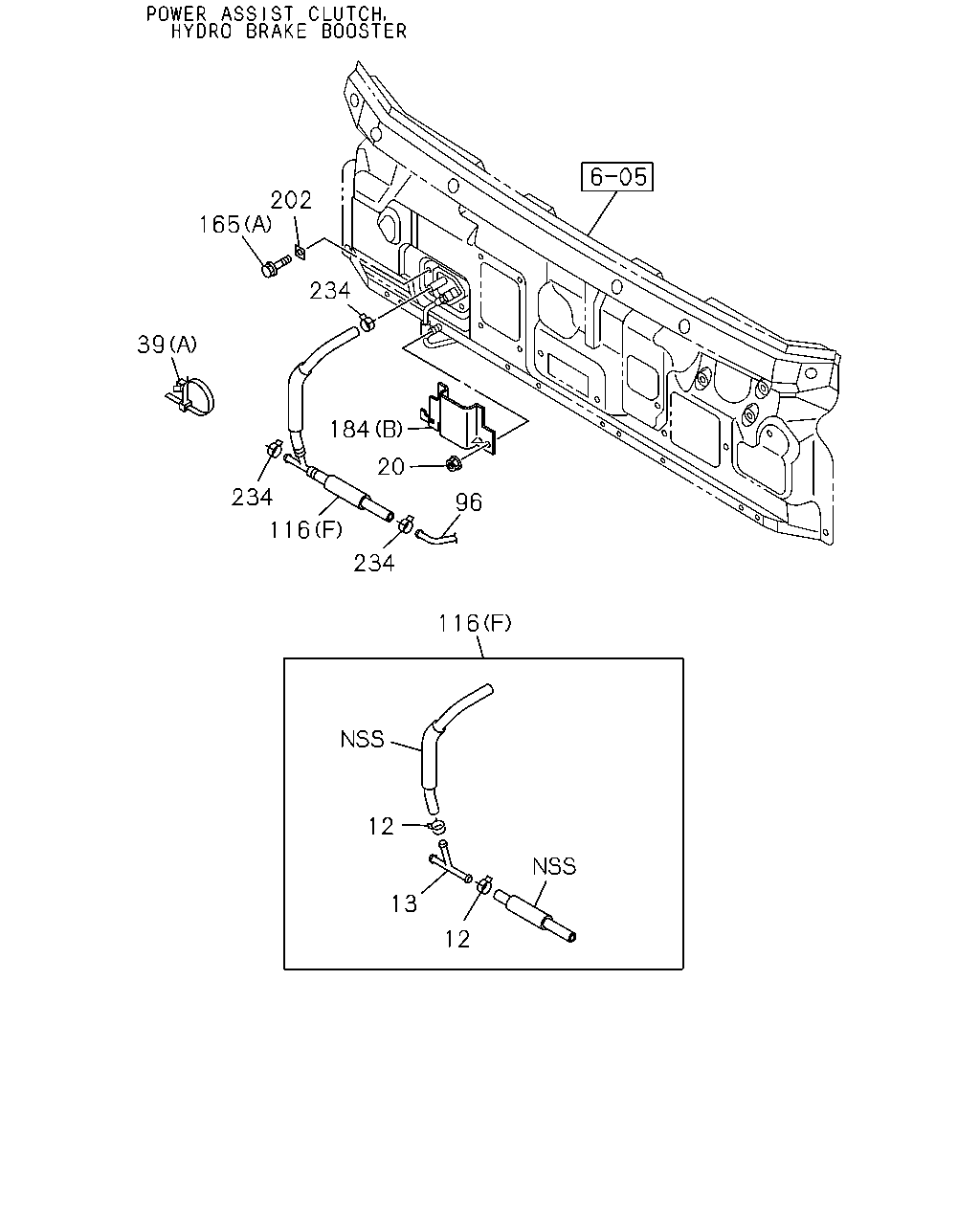

çizim 59473
202 165 234 39 184 20 234 96 116 234 116 12 13 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 16 1 0810-0811 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 16 1 0812- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 16 1 0812- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 0810-0811 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0810-0811 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 06 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0812- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0810-0811 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 		8-98035-106-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0812- ●
20 04.686 NUT; BRKT
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0810- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0812-1005 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0810-0811 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98100-244-1 01 1 0810-1104 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98189-220-0 01 1 1105- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0812- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0810-1001 ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0810- ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0810-0811 ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0810- ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0810- ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0812- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 0812- ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0810-0811 ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0812- ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0812- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0812- ●

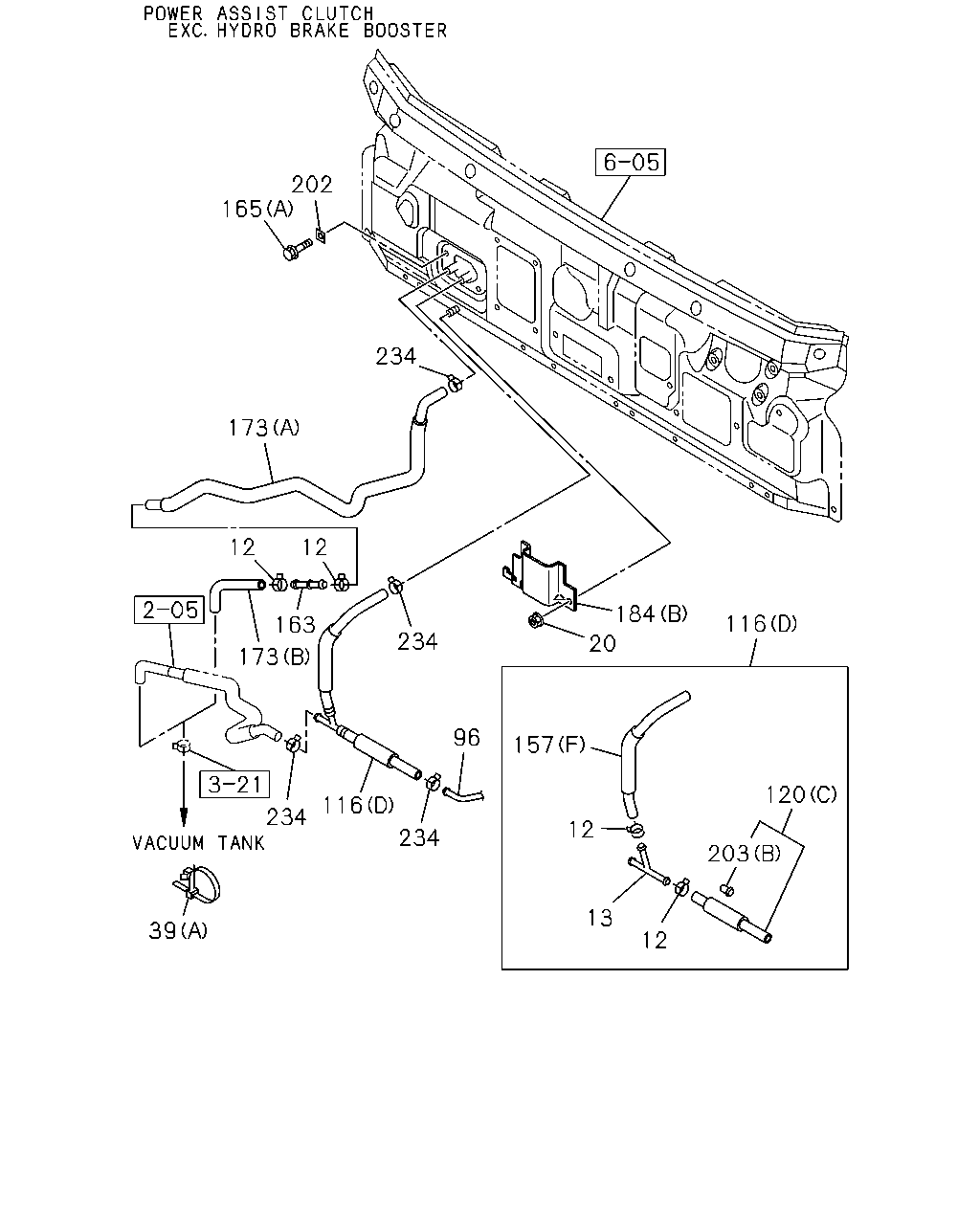

çizim 59476
202 165 234 173 12 12 184 116 163 234 20 173 96 157 120 116 234 12 234 203 13 39 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 16 1 0810-0811 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 16 1 0812- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 16 1 0812- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 0810-0811 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0810-0811 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 06 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0812- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0810-0811 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 		8-98035-106-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0812- ●
20 04.686 NUT; BRKT
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0810- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0812-1005 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0810-0811 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98100-244-1 01 1 0810-1104 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98189-220-0 01 1 1105- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0810-0811 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0810-0811 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0810-0811 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-97389-696-2 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 0812- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0812- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (E) 		8-98022-868-3 01 1 0812- ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 03.163 		8-97353-668-0 01 1 0810-0811 ● ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 03.163 		8-97353-668-0 01 1 0812- ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.163 		8-97353-668-0 01 1 0812- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0810-1001 ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0810- ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 0810-0811 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 0812- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 0812- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 0810-0811 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 0812- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 0812- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 0810-0811 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 0812- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (C) 		8-98107-558-0 01 1 0812- ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0810-0811 ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0810- ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0810- ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0810-0811 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0812- ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 0812- ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0810-0811 ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0812- ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0812- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0812- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 0812- ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0810-0811 ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0812- ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0812- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0812- ●

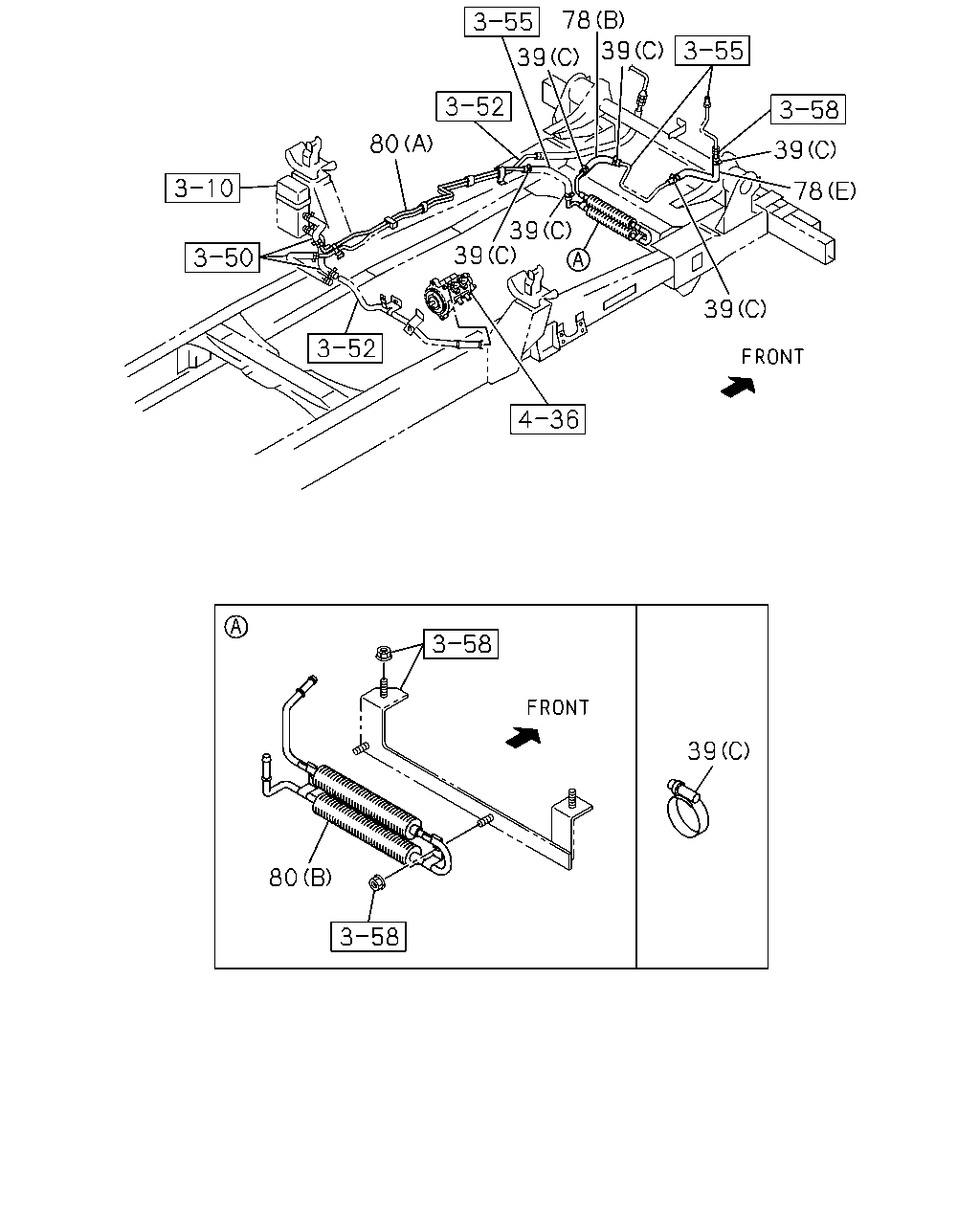

çizim 59764
78 39 39 80 39 78 39 39 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B
39 04.681 CLIP; HOSE,VAC
03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0812-1005 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (B) 		8-97386-589-0 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98129-223-0 01 1 0812-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 0810-0811 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0810-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98082-309-1 01 1 0810-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98133-654-1 01 1 0904- ● ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) 04.685 (B) 		8-97386-605-0 01 1 0812- ●
80 04.930 PIPE; VAC,ENG SIDE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98097-788-0 01 1 0812- ●
çizim 59889
236 122 136 136 78 136 136 136 158 78 136 44
BalonParca AdiParca NoAdetTipApplied Date A B
44 04.930 PIPE; VAC,MAG VLV 8-98034-281-1 01 1 0810- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (B) 		8-97386-589-0 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98129-223-0 01 1 0812-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 0810-0811 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0810-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98082-309-1 01 1 0810-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98133-654-1 01 1 0904- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98034-103-2 01 1 0810-1103 ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1104- ● ●
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 06 1 0810-0911 ● ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 0912- ● ●
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 0810- ● ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ●
çizim 59891
202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 16 1 0810-0811 ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 16 1 0812- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 16 1 0812- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 0810-0811 ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=15.5 		8-98008-097-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 0810-0811 ● ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 06 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 06 1 0812- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 0810-0811 ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 		8-98035-106-0 02 1 0812- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 02 1 0812- ●
20 04.686 NUT; BRKT
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0810- ● ●
39 04.681 CLIP; HOSE,VAC
03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0812-1005 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0810-0811 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0810- ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98100-244-1 01 1 0810-1104 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98189-220-0 01 1 1105- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0810-0811 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0810-0811 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0810-0811 ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 0812- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-97389-696-2 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 0812- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 0812- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0810-0811 ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 0812- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (E) 		8-98022-868-3 01 1 0812- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0810-1001 ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0810- ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 0810-0811 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 0812- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 0812- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 0810-0811 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 0812- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 0812- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 0810-0811 ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 0812- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (C) 		8-98107-558-0 01 1 0812- ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0810-0811 ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0810- ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0810- ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0810-0811 ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0812- ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-94104-021-0 01 1 0812- ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0810-0811 ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0812- ●
203 04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94386-540-0 01 1 0812- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 0812- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 04 1 0812- ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0810-0811 ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 0812- ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0812- ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 ID=16 		8-94238-568-0 03 1 0812- ●
çizim 59915
98 96 116 78 169 75 66 66 66 66 169 66 116 116 33 66 169 235 108 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 0810-0811 ● ●
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 0812- ●
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0812- ●
33 04.930 CLIP; VAC PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 0812- ●
39 04.681 CLIP; HOSE,VAC
03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0812-1005 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 04 1 0902-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0810-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.686 (B) 		8-97386-589-0 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98129-223-0 01 1 0812-0909 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98136-613-0 01 1 0910- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 0810-0811 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 0812- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98034-104-4 01 1 0810-1103 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1104- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98082-309-1 01 1 0810-0903 ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98133-654-1 01 1 0904- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0810-0811 ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98046-550-0 01 1 0812-1205 ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1206- ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0812- ●
98 04.931 BOLT; VAC PIPE FIX
HYDRO BRAKE BOOSTER(7QQ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0812- ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0810-0811 ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0812- ● ●
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0812- ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0810- ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98100-244-1 01 1 0810-1104 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98189-220-0 01 1 1105- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98122-740-1 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98132-683-1 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-053-4 01 1 0810-0811 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-053-4 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98101-041-1 01 1 0810-0811 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98101-041-1 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98101-041-1 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98101-041-1 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(B) 		8-98100-234-2 01 1 0810- ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0810- ● ●
çizim 59916
116 169 75 66 66 116 66 169 116 66 66 66 169 235 108
BalonParca AdiParca NoAdetTipApplied Date A B
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 04 1 0902-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 04 1 0912- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0810-0911 ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912- ● ●
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0810- ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98100-244-1 01 1 0810-1104 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98189-220-0 01 1 1105- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98122-740-1 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98132-683-1 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-053-4 01 1 0810-0811 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98041-053-4 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98101-041-1 01 1 0810-0811 ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98101-041-1 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98101-041-1 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98101-041-1 01 1 0812- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(B) 		8-98100-234-2 01 1 0810- ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0810- ● ●
çizim 101031
39 116 39 165 184 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
39 04.681 CLIP; HOSE,VAC
03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=16 		8-98008-098-0 02 1 0912-1205 ●
39 04.681 CLIP; HOSE,VAC
01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (D) ID=16 		8-97329-628-0 02 1 1206- ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) 04.686 (C) ID=11-19.5 		8-94426-597-0 08 1 0812-1005 ●
39 04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1006- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 04 1 0812- ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0812-0911 ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=16 		8-94238-568-0 02 1 0912- ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0810-0811 ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
39 04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 02.559 (A) L=170.3 		1-09987-182-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
(H) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 0810- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98100-244-1 01 1 0810-1104 ● ●
116 04.931 HOSE; VAC,M/VAC
(G) 		8-98189-220-0 01 1 1105- ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-97389-690-3 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0810-0811 ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 0812- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-98094-547-0 01 1 0812- ●
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0810-1001 ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ● ●
165 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1002- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0810- ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98155-345-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1103- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98155-991-0 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98183-472-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1104- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1002- ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-992-2 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98041-992-2 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-470-1 01 1 1103-1103 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1104-1311 ●
184 04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0810-0811 ● ●
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-686-1 01 1 0812-1001 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-97389-686-1 01 1 1002-1102 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1103-1311 ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
184 04.685 BRACKET; UNION FIX
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
