◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51187 - NPR/NQR(RHD) EURO1 ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#55000) — 42 parça
çizim 59512
49 19 49
BalonParca AdiParca NoAdetTipApplied Date A B
19 04.686 BRACKET; OIL PIPE 8-97389-845-2 01 1 0810- ● ●
49 04.686 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98033-802-1 01 1 0812- ●
49 04.686 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-600-0 01 1 0812- ●

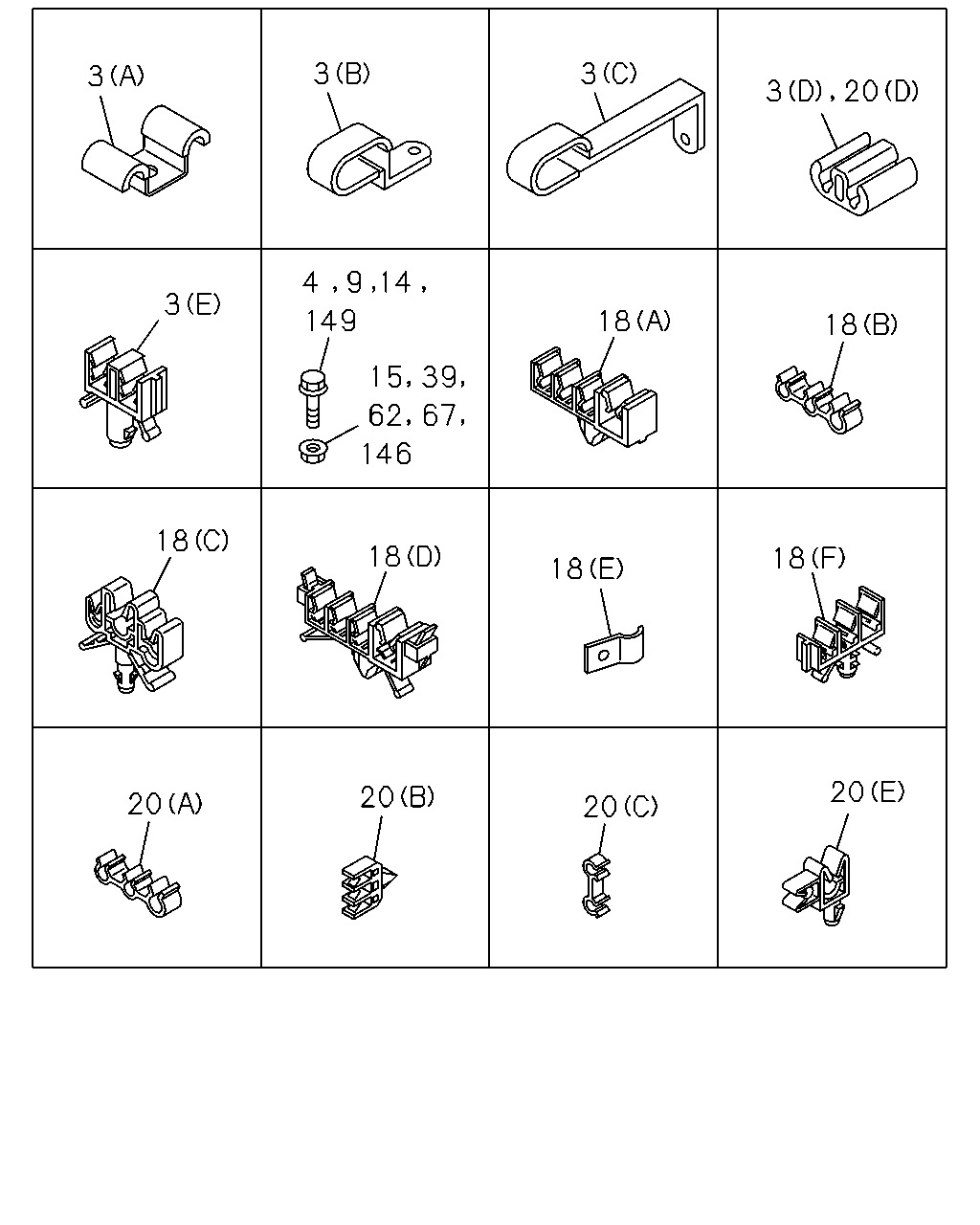

çizim 59841
3 3 3 4 3 149 18 18 146 18 18 18 18 20 20 20 20 3 20 9 14 15 39 67 62
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.047 (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0812- ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0812- ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.047 (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0812- ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22 		8-94252-455-2 01 1 0812- ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22 		8-94252-455-2 03 1 0812- ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.930 (E) ID=10X2 H=37.5 		8-97018-546-0 01 1 0812- ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.930 (E) ID=10X2 H=37.5 		8-97018-546-0 02 1 0812- ●
4 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0812- ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0810- ● ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ●
14 04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0810- ● ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0810- ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97168-819-0 01 1 0810- ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97168-819-0 02 1 0810- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (D) ID=10 & 4.76X3 		8-97326-158-1 02 1 0810- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 0810- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 0810- ● ●
18 04.686 CLIP; BRK PIPE
(E) B=18 L=20 		1-09700-372-0 02 1 0810- ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0810- ● ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0810- ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 0810- ● ●
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 0810- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 4100MM(41W) (D) ID=10 & 4.76X3 		8-97326-158-1 06 1 0810- ●
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (D) ID=6.35 & 6.35 		8-94474-113-0 03 1 0812- ●
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (E) ID=12 & 6.35 		8-97215-437-0 01 1 0812- ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0810- ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0810-0811 ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0812- ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0812- ●
20 04.686 CLIP; BRK PIPE
(C) 		8-94338-104-0 01 1 0810-0811 ● ●
20 04.686 CLIP; BRK PIPE
(C) 		8-94338-104-0 01 1 0812- ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-94338-104-0 01 1 0812- ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
62 04.686 NUT
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0812- ●
67 04.686 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 06.515 M14 		0-91111-514-0 01 1 0812- ●
67 04.686 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0812- ●
146 04.686 NUT; PIPE
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0812- ●
146 04.686 NUT; PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0812- ●
149 04.686 BOLT; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0812- ●
