0-35B — ENGINE CONTROL VALVE AND LEVER (#5500) — 76 parça

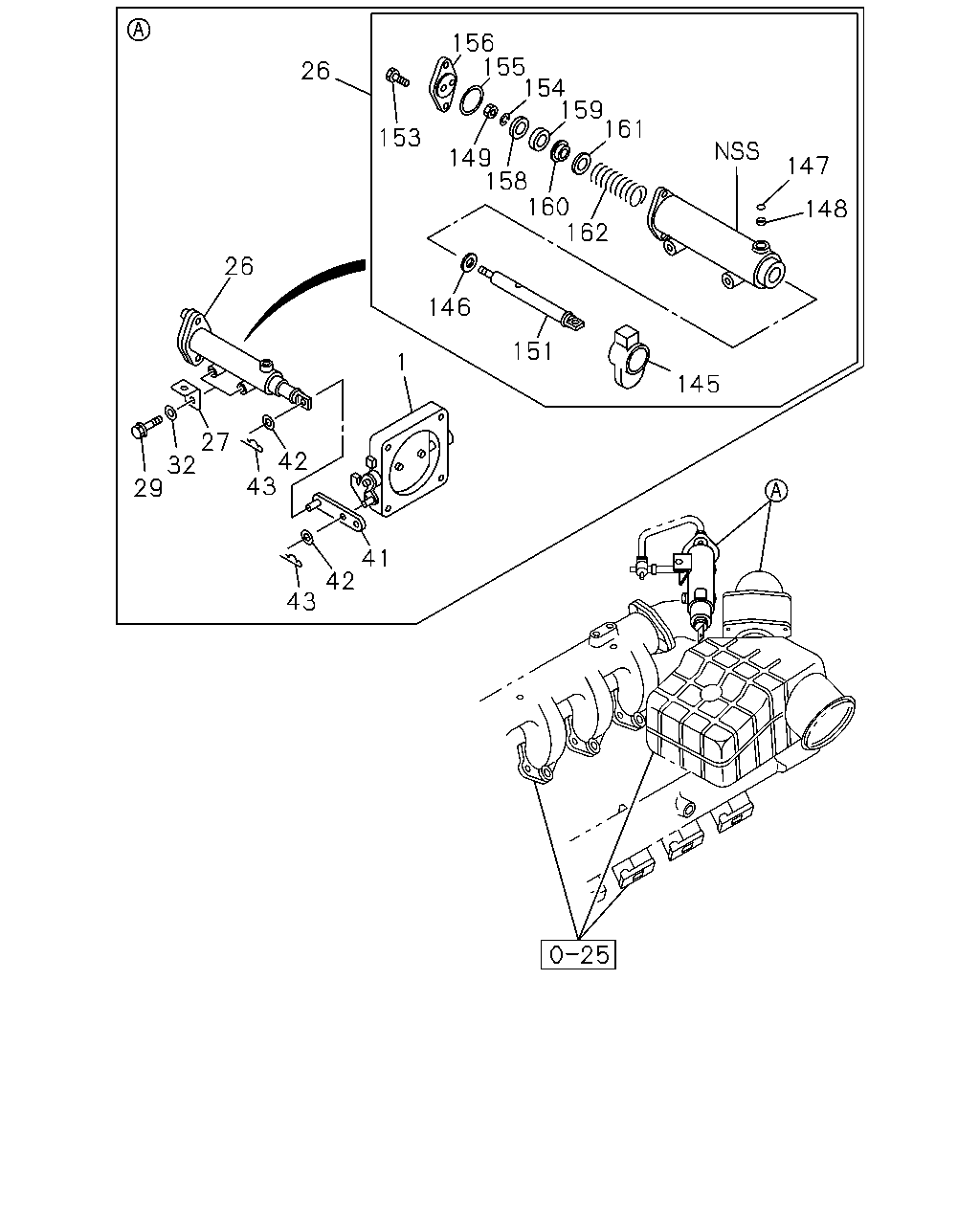

çizim 42441
156 155 154 159 161 26 153 149 158 160 162 147 148 26 146 151 1 145 27 32 29 42 43 41 42 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHUTTER ASM; INT 1-14310-219-0 01 1 9603-9904 ●
1 SHUTTER ASM; INT 1-14310-219-1 01 1 9905- ● ●
26 CYLINDER ASM; CONT 1-22190-622-0 01 1 9603-9702 ●
26 CYLINDER ASM; CONT 1-22190-527-1 01 1 9703-9904 ●
26 CYLINDER ASM; CONT 1-22190-527-1 01 1 9905- ● ●
27 BRACKET; WIRE CLIP 1-83129-087-0 01 1 9603-9904 ●
27 BRACKET; WIRE CLIP 1-83129-087-0 01 1 9905- ● ●
29 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-1 02 1 9603-9904 ●
29 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-1 02 1 9905- ● ●
32 WASHER; LK,CONT CYL
ID=10.5 OD=18 		9-09160-510-0 01 1 9603-9904 ●
32 WASHER; LK,CONT CYL
ID=10.5 OD=18 		9-09160-510-0 01 1 9905- ● ●
41 LINK; INT SHUTTER 1-14319-004-2 01 1 9603-9711 ●
41 LINK; INT SHUTTER 1-14319-133-0 01 1 9712-9904 ●
41 LINK; INT SHUTTER 1-14319-133-0 01 1 9905- ● ●
42 WASHER; LK,ROD LOCK
ID=6.4 		9-09160-506-0 02 1 9603-9904 ●
42 WASHER; LK,ROD LOCK
ID=6.4 		9-09160-506-0 02 1 9905- ● ●
43 PIN; SNAP ROD LK
L=21.2 		1-09747-003-0 02 1 9603-9904 ●
43 PIN; SNAP ROD LK
L=21.2 		1-09747-003-0 02 1 9905- ● ●
145 COVER; BREATHER 1-22199-008-0 01 1 9603-9904 ●
145 COVER; BREATHER 1-22199-008-0 01 1 9905- ● ●
146 SEAL; DUST,CONT 1-22189-016-0 01 1 9603-9904 ●
146 SEAL; DUST,CONT 1-22189-016-0 01 1 9905- ● ●
147 RING; RET 9-88510-331-0 01 1 9603-9904 ●
147 RING; RET 9-88510-331-0 01 1 9905- ● ●
148 FILTER; CONT CYL 9-88510-330-0 01 1 9603-9904 ●
148 FILTER; CONT CYL 9-88510-330-0 01 1 9905- ● ●
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 9603-9904 ●
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 9905- ● ●
151 SHAFT; CONT CYL 1-22196-256-0 01 1 9603-9904 ●
151 SHAFT; CONT CYL 1-22196-256-0 01 1 9905- ● ●
153 BOLT; CONT CYL 1-22199-155-0 02 1 9603-9702 ●
153 BOLT; CONT CYL 1-33739-326-0 02 1 9703-9904 ●
153 BOLT; CONT CYL 1-33739-326-0 02 1 9905- ● ●
154 WASHER; LK,CYL
ID=8.2 		9-09150-508-0 01 1 9603-9904 ●
154 WASHER; LK,CYL
ID=8.2 		9-09150-508-0 01 1 9905- ● ●
155 GASKET; CONT CYL 9-88510-372-0 01 1 9603-9904 ●
155 GASKET; CONT CYL 9-88510-372-0 01 1 9905- ● ●
156 COVER; CONT CYL 9-88510-321-0 01 1 9603-9702 ●
156 COVER; CONT CYL 1-22189-162-1 01 1 9703-9904 ●
156 COVER; CONT CYL 1-22189-162-1 01 1 9905- ● ●
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 9603-9904 ●
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 9905- ● ●
159 GASKET; CONT CYL 9-88510-373-0 01 1 9603-9904 ●
159 GASKET; CONT CYL 9-88510-373-0 01 1 9905- ● ●
160 PLATE 1-22199-020-0 01 1 9603-9904 ●
160 PLATE 1-22199-020-0 01 1 9905- ● ●
161 RING; WEAR 1-22199-002-0 01 1 9603-9904 ●
161 RING; WEAR 1-22199-002-0 01 1 9905- ● ●
162 SPRING; CONT CYL 1-22199-018-0 01 1 9603-9904 ●
162 SPRING; CONT CYL 1-22199-018-0 01 1 9905- ● ●

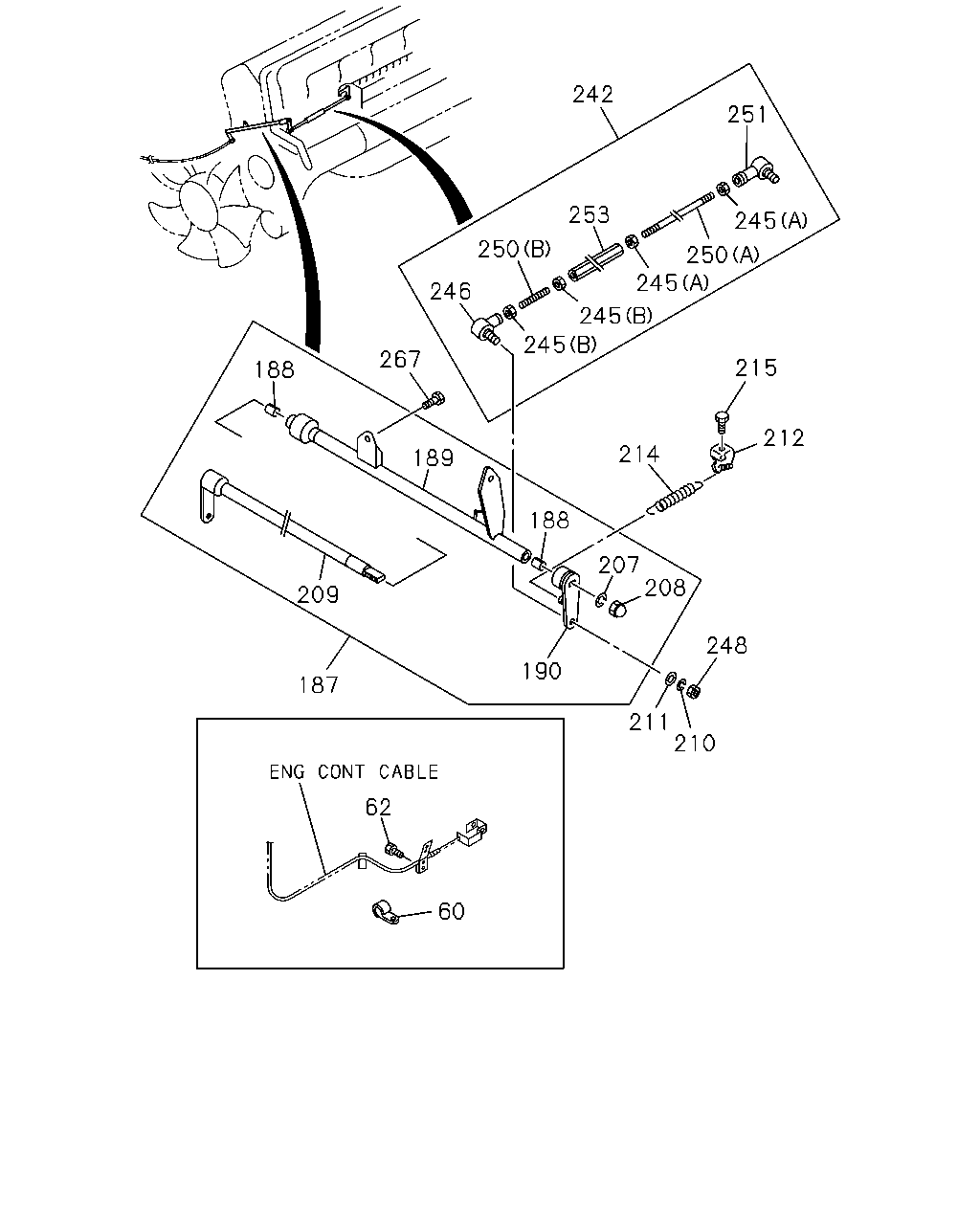

çizim 42605
242 251 253 245 250 250 245 246 245 245 267 215 188 212 214 189 188 207 208 209 248 190 187 211 210 62 60
BalonParca AdiParca NoAdetTipApplied Date A B
60 CLIP; CABLE
ID=8 H=20 L=20 		1-09700-604-0 01 1 9603-9904 ●
60 CLIP; CABLE
ID=8 H=20 L=20 		1-09700-604-0 01 1 9905- ● ●
62 BOLT; CABLE END
M6X16 FLANGE 		0-28080-616-0 02 1 9603-9904 ●
62 BOLT; CABLE END
M6X16 FLANGE 		0-28080-616-0 02 1 9905- ● ●
187 CONTROL ASM; ENG 1-23300-326-0 01 1 9604- ●
188 BUSHING; CONT SHAFT 1-09330-053-0 02 1 9603- ●
189 BRACKET; ENG CONT 1-23335-482-0 01 1 9603- ●
190 LEVER; ENG CONT 1-23311-352-0 01 1 9603- ●
207 WASHER; LK,CONT LEVER
ID=8.2 		9-09150-508-0 01 1 9603- ●
208 NUT; LEVER 1-09984-015-0 01 1 9603- ●
209 SHAFT; ENG CONT 1-23331-128-0 01 1 9603- ●
210 WASHER; LK,JOINT BALL
ID=5.1 		9-09150-505-0 02 1 9603- ●
211 WASHER; PL,JOINT BALL
ID=5.3 OD=16 		9-09164-705-0 02 1 9603- ●
212 BRACKET; SPR EYE 1-23335-486-0 01 1 9603- ●
214 SPRING; ENG CONT RETURN 1-09583-315-0 01 1 9603- ●
215 BOLT; BRKT SPR EYE
M10X16 FLANGE 		0-28181-016-0 01 1 9603- ●
242 LINK ASM
L=216 		1-23314-177-0 01 1 9603- ●
245 NUT; LINK
(B) M5 LH THREAD 		9-09840-277-0 02 1 9603- ●
245 NUT; LINK
(A) M5 		9-99110-405-0 02 1 9603- ●
246 JOINT; BALL,ENG CONT LINK 1-09760-104-0 01 1 9603- ●
248 NUT; JOINT BALL
M5 		9-99110-405-0 02 1 9603- ●
250 ROD; ROD TO JOINT
(B) M5X50 LH THREAD 		1-09765-197-0 01 1 9603- ●
250 ROD; ROD TO JOINT
(A) M5X120 		9-08400-512-0 01 1 9603- ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK 1-09760-103-0 01 1 9603- ●
253 JOINT; ROD TO ROD 9-23319-194-0 01 1 9603- ●
267 BOLT; ENG CONT
M10X30 FLANGE 		0-28181-030-0 01 1 9603- ●
