3-55 — BRAKE PIPING; OIL,REAR (#54999) — 18 parça

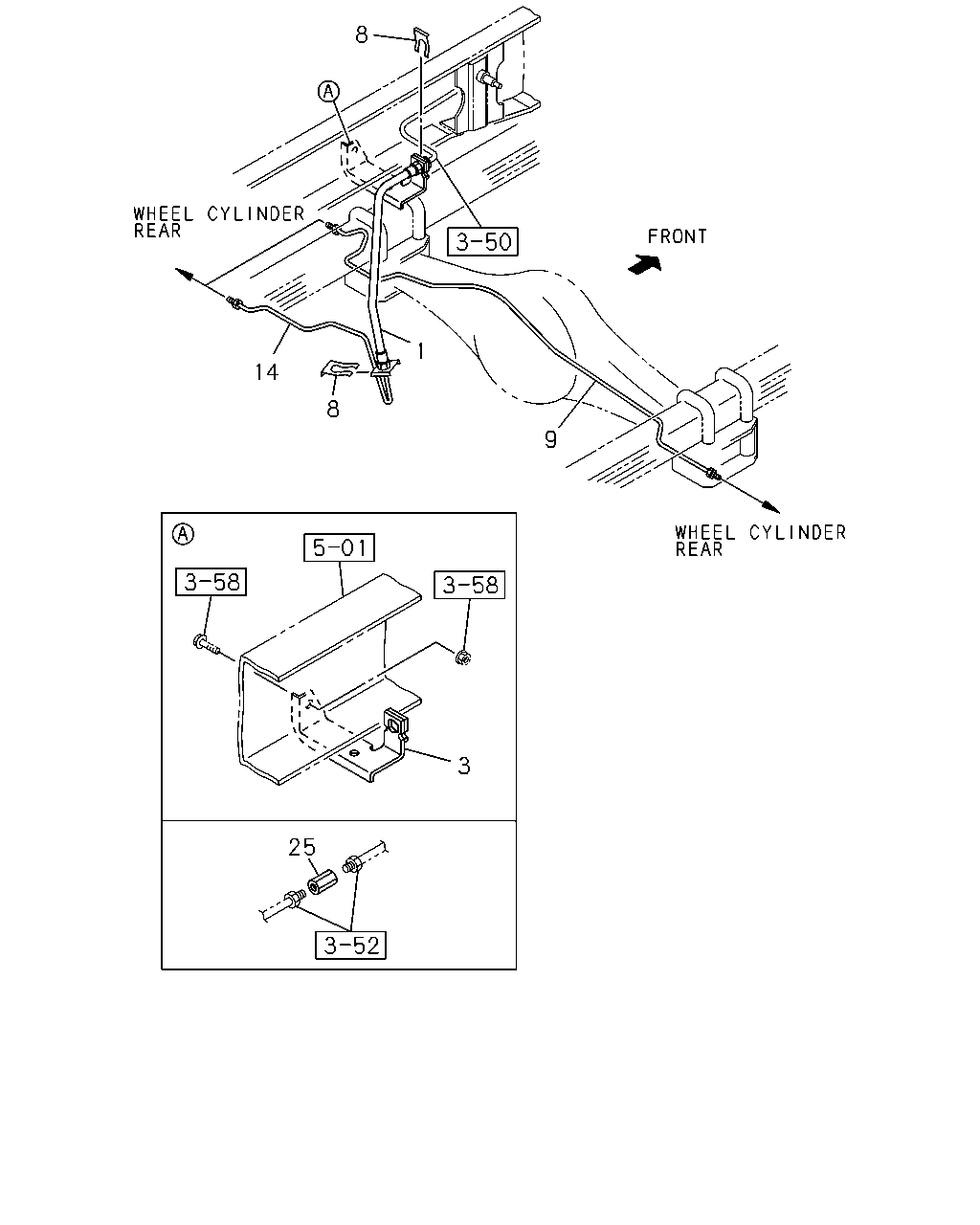

çizim 59437
8 1 14 8 9 3 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 0810- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0810- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0810- ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 		8-98118-216-0 01 1 1004- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-98106-714-0 01 1 0810- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-98026-057-0 01 1 0810- ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 0810- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-746-0 01 1 0810- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0810- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0810- ● ●

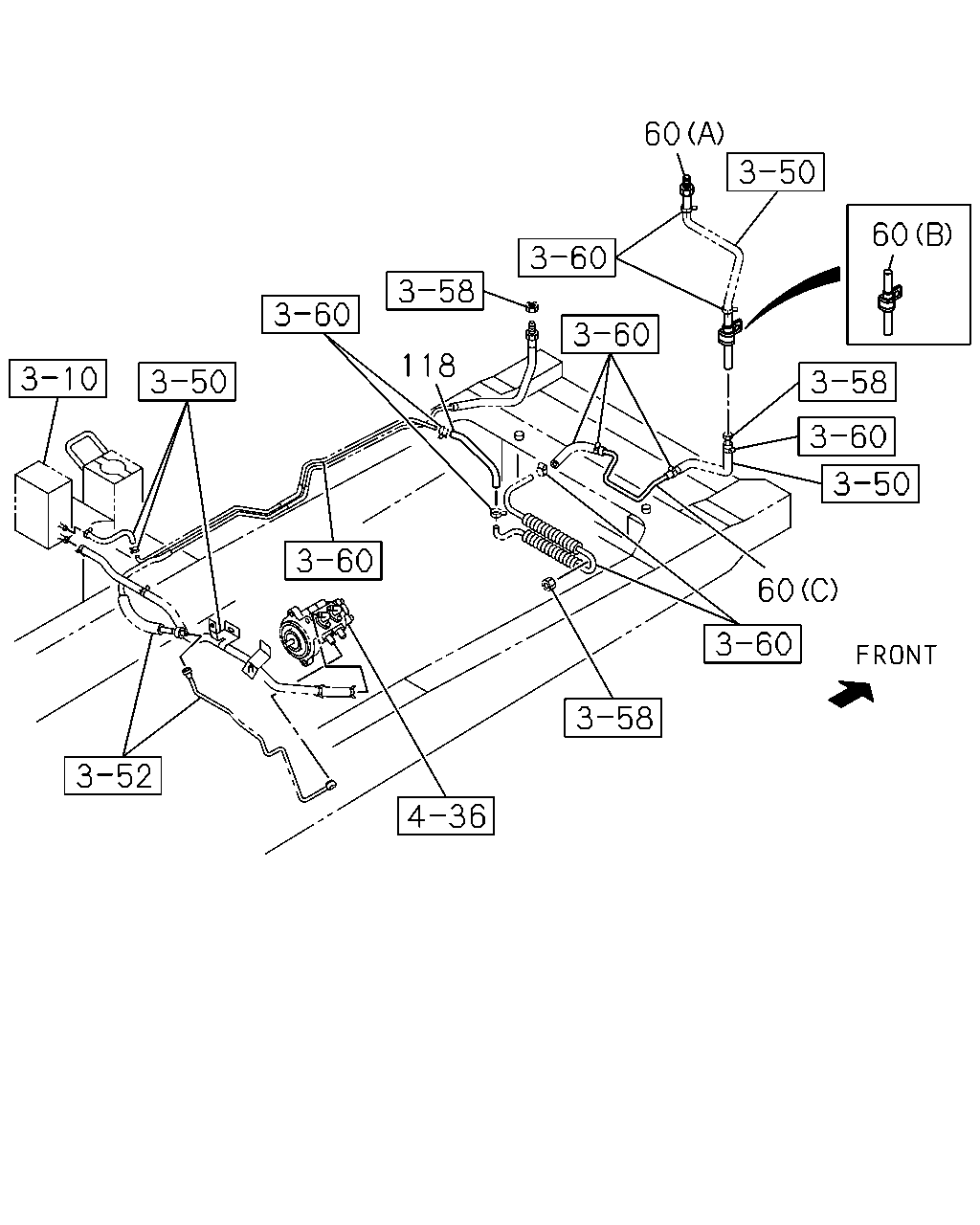

çizim 59813
60 60 118 60
BalonParca AdiParca NoAdetTipApplied Date A B
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-326-1 01 1 0812- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0812- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98088-313-1 01 1 0812- ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0812-1001 ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1002- ●

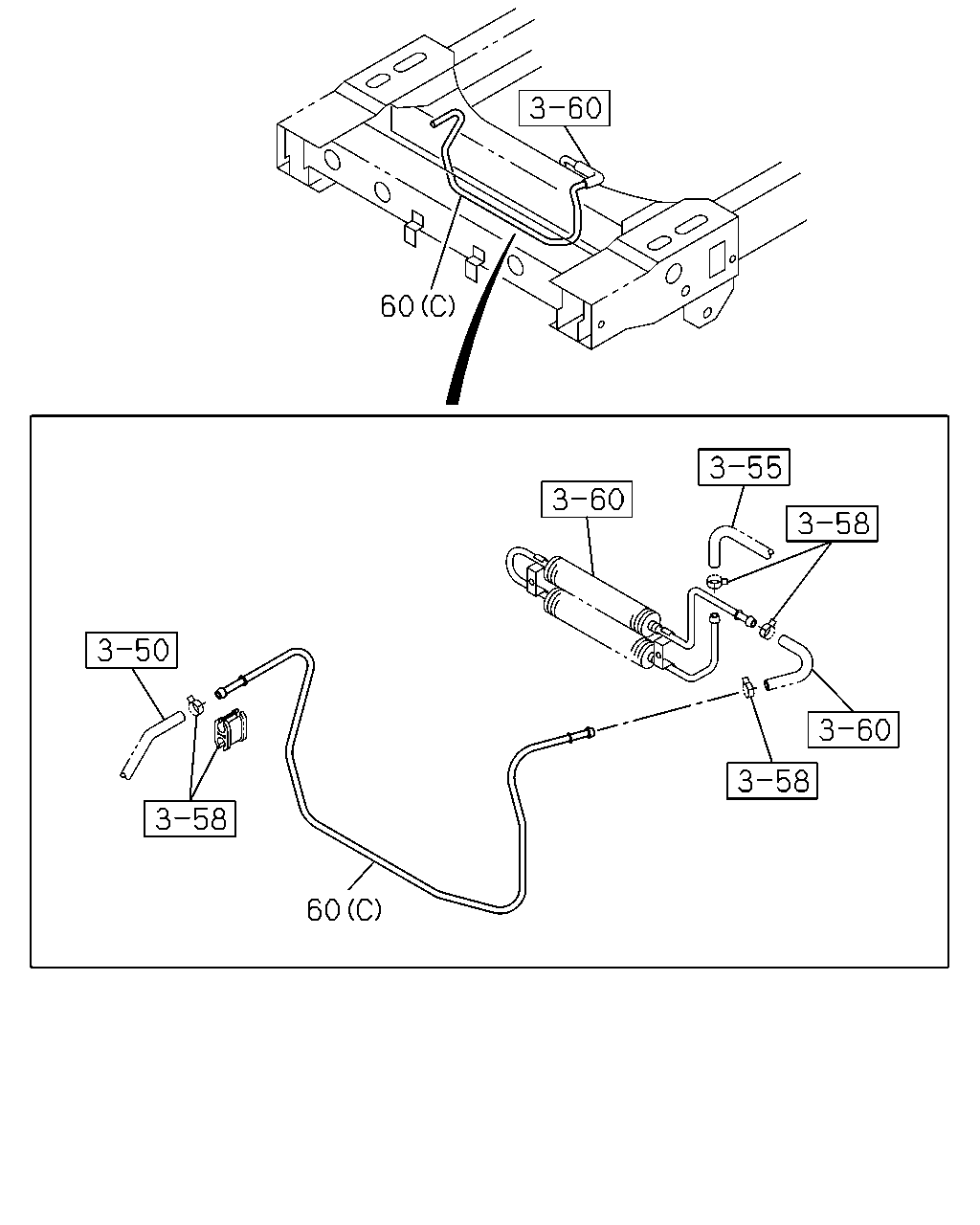

çizim 101606
60 60
BalonParca AdiParca NoAdetTipApplied Date A B
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-326-1 01 1 0812- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0812- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98088-313-1 01 1 0812- ●
