◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35A - ENGINE CONTROL VALVE AND LEVER ▶
0-35A — ENGINE CONTROL VALVE AND LEVER (#5499) — 47 parça
çizim 10521
52 45 51 52
BalonParca AdiParca NoAdetTipApplied Date A B
45 CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=11 L=20 		9-09525-035-0 01 1 9611-9904 ●
45 CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=9 L=20 		9-09524-835-0 01 1 9905- ●
51 BOLT; CLIP,FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9611-9904 ●
51 BOLT; CLIP,FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905- ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) L=2400 		1-73907-521-0 01 1 9610-9904 ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) L=2400 		1-73907-595-1 01 1 9905- ●

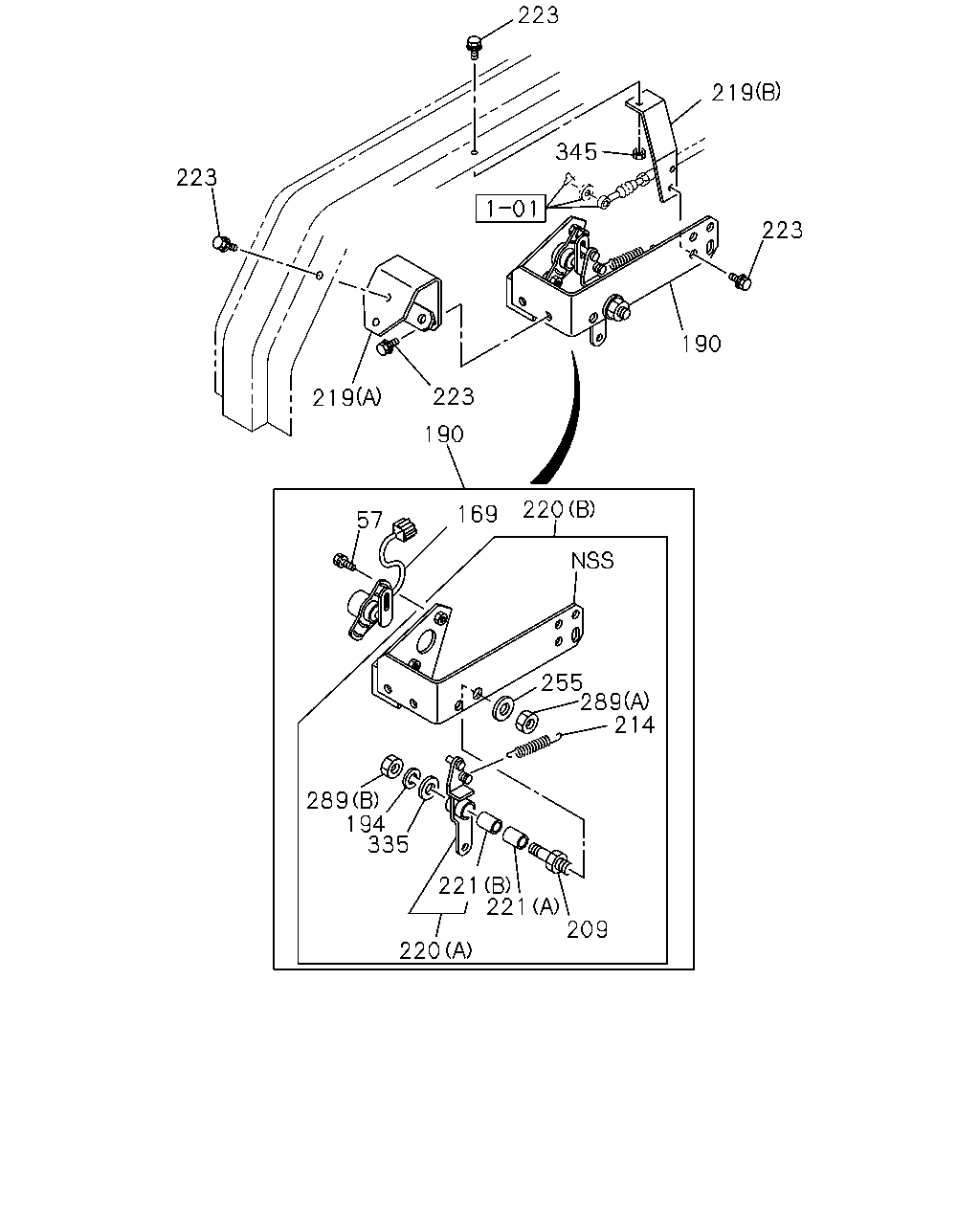

çizim 38789
223 219 345 223 223 190 223 219 190 220 169 57 255 289 214 289 194 335 221 221 209 220
BalonParca AdiParca NoAdetTipApplied Date A B
57 BOLT; BRKT
EURO2 SPECIFICATION<THN> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9610-9904 ●
57 BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9905- ●
169 SENSOR
EURO2 SPECIFICATION<THN> 		1-81534-010-0 01 1 9610-9904 ●
169 SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 9905- ●
190 LEVER; ENG CONT
EURO2 SPECIFICATION<THN> 		1-23335-470-0 01 1 9610-9701 ●
190 LEVER; ENG CONT
EURO2 SPECIFICATION<THN> 		1-23335-504-0 01 1 9702-9904 ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-23335-504-0 01 1 9905- ●
194 WASHER; LK,LEVER
EURO2 SPECIFICATION<THN> ID=8.2 		9-09150-508-0 01 1 9610-9904 ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 9905- ●
209 SHAFT; ENG CONT
EURO2 SPECIFICATION<THN> 		1-14336-002-1 01 1 9610-9904 ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-14336-002-1 01 1 9905- ●
214 SPRING; ENG CONT RETURN
EURO2 SPECIFICATION<THN> 		8-94481-840-1 01 1 9610-9904 ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 9905- ●
219 BRACKET; ENG CONT
EURO2 SPECIFICATION<THN> (A) 		1-23335-459-0 01 1 9610-9904 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-459-0 01 1 9905- ●
219 BRACKET; ENG CONT
EURO2 SPECIFICATION<THN> (B) 		1-23335-460-2 01 1 9610-9904 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-460-2 01 1 9905- ●
220 LEVER ASM
EURO2 SPECIFICATION<THN> (A) 		1-23311-347-1 01 1 9610-9701 ●
220 LEVER ASM
EURO2 SPECIFICATION<THN> (A) 		1-23311-357-0 01 1 9702-9904 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-357-0 01 1 9905- ●
220 LEVER ASM
EURO2 SPECIFICATION<THN> (B) 		1-23335-471-0 01 1 9610-9701 ●
220 LEVER ASM
EURO2 SPECIFICATION<THN> (B) 		1-23335-505-0 01 1 9702-9904 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-505-0 01 1 9905- ●
221 BUSHING; LEVER
EURO2 SPECIFICATION<THN> (A) 		1-09330-057-0 01 1 9610-9904 ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 9905- ●
221 BUSHING; LEVER
EURO2 SPECIFICATION<THN> (B) 		1-09330-058-0 01 1 9610-9904 ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 9905- ●
223 BOLT; BRKT FIX
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 07 1 9610-9904 ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 07 1 9905-0008 ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 05 1 0009- ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
255 WASHER; LK,LEVER
EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-510-0 01 1 9610-9904 ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 9905- ●
289 NUT; LEVER
EURO2 SPECIFICATION<THN> (A) M10 		9-09110-410-0 01 1 9610-9904 ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 9905- ●
289 NUT; LEVER
EURO2 SPECIFICATION<THN> (B) M8 		9-09111-408-0 01 1 9610-9904 ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 9905- ●
335 WASHER; PL LEVER
EURO2 SPECIFICATION<THN> 		5-09503-135-0 01 1 9610-9904 ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 9905- ●
345 NUT; BRKT
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 9610-9904 ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 01 1 9905- ●
