2-85 — POWER TAKE OFF CONTROL (#54988) — 79 parça

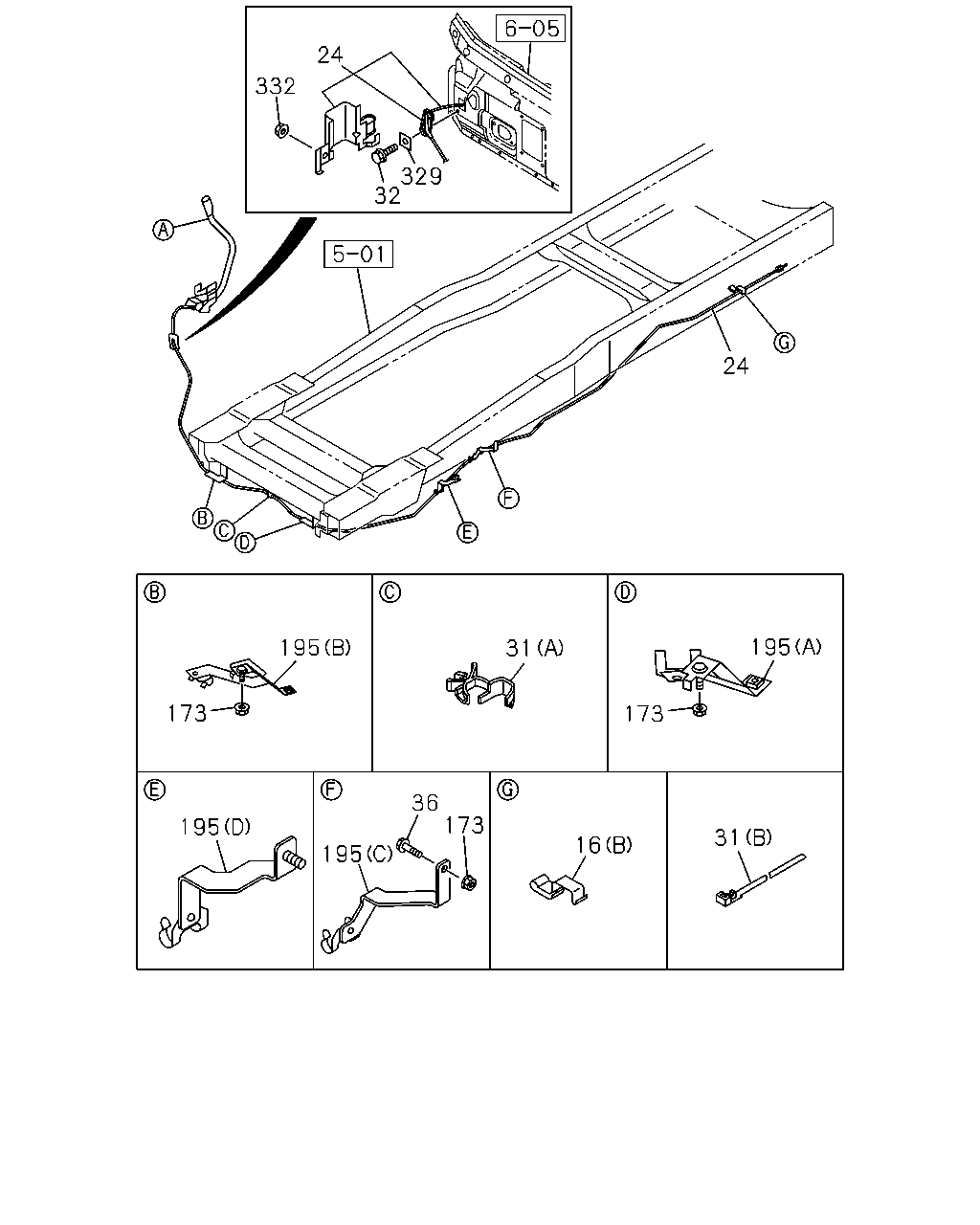

24 332 329 32 24 195 195 31 173 173 36 173 195 31 16 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	0810-
16	04.439 CLIP; CABLE,PTO (A)	8-98050-126-0	01	1	0810-
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4348	8-98128-391-0	01	1	0810-1207
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4348	8-98223-302-0	01	1	1208-1507
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4348	8-98328-270-1	01	1	1508-
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3540	8-98125-320-0	01	1	0810-1207
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3540	8-98223-360-0	01	1	1208-
31	04.439 CLIP; BAND,CABLE 02.559 (B) L=250	5-09707-030-1	01	1	0810-
31	04.439 CLIP; BAND,CABLE 02.559 (A) ID=16	8-97040-812-0	01	1	0810-
32	04.439 BOLT; CLIP,CABLE M6X16 FLANGE	0-28060-616-0	02	1	0810-
36	04.439 BOLT; PTO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-
173	04.439 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
173	04.439 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-
195	04.439 BRACKET; CONT CABLE (C)	8-98122-800-0	01	1	0810-
195	04.439 BRACKET; CONT CABLE (D)	8-98124-679-1	01	1	0810-
195	04.439 BRACKET; CONT CABLE (B)	8-98098-618-0	01	1	0810-
195	04.439 BRACKET; CONT CABLE (A)	8-98102-495-1	01	1	0810-
329	16.520 SEAL 08.845	8-97856-616-0	02	1	0810-
332	04.439 NUT; PTO CONT CABLE 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-

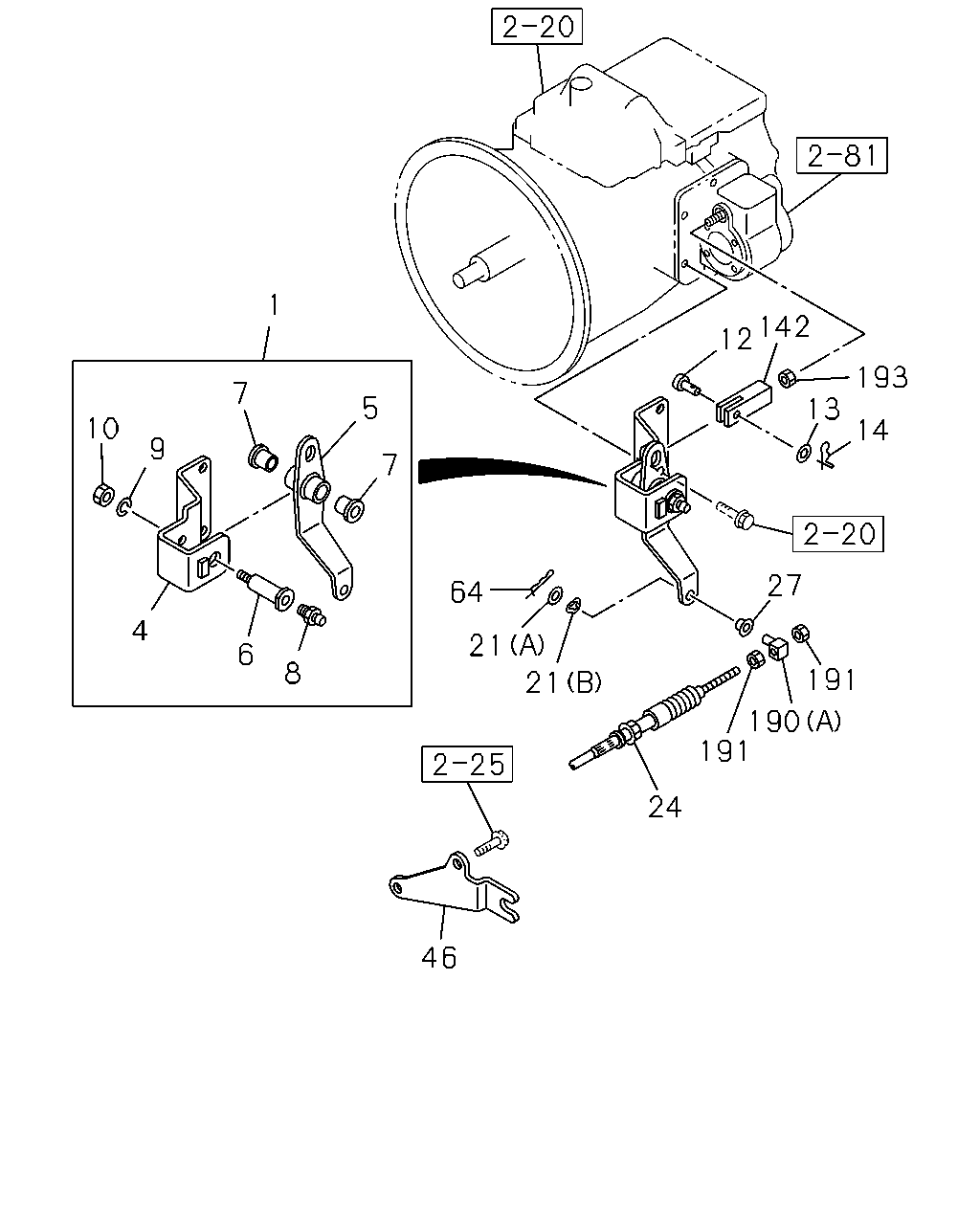

1 142 12 193 7 5 13 10 14 9 7 27 64 4 21 21 6 8 191 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-714-0	01	1	0810-1107
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-089-1	01	1	1108-
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-717-0	01	1	0810-1107
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-099-1	01	1	1108-
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-718-0	01	1	0810-
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-720-0	01	1	0810-1107
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-101-0	01	1	1108-
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	5-33659-053-0	02	1	0810-
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0810-
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=8.2	0-91510-508-0	01	1	0810-
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.334 M8	0-91110-508-0	01	1	0810-
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-692-0	01	1	0810-
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=12.5 OD=22	0-91610-512-0	01	1	0810-
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97581-216-0	01	1	0810-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0810-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0810-
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4348	8-98128-391-0	01	1	0810-1207
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4348	8-98223-302-0	01	1	1208-1507
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4348	8-98328-270-1	01	1	1508-
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3540	8-98125-320-0	01	1	0810-1207
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3540	8-98223-360-0	01	1	1208-
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	0810-
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC)	8-98032-829-2	01	1	0810-
64	04.439 PIN; SNAP,CONT CABLE JOINT NPR(NP***N) PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	0810-1012
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	1101-
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-691-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO (B)	8-98029-878-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0810-
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	0810-
193	04.439 NUT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M12	0-91111-512-0	01	1	0810-

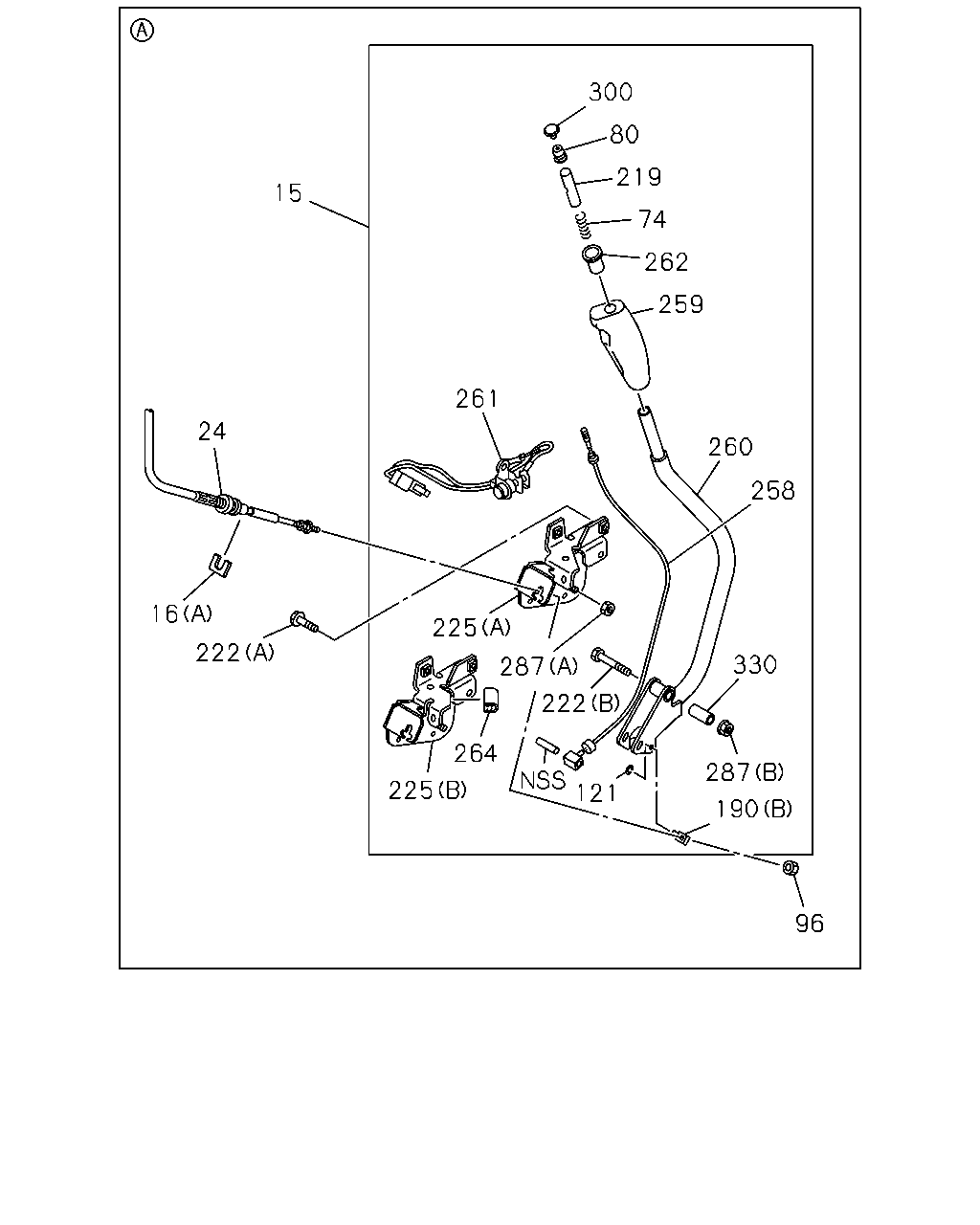

15 300 80 219 74 262 259 260 258 330 287 190 96 121 222 287 225 225 264 222 16 24 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT	8-98029-208-7	01	1	0810-1204
15	04.439 LEVER ASM; PTO CONT	8-98199-362-0	01	1	1205-
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	0810-
16	04.439 CLIP; CABLE,PTO (A)	8-98050-126-0	01	1	0810-
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4348	8-98128-391-0	01	1	0810-1207
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4348	8-98223-302-0	01	1	1208-1507
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=4348	8-98328-270-1	01	1	1508-
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3540	8-98125-320-0	01	1	0810-1207
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) L=3540	8-98223-360-0	01	1	1208-
74	04.439 SPRING; RETURN,CONT LEVER	8-98029-874-0	01	1	0810-
80	04.439 COVER; CONT LEVER	8-97122-741-0	01	1	0810-
96	04.439 NUT 03.330 M6	0-91110-506-0	01	1	0810-
121	04.439 RING; SNAP 03.485 ID=4	0-91805-504-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO (B)	8-98029-878-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0810-
219	04.439 KNOB; LEVER	8-97122-736-0	01	1	0810-
222	04.439 BOLT; LEVER (B) M8X60	0-10855-860-0	01	1	0810-
222	04.439 BOLT; LEVER 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-
225	04.439 BRACKET; CONT LEVER (A)	8-98029-873-3	01	1	0810-1204
225	04.439 BRACKET; CONT LEVER (B)	8-98152-960-1	01	1	1205-
258	04.439 CABLE; DUMP CONT .	8-98029-877-1	01	1	0810-
259	04.439 GRIP; CONT LEVER	8-97141-653-0	01	1	0810-
260	04.439 LEVER; DUMP CONT	8-98030-057-2	01	1	0810-
261	04.439 SWITCH; DUMP CONT	8-98081-918-0	01	1	0810-
262	04.439 RETAINER; SPRING	8-97129-397-0	01	1	0810-
264	04.439 PROTECTOR; EDGE	8-98211-652-0	01	1	1205-
287	04.439 NUT; SWITCH,CONT LEVER 03.330 (A) M6	0-91110-506-0	01	1	0810-
287	04.439 NUT; SWITCH,CONT LEVER 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	0810-
300	04.439 CAP; KNOB	8-97122-740-0	01	1	0810-
330	04.439 COLOR; DUMP CONT	8-98049-802-0	01	1	0810-
