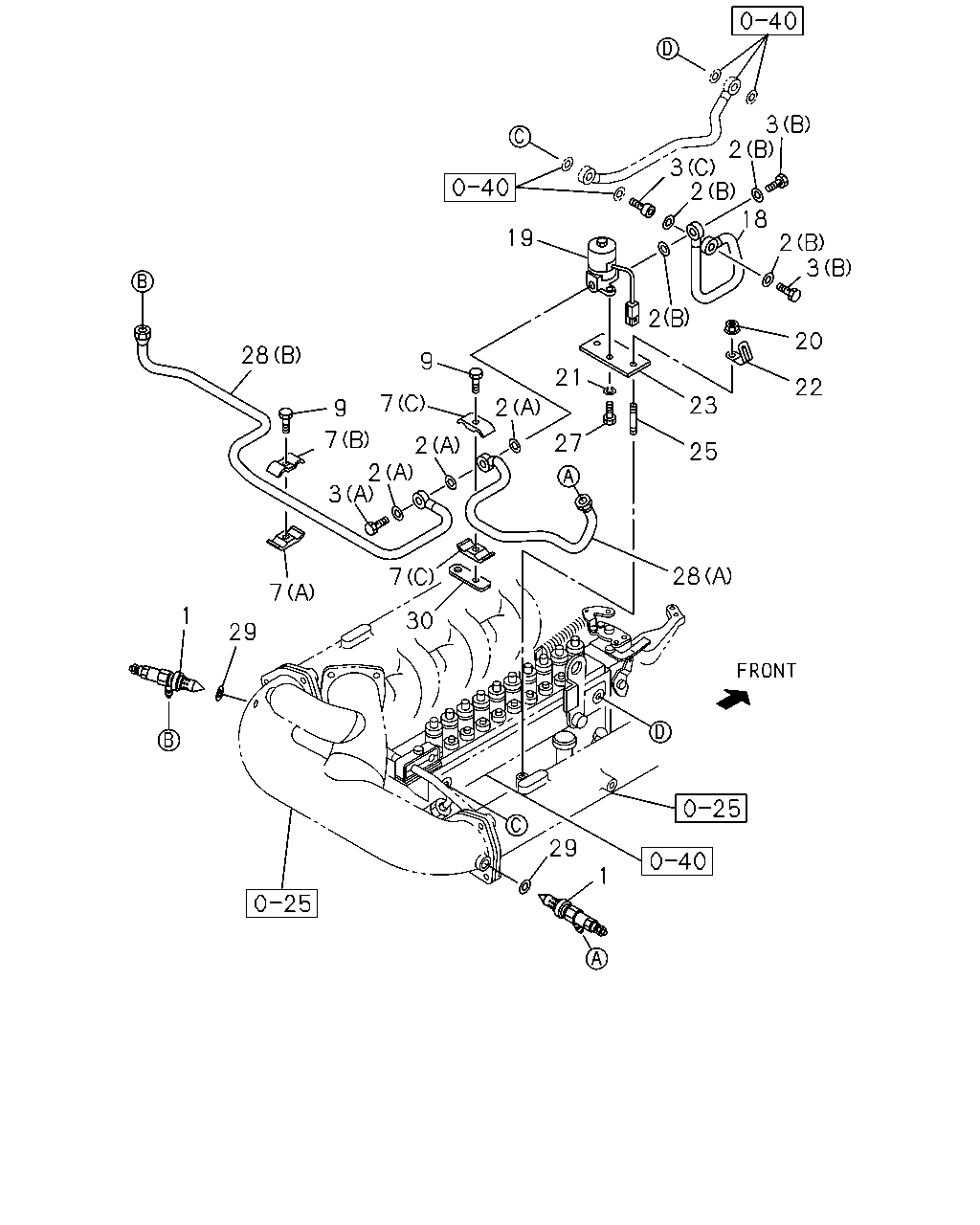

1 |
HEATER; INT
INTAKE HEATER<SL2>
|
1-81430-022-0 |
02 |
1 |
9603-9904 |
● |
|
| |
1 |
HEATER; INT
INTAKE HEATER<SL2>
|
1-81430-022-0 |
02 |
1 |
9905- |
● |
● |
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
03 |
1 |
9603-9904 |
● |
|
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(A)
ID=8.2 OD=13.2
|
1-09630-082-0 |
03 |
1 |
9905- |
● |
● |
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(B)
ID=10.2 OD=15.2
|
1-09630-083-0 |
04 |
1 |
9603-9904 |
● |
|
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(B)
ID=10.2 OD=15.2
|
1-09630-083-0 |
04 |
1 |
9905- |
● |
● |
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(A)
M8X24 FLANGE
|
1-09675-038-1 |
01 |
1 |
9603-9904 |
● |
|
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(A)
M8X24 FLANGE
|
1-09675-038-1 |
01 |
1 |
9905- |
● |
● |
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(B)
M10X18 FLANGE
|
1-09675-076-0 |
02 |
1 |
9603-9904 |
● |
|
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(B)
M10X18 FLANGE
|
1-09675-076-0 |
02 |
1 |
9905- |
● |
● |
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(C)
M14X27 M10-HOLE ON HEAD
|
1-09675-087-0 |
01 |
1 |
9603-9904 |
● |
|
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(C)
M14X27 M10-HOLE ON HEAD
|
1-09675-087-0 |
01 |
1 |
9905- |
● |
● |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
(A)
ID=4.76 & 6.35 L=25 W/NUT
|
1-09700-850-0 |
01 |
1 |
9603-9904 |
● |
|
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
(A)
ID=4.76 & 6.35 L=25 W/NUT
|
1-09700-850-0 |
01 |
1 |
9905- |
● |
● |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
(B)
ID=7 L=25 B=18
|
1-09700-851-0 |
01 |
1 |
9603-9904 |
● |
|
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
(B)
ID=7 L=25 B=18
|
1-09700-851-0 |
01 |
1 |
9905- |
● |
● |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
(C)
|
9-09917-396-0 |
02 |
1 |
9603-9904 |
● |
|
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
(C)
|
9-09917-396-0 |
02 |
1 |
9905- |
● |
● |
| |
9 |
BOLT; CLIP
INTAKE HEATER<SL2>
M6X20 FLANGE
|
0-28080-620-0 |
02 |
1 |
9603-9904 |
● |
|
| |
9 |
BOLT; CLIP
INTAKE HEATER<SL2>
M6X20 FLANGE
|
0-28080-620-0 |
02 |
1 |
9905- |
● |
● |
| |
18 |
PIPE ASM; FUEL PUMP TO VLV
INTAKE HEATER<SL2>
|
1-15415-622-0 |
01 |
1 |
9603-9904 |
● |
|
| |
18 |
PIPE ASM; FUEL PUMP TO VLV
INTAKE HEATER<SL2>
|
1-15415-622-0 |
01 |
1 |
9905- |
● |
● |
| |
19 |
VALVE; MAG INT HTR
INTAKE HEATER<SL2>
|
1-82563-396-0 |
01 |
1 |
9603-9904 |
● |
|
| |
19 |
VALVE; MAG INT HTR
INTAKE HEATER<SL2>
|
1-82563-396-0 |
01 |
1 |
9905- |
● |
● |
| |
20 |
NUT; BRKT
INTAKE HEATER<SL2>
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9603-9904 |
● |
|
| |
20 |
NUT; BRKT
INTAKE HEATER<SL2>
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9905- |
● |
● |
| |
21 |
WASHER; LK,VLV
INTAKE HEATER<SL2>
ID=5.1
|
9-09150-505-0 |
02 |
1 |
9603-9904 |
● |
|
| |
21 |
WASHER; LK,VLV
INTAKE HEATER<SL2>
ID=5.1
|
9-09150-505-0 |
02 |
1 |
9905- |
● |
● |
| |
22 |
CLIP; HARNESS
INTAKE HEATER<SL2>
|
8-94213-457-0 |
01 |
1 |
9603-9904 |
● |
|
| |
22 |
CLIP; HARNESS
INTAKE HEATER<SL2>
|
8-94213-457-0 |
01 |
1 |
9905- |
● |
● |
| |
23 |
BRACKET; MAG VLV INT HTR
INTAKE HEATER<SL2>
|
1-82569-036-0 |
01 |
1 |
9603-9904 |
● |
|
| |
23 |
BRACKET; MAG VLV INT HTR
INTAKE HEATER<SL2>
|
1-82569-036-0 |
01 |
1 |
9905- |
● |
● |
| |
25 |
STUD; BRKT
INTAKE HEATER<SL2>
M10X16 L=31
|
9-04411-016-0 |
01 |
1 |
9603-9904 |
● |
|
| |
25 |
STUD; BRKT
INTAKE HEATER<SL2>
M10X16 L=31
|
9-04411-016-0 |
01 |
1 |
9905- |
● |
● |
| |
27 |
BOLT; VLV
INTAKE HEATER<SL2>
M5X10
|
0-20800-510-0 |
02 |
1 |
9603-9904 |
● |
|
| |
27 |
BOLT; VLV
INTAKE HEATER<SL2>
M5X10
|
0-20800-510-0 |
02 |
1 |
9905- |
● |
● |
| |
28 |
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2>
(A)
|
1-15415-931-0 |
01 |
1 |
9603-9904 |
● |
|
| |
28 |
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2>
(A)
|
1-15415-931-0 |
01 |
1 |
9905- |
● |
● |
| |
28 |
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2>
(B)
|
1-15415-932-0 |
01 |
1 |
9603-9904 |
● |
|
| |
28 |
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2>
(B)
|
1-15415-932-0 |
01 |
1 |
9905- |
● |
● |
| |
29 |
GASKET; INT HTR
ALSO INCLUDED IN GASKET SET(ENGINE).
INTAKE HEATER<SL2>
ID=22.5
|
9-09571-422-0 |
02 |
1 |
9603-9904 |
● |
|
| |
29 |
GASKET; INT HTR
ALSO INCLUDED IN GASKET SET(ENGINE).
INTAKE HEATER<SL2>
ID=22.5
|
9-09571-422-0 |
02 |
1 |
9905- |
● |
● |
| |
30 |
BRACKET; FUEL PIPE CLIP
INTAKE HEATER<SL2>
|
1-13319-020-0 |
01 |
1 |
9603-9904 |
● |
|
| |
30 |
BRACKET; FUEL PIPE CLIP
INTAKE HEATER<SL2>
|
1-13319-020-0 |
01 |
1 |
9905- |
● |
● |
