2-05 — CLUTCH PIPING (#54976) — 22 parça

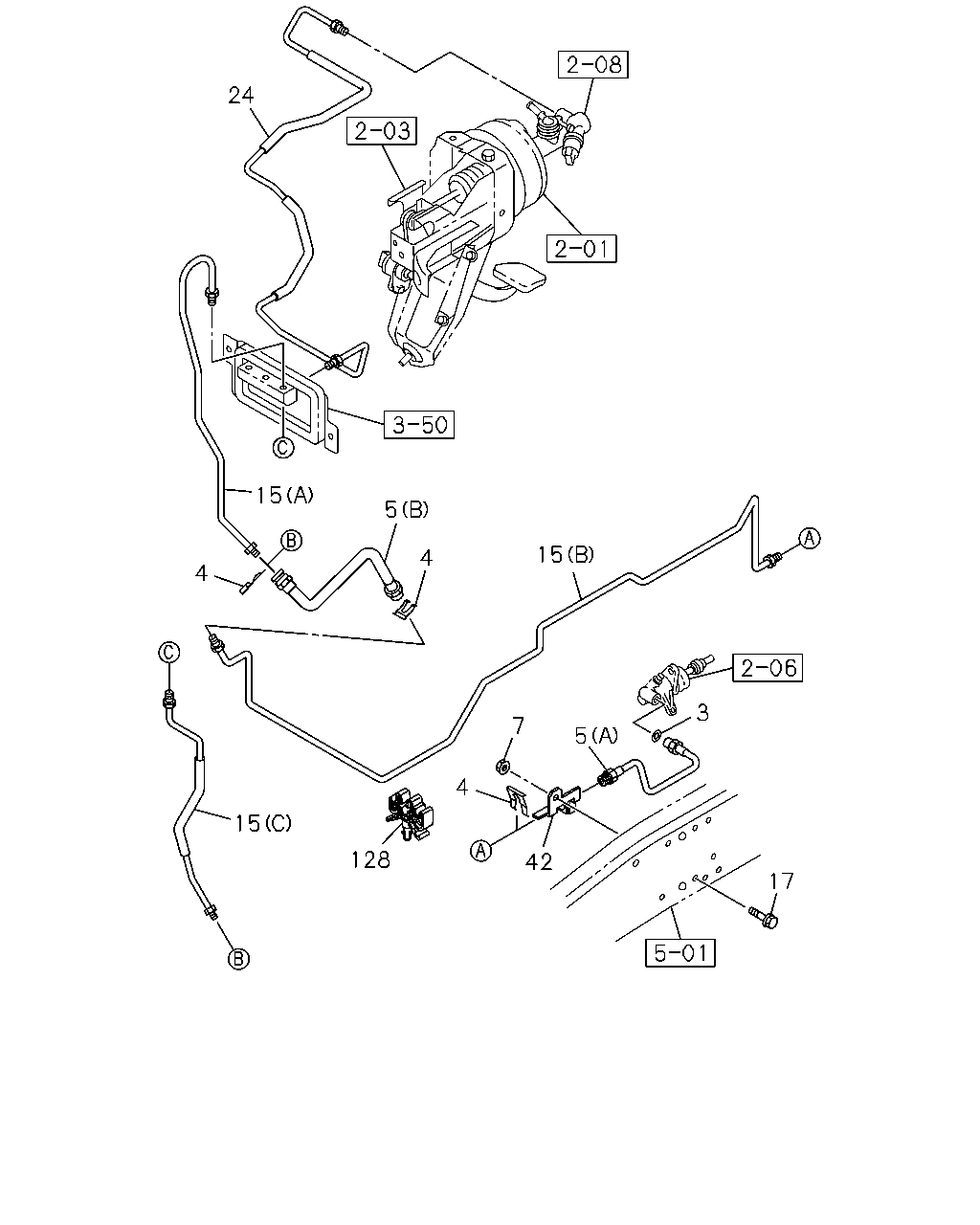

çizim 59863
24 15 5 15 4 4 3 7 5 4 15 128 42 17
BalonParca AdiParca NoAdetTipApplied Date
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0810-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 03 1 0810-
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97064-108-1 01 1 0810-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 0810-
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-
15 00.785 PIPE; CLU,FLEX HOSE
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98043-499-3 01 1 0812-
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98100-236-0 01 1 0810-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97389-643-0 01 1 0810-0811
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-643-0 01 1 0812-1401
15 00.785 PIPE; CLU,FLEX HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98250-269-0 01 1 1402-
17 00.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98098-684-1 01 1 0812-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98098-686-1 01 1 0812-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97389-356-1 01 1 0810-0811
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97389-356-1 01 1 0812-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98077-617-0 01 1 0810-0811
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98077-617-0 01 1 0812-
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-98102-893-0 01 1 0810-
128 00.785 CLIP; AIR PIPE
04.686 ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 0810-
çizim 101564
183
BalonParca AdiParca NoAdetTipApplied Date
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98088-023-0 01 1 0812-
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98121-942-0 01 1 0810-0811
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98121-942-0 01 1 0812-
