◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51187 - NPR/NQR(RHD) EURO1 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#54970) — 11 parça

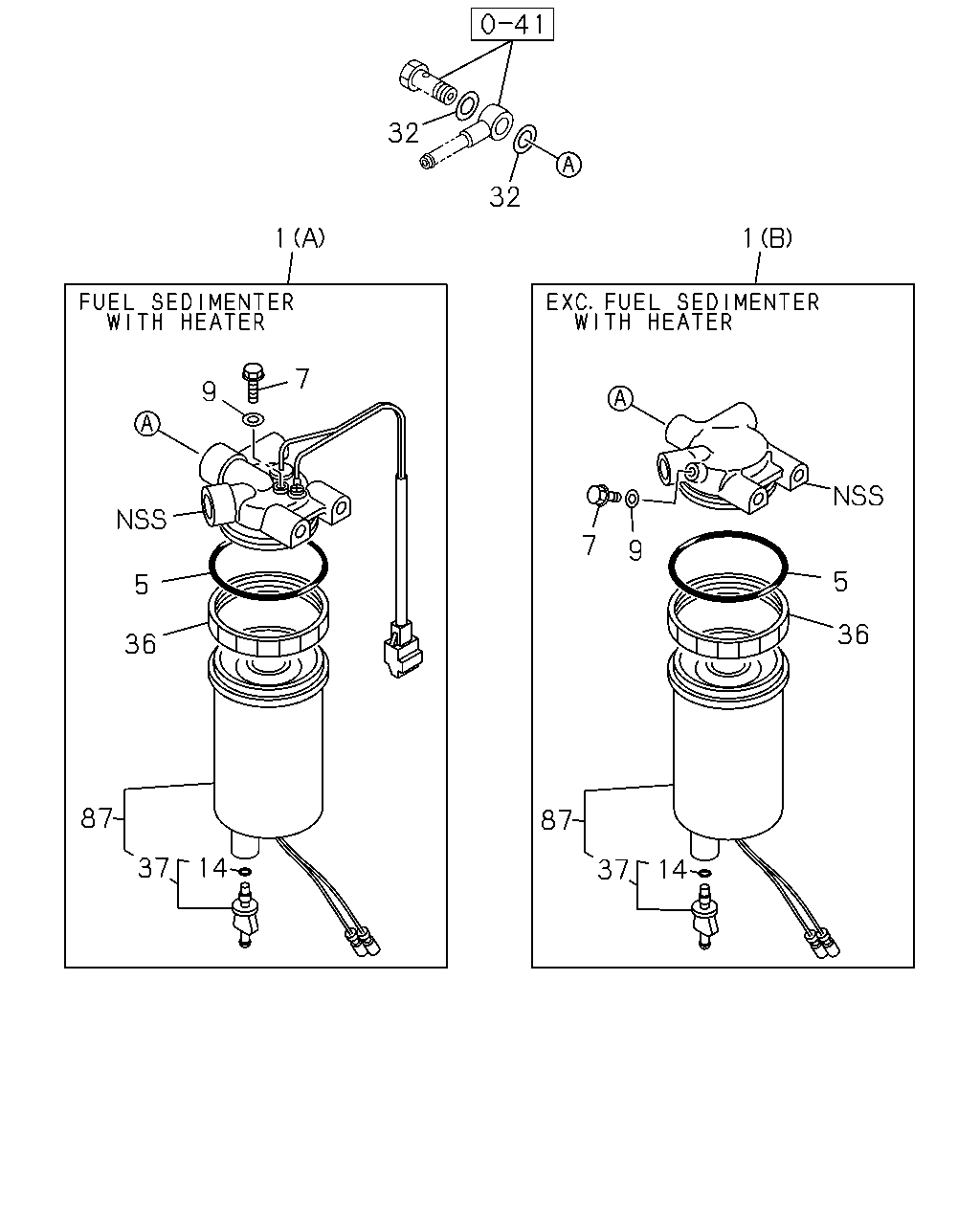

çizim 59440
32 32 1 7 9 7 9 5 5 36 36 87 87 14 37 37 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94311-522-3 01 1 0810- ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-94144-933-4 01 1 0810- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 0810- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0810- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0810- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 0810- ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 0810- ● ●
32 03.890 GASKET; FUEL FILTER
03.107 ID=14.2 OD=23.0 		9-09572-014-0 04 1 0810- ● ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 0810- ● ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 0810- ● ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 0810- ● ●
