Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#54969) — 477 parça

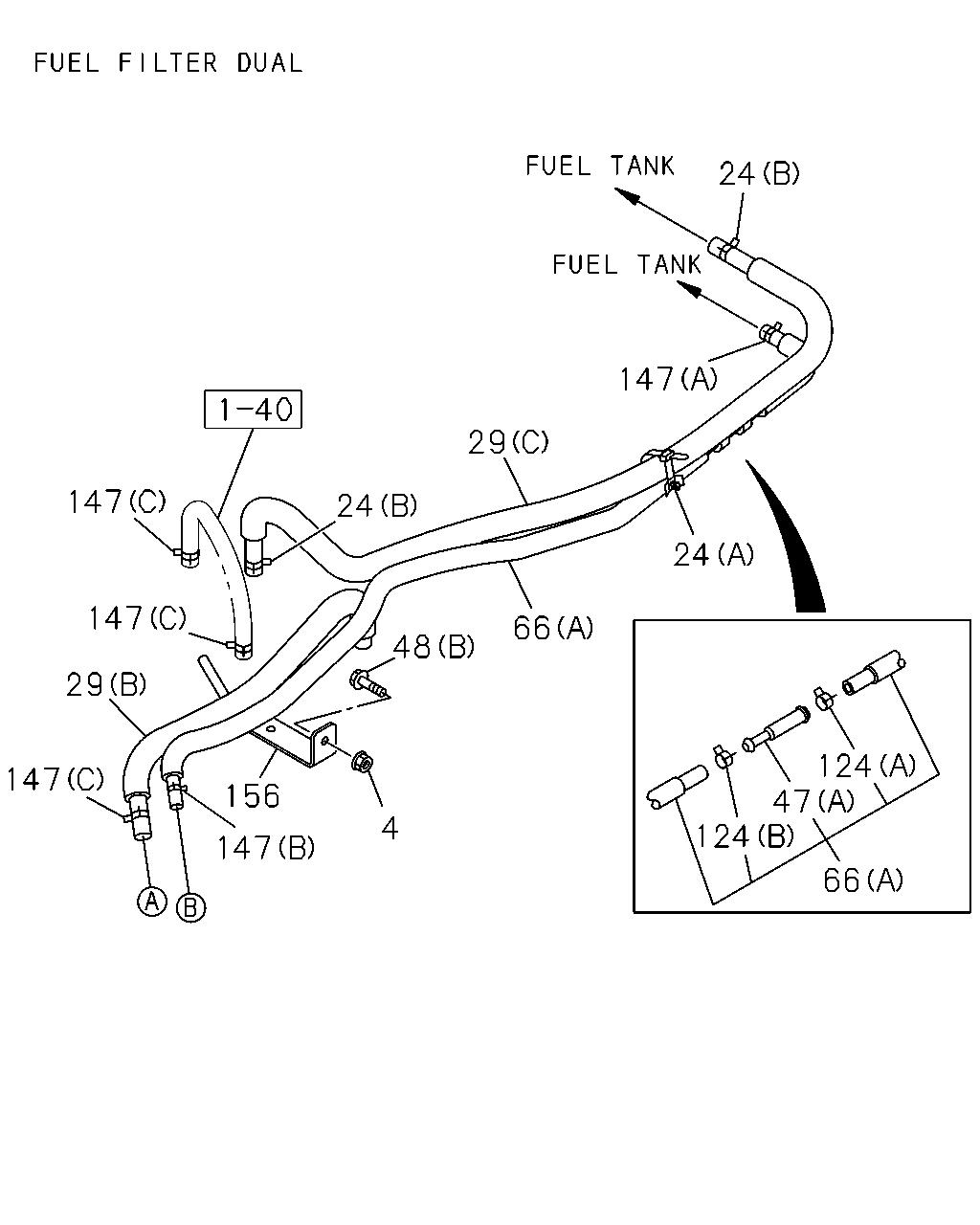

24 147 29 147 24 24 147 66 48 29 124 47 124 147 156 4 147 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	03.130 NUT; BRKT DUMP CHASSIS(V4D) 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	03	1	0810-0810	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	03	1	0810-0810		●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	02	1	0810-	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	02	1	0810-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (E)	8-98149-363-1	01	1	1307-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98149-363-1	01	1	1307-		●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. DUMP CHASSIS(V4D) (A)	8-98130-342-0	01	1	0810-	●	●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) DUMP CHASSIS(V4D) (B)	8-98122-641-0	01	1	0810-1010	●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) DUMP CHASSIS(V4D) (B)	8-98145-016-0	01	1	1011-	●
29	03.163 HOSE; FUEL DUMP CHASSIS(V4D) (C)	8-97389-794-0	01	1	0810-	●
29	03.163 HOSE; FUEL DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (D)	8-98057-028-0	01	1	0810-	●
29	03.163 HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0810-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98067-564-4	01	1	0810-1306	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (E)	8-98067-564-4	01	1	1307-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0810-	●	●
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 03.003 (F) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98113-911-1	01	1	0810-1010	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98136-892-0	01	1	1011-	●	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (A)	8-98149-364-1	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98149-364-1	01	1	1307-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W) (A)	8-98090-524-1	01	1	0810-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98067-567-2	01	1	0810-1306	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (A)	8-98067-567-2	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●	●
124	03.162 CLIP; HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0810-0911	●	●
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●
124	03.162 CLIP; HOSE (B) ID=12	8-97358-961-0	01	1	0810-1002	●	●
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1003-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=16	8-98008-098-0	02	1	0912-		●
156	03.162 BRACKET; FUEL HOSE	8-98041-250-2	01	1	0810-	●	●

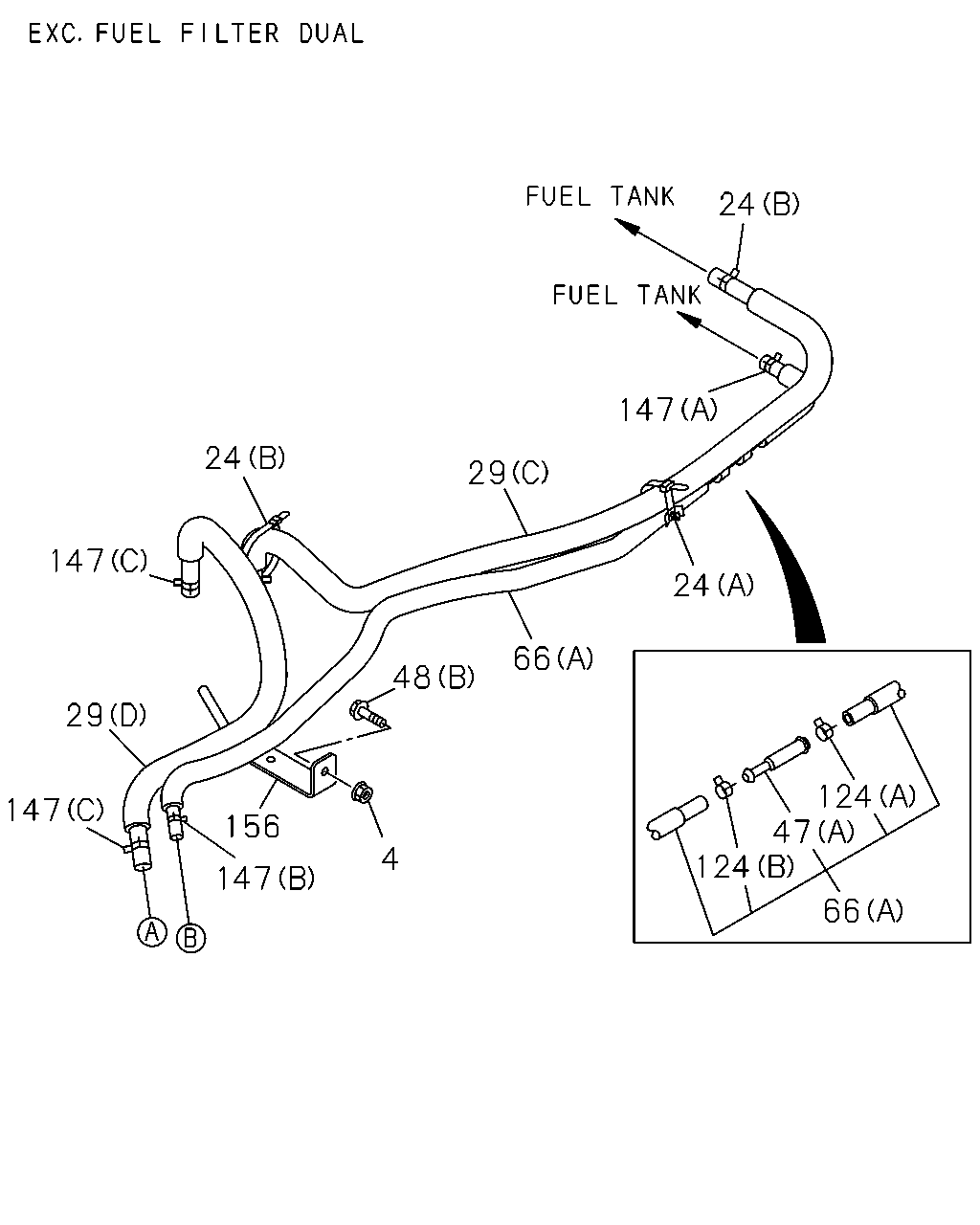

24 147 24 29 147 24 66 48 29 124 47 124 147 156 4 147 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	03.130 NUT; BRKT DUMP CHASSIS(V4D) 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	03	1	0810-0810	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	03	1	0810-0810		●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	02	1	0810-	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	02	1	0810-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (E)	8-98149-363-1	01	1	1307-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98149-363-1	01	1	1307-		●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. DUMP CHASSIS(V4D) (A)	8-98130-342-0	01	1	0810-	●	●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) DUMP CHASSIS(V4D) (B)	8-98122-641-0	01	1	0810-1010	●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) DUMP CHASSIS(V4D) (B)	8-98145-016-0	01	1	1011-	●
29	03.163 HOSE; FUEL DUMP CHASSIS(V4D) (C)	8-97389-794-0	01	1	0810-	●
29	03.163 HOSE; FUEL DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (D)	8-98057-028-0	01	1	0810-	●
29	03.163 HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0810-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98067-564-4	01	1	0810-1306	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (E)	8-98067-564-4	01	1	1307-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0810-	●	●
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 03.003 (F) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98113-911-1	01	1	0810-1010	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98136-892-0	01	1	1011-	●	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (A)	8-98149-364-1	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98149-364-1	01	1	1307-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W) (A)	8-98090-524-1	01	1	0810-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98067-567-2	01	1	0810-1306	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (A)	8-98067-567-2	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●	●
124	03.162 CLIP; HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0810-0911	●	●
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●
124	03.162 CLIP; HOSE (B) ID=12	8-97358-961-0	01	1	0810-1002	●	●
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1003-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=16	8-98008-098-0	02	1	0912-		●
156	03.162 BRACKET; FUEL HOSE	8-98041-250-2	01	1	0810-	●	●

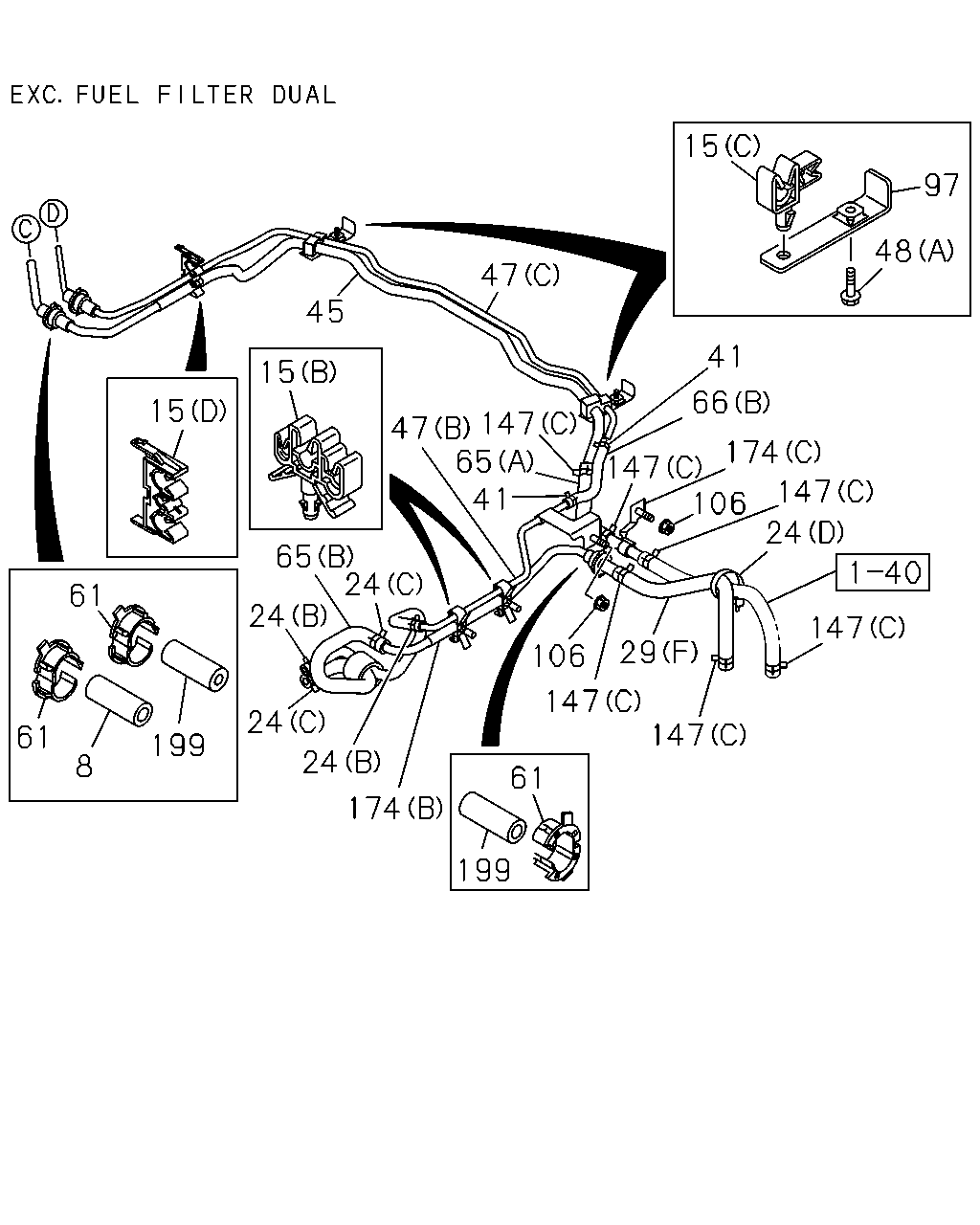

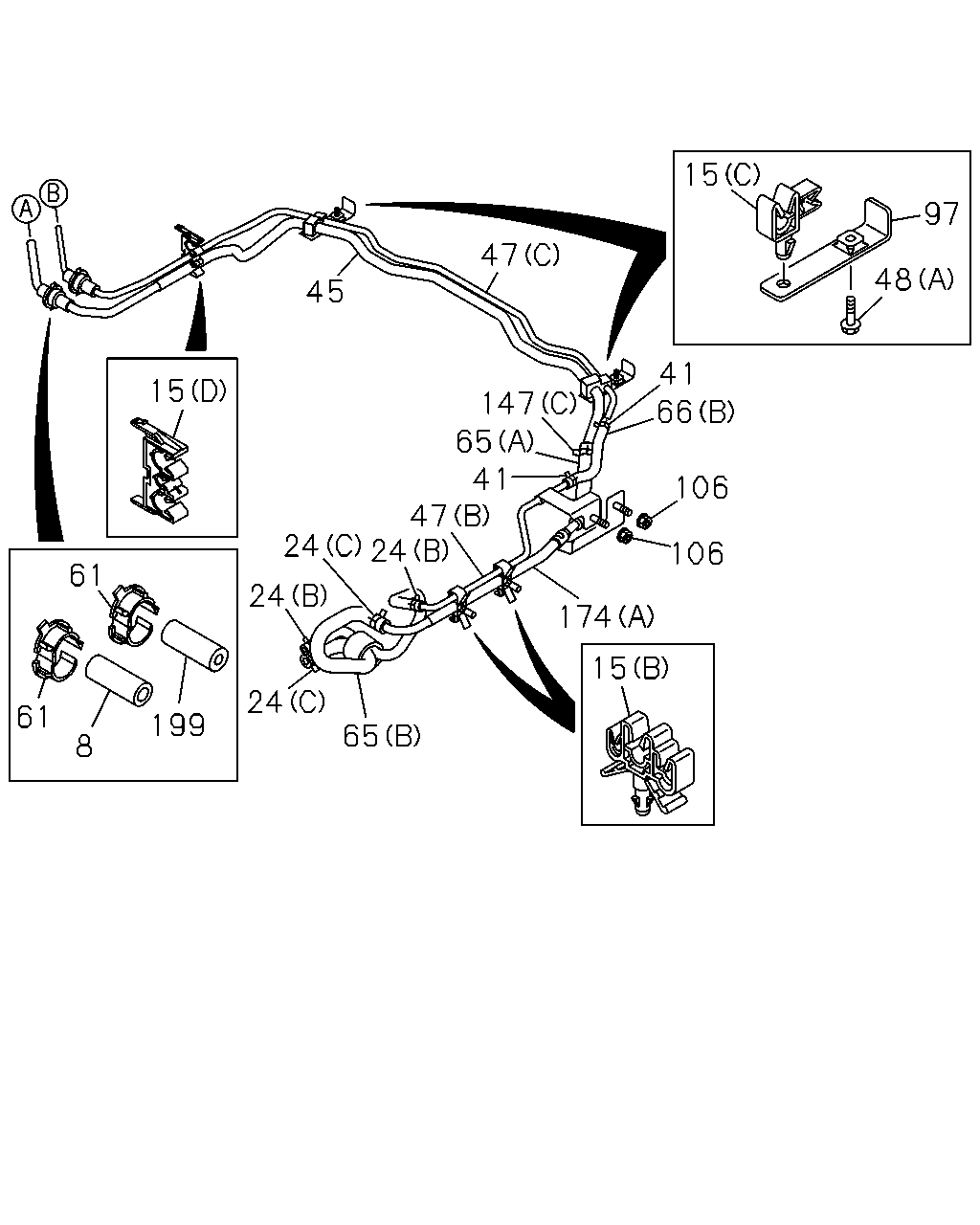

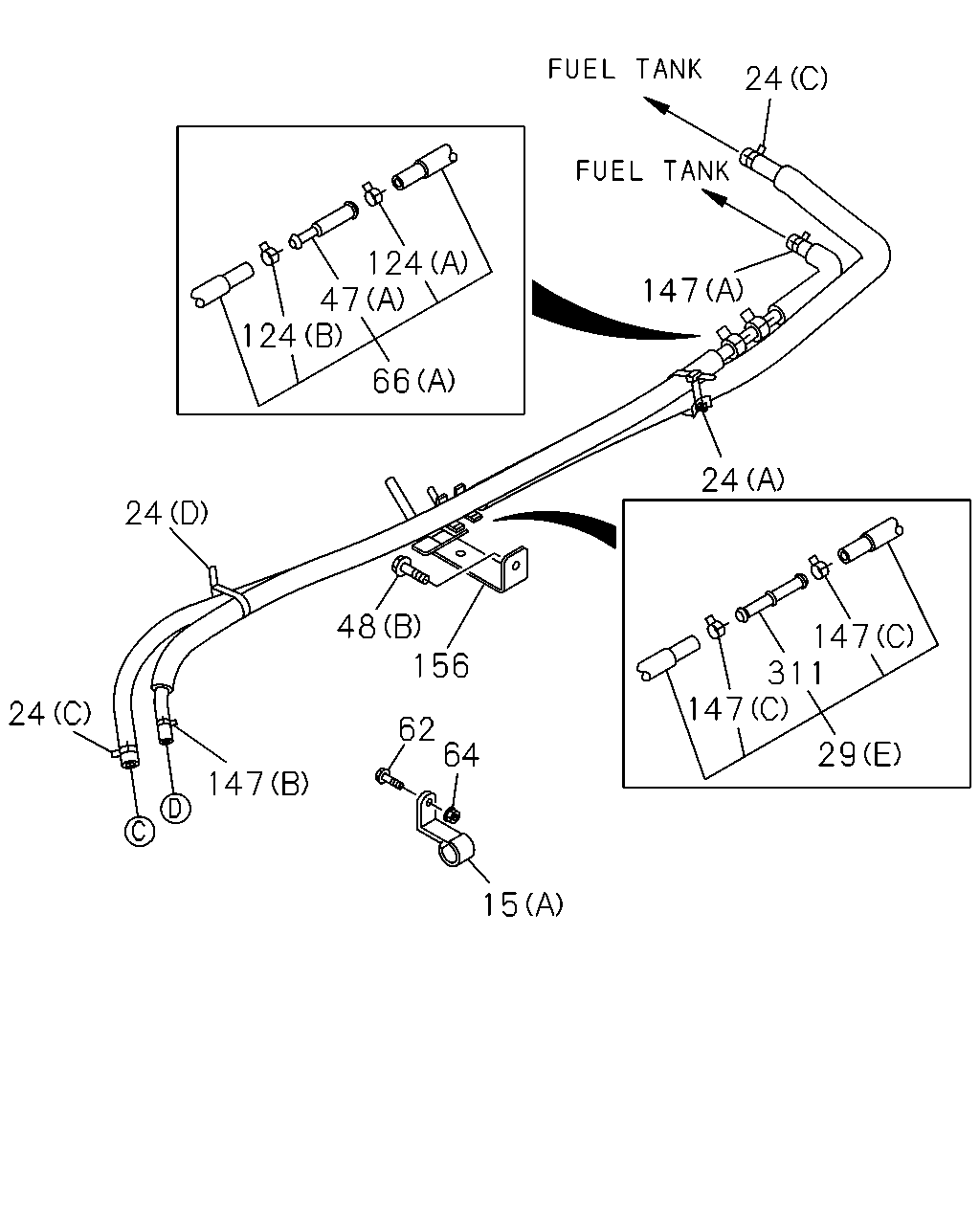

24 147 24 147 311 147 29 15 64 62 156 48 24 24 147 66 124 47 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●	●
15	03.162 CLIP; FUEL PIPE EXC. DUMP CHASSIS(V4D) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-1306	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-1306	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-		●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-		●
15	03.162 CLIP; FUEL PIPE 04.686 (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	03	1	0810-0810	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	03	1	0810-0810		●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	02	1	0810-	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	02	1	0810-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (E)	8-98149-363-1	01	1	1307-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98149-363-1	01	1	1307-		●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. DUMP CHASSIS(V4D) (A)	8-98130-342-0	01	1	0810-	●	●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) DUMP CHASSIS(V4D) (B)	8-98122-641-0	01	1	0810-1010	●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) DUMP CHASSIS(V4D) (B)	8-98145-016-0	01	1	1011-	●
29	03.163 HOSE; FUEL DUMP CHASSIS(V4D) (C)	8-97389-794-0	01	1	0810-	●
29	03.163 HOSE; FUEL DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (D)	8-98057-028-0	01	1	0810-	●
29	03.163 HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0810-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98067-564-4	01	1	0810-1306	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (E)	8-98067-564-4	01	1	1307-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0810-	●	●
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 03.003 (F) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98113-911-1	01	1	0810-1010	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98136-892-0	01	1	1011-	●	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-	●	●
62	03.162 BOLT; CLIP FIX EXC. DUMP CHASSIS(V4D) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-1010	●
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-1010		●
62	03.162 BOLT; CLIP FIX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-1306	●	●
62	03.162 BOLT; CLIP FIX WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
62	03.162 BOLT; CLIP FIX WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
62	03.162 BOLT; CLIP FIX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
64	03.162 NUT; CLIP EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-1010	●
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-1010		●
64	03.162 NUT; CLIP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-1306	●	●
64	03.162 NUT; CLIP WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 01.062 M8 FLANGE	0-91180-108-0	02	1	1307-	●
64	03.162 NUT; CLIP WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1307-	●
64	03.162 NUT; CLIP WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1307-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (A)	8-98149-364-1	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98149-364-1	01	1	1307-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W) (A)	8-98090-524-1	01	1	0810-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98067-567-2	01	1	0810-1306	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (A)	8-98067-567-2	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●	●
124	03.162 CLIP; HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0810-0911	●	●
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●
124	03.162 CLIP; HOSE (B) ID=12	8-97358-961-0	01	1	0810-1002	●	●
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1003-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=16	8-98008-098-0	02	1	0912-		●
156	03.162 BRACKET; FUEL HOSE	8-98041-250-2	01	1	0810-	●	●
311	03.163 JOINT; HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D)	8-97353-668-0	01	1	0810-	●
311	03.163 JOINT; HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97353-668-0	01	1	0810-	●
311	03.163 JOINT; HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W)	8-97353-668-0	01	1	0810-		●

15 97 47 48 45 41 66 15 147 65 41 47 24 24 106 106 61 24 174 15 199 24 61 65 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	03.162 RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●	●
15	03.162 CLIP; FUEL PIPE EXC. DUMP CHASSIS(V4D) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-1306	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-1306	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-		●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-		●
15	03.162 CLIP; FUEL PIPE 04.686 (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	03	1	0810-0810	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	03	1	0810-0810		●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	02	1	0810-	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	02	1	0810-		●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.219 ID=12	8-94238-610-0	02	1	0810-0911	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	0912-	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-98113-910-0	01	1	0810-1010	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-98136-891-0	01	1	1011-	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98113-911-1	01	1	0810-1010	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98136-892-0	01	1	1011-	●	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0810-	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. DUMP CHASSIS(V4D) 02.343 ID=17	8-94128-319-2	01	1	0810-	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	01	1	0810-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0810-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98122-642-0	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (A)	8-98149-364-1	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98149-364-1	01	1	1307-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W) (A)	8-98090-524-1	01	1	0810-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98067-567-2	01	1	0810-1306	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (A)	8-98067-567-2	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●	●
97	03.162 BRACKET; CLIP	8-98057-653-0	02	1	0810-	●	●
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0810-	●	●
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0810-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=16	8-98008-098-0	02	1	0912-		●
174	03.163 PIPE; FUEL,FEED,FRT DUMP CHASSIS(V4D) (A)	8-98057-566-0	01	1	0810-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. DUMP CHASSIS(V4D) (B)	8-98033-844-1	01	1	0810-	●
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98033-844-1	01	1	0810-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. DUMP CHASSIS(V4D) (C)	8-98041-616-0	01	1	0810-	●
174	03.163 PIPE; FUEL,FEED,FRT (C)	8-98041-616-0	01	1	0810-		●
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0810-	●	●
199	03.162 PROTECTOR; FUEL PIPE EXC. DUMP CHASSIS(V4D) OD=15 L=50	8-97077-629-0	01	1	0810-	●
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0810-		●

15 97 48 47 45 41 15 66 15 47 147 65 41 174 147 106 147 24 65 24 61 24 147 29 106 147 147 199 24 61 24 8 61 174 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	03.162 RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●	●
15	03.162 CLIP; FUEL PIPE EXC. DUMP CHASSIS(V4D) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-1306	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-1306	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-		●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-		●
15	03.162 CLIP; FUEL PIPE 04.686 (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	03	1	0810-0810	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	03	1	0810-0810		●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	02	1	0810-	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	02	1	0810-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (E)	8-98149-363-1	01	1	1307-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98149-363-1	01	1	1307-		●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. DUMP CHASSIS(V4D) (A)	8-98130-342-0	01	1	0810-	●	●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) DUMP CHASSIS(V4D) (B)	8-98122-641-0	01	1	0810-1010	●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) DUMP CHASSIS(V4D) (B)	8-98145-016-0	01	1	1011-	●
29	03.163 HOSE; FUEL DUMP CHASSIS(V4D) (C)	8-97389-794-0	01	1	0810-	●
29	03.163 HOSE; FUEL DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (D)	8-98057-028-0	01	1	0810-	●
29	03.163 HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0810-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98067-564-4	01	1	0810-1306	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (E)	8-98067-564-4	01	1	1307-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0810-	●	●
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 03.003 (F) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.219 ID=12	8-94238-610-0	02	1	0810-0911	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	0912-	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-98113-910-0	01	1	0810-1010	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-98136-891-0	01	1	1011-	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98113-911-1	01	1	0810-1010	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98136-892-0	01	1	1011-	●	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0810-	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. DUMP CHASSIS(V4D) 02.343 ID=17	8-94128-319-2	01	1	0810-	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	01	1	0810-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0810-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98122-642-0	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (A)	8-98149-364-1	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98149-364-1	01	1	1307-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W) (A)	8-98090-524-1	01	1	0810-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98067-567-2	01	1	0810-1306	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (A)	8-98067-567-2	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●	●
97	03.162 BRACKET; CLIP	8-98057-653-0	02	1	0810-	●	●
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0810-	●	●
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0810-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=16	8-98008-098-0	02	1	0912-		●
174	03.163 PIPE; FUEL,FEED,FRT DUMP CHASSIS(V4D) (A)	8-98057-566-0	01	1	0810-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. DUMP CHASSIS(V4D) (B)	8-98033-844-1	01	1	0810-	●
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98033-844-1	01	1	0810-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. DUMP CHASSIS(V4D) (C)	8-98041-616-0	01	1	0810-	●
174	03.163 PIPE; FUEL,FEED,FRT (C)	8-98041-616-0	01	1	0810-		●
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0810-	●	●
199	03.162 PROTECTOR; FUEL PIPE EXC. DUMP CHASSIS(V4D) OD=15 L=50	8-97077-629-0	01	1	0810-	●
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0810-		●

15 97 48 47 45 41 15 66 15 47 147 65 41 174 147 147 106 24 65 24 29 147 61 24 147 106 147 147 199 24 61 147 24 8 61 174 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	03.162 RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-0810	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●	●
15	03.162 CLIP; FUEL PIPE EXC. DUMP CHASSIS(V4D) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0810-1010	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-1306	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1011-1306	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-		●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1307-		●
15	03.162 CLIP; FUEL PIPE 04.686 (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	0810-	●	●
15	03.162 CLIP; FUEL PIPE 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-	●	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	02	1	0810-0911	●	●
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-	●	●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	03	1	0810-0810	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	03	1	0810-0810		●
24	03.162 CLIP; FUEL HOSE EXC. DUMP CHASSIS(V4D) (D) L=140	5-09707-031-1	02	1	0810-	●
24	03.162 CLIP; FUEL HOSE (D) L=140	5-09707-031-1	02	1	0810-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (E)	8-98149-363-1	01	1	1307-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98149-363-1	01	1	1307-		●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. DUMP CHASSIS(V4D) (A)	8-98130-342-0	01	1	0810-	●	●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) DUMP CHASSIS(V4D) (B)	8-98122-641-0	01	1	0810-1010	●
29	03.163 HOSE; FUEL FUEL FILTER DUAL(S6B) DUMP CHASSIS(V4D) (B)	8-98145-016-0	01	1	1011-	●
29	03.163 HOSE; FUEL DUMP CHASSIS(V4D) (C)	8-97389-794-0	01	1	0810-	●
29	03.163 HOSE; FUEL DUMP CHASSIS(V4D) EXC. FUEL FILTER DUAL(S6B) (D)	8-98057-028-0	01	1	0810-	●
29	03.163 HOSE; FUEL WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (E)	8-98067-565-1	01	1	0810-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98067-564-4	01	1	0810-1306	●	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (E)	8-98067-564-4	01	1	1307-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E)	8-98067-563-4	01	1	0810-	●	●
29	03.163 HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),DUMP CHASSIS(V4D) 03.003 (F) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.219 ID=12	8-94238-610-0	02	1	0810-0911	●	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	0912-	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-98113-910-0	01	1	0810-1010	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-98136-891-0	01	1	1011-	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=70	8-98036-483-0	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0810-	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98113-911-1	01	1	0810-1010	●	●
47	03.163 PIPE; FUEL,RETURN (C)	8-98136-892-0	01	1	1011-	●	●
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0810-	●	●
61	03.162 GROMMET; PIPE TO FRAME EXC. DUMP CHASSIS(V4D) 02.343 ID=17	8-94128-319-2	01	1	0810-	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	01	1	0810-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0810-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98122-642-0	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (A)	8-98149-364-1	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98149-364-1	01	1	1307-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2700MM(27W) (A)	8-98090-524-1	01	1	0810-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (A)	8-98067-567-2	01	1	0810-1306	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (A)	8-98067-567-2	01	1	1307-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	0810-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0810-	●	●
97	03.162 BRACKET; CLIP	8-98057-653-0	02	1	0810-	●	●
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0810-	●	●
106	03.162 NUT; FUEL PIPE M10 FLANGE	0-91180-110-0	01	1	0810-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=13	8-94238-571-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=13	8-98150-357-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	01	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.930 (C) ID=16	8-94238-568-0	02	1	0810-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2700MM(27W) EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. DUMP CHASSIS(V4D) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (C) ID=16	8-98008-098-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=16	8-98008-098-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=16	8-98008-098-0	02	1	0912-		●
174	03.163 PIPE; FUEL,FEED,FRT DUMP CHASSIS(V4D) (A)	8-98057-566-0	01	1	0810-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. DUMP CHASSIS(V4D) (B)	8-98033-844-1	01	1	0810-	●
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98033-844-1	01	1	0810-		●
174	03.163 PIPE; FUEL,FEED,FRT EXC. DUMP CHASSIS(V4D) (C)	8-98041-616-0	01	1	0810-	●
174	03.163 PIPE; FUEL,FEED,FRT (C)	8-98041-616-0	01	1	0810-		●
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0810-	●	●
199	03.162 PROTECTOR; FUEL PIPE EXC. DUMP CHASSIS(V4D) OD=15 L=50	8-97077-629-0	01	1	0810-	●
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	0810-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
