1-40 — FUEL TANK (#54968) — 53 parça

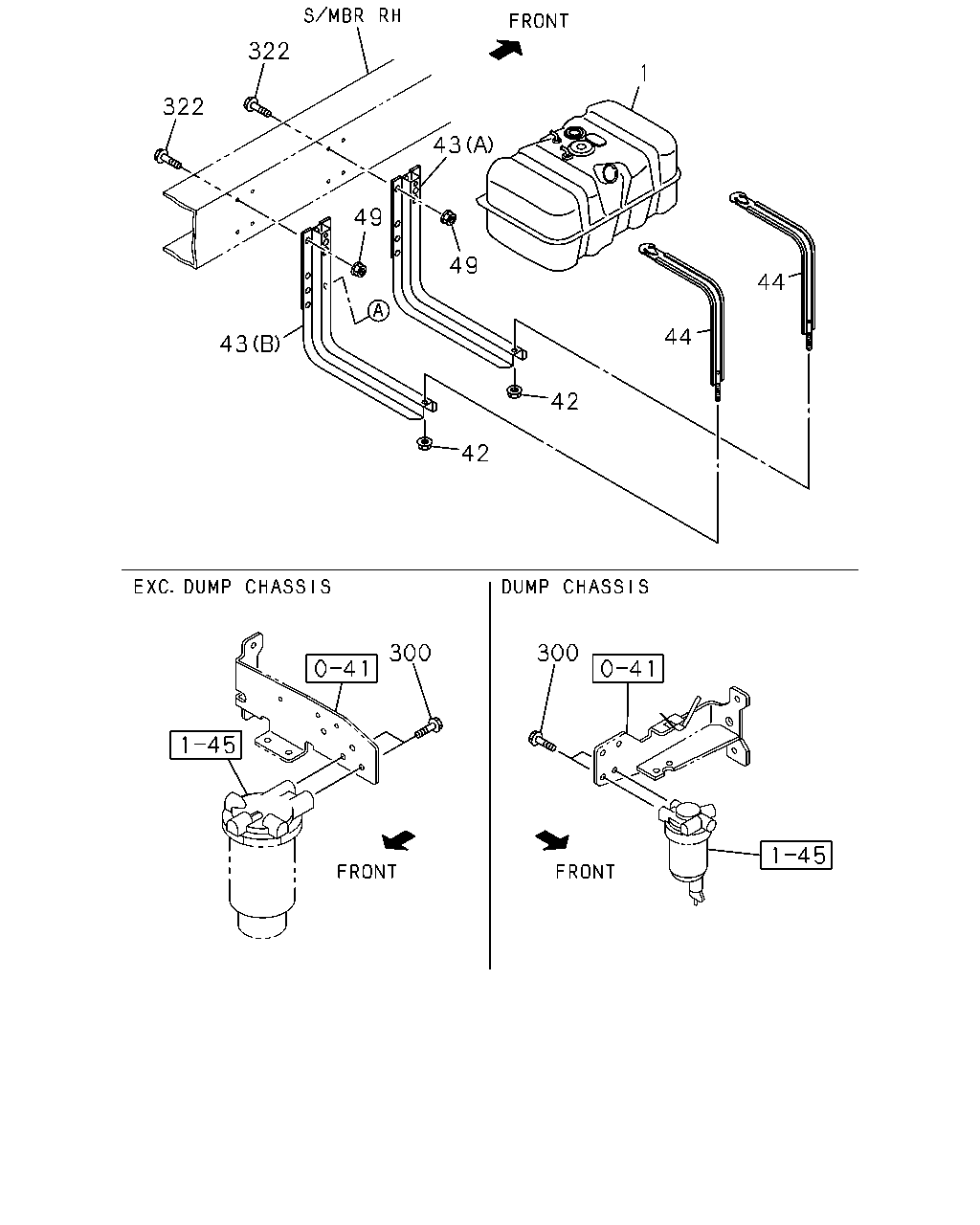

çizim 59469
322 1 322 43 49 49 44 44 43 42 42 300 300
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 0810- ● ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0810- ● ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-97384-060-5 01 1 0810- ● ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-97384-062-6 01 1 0810- ● ●
44 03.023 BAND; FUEL TANK
L=795 		8-97384-080-2 02 1 0810- ● ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0810- ● ●
300 03.162 BOLT; BRKT TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0810- ● ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 08 1 0810- ● ●

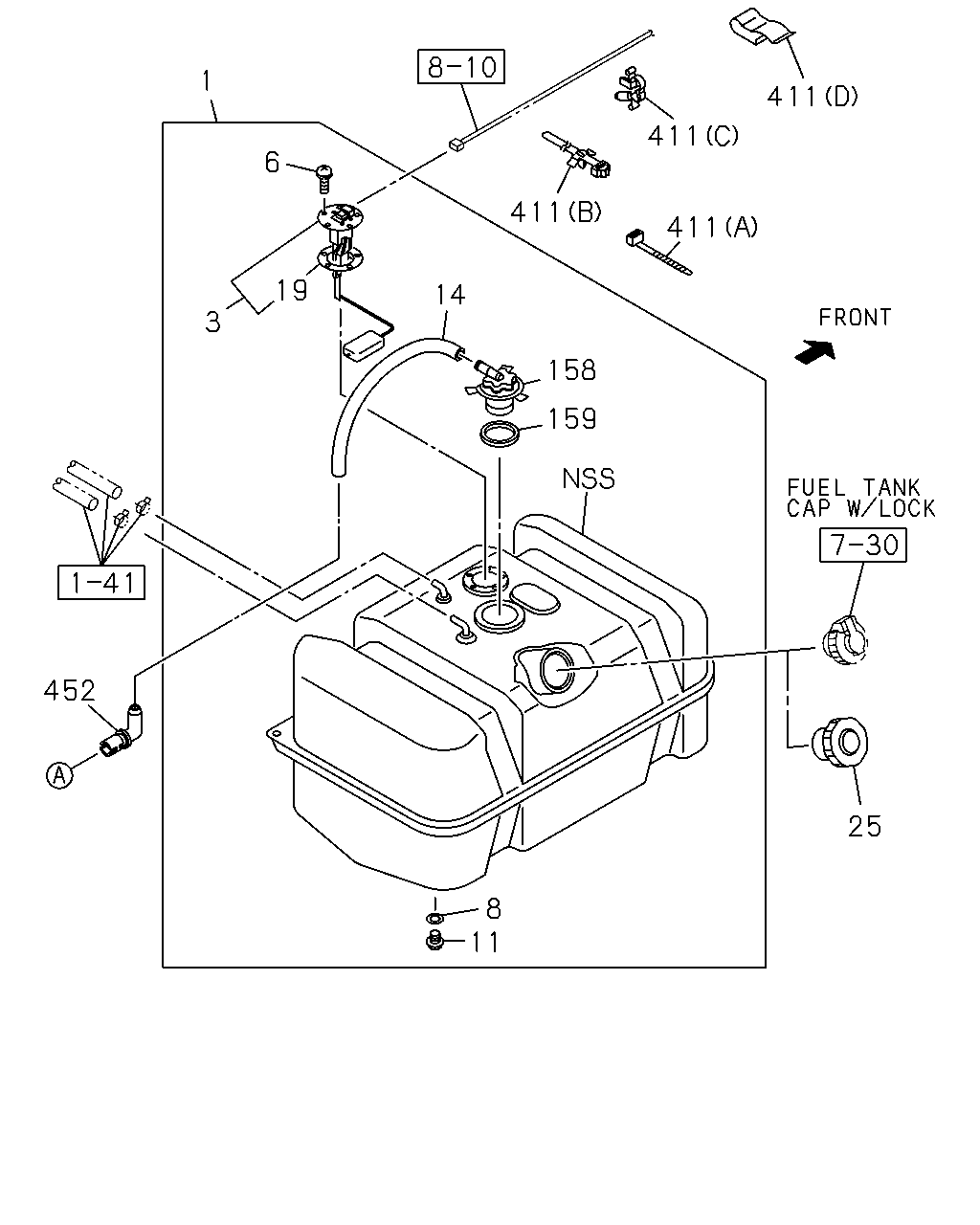

çizim 59508
1 411 411 6 411 411 19 14 3 158 159 452 25 8 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 0810- ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 0810- ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0810- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0810- ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 0810- ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=480 		8-97135-581-0 01 1 0810-1003 ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1004- ● ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 0810- ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0810- ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0810- ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0810- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 05 1 1408-1408 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5 		8-97371-951-0 05 1 1409- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (D) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (D) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (D) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 01 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 01 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1403-1407 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) (D) T=5.5 		8-97371-951-0 06 1 1403-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) T=5.5 		8-97371-951-0 06 1 1403-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=4.5 & 9 		8-97371-947-0 01 1 1408-1408 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) (D) T=4.5 & 9 		8-97371-947-0 01 1 1408-1408 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) T=4.5 & 9 		8-97371-947-0 01 1 1408-1408 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) T=4.5 & 9 		8-97371-947-0 01 1 1409- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) (D) T=4.5 & 9 		8-97371-947-0 01 1 1409- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) T=4.5 & 9 		8-97371-947-0 01 1 1409- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) (D) T=4.5 & 9 		8-97371-947-0 01 1 1403-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) T=4.5 & 9 		8-97371-947-0 01 1 1403-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) (D) T=5.5 		8-97371-951-0 06 1 1408-1408 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) T=5.5 		8-97371-951-0 06 1 1408-1408 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
IDENTIFICATION LABEL FOR KD<6UT> (D) T=5.5 		8-97371-951-0 06 1 1409- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) (D) T=5.5 		8-97371-951-0 06 1 1409- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) T=5.5 		8-97371-951-0 06 1 1409- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 0810-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (C) ID=5-12 L=18 		1-09709-287-0 01 1 0810- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0810- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140 		5-09707-031-1 01 1 0810- ● ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0810- ● ●

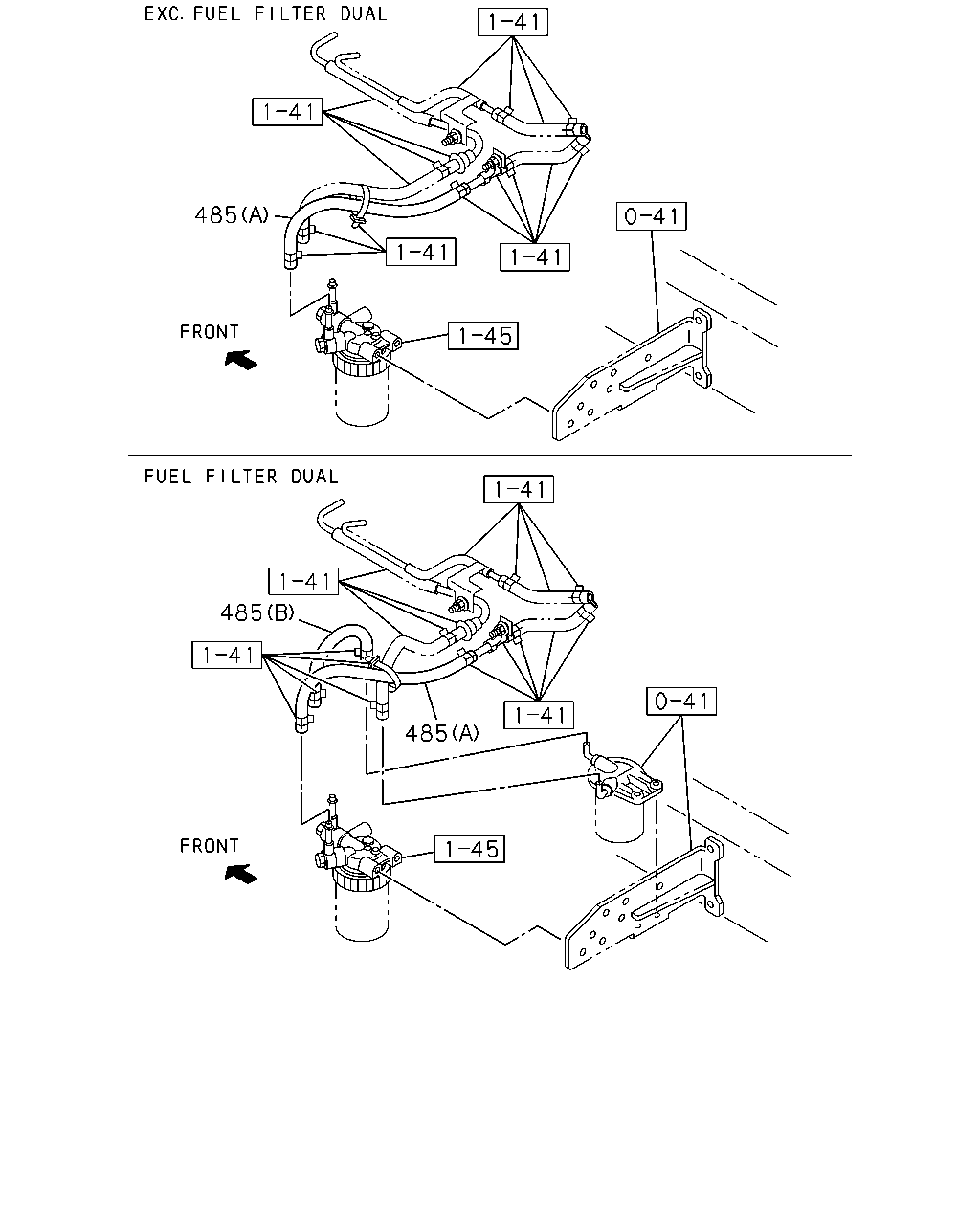

çizim 101531
485 485 485
BalonParca AdiParca NoAdetTipApplied Date A B
485 03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B) 03.003 (B) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 0810- ● ●
485 03.163 HOSE; FUEL
EXC. DUMP CHASSIS(V4D) 03.003 (A) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 0810- ●
485 03.163 HOSE; FUEL
03.003 (A) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 0810- ●
