◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51187 - NPR/NQR(RHD) EURO1 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#54964) — 24 parça

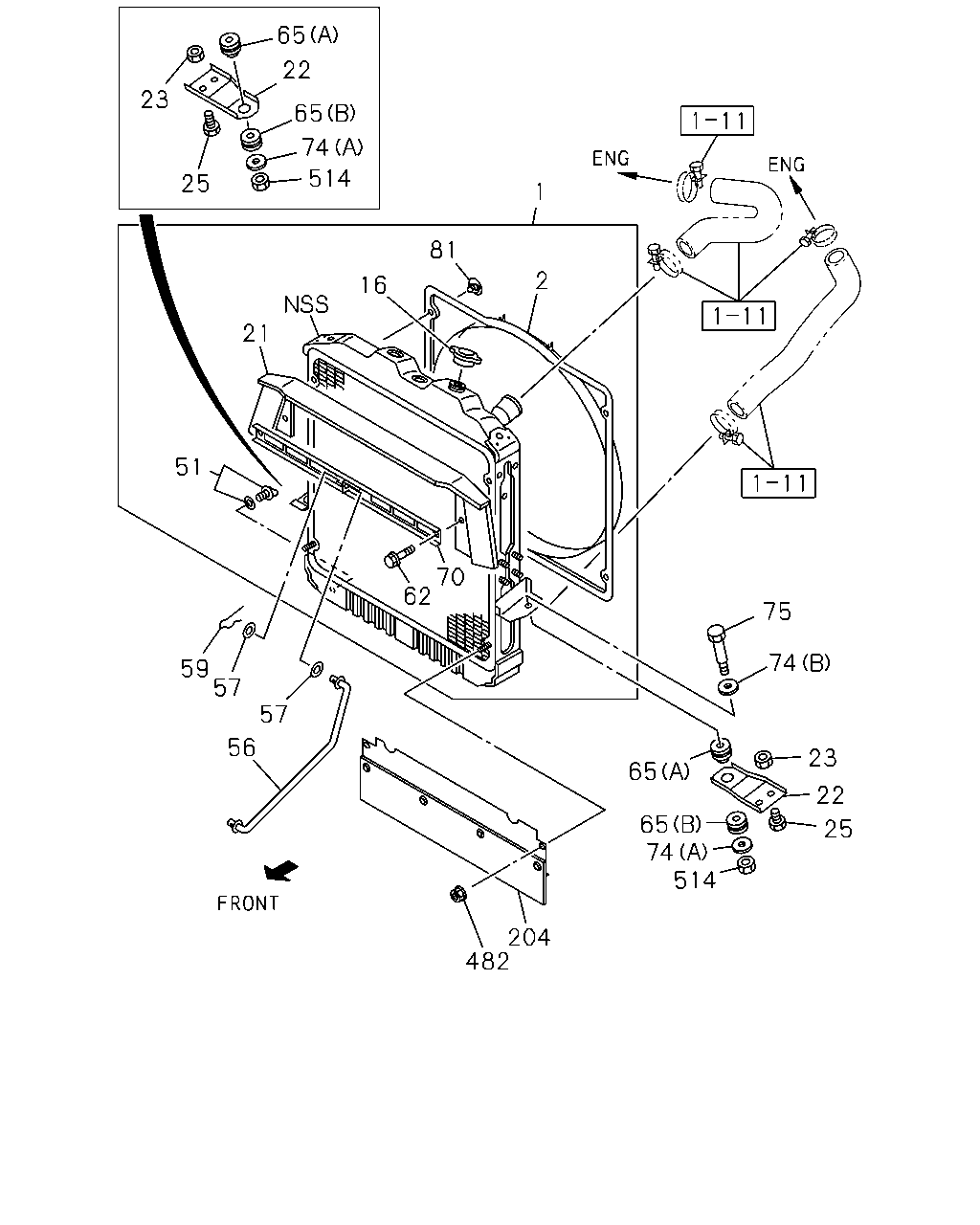

çizim 60098
65 22 23 65 74 514 25 1 81 2 16 21 51 70 62 75 74 59 57 57 56 23 65 22 65 74 514 25 204 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 RADIATOR ASM 8-98095-587-2 01 1 0810- ● ●
2 01.277 GUIDE; FAN 8-98095-606-0 01 1 0810- ● ●
16 01.203 CAP; RAD 8-98096-226-0 01 1 0810- ● ●
21 01.276 SEAL; RAD 8-98080-347-0 01 1 0810-1201 ● ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 01 1 0810- ● ●
23 01.271 NUT; RAD MTG
04.085 M10 FLANGE 		0-91180-210-0 02 1 0810-0909 ● ●
23 01.271 NUT; RAD MTG
03.162 M10 FLANGE 		0-91180-110-0 02 1 0910- ● ●
25 01.271 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0810- ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0810- ● ●
56 01.270 STAY; RAD 8-98058-497-0 01 1 0810- ● ●
57 01.271 WASHER; PL,STAY
17.198 ID=10.5 		0-91610-510-0 02 1 0810- ● ●
59 01.271 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 0810- ● ●
62 01.271 BOLT; STAY
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0810- ● ●
65 01.271 INSULATOR; RAD
01.270 (A) 		8-94249-346-0 02 1 0810- ● ●
65 01.271 INSULATOR; RAD
01.270 (B) 		8-94249-347-0 02 1 0810- ● ●
70 01.271 STAY; RAD 8-98034-644-0 01 1 0810- ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 		0-91610-710-0 01 1 0810- ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-97359-049-1 02 1 0810- ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0810- ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 0810-1201 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 02 1 1202- ● ●
204 01.267 GUIDE ASM; AIR 8-97387-572-1 01 1 0810-1110 ● ●
482 01.277 NUT; AIR GUIDE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0810-1110 ● ●
514 01.276 NUT; RAD
01.062 M8 FLANGE 		0-91180-108-0 02 1 0810- ● ●
