Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#54963) — 65 parça

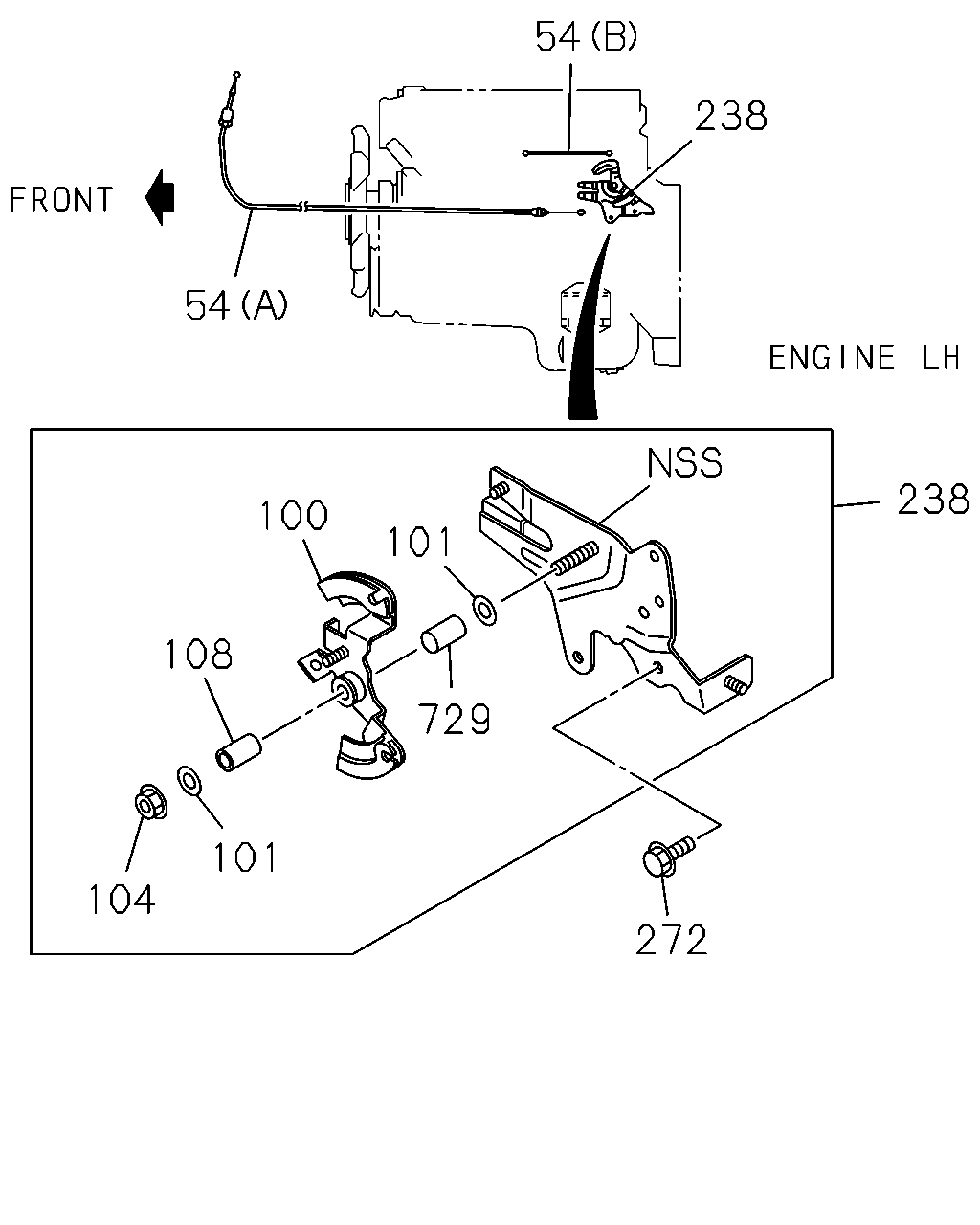

54 238 54 238 100 101 108 729 101 104 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0810-	●	●
54	03.430 CABLE; ENG CONT (A) L=2883	8-98099-702-3	01	1	0810-	●	●
100	03.463 SHAFT ASM; ENG CONT	8-97118-737-0	01	1	0810-	●	●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0810-	●	●
104	03.463 NUT; ENG CONT 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-	●	●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0810-	●	●
238	03.463 LEVER; ACCEL CONT	8-97118-729-0	01	1	0810-	●	●
272	03.454 BOLT; LEVER 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0810-	●	●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0810-	●	●

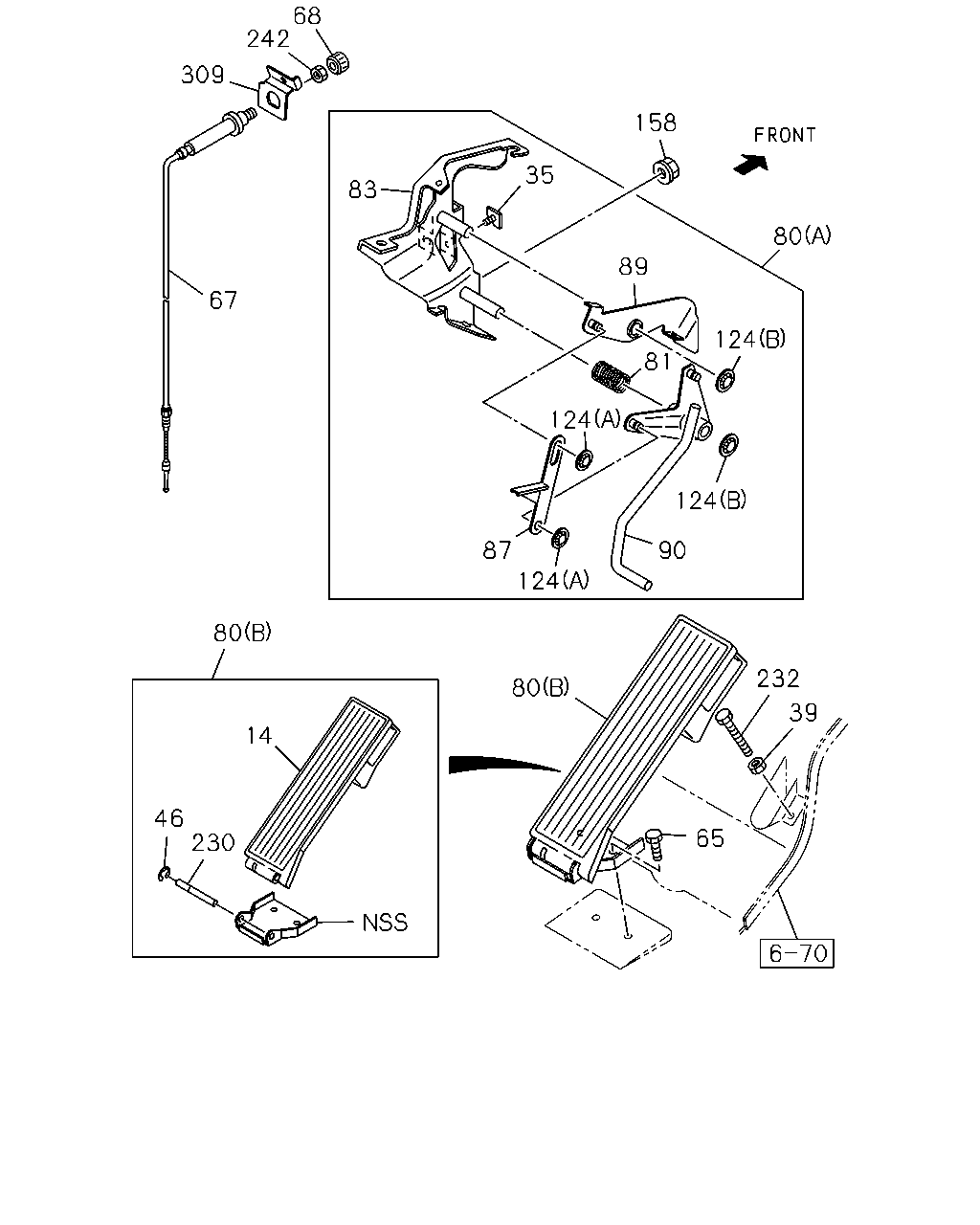

68 242 309 158 35 83 80 89 67 124 81 124 124 90 87 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0810-	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0810-	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0810-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0810-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0810-	●	●
67	03.480 CABLE ASM; IDLE CONT	8-98124-108-3	01	1	0810-	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0810-	●	●
80	03.452 LINK ASM; ENG CONT PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	0810-1107	●	●
80	03.452 LINK ASM; ENG CONT DUMP CHASSIS(V4D) (A)	8-98124-928-1	01	1	1108-	●
80	03.452 LINK ASM; ENG CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98124-928-1	01	1	1108-	●
80	03.452 LINK ASM; ENG CONT PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1108-		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0810-	●	●
80	03.452 LINK ASM; ENG CONT EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	0810-1107	●	●
80	03.452 LINK ASM; ENG CONT EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1108-	●
80	03.452 LINK ASM; ENG CONT EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1108-		●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-98031-665-0	01	1	0810-	●	●
83	03.452 BRACKET; CONT LINK PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	0810-1107	●	●
83	03.452 BRACKET; CONT LINK DUMP CHASSIS(V4D)	8-98124-931-1	01	1	1108-	●
83	03.452 BRACKET; CONT LINK PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98124-931-1	01	1	1108-	●
83	03.452 BRACKET; CONT LINK PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1108-		●
83	03.452 BRACKET; CONT LINK EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	0810-1107	●	●
83	03.452 BRACKET; CONT LINK EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1108-	●
83	03.452 BRACKET; CONT LINK EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1108-		●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	0810-	●	●
89	03.454 LEVER; RELAY PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	0810-1107	●	●
89	03.454 LEVER; RELAY DUMP CHASSIS(V4D)	8-98124-932-0	01	1	1108-	●
89	03.454 LEVER; RELAY PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98124-932-0	01	1	1108-	●
89	03.454 LEVER; RELAY PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1108-		●
89	03.454 LEVER; RELAY EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	0810-1107	●	●
89	03.454 LEVER; RELAY EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1108-	●
89	03.454 LEVER; RELAY EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1108-		●
90	03.454 LEVER; RELAY,ENG CONT	8-98059-513-0	01	1	0810-	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0810-	●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0810-	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0810-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0810-	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0810-	●	●
242	03.483 NUT; ACCEL PEDAL M18	8-97853-233-0	01	1	0810-	●	●
309	03.483 BRACKET; IDLE CONT CABLE	8-98124-981-1	01	1	0810-	●	●

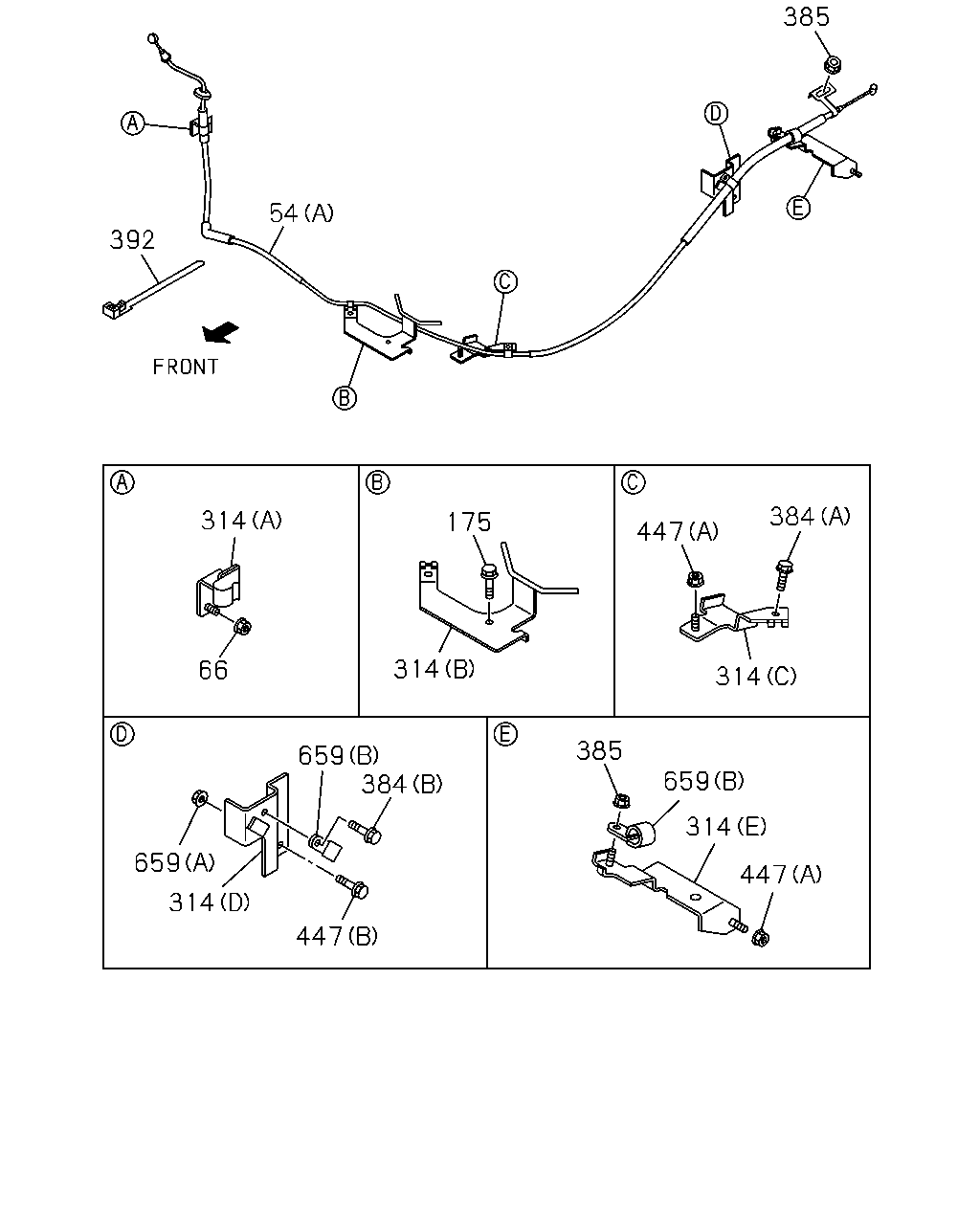

385 54 392 384 314 175 447 314 66 314 385 659 384 659 314 659 447 314 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0810-	●	●
54	03.430 CABLE; ENG CONT (A) L=2883	8-98099-702-3	01	1	0810-	●	●
66	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-	●	●
175	03.483 BOLT; BRKT,ACCEL CABLE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-1210	●	●
314	03.481 BRACKET; ACCEL CABLE (A)	8-98094-801-1	01	1	0810-	●	●
314	03.481 BRACKET; ACCEL CABLE (D)	8-98100-387-1	01	1	0810-	●	●
314	03.481 BRACKET; ACCEL CABLE (E)	8-98120-569-1	01	1	0810-	●	●
314	03.481 BRACKET; ACCEL CABLE (C)	8-98120-570-0	01	1	0810-	●	●
314	03.481 BRACKET; ACCEL CABLE (B)	8-98120-571-0	01	1	0810-1210	●	●
384	03.483 BOLT; CLIP,CONT CABLE 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	0810-	●	●
384	03.483 BOLT; CLIP,CONT CABLE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0810-	●	●
385	03.481 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0810-	●	●
392	03.483 CLIP; ACCEL CONT CABLE 02.559 L=250	5-09707-030-1	01	1	0810-	●	●
447	03.452 NUT; BRKT,CONT WIRE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0810-	●	●
447	03.452 NUT; BRKT,CONT WIRE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0810-	●	●
659	03.483 CLIP; ACCEL CONT CABLE 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	0810-	●	●
659	03.483 CLIP; ACCEL CONT CABLE 04.785 (A) ID=16 L=28	0-95235-552-0	01	1	0810-	●	●
