0-33A — FAN AND FAN BELT (#5496) — 76 parça

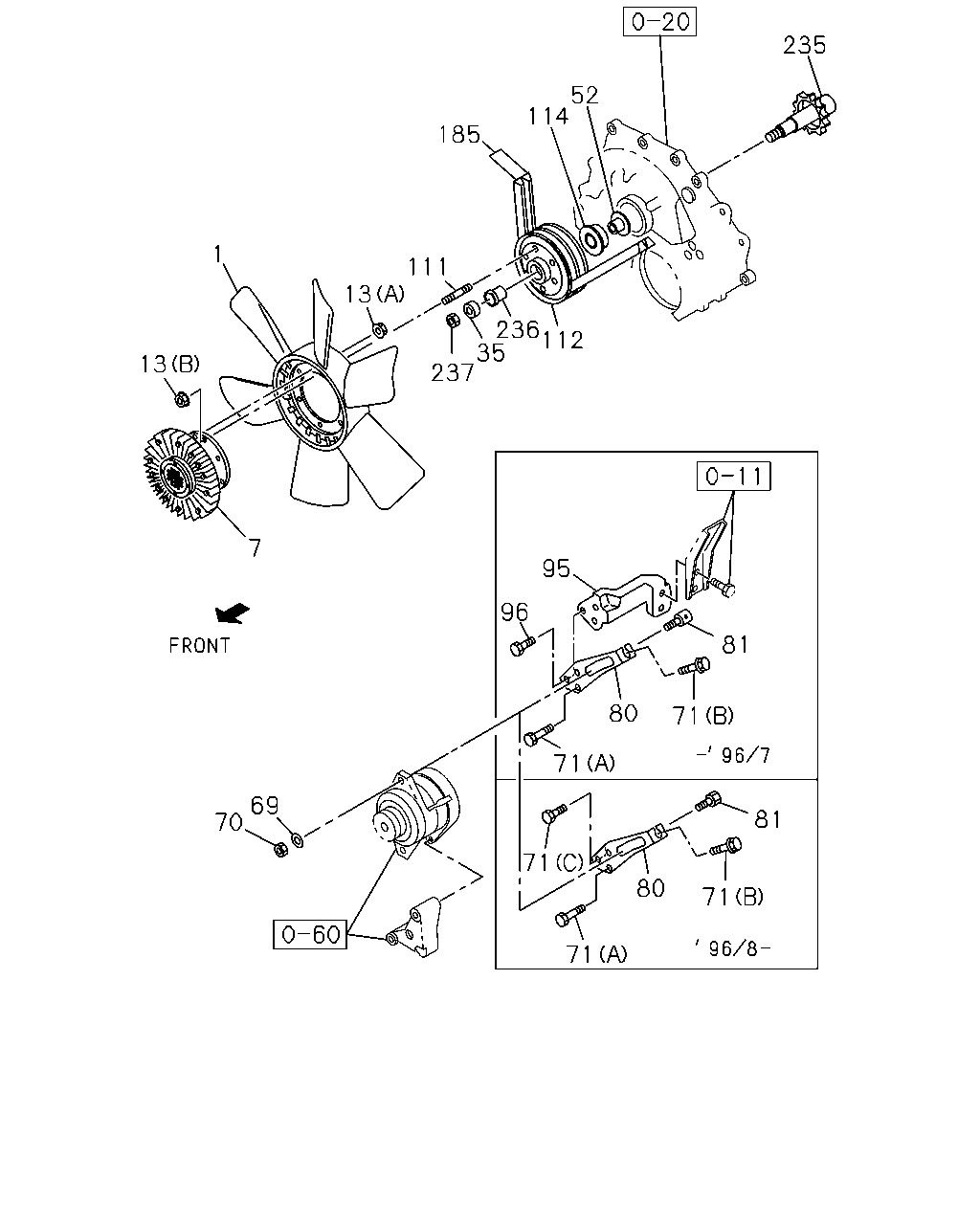

çizim 43160
235 52 114 185 1 111 13 236 112 35 237 13 7 95 96 81 80 71 71 69 70 81 71 80 71 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING 1-13660-224-0 01 1 9603-9708 ●
1 FAN; COOLING 1-13660-224-0 01 1 9709-9810 ●
1 FAN; COOLING 1-13660-224-0 01 1 9811-9904 ● ●
1 FAN; COOLING 1-13660-224-0 01 1 9905- ● ● ●
7 COUPLING; FAN
EXC. EURO2 SPECIFICATION<THN> 		1-21650-178-0 01 1 9608-9810 ●
7 COUPLING; FAN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-21650-178-1 01 1 9811-9904 ●
7 COUPLING; FAN 1-21650-178-1 01 1 9811-9904 ●
7 COUPLING; FAN
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN 1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-21650-192-1 01 1 9603-9904 ●
7 COUPLING; FAN
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-21650-192-1 01 1 9905- ●
7 COUPLING; FAN 1-21650-192-1 01 1 9905- ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 9603-9810 ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 9811-9904 ● ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 9905- ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9603-9810 ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9811-9904 ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9905- ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9603-9810 ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9811-9904 ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9905- ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9603-9810 ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9811-9904 ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9905- ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9603-9810 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9811-9904 ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9905- ● ● ●
70 NUT; ADJ PLATE,GEN
M12 FLANGE 		0-91150-112-0 01 1 9603-9810 ●
70 NUT; ADJ PLATE,GEN
M12 FLANGE 		0-91150-112-0 01 1 9811-9904 ● ●
70 NUT; ADJ PLATE,GEN
M12 FLANGE 		0-91150-112-0 01 1 9905- ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X60 FLANGE 		0-28181-060-0 01 1 9603-9810 ●
71 BOLT; ADJ PLATE,GEN
(A) M10X60 FLANGE 		0-28181-060-0 01 1 9811-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 9603-9810 ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 9811-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X110 FLANGE 		0-28186-011-0 01 1 9608-9810 ●
71 BOLT; ADJ PLATE,GEN
(C) M10X110 FLANGE 		0-28186-011-0 01 1 9811-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9610-9810 ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9811-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X60 FLANGE 		0-28181-060-0 01 1 9905- ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 9905- ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X110 FLANGE 		0-28186-011-0 01 1 9905- ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9905- ● ● ●
80 PLATE; ADJ 1-13674-240-0 01 1 9603-9607 ●
80 PLATE; ADJ 1-13674-241-0 01 1 9608-9810 ●
80 PLATE; ADJ 1-13674-241-0 01 1 9811-9904 ● ●
80 PLATE; ADJ 1-13674-241-0 01 1 9905- ● ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9603-9608 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9609-9810 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9811-9904 ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9905- ● ● ●
95 BRACKET; ADJ PLATE 1-19711-080-0 01 1 9603-9607 ●
96 BOLT; ADJ PLATE
M10X25 FLANGE 		0-28781-025-0 02 1 9603-9607 ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9603-9810 ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9811-9904 ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9905- ● ● ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9603-9810 ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9811-9904 ● ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9905-0008 ● ● ●
112 PULLEY; FAN CENTER 1-13663-123-2 01 1 0009- ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9603-9810 ●
114 SEAL; OIL 1-09625-570-0 01 1 9811-9904 ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9905- ● ● ●
185 BELT; GEN DRIVE
1 SET=2 PIECE(1136713951) BANDO 		1-13671-393-1 01 1 9603-9604 ●
185 BELT; GEN DRIVE
1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 9605-9810 ●
185 BELT; GEN DRIVE
1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 9811-9904 ● ●
185 BELT; GEN DRIVE
1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 9905- ● ● ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9603-9810 ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9811-9904 ● ●
235 SHAFT; FAN CENTER 1-13660-279-3 01 1 9905- ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9603-9810 ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9811-9904 ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9905- ● ● ●
237 NUT; SHAFT
M27 FLANGE 		9-09844-662-1 01 1 9603-9808 ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9809-9810 ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9811-9904 ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9905- ● ● ●
