Sayfa 0-81 - Isuzu EPC

0-81 — GOVERNOR; INJECTION PUMP (#54957) — 165 parça

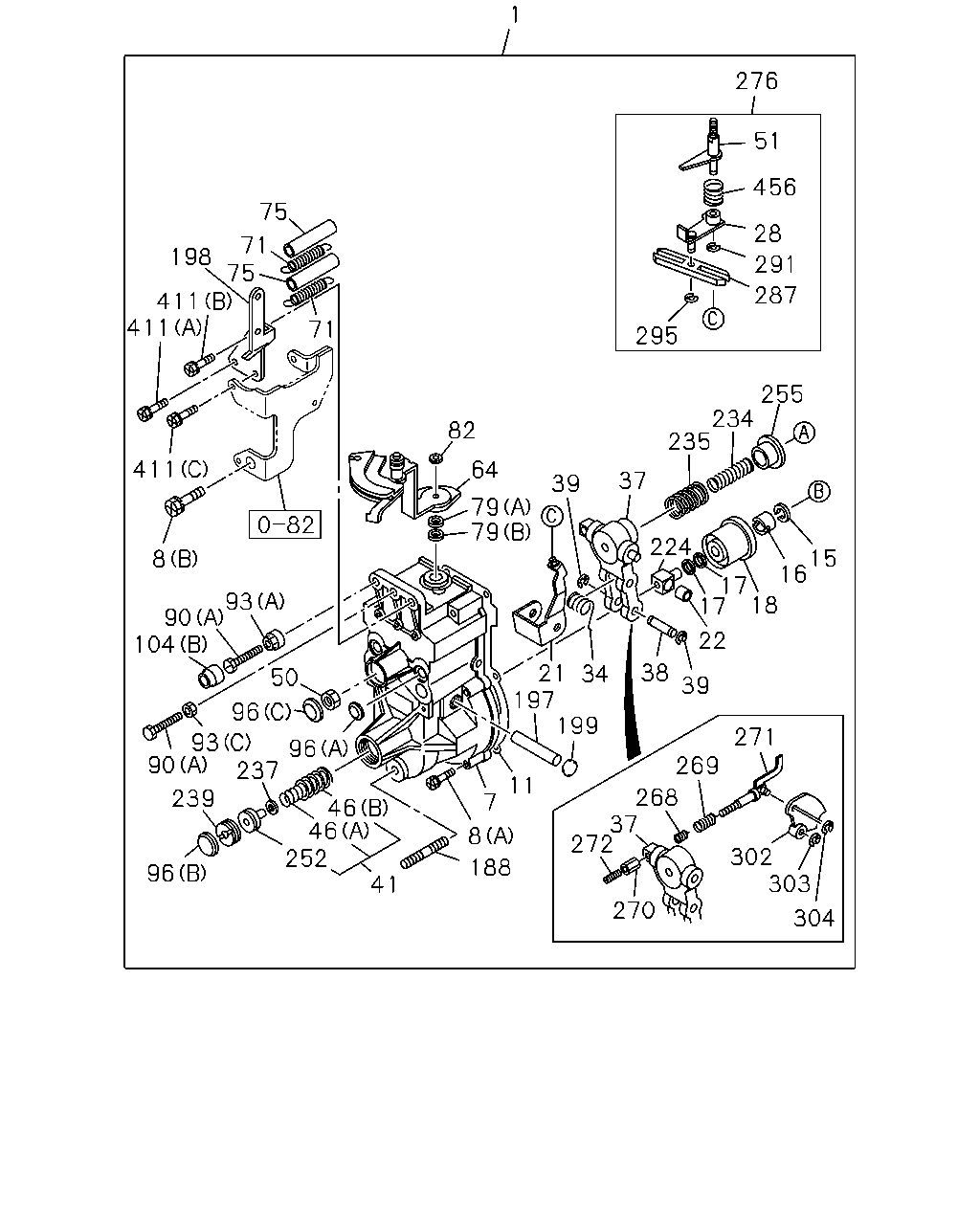

1 276 51 456 75 28 71 75 411 411 198 291 287 71 295 255 234 235 82 411 64 37 39 79 79 224 15 16 8 17 17 18 93 90 104 22 21 197 199 38 34 50 39 96 271 93 90 237 96 269 11 268 37 272 239 7 46 46 252 8 302 303 188 96 41 270 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: C = 8-97385-476-0, 97385476	8-97224-393-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97212-101-0, 97212101	8-97225-682-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97212-102-0, 97212102	8-97225-683-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97142-961-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101	8-97142-963-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (B) ASM PART: C = 8-97385-476-0, 97385476	1-15729-535-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15729-033-0	07	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (A) ASM PART: C = 8-97385-476-0, 97385476	5-15729-033-0	06	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15779-107-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-034-0	01	1	-
16	03.308 NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-086-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-891-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-892-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-893-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-286-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-287-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-088-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-551-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-552-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-553-0	AR	1	-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-372-0	01	1	-
21	03.308 LEVER ASM; GUIDE,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94339-977-0	01	1	-
22	03.308 COLLAR; LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94368-298-1	01	1	-
28	03.308 LEVER; SUPPORTING,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-152-0	01	1	-
34	03.308 SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-140-1	01	1	-
37	03.308 LEVER ASM; TENSION,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94339-976-0	01	1	-
38	03.308 PIN; TENSION LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-370-0	01	1	-
39	03.308 RING; SNAP,LEVER PIN,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-88410-201-0	02	1	-
41	03.308 SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97026-922-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97115-982-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97115-984-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-147-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94325-501-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 778 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97121-634-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97121-629-0	02	1	-
75	03.308 TUBE; RETURN SPRING,STOPPER LEVE 03.306 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-963-0	02	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-076-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-077-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-078-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-079-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-080-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-081-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-082-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-617-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-618-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-619-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-896-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97066-844-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-236-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-761-0	02	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-799-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-800-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-801-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-802-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-803-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-842-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-843-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-643-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 01.531, (B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-807-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97026-924-0	01	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-076-0	01	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-145-0	01	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-148-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97085-021-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97085-022-0	01	1	-
188	03.308 STUD; COVER ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-790-0	01	1	-
197	03.308 SHAFT; LEVER,GOV COVER ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15725-008-0	01	1	-
198	03.306 BRACKET; COVER ASM PART: B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97026-928-0	01	1	-
198	03.306 BRACKET; COVER ASM PART: A = 8-97212-101-0, 97212101	8-97085-014-0	01	1	-
199	03.308 PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-076-0	02	1	-
224	03.308 SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-142-0	01	1	-
234	03.308 SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15723-355-0	01	1	-
235	03.308 SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97121-626-0	01	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-966-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-967-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-968-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94472-268-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94472-269-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94472-270-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94472-271-0	AR	1	-
239	03.308 SCREW; GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-144-0	01	1	-
252	03.308 SCREW; GUIDE ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15779-003-1	01	1	-
255	03.308 SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-173-0	01	1	-
268	03.308 SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15723-056-0	01	1	-
269	03.308 SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15723-070-1	01	1	-
270	03.308 NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-051-0	01	1	-
271	03.308 ROD; TORQUE CAM,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15725-009-1	01	1	-
272	03.308 SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-138-0	01	1	-
276	03.308 LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94325-500-0	01	1	-
287	03.308 LEVER; GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15725-542-0	01	1	-
291	03.308 RING; SNAP,CONT SHAFT,GOV 03.306 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-445-0	01	1	-
295	03.308 RING; SNAP 03.306 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-445-0	01	1	-
302	03.308 PLATE; CAM,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97185-013-0	01	1	-
302	03.308 PLATE; CAM,GOV ASM PART: C = 8-97385-476-0, 97385476	8-97224-411-0	01	1	-
303	03.308 RING; SNAP,CAM PLATE,GOV 03.320 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-023-0	01	1	-
304	03.308 RING; SNAP,LINK TO CAM PLATE,GOV 04.040, ID=4 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-09185-404-0	01	1	-
411	03.306 BOLT; BRKT 03.330, (C) ASM PART: C = 8-97385-476-0, 97385476	1-15619-187-0	01	1	-
411	03.306 BOLT; BRKT 03.330, (A) ASM PART: B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15719-005-0	02	1	-
411	03.306 BOLT; BRKT 01.531, (B) ASM PART: B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-304-0	01	1	-
456	03.308 SPRING; LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94413-728-0	01	1	-

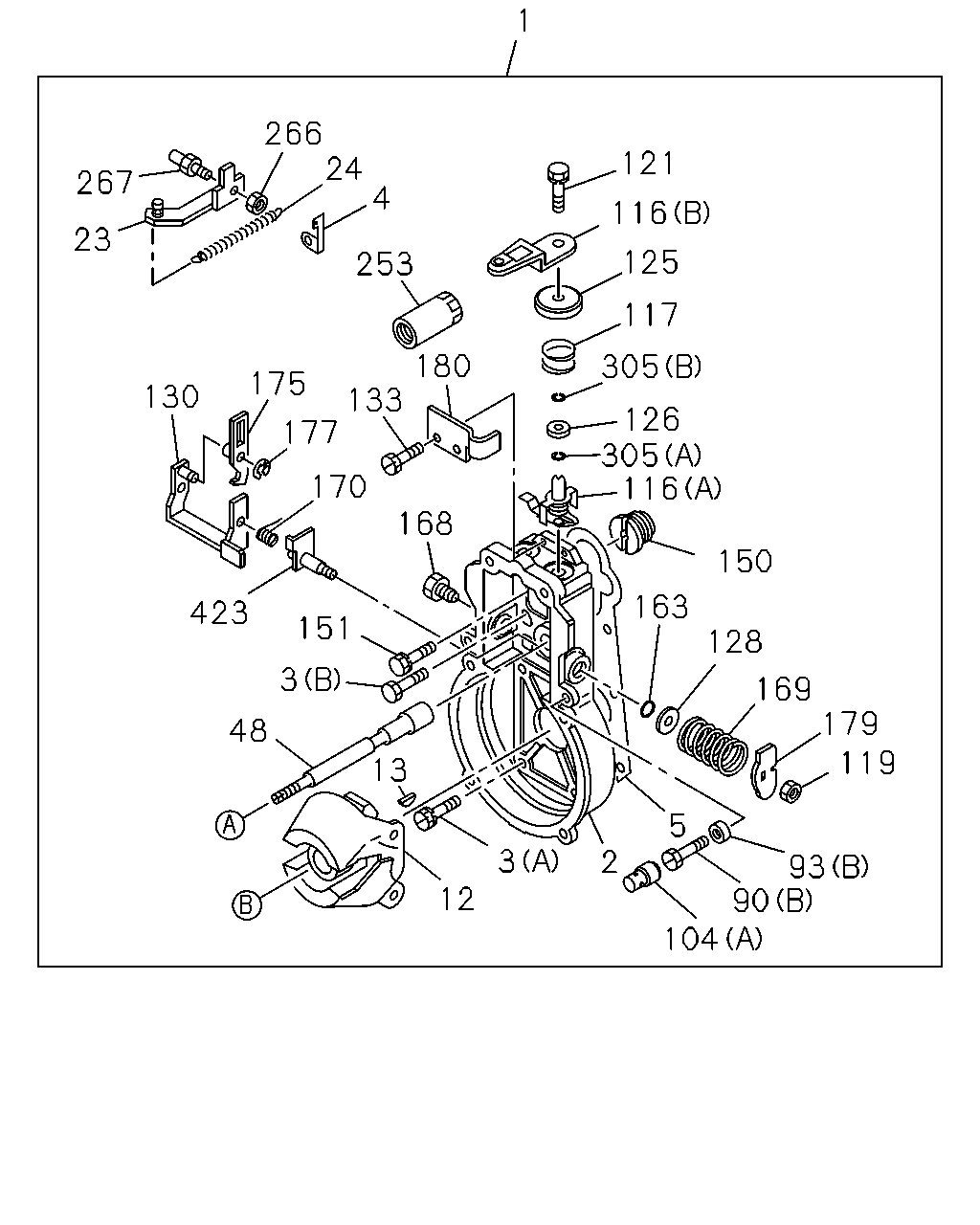

1 266 24 4 121 267 116 23 125 253 117 180 305 175 130 133 177 126 305 116 170 168 150 163 423 151 128 3 169 179 119 48 13 5 3 2 93 90 104 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: C = 8-97385-476-0, 97385476	8-97224-393-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97212-101-0, 97212101	8-97225-682-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97212-102-0, 97212102	8-97225-683-0	01	1	-
2	03.308 HOUSING; GOV,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15721-265-0	01	1	-
3	03.318 BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-027-0	05	1	-
3	03.318 BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15729-071-0	01	1	-
4	03.306 PLATE; START SPRING,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15779-591-0	01	1	-
5	03.308 GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15779-106-0	01	1	-
12	03.308 FLYWEIGHT ASM; GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15722-017-0	01	1	-
13	03.308 KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-19619-049-0	01	1	-
23	03.308 LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15725-928-0	01	1	-
24	03.308 SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15723-035-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-146-1	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-761-0	02	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-799-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-800-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-801-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-802-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-803-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-842-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-843-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-643-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 01.531, (B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-807-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97026-924-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97085-021-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97085-022-0	01	1	-
116	03.300 LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97121-631-0	01	1	-
116	03.300 LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97121-632-0	01	1	-
117	03.308 SPRING; STOP LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94336-925-0	01	1	-
119	03.308 NUT; ENG STOP LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-236-0	01	1	-
121	03.308 BOLT; ENG STOP LEVER,GOV 04.665, M6X12 W/LK WASHER ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-01910-612-0	01	1	-
125	03.308 CAP; STOP LEVER SPRING,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-168-0	01	1	-
126	03.308 GASKET; STOP LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-853-0	01	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.60 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-897-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.80 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-898-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.90 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-899-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-556-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-557-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-558-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-559-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-560-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-88410-421-0	AR	1	-
130	03.306 LEVER; CONT,GOV ASM PART: A = 8-97212-101-0, 97212101	1-15725-496-0	01	1	-
130	03.306 LEVER; CONT,GOV ASM PART: B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15725-527-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-834-0	02	1	-
150	03.308 ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81315-065-0	01	1	-
151	03.671 BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-01900-818-0	01	1	-
163	03.306 GASKET; CONT SHAFT,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15629-859-0	01	1	-
168	03.306 PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-796-0	01	1	-
169	03.306 SPRING; LEVER SET,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15723-032-0	01	1	-
170	03.306 SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	5-15723-033-0	01	1	-
175	03.306 LEVER; GOV,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97176-488-0	01	1	-
177	03.306 RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-445-0	01	1	-
179	03.308 LEVER; SPD ADJ,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-94171-132-0	01	1	-
180	03.308 PLATE; GOV COVER ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97121-643-0	01	1	-
253	03.308 LIMITTER; GOV CONT ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-94167-792-0	01	1	-
266	03.308 NUT; PIN TO LINK,CONT RACK,GOV 17.185, M5 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-99110-405-0	01	1	-
267	03.308 BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-858-0	01	1	-
305	03.308 SHIM; STOP LEVER,GOV (B), T=0.20 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97089-308-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV (B), T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97089-309-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV (B), T=0.40 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97089-310-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV (B), T=0.60 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97089-311-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV (B), T=0.80 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	8-97089-312-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV (A), T=1.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	9-81325-553-0	01	1	-
423	03.306 SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102, C = 8-97385-476-0, 97385476	1-15729-820-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
