Isuzu WW
▶
TRUCKS
▶
EXR
▶
10725 - EXR LHD FUEL TANK 200L+200L/400L
▶
0 - Engine, Emission, Engine Electrical
▶

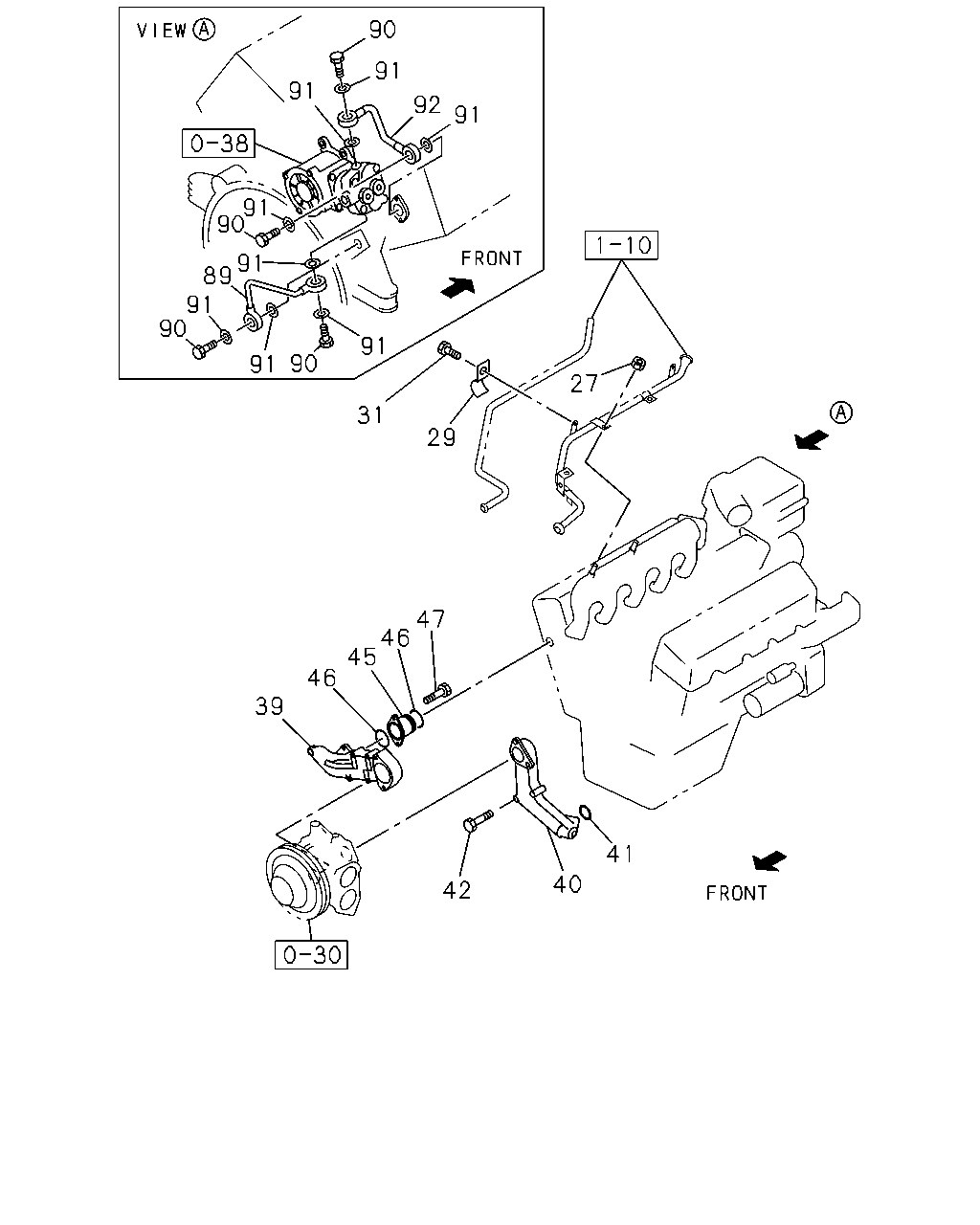

0-32B - WATER PIPING; ENGINE
▶
0-32B — WATER PIPING; ENGINE
(#5495) — 31 parça
Tümü
A - 10PE1S
B - 10PE1N
90
91
91
92
91
91
90
91
89
91
90
91
90
91
27
31
29
47
46
45
46
39
41
40
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
NUT; PIPE FIX
M8 FLANGE
0-91150-108-0
02
1
9603-9904
●
27
NUT; PIPE FIX
M8 FLANGE
0-91150-108-0
02
1
9905-
●
●
29
CLIP; PIPE
ID=9.7 L=20
1-09700-878-1
04
1
9603-9904
●
29
CLIP; PIPE
ID=9.7 L=20
1-09700-878-1
04
1
9905-
●
●
31
BOLT; CLIP
M6X12 FLANGE
0-28080-612-0
04
1
9603-9904
●
31
BOLT; CLIP
M6X12 FLANGE
0-28080-612-0
04
1
9905-
●
●
39
DUCT ASM; WATER,PUMP OUT
1-13711-544-1
01
1
9603-9904
●
39
DUCT ASM; WATER,PUMP OUT
1-13711-544-1
01
1
9905-
●
●
40
DUCT; WATER
1-13711-382-0
01
1
9603-9604
●
40
DUCT; WATER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)
1-13711-382-2
01
1
9605-9904
●
40
DUCT; WATER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)
1-13711-382-2
01
1
9905-
●
●
40
DUCT; WATER
EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)
1-13711-623-3
01
1
9605-9904
●
40
DUCT; WATER
EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)
1-13711-623-3
01
1
9905-
●
●
41
GASKET; WATER DUCT,PUMP OUT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
01
1
9603-9904
●
41
GASKET; WATER DUCT,PUMP OUT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
01
1
9905-
●
●
42
BOLT; DUCT,PUMP OUT
M10X30 FLANGE
0-28181-030-0
04
1
9603-9904
●
42
BOLT; DUCT,PUMP OUT
M10X30 FLANGE
0-28181-030-0
04
1
9905-
●
●
45
DUCT; WATER,TO OIL COOLER
1-13711-334-1
01
1
9603-9904
●
45
DUCT; WATER,TO OIL COOLER
1-13711-334-1
01
1
9905-
●
●
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
02
1
9603-9904
●
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
02
1
9905-
●
●
47
BOLT; DUCT,TO OIL COOLER
M10X25 FLANGE
0-28081-025-0
02
1
9603-9904
●
47
BOLT; DUCT,TO OIL COOLER
M10X25 FLANGE
0-28081-025-0
02
1
9905-
●
●
89
PIPE; WATER,AIR CMPR,IN
1-13721-379-0
01
1
9603-9904
●
89
PIPE; WATER,AIR CMPR,IN
1-13721-667-0
01
1
9905-
●
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
9603-9904
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
9905-
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9603-9904
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9905-
●
●
92
PIPE; WATER,AIR CMPR,OUT
1-13721-376-0
01
1
9603-9904
●
92
PIPE; WATER,AIR CMPR,OUT
1-13721-668-0
01
1
9905-
●
●
