◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51154 - NN/NP/NQR-LHDEXC.EU1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶

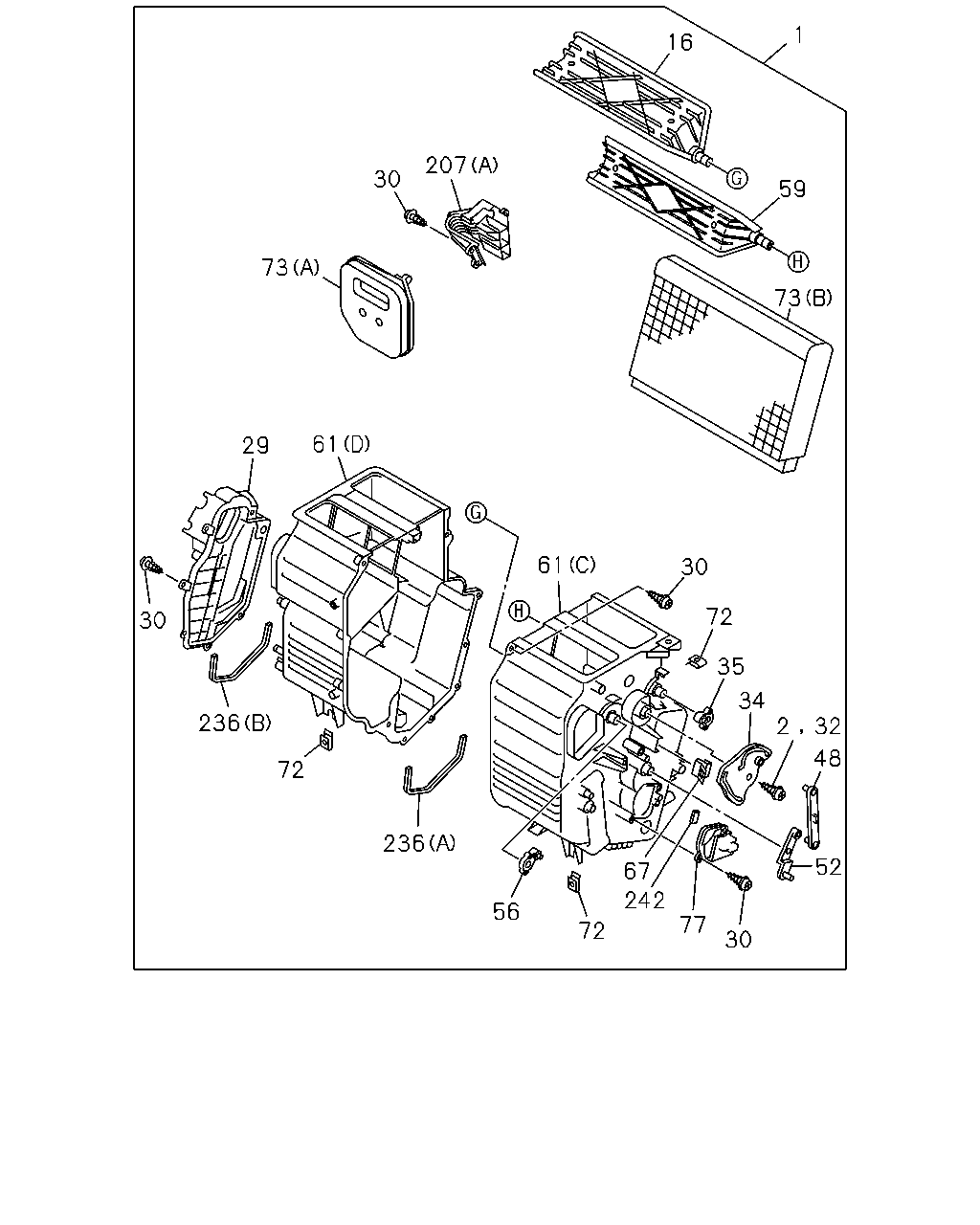

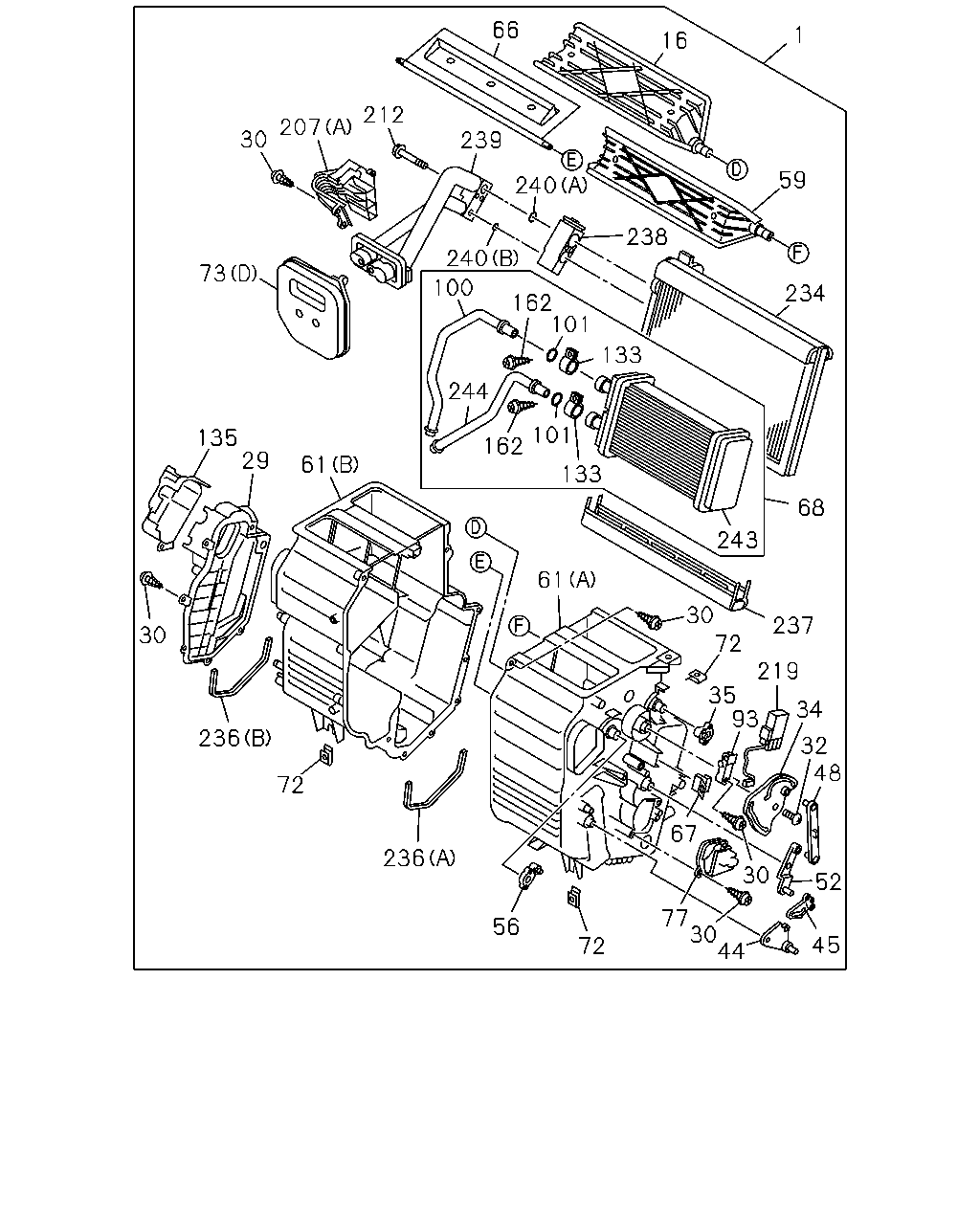

8-60 — HEATER UNIT; FRONT (#54949) — 632 parça

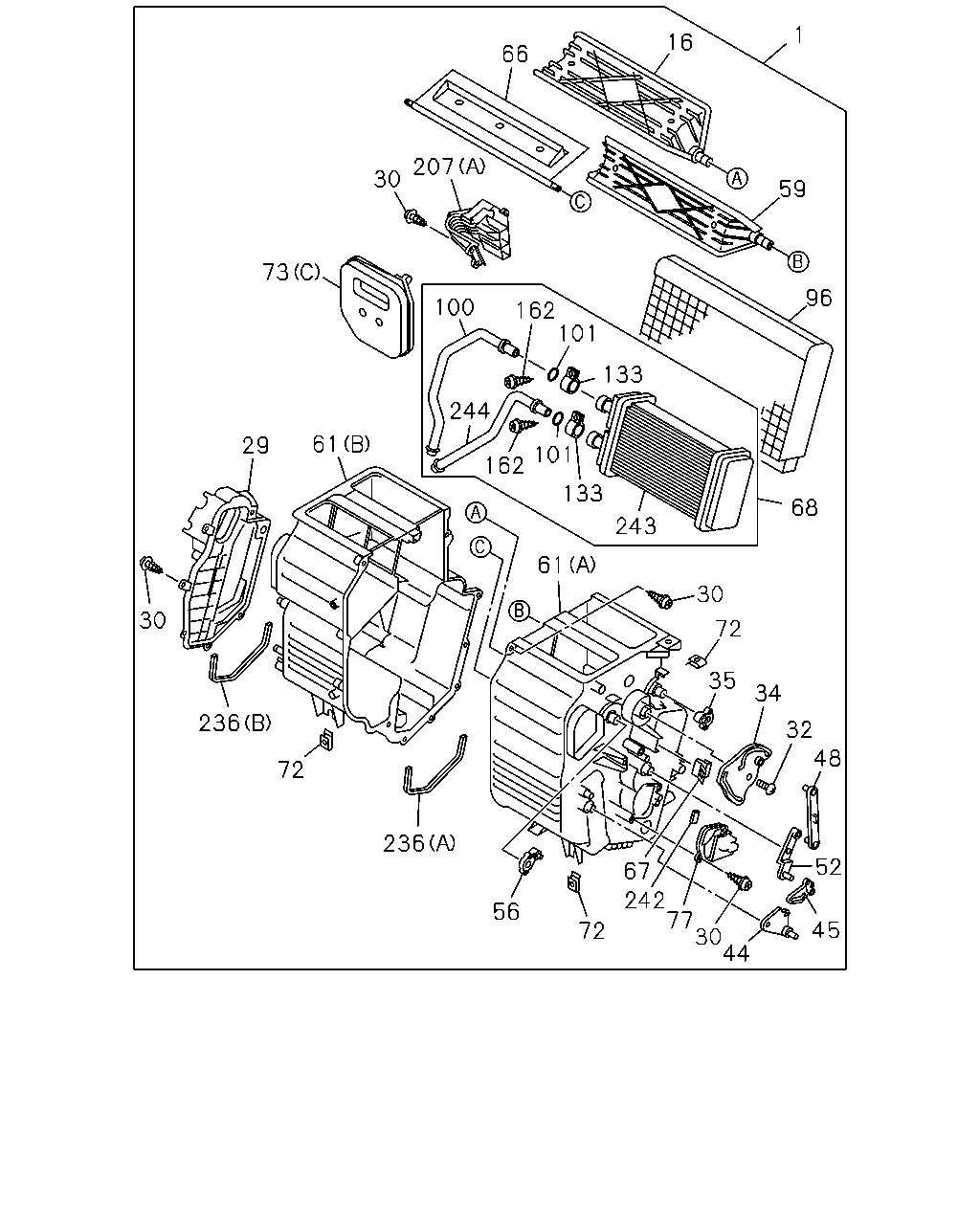

çizim 120437
1 16 66 207 30 59 73 96 100 162 101 133 244 61 29 101 162 133 68 243 61 30 30 72 35 34 236 32 48 72 236 52 67 242 77 30 44 56 45 72
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98062-758-1 01 1 0803-0803 ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98062-758-1 01 1 0803-0803 ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98062-758-1 01 1 0804-1301 ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98214-401-1 01 1 1302- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0803-0803 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0803-0803 ●
1 08.845 HEATER UNIT 8-98031-740-3 01 1 0803-0803 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0804-0808 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0809- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0803-0803 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0803-0803 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0804-0808 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0809- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0803-0803 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0803-0803 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0803-0803 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0804-0808 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0809- ● ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-368-0 01 1 1302- ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0803-0803 ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0803-0803 ●
29 08.857 COVER; HTR UNIT 8-98047-480-0 01 1 0803-0803 ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0804-0808 ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0809-1301 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-480-0 01 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0803-0803 ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0804-1301 ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0803-0803 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0804-0808 ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0809- ● ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0803-0803 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804-0808 ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0809- ● ● ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1302- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0803-0803 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0803-0803 ●
32 08.852 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 0803-0803 ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0804-0808 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0809- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0803-0803 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0803-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 0803-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0804-0808 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0809- ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0803-0803 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0803-0803 ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 0803-0803 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0804-0808 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0809- ● ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-502-0 01 1 0803-0803 ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-502-0 01 1 0803-0803 ●
44 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 0803-0803 ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-502-0 01 1 0804-0808 ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-502-0 01 1 0809- ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-503-0 01 1 0803-0803 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-503-0 01 1 0803-0803 ●
45 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 0803-0803 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-503-0 01 1 0804-0808 ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-503-0 01 1 0809- ● ● ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 0803-0803 ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 0803-0803 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 0804- ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0803-0803 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0803-0803 ●
48 09.786 LEVER; HTR UNIT 8-98047-391-0 01 1 0803-0803 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0804-0808 ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0809- ● ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0803-0803 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0803-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 0803-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0804-0808 ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0809- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0803-0803 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0803-0803 ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 0803-0803 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0804-0808 ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0809- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0803-0803 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0803-0803 ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0803-0803 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0804-0808 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0809- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0804-0808 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0809- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0804-0808 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0809- ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-385-0 01 1 0803-0803 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-385-0 01 1 0803-0803 ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 0803-0803 ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-385-0 01 1 0804-0808 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-385-0 01 1 0809- ● ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0803-0803 ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0803-0803 ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0804- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0803-0803 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0803-0803 ●
67 08.854 CLIP; HTR UNIT 8-98047-417-0 02 1 0803-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0804-0808 ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0809- ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98074-122-0 01 1 0803-0803 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98074-122-0 01 1 0803-0803 ●
68 08.854 CORE; HTR UNIT 8-98074-122-0 01 1 0803-0803 ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98074-122-0 01 1 0804-0808 ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98074-122-0 01 1 0809- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0803-0803 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0803-0803 ●
72 08.845 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0803-0803 ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0804-0808 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0809- ● ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-98048-815-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-98048-815-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-98048-815-0 01 1 0804-1301 ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-98077-421-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-98077-421-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-98077-421-0 01 1 0804-1301 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
(C) 		8-98048-817-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0804-0808 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0809- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0804-0808 ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0809- ● ● ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0803-0803 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0803-0803 ●
77 08.857 COVER; HTR CASE 8-98047-482-0 01 1 0803-0803 ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0804-0808 ● ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0809- ● ● ● ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0803-0803 ● ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0803-0803 ●
96 08.845 PLATE; HTR UNIT 8-98048-815-0 01 1 0803-0803 ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0804-0808 ● ● ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0809- ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-532-0 01 1 0803-0803 ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-532-0 01 1 0803-0803 ●
100 08.854 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 0803-0803 ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-532-0 01 1 0804-0808 ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-532-0 01 1 0809- ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-531-0 02 1 0803-0803 ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-531-0 02 1 0803-0803 ●
101 08.845 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 0803-0803 ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-531-0 02 1 0804-0808 ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-531-0 02 1 0809- ● ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-530-0 02 1 0803-0803 ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-530-0 02 1 0803-0803 ●
133 08.845 CLIP; PIPE 8-98072-530-0 02 1 0803-0803 ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-530-0 02 1 0804-0808 ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-530-0 02 1 0809- ● ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-529-0 02 1 0803-0803 ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-529-0 02 1 0803-0803 ●
162 08.845 SCREW; CLIP FIX 8-98072-529-0 02 1 0803-0803 ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-529-0 02 1 0804-0808 ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-529-0 02 1 0809- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0803-0803 ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0804-0808 ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0809- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0803-0803 ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0804-0808 ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0809-1301 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1302- ● ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0803-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0804-0808 ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0809- ● ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0803-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0804-0808 ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0809- ● ● ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0803-0803 ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0804-0808 ● ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0809-1411 ● ● ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0809-1411 ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1412- ● ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0803-0803 ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0803-0803 ●
243 08.854 CORE
01.656 		8-98048-508-0 01 1 0803-0803 ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0804-0808 ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0809- ● ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98048-511-0 01 1 0803-0803 ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98048-511-0 01 1 0803-0803 ●
244 08.854 PIPE; INLET 8-98048-511-0 01 1 0803-0803 ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98048-511-0 01 1 0804-0808 ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98048-511-0 01 1 0809- ● ● ● ●
çizim 120450
234 235 207 235 41 236
BalonParca AdiParca NoAdetTipApplied Date A B C D
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-412-0 01 1 0803-0803 ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-412-0 01 1 0803-0803 ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-412-0 01 1 0804-0808 ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-412-0 01 1 0809- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0803-0803 ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0804-0808 ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0809- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0803-0803 ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0804-0808 ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0809-1301 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1302- ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 0803-0803 ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 0803-0803 ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 0804-0808 ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 0809- ● ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0803-0803 ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0803-0803 ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0804-0808 ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0809- ● ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0803-0803 ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0803-0803 ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0804-0808 ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0809- ● ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0803-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0804-0808 ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0809- ● ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0803-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0804-0808 ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0809- ● ● ● ●
çizim 120452
66 1 16 212 207 30 239 240 59 238 240 73 100 234 162 101 133 244 101 135 29 162 61 133 68 243 61 30 72 237 30 219 35 93 34 236 32 48 72 67 236 30 52 77 30 44 56 45 72
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98062-758-1 01 1 0803-0803 ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98062-758-1 01 1 0803-0803 ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98062-758-1 01 1 0804-1301 ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98214-401-1 01 1 1302- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0803-0803 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0803-0803 ●
1 08.845 HEATER UNIT 8-98031-740-3 01 1 0803-0803 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0804-0808 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0809- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0803-0803 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0803-0803 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0804-0808 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0809- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0803-0803 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0803-0803 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0803-0803 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0804-0808 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0809- ● ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-368-0 01 1 1302- ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0803-0803 ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0803-0803 ●
29 08.857 COVER; HTR UNIT 8-98047-480-0 01 1 0803-0803 ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0804-0808 ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0809-1301 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-480-0 01 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0803-0803 ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0804-1301 ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0803-0803 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0804-0808 ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0809- ● ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0803-0803 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804-0808 ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0809- ● ● ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1302- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0803-0803 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0803-0803 ●
32 08.852 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 0803-0803 ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0804-0808 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0809- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0803-0803 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0803-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 0803-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0804-0808 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0809- ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0803-0803 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0803-0803 ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 0803-0803 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0804-0808 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0809- ● ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-502-0 01 1 0803-0803 ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-502-0 01 1 0803-0803 ●
44 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 0803-0803 ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-502-0 01 1 0804-0808 ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-502-0 01 1 0809- ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-503-0 01 1 0803-0803 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-503-0 01 1 0803-0803 ●
45 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 0803-0803 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-503-0 01 1 0804-0808 ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-503-0 01 1 0809- ● ● ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 0803-0803 ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 0803-0803 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 0804- ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0803-0803 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0803-0803 ●
48 09.786 LEVER; HTR UNIT 8-98047-391-0 01 1 0803-0803 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0804-0808 ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0809- ● ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0803-0803 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0803-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 0803-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0804-0808 ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0809- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0803-0803 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0803-0803 ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 0803-0803 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0804-0808 ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0809- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0803-0803 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0803-0803 ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0803-0803 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0804-0808 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0809- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0804-0808 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0809- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0804-0808 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0809- ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-385-0 01 1 0803-0803 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-385-0 01 1 0803-0803 ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 0803-0803 ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-385-0 01 1 0804-0808 ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-385-0 01 1 0809- ● ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0803-0803 ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0803-0803 ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0804- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0803-0803 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0803-0803 ●
67 08.854 CLIP; HTR UNIT 8-98047-417-0 02 1 0803-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0804-0808 ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0809- ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98074-122-0 01 1 0803-0803 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98074-122-0 01 1 0803-0803 ●
68 08.854 CORE; HTR UNIT 8-98074-122-0 01 1 0803-0803 ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98074-122-0 01 1 0804-0808 ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98074-122-0 01 1 0809- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0803-0803 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0803-0803 ●
72 08.845 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0803-0803 ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0804-0808 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0809- ● ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-98048-815-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-98048-815-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-98048-815-0 01 1 0804-1301 ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-98077-421-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-98077-421-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-98077-421-0 01 1 0804-1301 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
(C) 		8-98048-817-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0804-0808 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0809- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0804-0808 ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0809- ● ● ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0803-0803 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0803-0803 ●
77 08.857 COVER; HTR CASE 8-98047-482-0 01 1 0803-0803 ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0804-0808 ● ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0809- ● ● ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0803-0803 ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0803-0803 ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0804-0808 ● ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0809- ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-532-0 01 1 0803-0803 ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-532-0 01 1 0803-0803 ●
100 08.854 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 0803-0803 ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-532-0 01 1 0804-0808 ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-532-0 01 1 0809- ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-531-0 02 1 0803-0803 ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-531-0 02 1 0803-0803 ●
101 08.845 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 0803-0803 ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-531-0 02 1 0804-0808 ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-531-0 02 1 0809- ● ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-530-0 02 1 0803-0803 ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-530-0 02 1 0803-0803 ●
133 08.845 CLIP; PIPE 8-98072-530-0 02 1 0803-0803 ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-530-0 02 1 0804-0808 ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-530-0 02 1 0809- ● ● ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-481-0 01 1 0803-0803 ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-481-0 01 1 0803-0803 ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-481-0 01 1 0804-0808 ● ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-481-0 01 1 0809- ● ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-529-0 02 1 0803-0803 ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-529-0 02 1 0803-0803 ●
162 08.845 SCREW; CLIP FIX 8-98072-529-0 02 1 0803-0803 ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-529-0 02 1 0804-0808 ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98072-529-0 02 1 0809- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0803-0803 ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0804-0808 ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0809- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0803-0803 ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0804-0808 ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0809-1301 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1302- ● ● ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 0803-0803 ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 0803-0803 ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 0804-0808 ● ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 0809- ● ● ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0803-0803 ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0803-0803 ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0804-0808 ● ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0809- ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 0803-0803 ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 0803-0803 ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 0804-0808 ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 0809- ● ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0803-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0804-0808 ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0809- ● ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0803-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0804-0808 ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0809- ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 0803-0803 ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 0803-0803 ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 0804-0808 ● ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 0809- ● ● ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 0803-0803 ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 0803-0803 ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 0804-0808 ● ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 0809- ● ● ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-504-0 01 1 0803-0803 ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-504-0 01 1 0803-0803 ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-504-0 01 1 0804-0808 ● ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-504-0 01 1 0809- ● ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0803-0803 ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0803-0803 ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0804-0808 ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0809- ● ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0803-0803 ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0803-0803 ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0804-0808 ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0809- ● ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0803-0803 ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0803-0803 ●
243 08.854 CORE
01.656 		8-98048-508-0 01 1 0803-0803 ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0804-0808 ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0809- ● ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98048-511-0 01 1 0803-0803 ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98048-511-0 01 1 0803-0803 ●
244 08.854 PIPE; INLET 8-98048-511-0 01 1 0803-0803 ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98048-511-0 01 1 0804-0808 ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98048-511-0 01 1 0809- ● ● ● ●
çizim 120460
30 77 242 67 72 56 236 72 236 30 29 61 73 30 207 61 30 72 35 34 2 48 52 32 73 59 16 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98062-758-1 01 1 0803-0803 ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98062-758-1 01 1 0803-0803 ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98062-758-1 01 1 0804-1301 ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-98214-401-1 01 1 1302- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0803-0803 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0803-0803 ●
1 08.845 HEATER UNIT 8-98031-740-3 01 1 0803-0803 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0804-0808 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98031-740-3 01 1 0809- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0803-0803 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0803-0803 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0804-0808 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-145-3 01 1 0809- ● ● ● ●
2 08.854 SCREW; LEVER
FORGED AIR VENTILATION(C39) 08.852 M4X16 		8-98047-416-0 02 1 0803-0803 ● ●
2 08.854 SCREW; LEVER
FORGED AIR VENTILATION(C39) 08.852 M4X16 		8-98047-416-0 02 1 0803-0803 ●
2 08.854 SCREW; LEVER
FORGED AIR VENTILATION(C39) 08.852 M4X16 		8-98047-416-0 02 1 0804-1301 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0803-0803 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0803-0803 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0803-0803 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0804-0808 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0809- ● ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-368-0 01 1 1302- ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0803-0803 ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0803-0803 ●
29 08.857 COVER; HTR UNIT 8-98047-480-0 01 1 0803-0803 ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0804-0808 ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 0809-1301 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-480-0 01 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0803-0803 ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0804-1301 ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0803-0803 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0804-0808 ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 28 1 0809- ● ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0803-0803 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0803-0803 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804-0808 ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0809- ● ● ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1302- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0803-0803 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0803-0803 ●
32 08.852 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 0803-0803 ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0804-0808 ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 0809- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0803-0803 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0803-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 0803-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0804-0808 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 0809- ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0803-0803 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0803-0803 ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 0803-0803 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0804-0808 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 0809- ● ● ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 0803-0803 ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 0803-0803 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-499-0 01 1 0804- ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0803-0803 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0803-0803 ●
48 09.786 LEVER; HTR UNIT 8-98047-391-0 01 1 0803-0803 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0804-0808 ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0809- ● ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0803-0803 ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0803-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 0803-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0804-0808 ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 0809- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0803-0803 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0803-0803 ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 0803-0803 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0804-0808 ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 0809- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0803-0803 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0803-0803 ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0803-0803 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0804-0808 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0809- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-424-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-425-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0804-0808 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-478-0 01 1 0809- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0803-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 0803-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0804-0808 ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-479-0 01 1 0809- ● ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0803-0803 ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0803-0803 ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0804- ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0803-0803 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0803-0803 ●
67 08.854 CLIP; HTR UNIT 8-98047-417-0 02 1 0803-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0804-0808 ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0809- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0803-0803 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0803-0803 ●
72 08.845 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0803-0803 ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0804-0808 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0809- ● ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-98048-815-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-98048-815-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-98048-815-0 01 1 0804-1301 ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-98077-421-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-98077-421-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-98077-421-0 01 1 0804-1301 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
(C) 		8-98048-817-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0804-0808 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (C) 		8-98048-817-0 01 1 0809- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0803-0803 ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0803-0803 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0804-0808 ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-491-0 01 1 0809- ● ● ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0803-0803 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0803-0803 ●
77 08.857 COVER; HTR CASE 8-98047-482-0 01 1 0803-0803 ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0804-0808 ● ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 0809- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0803-0803 ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0804-0808 ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 0809- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0803-0803 ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0803-0803 ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0804-0808 ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 0809-1301 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1302- ● ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0803-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0804-0808 ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0809- ● ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0803-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0803-0803 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0804-0808 ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0809- ● ● ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0803-0803 ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0804-0808 ● ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0809-1411 ● ● ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0809-1411 ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1412- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
