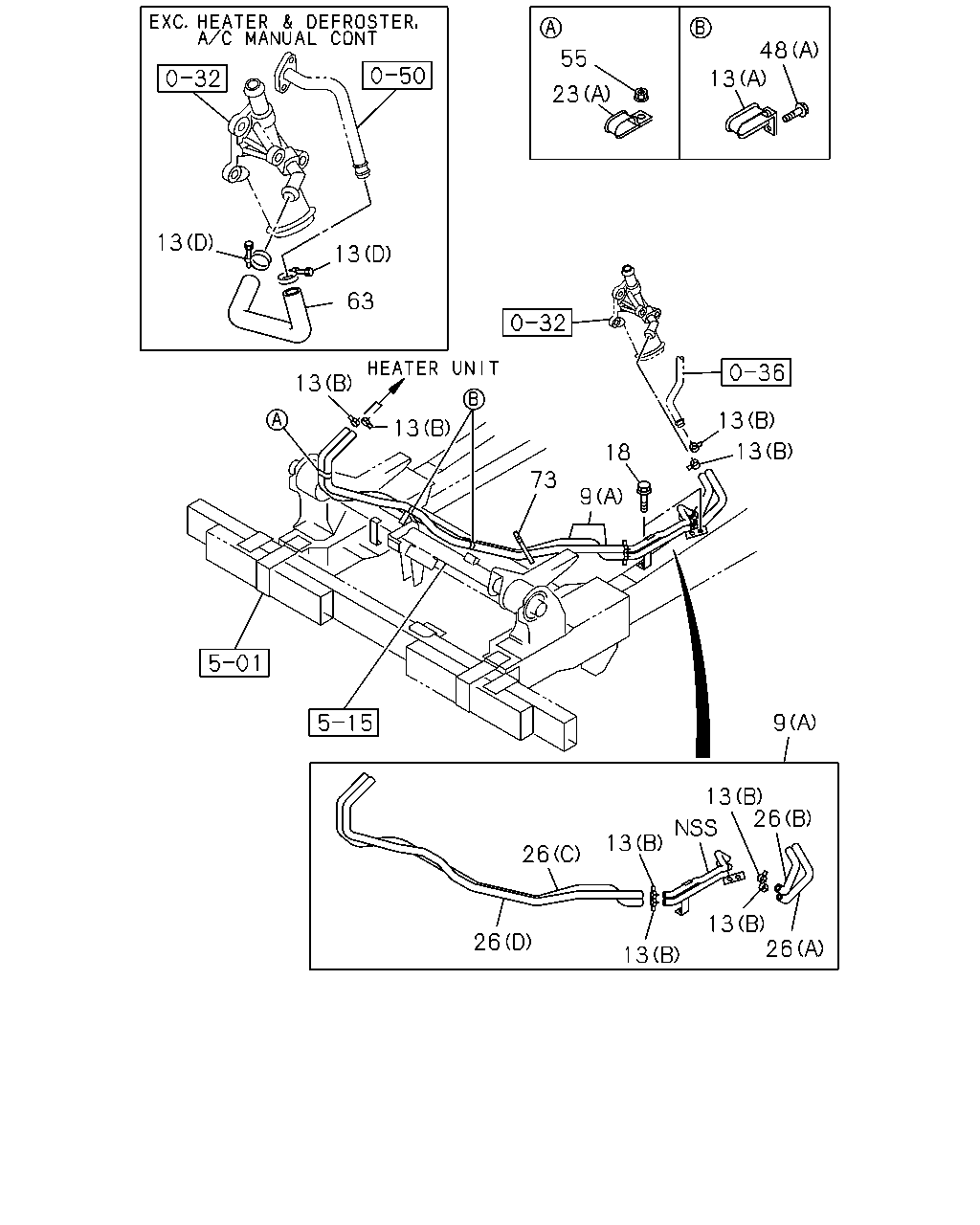

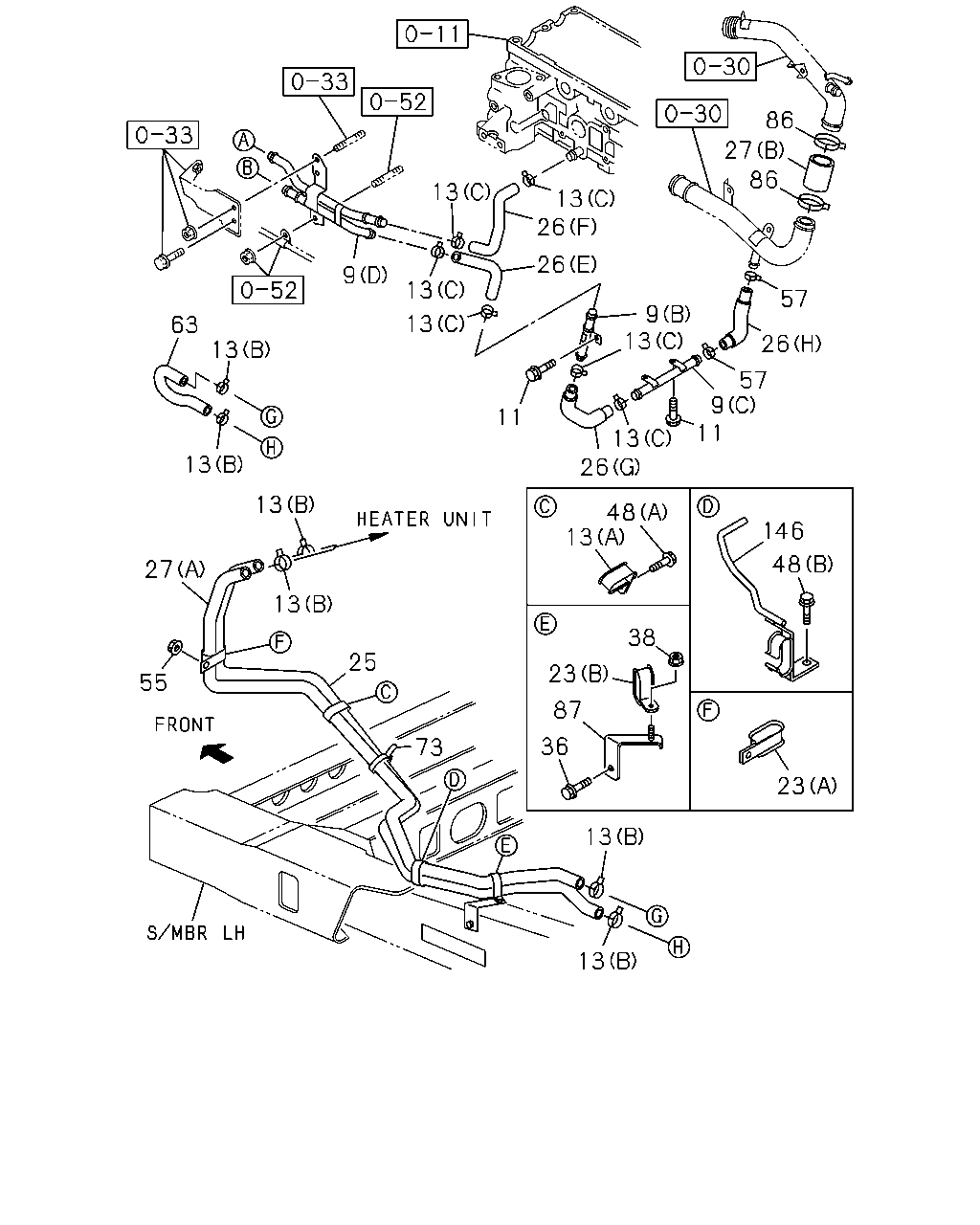

9 |
08.846 PIPE; HTR
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98006-433-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
9 |
08.846 PIPE; HTR
4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98006-433-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
9 |
08.846 PIPE; HTR
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98006-433-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
9 |
08.846 PIPE; HTR
4HK1-TCS ENG(RJS)
(A)
|
8-98006-433-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
9 |
08.846 PIPE; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98006-433-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
9 |
08.846 PIPE; HTR
4JJ1-TCC ENG(RDU)
(B)
|
8-97381-481-2 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
9 |
08.846 PIPE; HTR
4JJ1-TCC ENG(RDU)
(B)
|
8-97381-481-3 |
01 |
1 |
0809- |
● |
|
● |
|
| |
9 |
08.846 PIPE; HTR
4JJ1-TCS ENG(LFB)
(B)
|
8-97381-481-3 |
01 |
1 |
0809- |
|
|
|
● |
| |
9 |
08.846 PIPE; HTR
4JJ1-TCC ENG(RDU)
(C)
|
8-97383-035-0 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
9 |
08.846 PIPE; HTR
4JJ1-TCC ENG(RDU)
(C)
|
8-97383-035-1 |
01 |
1 |
0809- |
● |
|
● |
|
| |
9 |
08.846 PIPE; HTR
4JJ1-TCS ENG(LFB)
(C)
|
8-97383-035-1 |
01 |
1 |
0809- |
|
|
|
● |
| |
9 |
08.846 PIPE; HTR
4JJ1-TCC ENG(RDU)
(D)
|
8-98028-829-1 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
9 |
08.846 PIPE; HTR
4JJ1-TCC ENG(RDU)
(D)
|
8-98028-829-1 |
01 |
1 |
0809- |
● |
|
● |
|
| |
9 |
08.846 PIPE; HTR
4JJ1-TCS ENG(LFB)
(D)
|
8-98028-829-1 |
01 |
1 |
0809- |
|
|
|
● |
| |
11 |
08.845 BOLT; HTR PIPE
4JJ1-TCC ENG(RDU)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
03 |
1 |
0804-0808 |
● |
|
● |
|
| |
11 |
08.845 BOLT; HTR PIPE
4JJ1-TCC ENG(RDU)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
03 |
1 |
0809- |
● |
|
● |
|
| |
11 |
08.845 BOLT; HTR PIPE
4JJ1-TCS ENG(LFB)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
03 |
1 |
0809- |
|
|
|
● |
| |
13 |
08.846 CLIP; HTR HOSE
4JJ1-TCC ENG(RDU)
VIETNAM EQUIPMENT(CL0)
(C)
ID=20.8
|
8-97944-127-0 |
06 |
1 |
1201- |
● |
|
● |
|
| |
13 |
08.846 CLIP; HTR HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
01.166
(D)
ID=25
|
8-94233-115-0 |
02 |
1 |
0804- |
● |
● |
|
|
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
03.278
(B)
ID=22
|
8-97359-141-0 |
04 |
1 |
0803-0803 |
● |
● |
|
|
| |
13 |
08.846 CLIP; HTR HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
03.278
(B)
ID=22
|
8-97359-141-0 |
04 |
1 |
0803-0803 |
● |
● |
|
|
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
03.278
(B)
ID=22
|
8-97359-141-0 |
04 |
1 |
0804-0808 |
● |
● |
● |
|
| |
13 |
08.846 CLIP; HTR HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
03.278
(B)
ID=22
|
8-97359-141-0 |
04 |
1 |
0804-0808 |
● |
● |
|
|
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
03.278
(B)
ID=22
|
8-97359-141-0 |
04 |
1 |
0809- |
● |
● |
● |
● |
| |
13 |
08.846 CLIP; HTR HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
03.278
(B)
ID=22
|
8-97359-141-0 |
04 |
1 |
0809- |
● |
● |
|
|
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
08.852
(A)
|
8-98032-129-0 |
02 |
1 |
0803-0803 |
● |
● |
|
|
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
08.852
(A)
|
8-98032-129-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
13 |
08.846 CLIP; HTR HOSE
08.852
(A)
|
8-98032-129-0 |
02 |
1 |
0803-0803 |
|
● |
|
|
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
08.852
(A)
|
8-98032-129-0 |
02 |
1 |
0804-0808 |
● |
● |
● |
|
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
08.852
(A)
|
8-98032-129-0 |
02 |
1 |
0809- |
● |
● |
● |
● |
| |
13 |
08.846 CLIP; HTR HOSE
4JJ1-TCC ENG(RDU)
01.166
(C)
ID=20.8
|
8-94125-862-1 |
06 |
1 |
0804-0808 |
● |
|
● |
|
| |
13 |
08.846 CLIP; HTR HOSE
4JJ1-TCC ENG(RDU)
01.166
(C)
ID=20.8
|
8-94125-862-1 |
06 |
1 |
0809-1112 |
● |
|
● |
|
| |
13 |
08.846 CLIP; HTR HOSE
4JJ1-TCS ENG(LFB)
01.166
(C)
ID=20.8
|
8-94125-862-1 |
06 |
1 |
0809-1112 |
|
|
|
● |
| |
13 |
08.846 CLIP; HTR HOSE
4JJ1-TCC ENG(RDU)
EXC. VIETNAM EQUIPMENT(CL0)
01.166
(C)
ID=20.8
|
8-94125-862-1 |
06 |
1 |
1201- |
● |
|
● |
|
| |
13 |
08.846 CLIP; HTR HOSE
01.166
(C)
ID=20.8
|
8-94125-862-1 |
06 |
1 |
1201- |
|
|
|
● |
| |
13 |
08.846 CLIP; HTR HOSE
4JJ1-TCC ENG(RDU)
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
01.166
(C)
ID=20.8
|
8-94125-862-1 |
02 |
1 |
0804-0808 |
● |
|
● |
|
| |
13 |
08.846 CLIP; HTR HOSE
4JJ1-TCC ENG(RDU)
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
01.166
(C)
ID=20.8
|
8-94125-862-1 |
02 |
1 |
0809- |
● |
|
● |
|
| |
13 |
08.846 CLIP; HTR HOSE
4JJ1-TCS ENG(LFB)
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
01.166
(C)
ID=20.8
|
8-94125-862-1 |
02 |
1 |
0809- |
|
|
|
● |
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
B=18
|
8-97359-144-0 |
01 |
1 |
0803-0803 |
● |
● |
|
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
B=18
|
8-97359-144-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
(A)
B=18
|
8-97359-144-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
B=18
|
8-97359-144-0 |
01 |
1 |
0804-0808 |
● |
● |
● |
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
B=18
|
8-97359-144-0 |
01 |
1 |
0809-1205 |
● |
● |
● |
● |
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
B=18
|
8-98166-023-0 |
01 |
1 |
1206- |
● |
● |
● |
● |
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(B)
B=14
|
8-98029-678-0 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(B)
B=14
|
8-98029-678-0 |
01 |
1 |
0809- |
● |
|
● |
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
4JJ1-TCS ENG(LFB)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(B)
B=14
|
8-98029-678-0 |
01 |
1 |
0809- |
|
|
|
● |
| |
25 |
08.846 HOSE; WATER,ENG TO HTR UNIT
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
|
8-98021-671-2 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
25 |
08.846 HOSE; WATER,ENG TO HTR UNIT
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
|
8-98021-671-2 |
01 |
1 |
0809- |
● |
|
● |
|
| |
25 |
08.846 HOSE; WATER,ENG TO HTR UNIT
4JJ1-TCS ENG(LFB)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
|
8-98021-671-2 |
01 |
1 |
0809- |
|
|
|
● |
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98050-295-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98050-295-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98050-295-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCS ENG(RJS)
(A)
|
8-98050-295-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98050-295-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(B)
|
8-98050-296-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(B)
|
8-98050-296-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(B)
|
8-98050-296-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCS ENG(RJS)
(B)
|
8-98050-296-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(B)
|
8-98050-296-0 |
01 |
1 |
0804- |
● |
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(C)
|
8-98059-457-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(C)
|
8-98059-457-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(C)
|
8-98059-457-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCS ENG(RJS)
(C)
|
8-98059-457-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(C)
|
8-98059-457-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(D)
|
8-98059-458-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(D)
|
8-98059-458-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(D)
|
8-98059-458-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCS ENG(RJS)
(D)
|
8-98059-458-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
26 |
08.846 HOSE; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(D)
|
8-98059-458-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
26 |
08.846 HOSE; HTR
4JJ1-TCC ENG(RDU)
(E)
|
0-03516-240-0 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
26 |
08.846 HOSE; HTR
4JJ1-TCC ENG(RDU)
(E)
|
0-03516-240-0 |
01 |
1 |
0809-0910 |
● |
|
● |
|
| |
26 |
08.846 HOSE; HTR
4JJ1-TCS ENG(LFB)
(E)
|
0-03516-240-0 |
01 |
1 |
0809-0910 |
|
|
|
● |
| |
26 |
08.846 HOSE; HTR
4JJ1-TCC ENG(RDU)
(E)
|
8-98143-868-0 |
01 |
1 |
0911- |
● |
|
● |
|
| |
26 |
08.846 HOSE; HTR
4JJ1-TCS ENG(LFB)
(E)
|
8-98143-868-0 |
01 |
1 |
0911- |
|
|
|
● |
| |
26 |
08.846 HOSE; HTR
4JJ1-TCC ENG(RDU)
(F)
|
8-97383-048-1 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
26 |
08.846 HOSE; HTR
4JJ1-TCC ENG(RDU)
(F)
|
8-97383-048-1 |
01 |
1 |
0809- |
● |
|
● |
|
| |
26 |
08.846 HOSE; HTR
4JJ1-TCS ENG(LFB)
(F)
|
8-97383-048-1 |
01 |
1 |
0809- |
|
|
|
● |
| |
26 |
08.846 HOSE; HTR
4JJ1-TCC ENG(RDU)
(G)
|
8-98000-099-1 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
26 |
08.846 HOSE; HTR
4JJ1-TCC ENG(RDU)
(G)
|
8-98000-099-1 |
01 |
1 |
0809- |
● |
|
● |
|
| |
26 |
08.846 HOSE; HTR
4JJ1-TCS ENG(LFB)
(G)
|
8-98000-099-1 |
01 |
1 |
0809- |
|
|
|
● |
| |
26 |
08.846 HOSE; HTR
4JJ1-TCC ENG(RDU)
(H)
|
8-98000-101-2 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
26 |
08.846 HOSE; HTR
4JJ1-TCC ENG(RDU)
(H)
|
8-98000-101-2 |
01 |
1 |
0809- |
● |
|
● |
|
| |
26 |
08.846 HOSE; HTR
4JJ1-TCS ENG(LFB)
(H)
|
8-98000-101-2 |
01 |
1 |
0809- |
|
|
|
● |
| |
27 |
08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JJ1-TCC ENG(RDU)
(B)
|
8-98009-701-0 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
27 |
08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JJ1-TCC ENG(RDU)
(B)
|
8-98009-701-0 |
01 |
1 |
0809- |
● |
|
● |
|
| |
27 |
08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JJ1-TCS ENG(LFB)
(B)
|
8-98009-701-0 |
01 |
1 |
0809- |
|
|
|
● |
| |
27 |
08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98021-670-3 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
27 |
08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98021-670-3 |
01 |
1 |
0809- |
● |
|
● |
|
| |
27 |
08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JJ1-TCS ENG(LFB)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
(A)
|
8-98021-670-3 |
01 |
1 |
0809- |
|
|
|
● |
| |
36 |
08.846 BOLT; BRKT
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
36 |
08.846 BOLT; BRKT
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0809- |
● |
|
● |
|
| |
36 |
08.846 BOLT; BRKT
4JJ1-TCS ENG(LFB)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0809- |
|
|
|
● |
| |
38 |
08.846 NUT; BRKT
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
38 |
08.846 NUT; BRKT
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0809- |
● |
|
● |
|
| |
38 |
08.846 NUT; BRKT
4JJ1-TCS ENG(LFB)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0809- |
|
|
|
● |
| |
48 |
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
03.162
(A)
M6X12 FLANGE
|
0-28050-612-0 |
02 |
1 |
0803-0803 |
● |
● |
|
|
| |
48 |
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
03.162
(A)
M6X12 FLANGE
|
0-28050-612-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
| |
48 |
09.262 BOLT; CLIP FIX
03.162
(A)
M6X12 FLANGE
|
0-28050-612-0 |
02 |
1 |
0803-0803 |
|
● |
|
|
| |
48 |
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
03.162
(A)
M6X12 FLANGE
|
0-28050-612-0 |
02 |
1 |
0804-0808 |
● |
● |
● |
|
| |
48 |
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
03.162
(A)
M6X12 FLANGE
|
0-28050-612-0 |
02 |
1 |
0809- |
● |
● |
● |
● |
| |
48 |
09.262 BOLT; CLIP FIX
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
48 |
09.262 BOLT; CLIP FIX
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0809- |
● |
|
● |
|
| |
48 |
09.262 BOLT; CLIP FIX
4JJ1-TCS ENG(LFB)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0809- |
|
|
|
● |
| |
55 |
08.845 NUT; CLAMP
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0803-0803 |
● |
● |
|
|
| |
55 |
08.845 NUT; CLAMP
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
55 |
08.845 NUT; CLAMP
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
55 |
08.845 NUT; CLAMP
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0804-0808 |
● |
● |
● |
|
| |
55 |
08.845 NUT; CLAMP
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0809- |
● |
● |
● |
● |
| |
57 |
08.846 CLIP; HOSE
4JJ1-TCC ENG(RDU)
VIETNAM EQUIPMENT(CL0)
ID=20.8
|
8-97944-127-0 |
02 |
1 |
1201- |
● |
|
● |
|
| |
57 |
08.846 CLIP; HOSE
4JJ1-TCC ENG(RDU)
01.166
ID=20.8
|
8-94125-862-1 |
02 |
1 |
0804-0808 |
● |
|
● |
|
| |
57 |
08.846 CLIP; HOSE
4JJ1-TCC ENG(RDU)
01.166
ID=20.8
|
8-94125-862-1 |
02 |
1 |
0809-1112 |
● |
|
● |
|
| |
57 |
08.846 CLIP; HOSE
4JJ1-TCS ENG(LFB)
01.166
ID=20.8
|
8-94125-862-1 |
02 |
1 |
0809-1112 |
|
|
|
● |
| |
57 |
08.846 CLIP; HOSE
4JJ1-TCC ENG(RDU)
EXC. VIETNAM EQUIPMENT(CL0)
01.166
ID=20.8
|
8-94125-862-1 |
02 |
1 |
1201- |
● |
|
● |
|
| |
57 |
08.846 CLIP; HOSE
01.166
ID=20.8
|
8-94125-862-1 |
02 |
1 |
1201- |
|
|
|
● |
| |
63 |
08.846 HOSE; WATER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
01.540
|
8-94134-250-1 |
01 |
1 |
0804- |
● |
● |
|
|
| |
63 |
08.846 HOSE; WATER
4JJ1-TCC ENG(RDU)
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
|
8-98015-119-3 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
63 |
08.846 HOSE; WATER
4JJ1-TCC ENG(RDU)
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
|
8-98015-119-3 |
01 |
1 |
0809- |
● |
|
● |
|
| |
63 |
08.846 HOSE; WATER
4JJ1-TCS ENG(LFB)
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
|
8-98015-119-3 |
01 |
1 |
0809- |
|
|
|
● |
| |
73 |
08.846 CLIP; HTR HOSE
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
73 |
08.846 CLIP; HTR HOSE
4HK1-TCS ENG(RJS)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
73 |
08.846 CLIP; HTR HOSE
4HK1-TCN ENG(RDQ)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
| |
73 |
08.846 CLIP; HTR HOSE
4HK1-TCS ENG(RJS)
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
| |
73 |
08.846 CLIP; HTR HOSE
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0804-0808 |
● |
● |
● |
|
| |
73 |
08.846 CLIP; HTR HOSE
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0809- |
● |
● |
● |
● |
| |
86 |
08.846 CLIP; HTR HOSE
4JJ1-TCC ENG(RDU)
01.166
ID=40.5
|
8-97313-472-0 |
02 |
1 |
0804-0808 |
● |
|
● |
|
| |
86 |
08.846 CLIP; HTR HOSE
4JJ1-TCC ENG(RDU)
01.166
ID=40.5
|
8-97313-472-0 |
02 |
1 |
0809- |
● |
|
● |
|
| |
86 |
08.846 CLIP; HTR HOSE
4JJ1-TCS ENG(LFB)
01.166
ID=40.5
|
8-97313-472-0 |
02 |
1 |
0809- |
|
|
|
● |
| |
87 |
08.846 BRACKET; HTR HOSE CLIP
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
|
8-98025-918-4 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
87 |
08.846 BRACKET; HTR HOSE CLIP
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
|
8-98025-918-4 |
01 |
1 |
0809- |
● |
|
● |
|
| |
87 |
08.846 BRACKET; HTR HOSE CLIP
4JJ1-TCS ENG(LFB)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
|
8-98025-918-4 |
01 |
1 |
0809- |
|
|
|
● |
| |
146 |
08.846 BRACKET; HTR HOSE
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
|
8-98108-314-0 |
01 |
1 |
0804-0808 |
● |
|
● |
|
| |
146 |
08.846 BRACKET; HTR HOSE
4JJ1-TCC ENG(RDU)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
|
8-98108-314-0 |
01 |
1 |
0809- |
● |
|
● |
|
| |
146 |
08.846 BRACKET; HTR HOSE
4JJ1-TCS ENG(LFB)
HEATER & DEFROSTER(C41),AIR
CONDITIONERMANUAL CONT(C60)
|
8-98108-314-0 |
01 |
1 |
0809- |
|
|
|
● |
