Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#54944) — 163 parça

333 531 666 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
333	09.277 RELAY; MARKER LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0808	●
333	09.277 RELAY; MARKER LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-	●
333	09.277 RELAY; MARKER LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-		●
531	02.769 RELAY; MAIN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	0803-0803	●		●
531	02.769 RELAY; MAIN 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	0804-0808	●		●	●
531	02.769 RELAY; MAIN 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	0809-0906	●	●	●	●
531	02.769 RELAY; MAIN 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	0907-1402	●	●	●	●
531	02.769 RELAY; MAIN 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●	●	●
666	02.173 RELAY; STARTER 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0803	●		●
666	02.173 RELAY; STARTER 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-0808	●		●	●
666	02.173 RELAY; STARTER 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-1005	●	●	●	●
666	02.173 RELAY; STARTER 24V 10A PANASONIC	8-98167-173-0	01	1	1006-	●	●	●	●

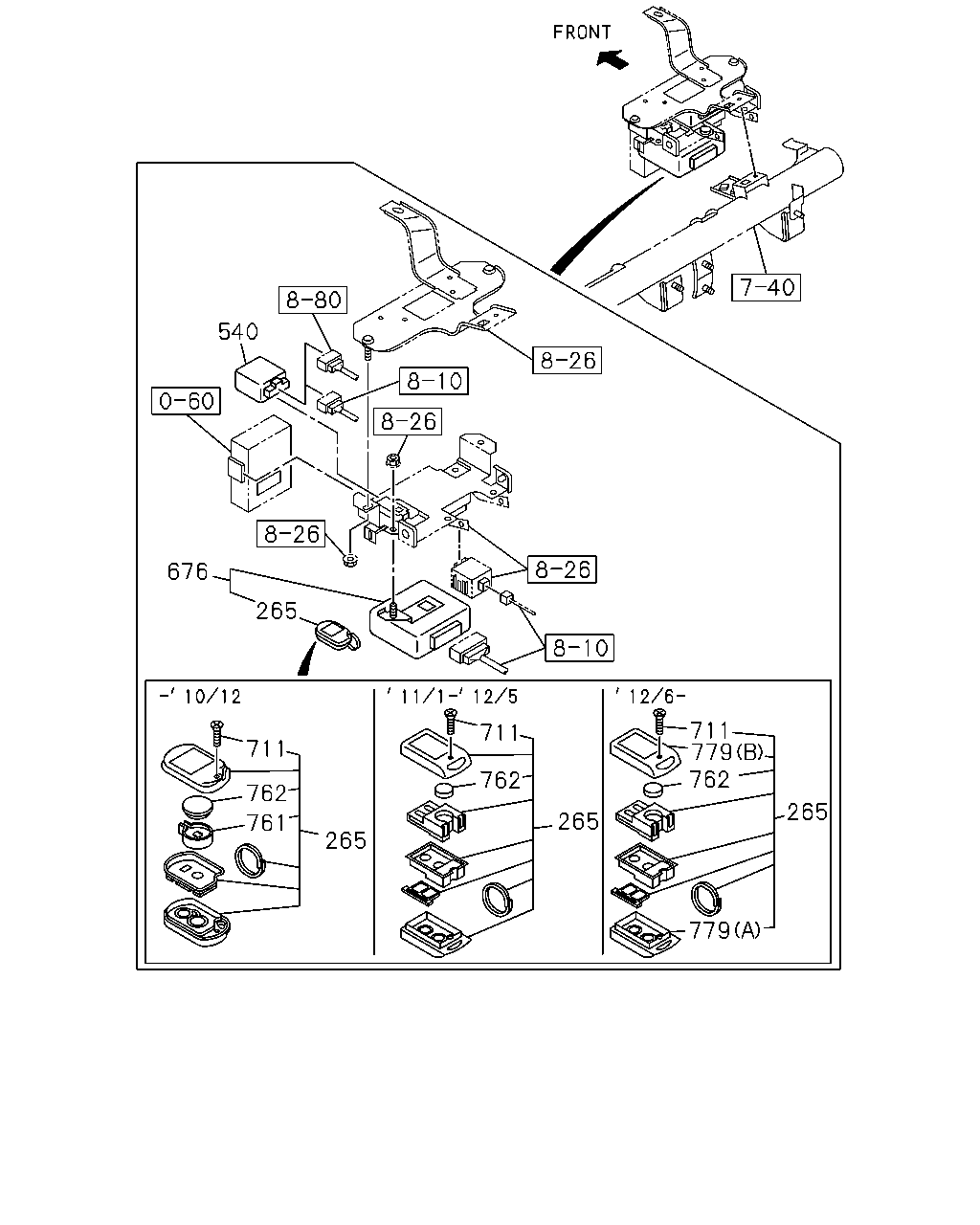

540 676 265 711 779 762 265 779 265 762 711 265 761 711 762

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98048-459-1	02	1	0803-0808	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98048-459-1	02	1	0809-0906	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0809-0906		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98048-459-1	02	1	0907-1012	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB)	8-98048-459-1	02	1	0907-1012		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98180-751-0	02	1	1101-1205	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB)	8-98180-751-0	02	1	1101-1205		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98218-236-0	02	1	1206-	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98048-462-1	02	1	0803-1012	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98178-860-0	02	1	1101-1205	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98218-235-0	02	1	1206-1309	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98249-522-0	02	1	1310-	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0803-0803	●		●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0804-0808	●		●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0809-1308	●	●	●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-	●	●	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98044-504-1	01	1	0803-0808	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98044-504-1	01	1	0809-0906	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY	8-98044-504-1	01	1	0809-0906		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98044-504-1	01	1	0907-1012	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB)	8-98044-504-1	01	1	0907-1012		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98181-810-0	01	1	1101-1205	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB)	8-98181-810-0	01	1	1101-1205		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98218-233-0	01	1	1206-	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98048-469-1	01	1	0803-1012	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98181-812-0	01	1	1101-1205	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98218-234-0	01	1	1206-1309	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98249-524-0	01	1	1310-	●
711	02.510 SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0803-0808	●
711	02.510 SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0809-0906	●
711	02.510 SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0809-0906		●
711	02.510 SCREW; TRANSMITTER TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0907-1205	●
711	02.510 SCREW; TRANSMITTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) M2X5	8-98078-067-0	02	1	0907-1205	●
711	02.510 SCREW; TRANSMITTER 4JJ1-TCS ENG(LFB) M2X5	8-98078-067-0	02	1	0907-1205		●
711	02.510 SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-	●	●
761	04.439 HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0803-0808	●
761	04.439 HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0809-0906	●
761	04.439 HOLDER; BATTERY	8-98078-063-0	02	1	0809-0906		●
761	04.439 HOLDER; BATTERY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0907-1012	●
761	04.439 HOLDER; BATTERY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98078-063-0	02	1	0907-1012	●
761	04.439 HOLDER; BATTERY 4JJ1-TCS ENG(LFB)	8-98078-063-0	02	1	0907-1012		●
762	02.559 BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0803-0808	●
762	02.559 BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0809-0906	●
762	02.559 BATTERY	8-98078-061-0	02	1	0809-0906		●
762	02.559 BATTERY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0907-	●
762	02.559 BATTERY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98078-061-0	02	1	0907-	●
762	02.559 BATTERY 4JJ1-TCS ENG(LFB)	8-98078-061-0	02	1	0907-		●
779	04.115 COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> 02.510 (A)	8-98218-240-0	02	1	1206-	●	●
779	04.115 COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 02.510 (B)	8-98218-243-0	02	1	1206-	●	●
779	04.115 COVER; TRANSMITTER TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98218-241-0	02	1	1206-1309	●
779	04.115 COVER; TRANSMITTER TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98250-559-0	02	1	1310-	●

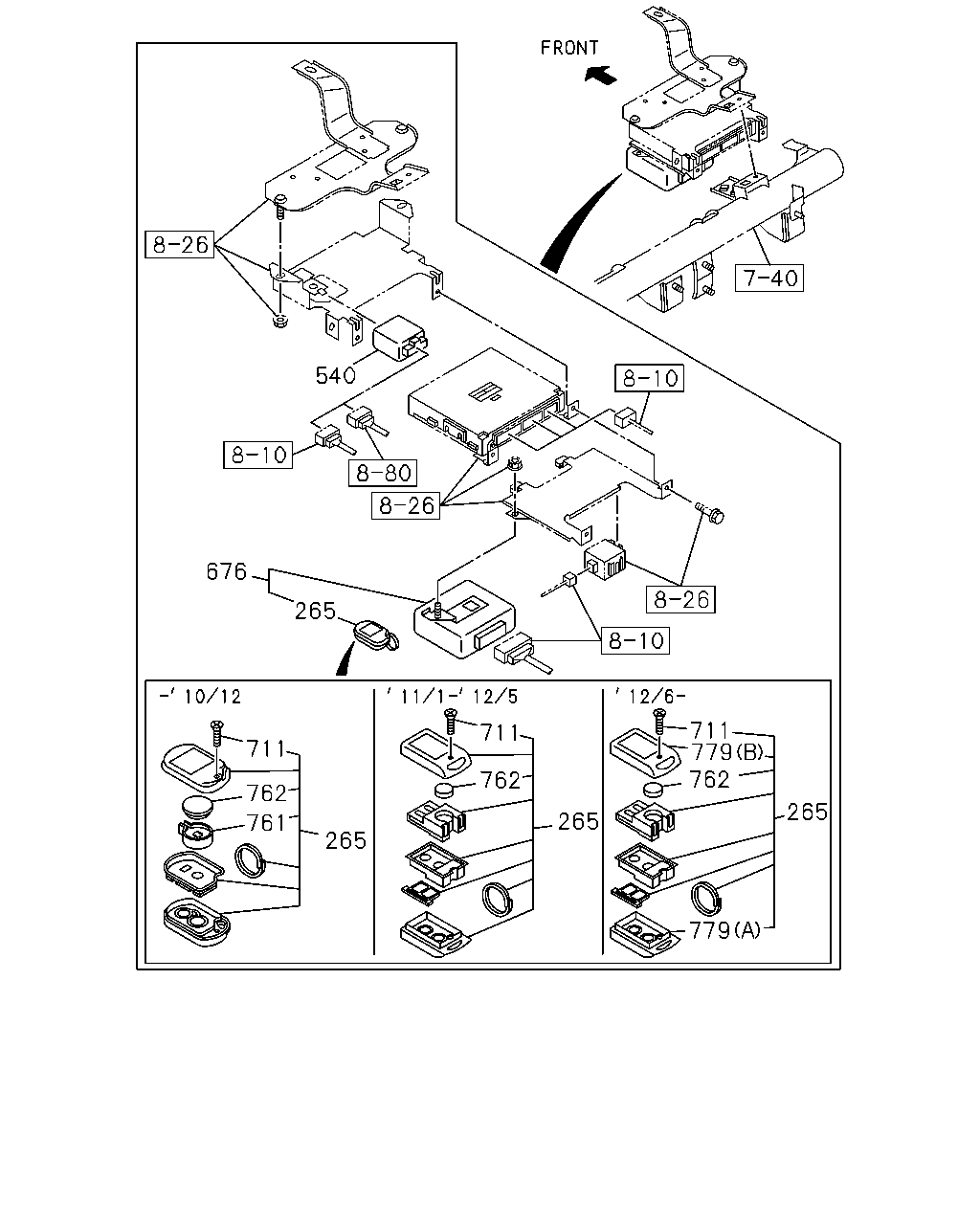

540 676 265 711 779 762 265 779 265 711 762 711 762 761 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98048-459-1	02	1	0803-0808	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98048-459-1	02	1	0809-0906	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0809-0906		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98048-459-1	02	1	0907-1012	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB)	8-98048-459-1	02	1	0907-1012		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98180-751-0	02	1	1101-1205	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB)	8-98180-751-0	02	1	1101-1205		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98218-236-0	02	1	1206-	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98048-462-1	02	1	0803-1012	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98178-860-0	02	1	1101-1205	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98218-235-0	02	1	1206-1309	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98249-522-0	02	1	1310-	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0803-0803	●		●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0804-0808	●		●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0809-1308	●	●	●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-	●	●	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98044-504-1	01	1	0803-0808	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98044-504-1	01	1	0809-0906	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY	8-98044-504-1	01	1	0809-0906		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98044-504-1	01	1	0907-1012	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB)	8-98044-504-1	01	1	0907-1012		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98181-810-0	01	1	1101-1205	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB)	8-98181-810-0	01	1	1101-1205		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98218-233-0	01	1	1206-	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98048-469-1	01	1	0803-1012	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98181-812-0	01	1	1101-1205	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98218-234-0	01	1	1206-1309	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98249-524-0	01	1	1310-	●
711	02.510 SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0803-0808	●
711	02.510 SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0809-0906	●
711	02.510 SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0809-0906		●
711	02.510 SCREW; TRANSMITTER TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0907-1205	●
711	02.510 SCREW; TRANSMITTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) M2X5	8-98078-067-0	02	1	0907-1205	●
711	02.510 SCREW; TRANSMITTER 4JJ1-TCS ENG(LFB) M2X5	8-98078-067-0	02	1	0907-1205		●
711	02.510 SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-	●	●
761	04.439 HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0803-0808	●
761	04.439 HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0809-0906	●
761	04.439 HOLDER; BATTERY	8-98078-063-0	02	1	0809-0906		●
761	04.439 HOLDER; BATTERY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0907-1012	●
761	04.439 HOLDER; BATTERY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98078-063-0	02	1	0907-1012	●
761	04.439 HOLDER; BATTERY 4JJ1-TCS ENG(LFB)	8-98078-063-0	02	1	0907-1012		●
762	02.559 BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0803-0808	●
762	02.559 BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0809-0906	●
762	02.559 BATTERY	8-98078-061-0	02	1	0809-0906		●
762	02.559 BATTERY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0907-	●
762	02.559 BATTERY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98078-061-0	02	1	0907-	●
762	02.559 BATTERY 4JJ1-TCS ENG(LFB)	8-98078-061-0	02	1	0907-		●
779	04.115 COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> 02.510 (A)	8-98218-240-0	02	1	1206-	●	●
779	04.115 COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) 02.510 (B)	8-98218-243-0	02	1	1206-	●	●
779	04.115 COVER; TRANSMITTER TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98218-241-0	02	1	1206-1309	●
779	04.115 COVER; TRANSMITTER TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98250-559-0	02	1	1310-	●

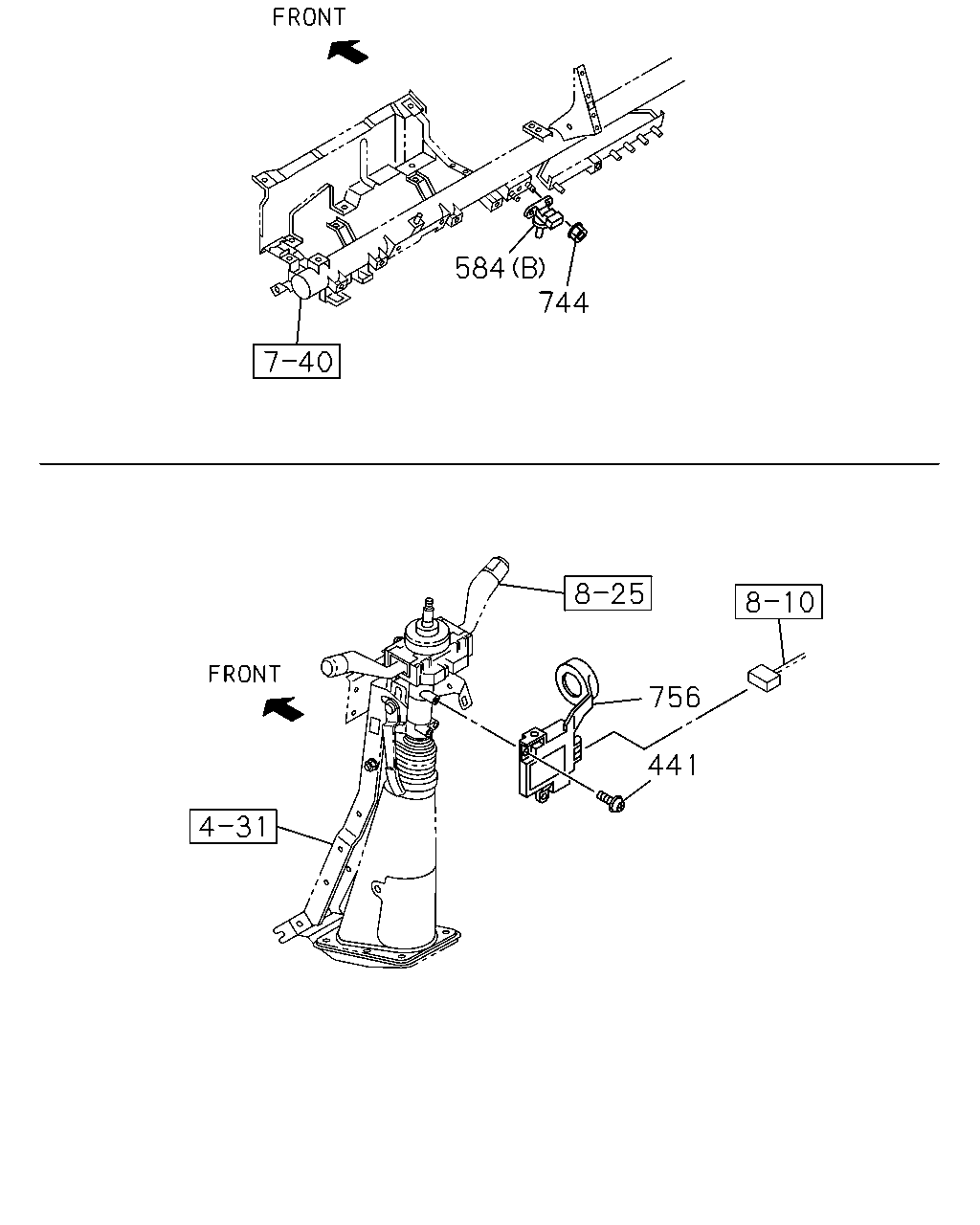

584 744 756 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
441	02.575 SCREW; CONT UNIT IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0809-	●
441	02.575 SCREW; CONT UNIT 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0809-		●
584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97387-682-0	01	1	0803-	●
584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.331 (B)	8-98020-514-0	01	1	0803-0803	●		●
584	02.440 SENSOR; PRESSURE 03.331 (B)	8-98020-514-0	01	1	0804-0808	●		●	●
584	02.440 SENSOR; PRESSURE 03.331 (B)	8-98020-514-0	01	1	0809-	●	●	●	●
744	09.277 NUT; SENSOR 01.062 M6 FLANGE	0-91180-106-0	02	1	0803-0803	●		●
744	09.277 NUT; SENSOR 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-0808	●		●	●
744	09.277 NUT; SENSOR 01.062 M6 FLANGE	0-91180-106-0	02	1	0809-0908	●	●	●	●
744	09.277 NUT; SENSOR 01.062 M6 FLANGE	0-91180-106-0	02	1	0909-	●	●	●	●
756	16.263 CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM(7KC)	8-98097-554-0	01	1	0809-1005	●
756	16.263 CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0809-1005		●
756	16.263 CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM(7KC)	8-98158-127-0	01	1	1006-	●
756	16.263 CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-		●

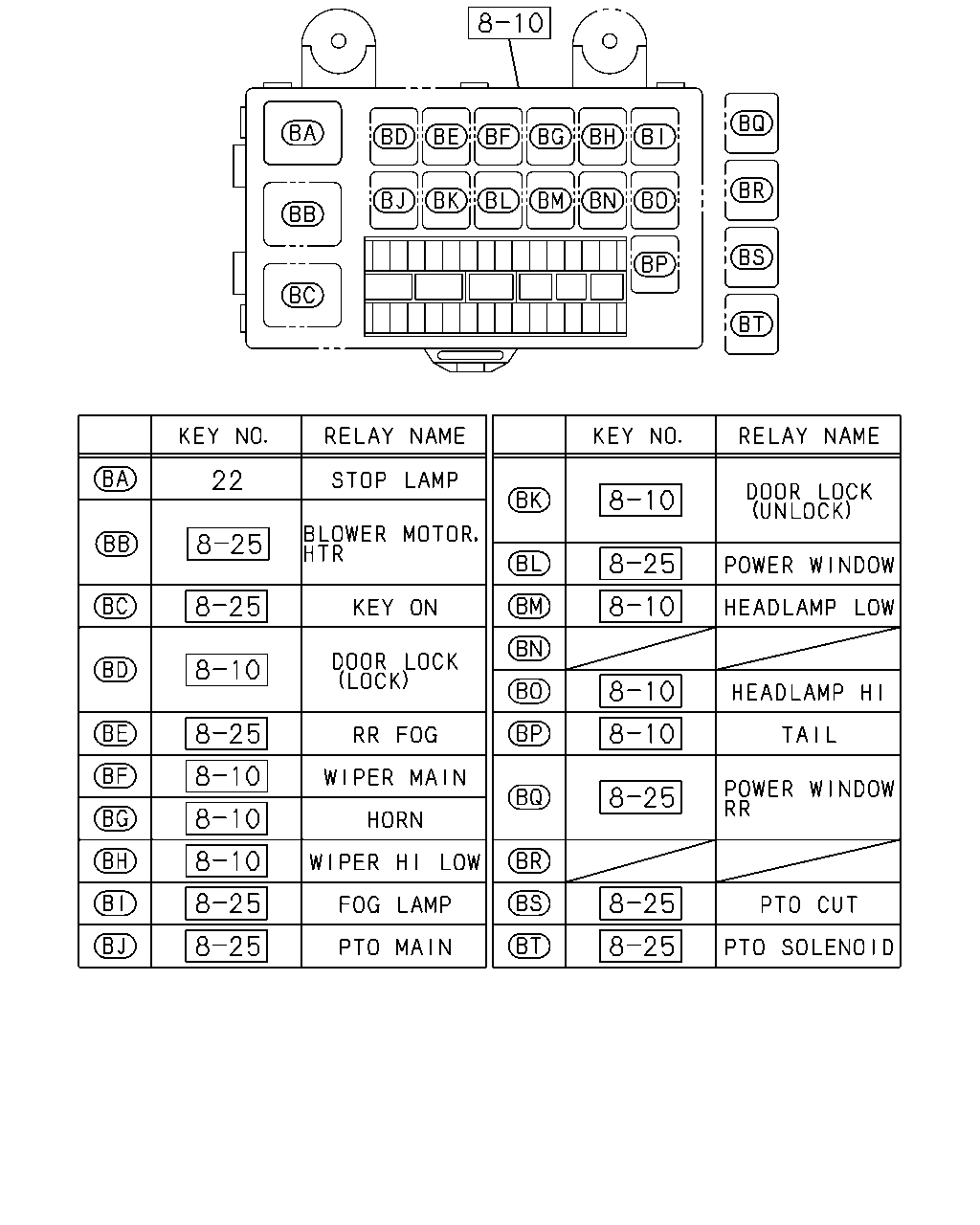

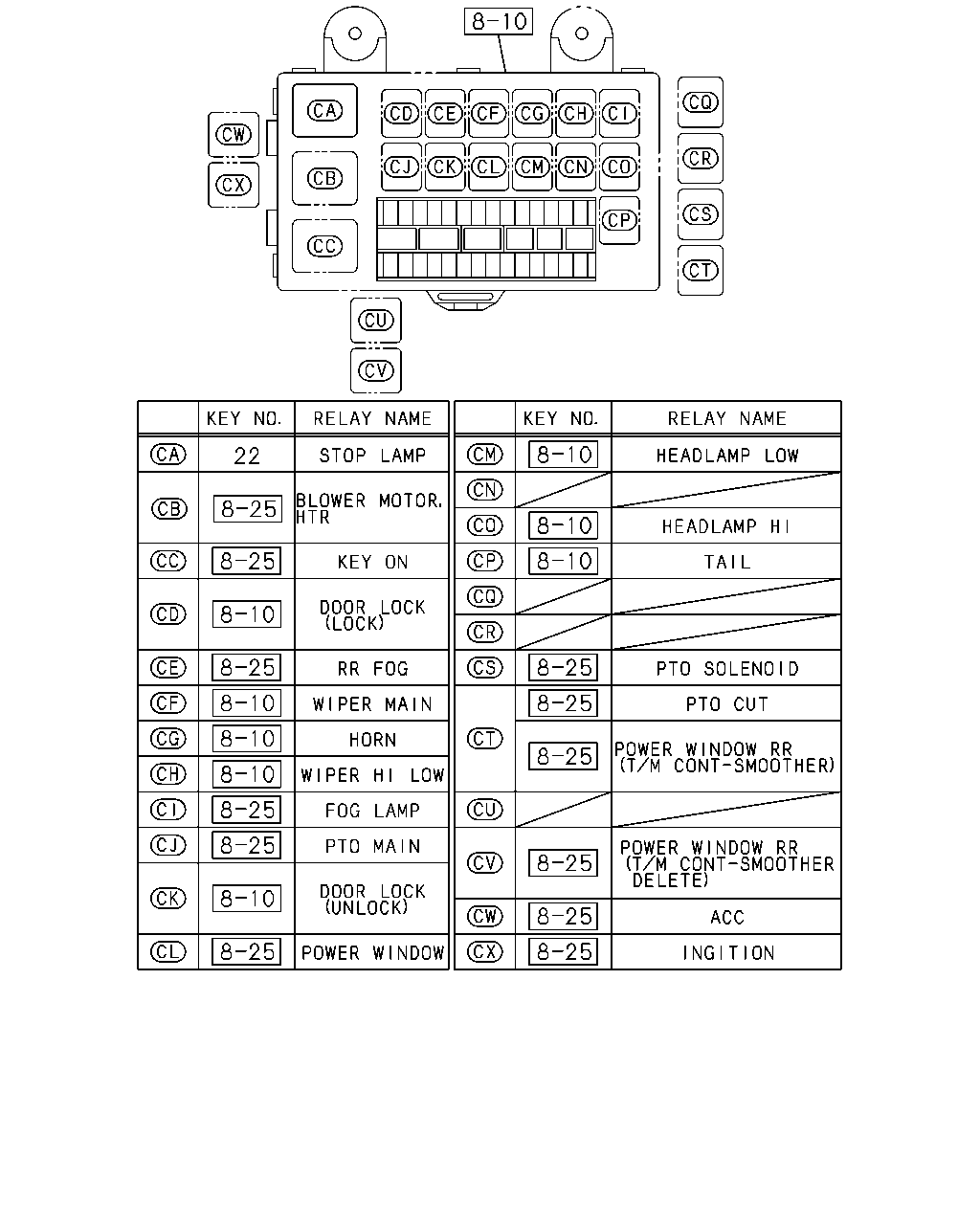

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803	●		●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-0808	●		●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-	●	●	●	●

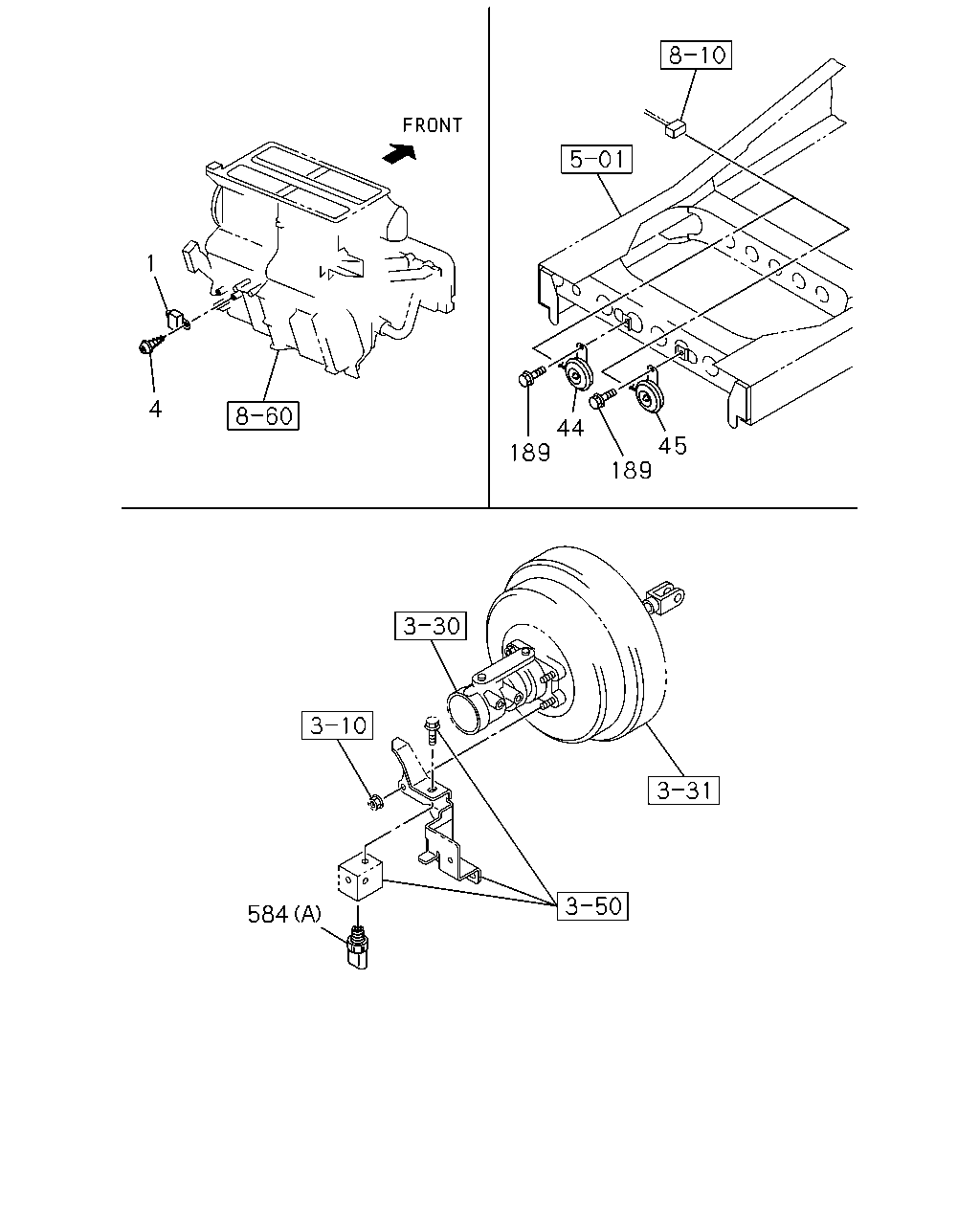

1 4 44 189 45 189 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	0803-0803	●		●
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	0804-0808	●		●	●
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	0809-	●	●	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-0803	●		●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-0808	●		●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-1101	●	●	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-98070-080-0	01	1	0803-0803	●		●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-98070-080-0	01	1	0804-0808	●		●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-98070-080-0	01	1	0809-	●		●	●
44	02.810 HORN; HIGH NOTE	8-98070-080-0	01	1	0809-		●
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	0803-0803	●		●
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	0804-0808	●		●	●
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	0809-	●	●	●	●
189	02.812 BOLT; HORN 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0803-0803	●		●
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0803-0803	●		●
189	02.812 BOLT; HORN 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-0808	●		●	●
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-0808	●		●	●
189	02.812 BOLT; HORN 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0809-1004	●	●	●	●
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0809-1004	●		●	●
189	02.812 BOLT; HORN 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0809-1004		●
189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN<6KK> 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●		●	●
189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-		●
584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97387-682-0	01	1	0803-	●
584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.331 (B)	8-98020-514-0	01	1	0803-0803	●		●
584	02.440 SENSOR; PRESSURE 03.331 (B)	8-98020-514-0	01	1	0804-0808	●		●	●
584	02.440 SENSOR; PRESSURE 03.331 (B)	8-98020-514-0	01	1	0809-	●	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803	●		●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-0808	●		●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
