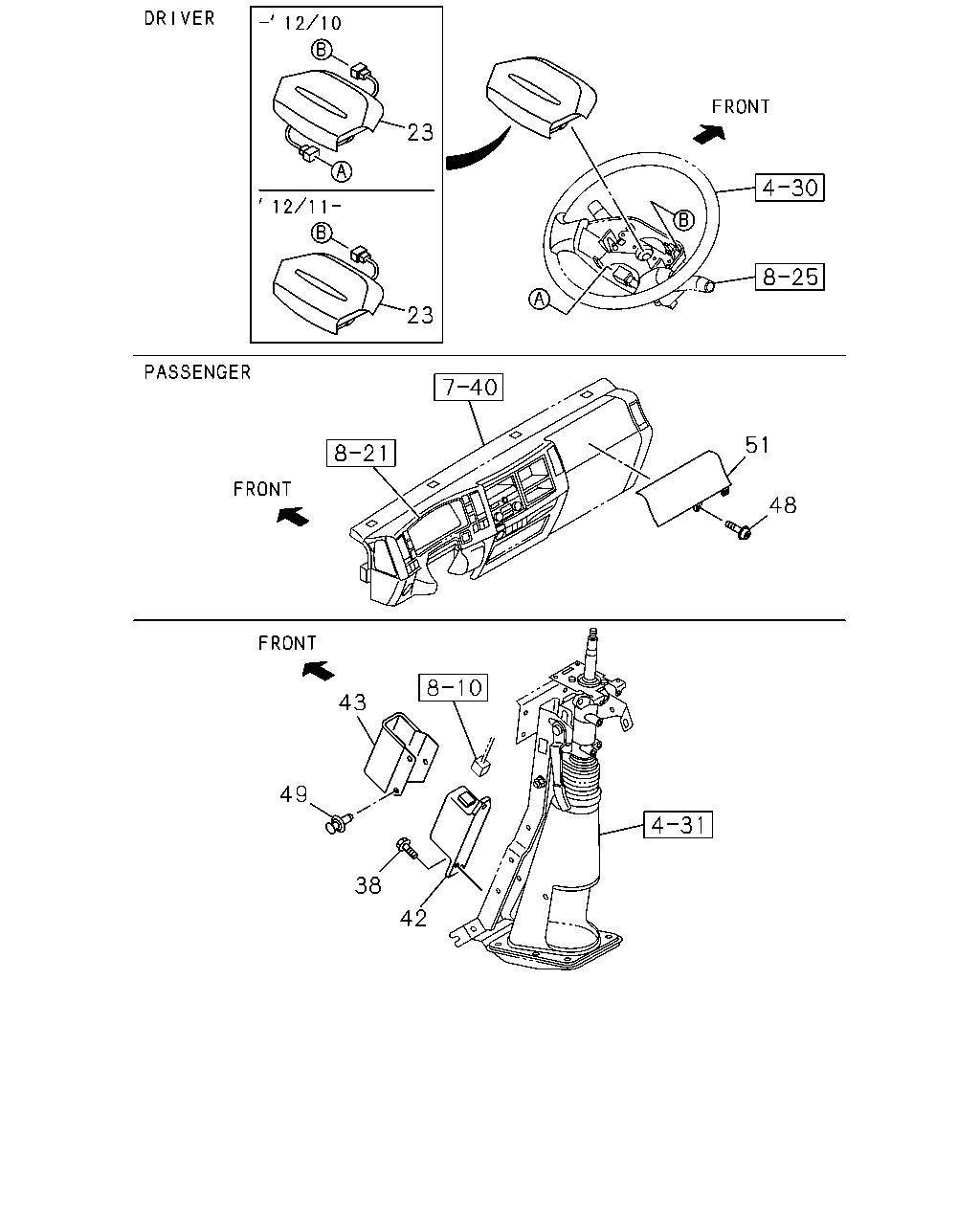

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#54943) — 33 parça

42 38 43 49 51 48 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. ISUZU BRAND<7WL> DARK GRAY	8-97424-576-1	01	1	1211-	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3> EXC. ISUZU BRAND<7WL> DARK GRAY	8-97424-576-1	01	1	1211-		●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97407-721-1	01	1	0803-0808	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97407-721-1	01	1	0809-1004	●		●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97418-100-0	01	1	1005-1005	●		●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97418-100-0	01	1	1006-1210	●		●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3> DARK GRAY	8-97418-100-0	01	1	1006-1210		●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> ISUZU BRAND<7WL> DARK GRAY	8-97423-999-1	01	1	1211-	●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3> ISUZU BRAND<7WL> DARK GRAY	8-97423-999-1	01	1	1211-		●
23	02.559 AIR BAG UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97423-999-1	01	1	1211-			●
38	06.870 BOLT; CONT UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6X18 W/PL WASHER	8-97105-796-1	03	1	0803-0808	●
38	06.870 BOLT; CONT UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6X18 W/PL WASHER	8-97105-796-1	03	1	0809-1005	●		●
38	06.870 BOLT; CONT UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6X18 W/PL WASHER	8-97105-796-1	03	1	1006-	●		●
38	06.870 BOLT; CONT UNIT AIR BAG DRIVER<AJ3> M6X18 W/PL WASHER	8-97105-796-1	03	1	1006-		●
42	02.510 CONTROL UNIT; SRS AIR BAG DRIVER<AJ3> 02.559	8-98094-555-0	01	1	0803-0808	●
42	02.510 CONTROL UNIT; SRS AIR BAG DRIVER<AJ3> 02.559	8-98094-555-0	01	1	0809-0903	●		●
42	02.510 CONTROL UNIT; SRS AIR BAG DRIVER<AJ3>	8-98120-057-2	01	1	0904-1005	●		●
42	02.510 CONTROL UNIT; SRS AIR BAG DRIVER<AJ3>	8-98120-057-2	01	1	1006-	●	●	●
42	02.510 CONTROL UNIT; SRS AIR BAG DRIVER & PASSENGER<AK5> 02.559	8-98094-557-0	01	1	0803-0808	●
42	02.510 CONTROL UNIT; SRS AIR BAG DRIVER & PASSENGER<AK5> 02.559	8-98094-557-0	01	1	0809-0903	●		●
42	02.510 CONTROL UNIT; SRS AIR BAG DRIVER & PASSENGER<AK5>	8-98120-059-2	01	1	0904-	●		●
43	02.559 PROTECTOR; CONTROL UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98083-536-0	01	1	0803-0808	●
43	02.559 PROTECTOR; CONTROL UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98083-536-0	01	1	0809-1005	●		●
43	02.559 PROTECTOR; CONTROL UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98083-536-0	01	1	1006-	●		●
43	02.559 PROTECTOR; CONTROL UNIT AIR BAG DRIVER<AJ3>	8-98083-536-0	01	1	1006-		●
48	02.440 BOLT; INST PNL AIR BAG DRIVER & PASSENGER<AK5> 08.143 M6X16 W/LK&PL WASHER	0-52010-616-0	02	1	0803-0808	●
48	02.440 BOLT; INST PNL AIR BAG DRIVER & PASSENGER<AK5> 08.143 M6X16 W/LK&PL WASHER	0-52010-616-0	02	1	0809-	●		●
49	02.559 CLIP; PROTECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 16.320 OD=8.3	8-97997-832-0	03	1	0803-0808	●
49	02.559 CLIP; PROTECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 16.320 OD=8.3	8-97997-832-0	03	1	0809-1005	●		●
49	02.559 CLIP; PROTECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 16.320 OD=8.3	8-97997-832-0	03	1	1006-	●		●
49	02.559 CLIP; PROTECTOR AIR BAG DRIVER<AJ3> 16.320 OD=8.3	8-97997-832-0	03	1	1006-		●
51	02.559 AIR BAG ASM; P/S AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97409-783-2	01	1	0803-0808	●
51	02.559 AIR BAG ASM; P/S AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97409-783-2	01	1	0809-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
