8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#54941) — 593 parça

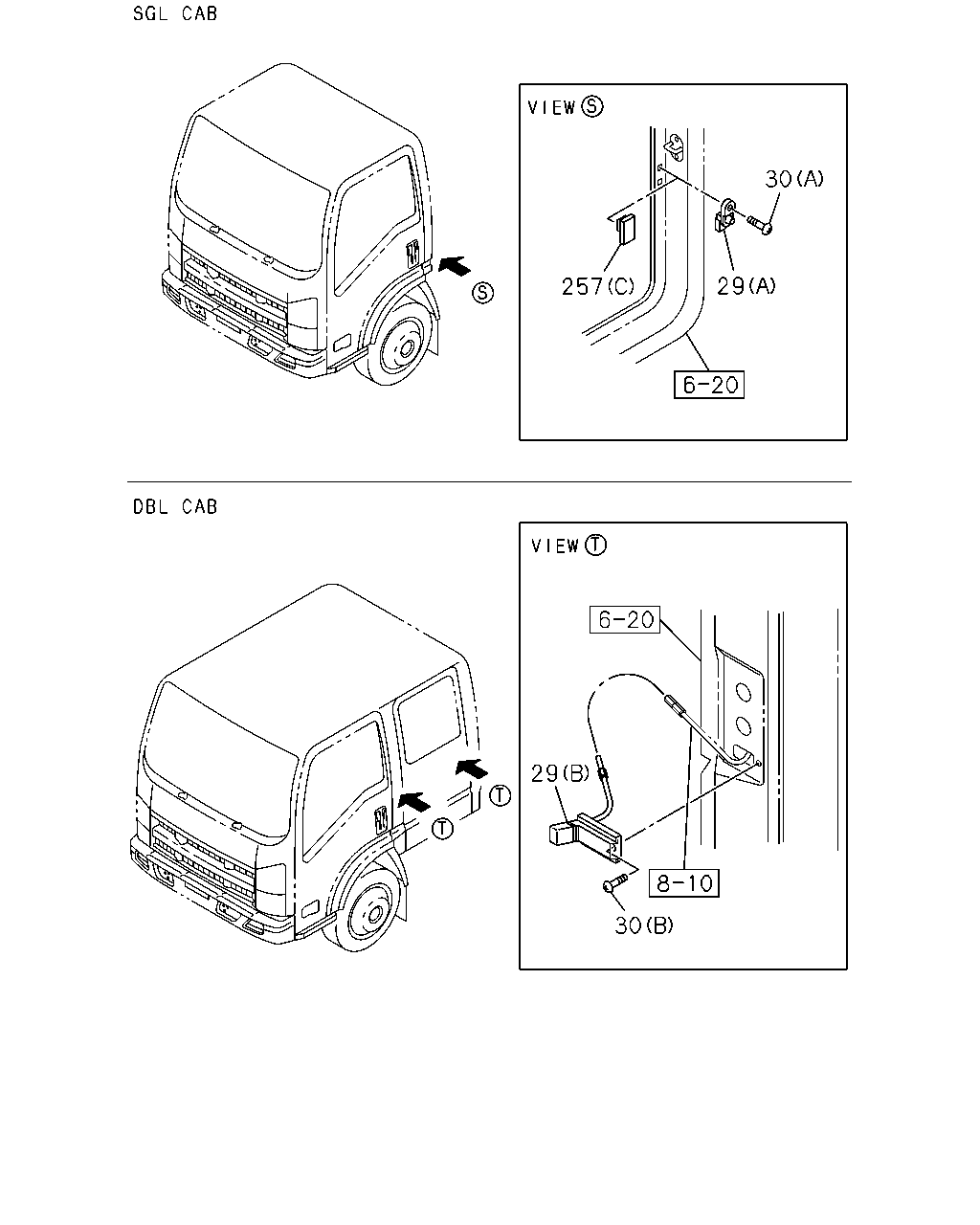

30 29 257 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0803-0808	●	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0803-0808	●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0803-0808	●
29	16.263 SWITCH; DOOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0803-0808	●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0809-0811	●	●	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0809-0811	●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0809-0811	●
29	16.263 SWITCH; DOOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0809-0811	●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0809-0811			●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0812-	●	●	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0812-	●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0812-	●
29	16.263 SWITCH; DOOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0812-	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) (A) BLACK	8-98022-211-0	01	1	0812-		●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0812-			●
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	01	1	0804-				●
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	01	1	0804-				●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	0804-				●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	0804-				●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	0803-0808	●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	0803-0808	●
30	16.263 SCREW; DOOR SW TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	0803-0808	●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	0809-0811	●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	0809-0811	●
30	16.263 SCREW; DOOR SW TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	0809-0811	●
30	16.263 SCREW; DOOR SW (A) M5X18	8-98047-201-0	02	1	0809-0811			●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	0812-	●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	0812-	●
30	16.263 SCREW; DOOR SW TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	02	1	0812-	●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) (A) M5X18	8-98047-201-0	02	1	0812-		●
30	16.263 SCREW; DOOR SW (A) M5X18	8-98047-201-0	02	1	0812-			●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	01	1	0803-0811	●
30	16.263 SCREW; DOOR SW (A) M5X18	8-98047-201-0	01	1	0803-0811		●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18	8-98047-201-0	01	1	0812-	●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) M5X18	8-98047-201-0	01	1	0812-		●
30	16.263 SCREW; DOOR SW (B) M5X16	8-94279-341-0	04	1	0804-				●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0803-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0804-0808	●	●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0809-0906	●	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0907-	●	●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0907-	●		●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●		●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0803-0803	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0809-	●		●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0809-		●		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	0803-0811	●
257	16.081 COVER; HOLE,SW (C)	8-98029-917-0	01	1	0803-0811		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	0812-	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C)	8-98029-917-0	01	1	0812-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0804-0808	●	●		●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0809-0906	●	●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0809-0906	●		●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●		●

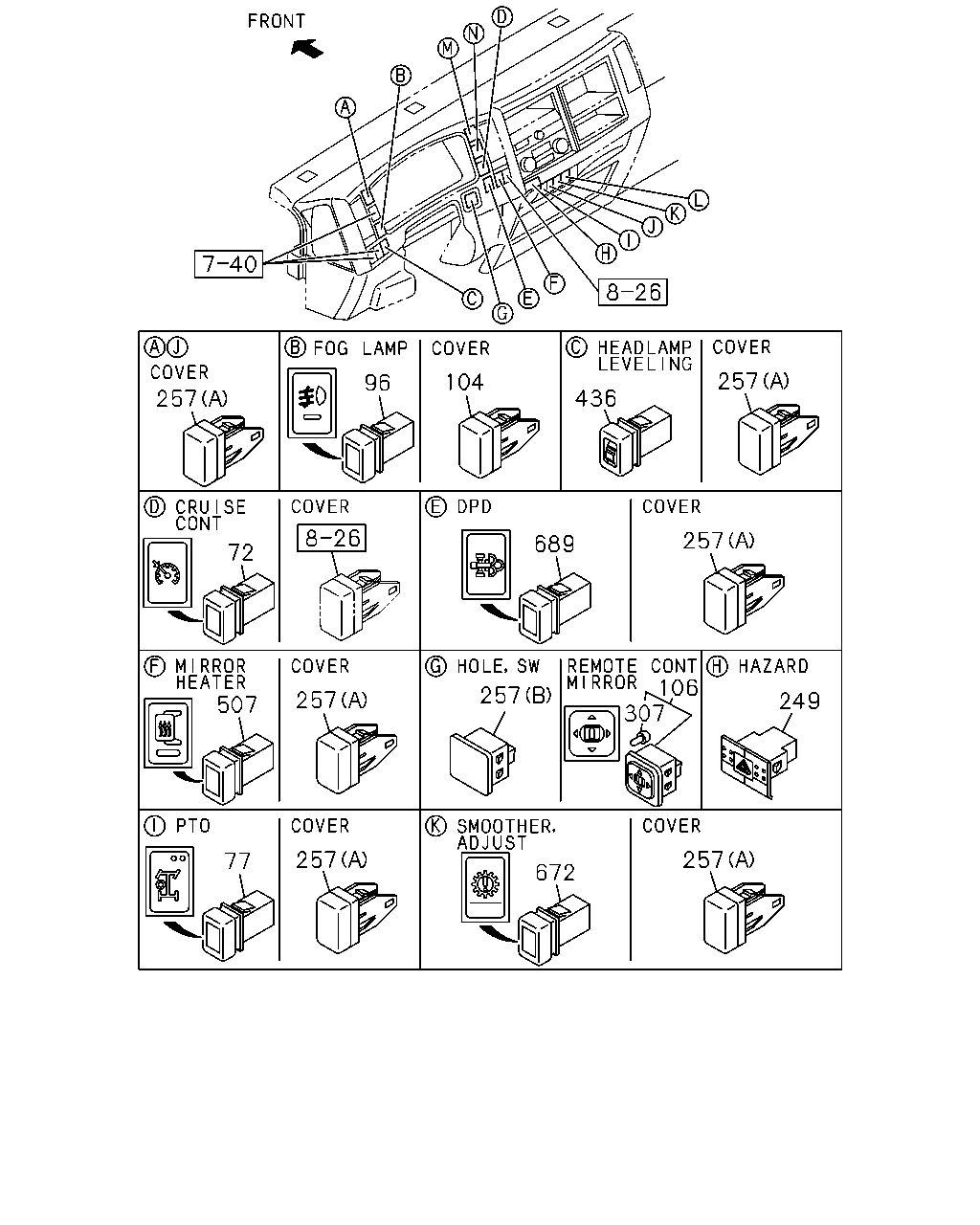

257 257 104 96 436 257 689 72 507 106 307 257 257 249 257 257 77 672

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
72	02.485 SWITCH; CRUISE CONT MULTI INFORMATION DISPLAY<7NY>	8-98011-344-1	01	1	0803-	●
77	04.439 SWITCH; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97386-993-4	01	1	0803-	●
77	04.439 SWITCH; PTO DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-97386-964-2	01	1	0803-	●
77	04.439 SWITCH; PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	0803-	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0803-0803	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0804-0808	●	●		●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0809-1509	●	●		●
96	02.485 SWITCH; FOG LAMP	8-97387-031-4	01	1	0809-1509			●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-97387-031-4	01	1	1510-	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	1510-		●		●
96	02.485 SWITCH; FOG LAMP	8-97387-031-4	01	1	1510-			●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	0803-0803	●	●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	0804-1509	●	●		●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081	8-98025-954-1	01	1	1510-	●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	1510-		●		●
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97173-294-1	01	1	0803-0808	●
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97173-294-1	01	1	0809-	●		●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	0803-0803	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	0804-0808	●	●		●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	0809-	●	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0803-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0804-0808	●	●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0809-0906	●	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0907-	●	●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0907-	●		●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●		●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0803-0803	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0809-	●		●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0809-		●		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	0803-0811	●
257	16.081 COVER; HOLE,SW (C)	8-98029-917-0	01	1	0803-0811		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	0812-	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C)	8-98029-917-0	01	1	0812-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0804-0808	●	●		●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0809-0906	●	●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0809-0906	●		●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●		●
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	0803-0808	●
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	0809-	●		●
436	02.485 SWITCH; HEADLAMP LEVELING HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-97386-981-2	01	1	0803-0803	●
436	02.485 SWITCH; HEADLAMP LEVELING HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-97386-981-2	01	1	0804-0808	●	●		●
436	02.485 SWITCH; HEADLAMP LEVELING HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-97386-981-2	01	1	0809-	●	●		●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97386-981-2	01	1	0809-			●
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-97386-924-3	01	1	0803-0808	●
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-97386-924-3	01	1	0809-	●		●
672	16.263 SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-971-2	01	1	0803-0806	●
672	16.263 SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-949-1	01	1	0807-	●
689	02.780 SWITCH; DPD CATALYSIS CONTROL WITH DPD(8JM)	8-97386-921-2	01	1	0803-0808	●
689	02.780 SWITCH; DPD CATALYSIS CONTROL WITH DPD(8JM)	8-97386-921-2	01	1	0809-	●
689	02.780 SWITCH; DPD	8-97386-921-2	01	1	0809-			●

608 674 151 154 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

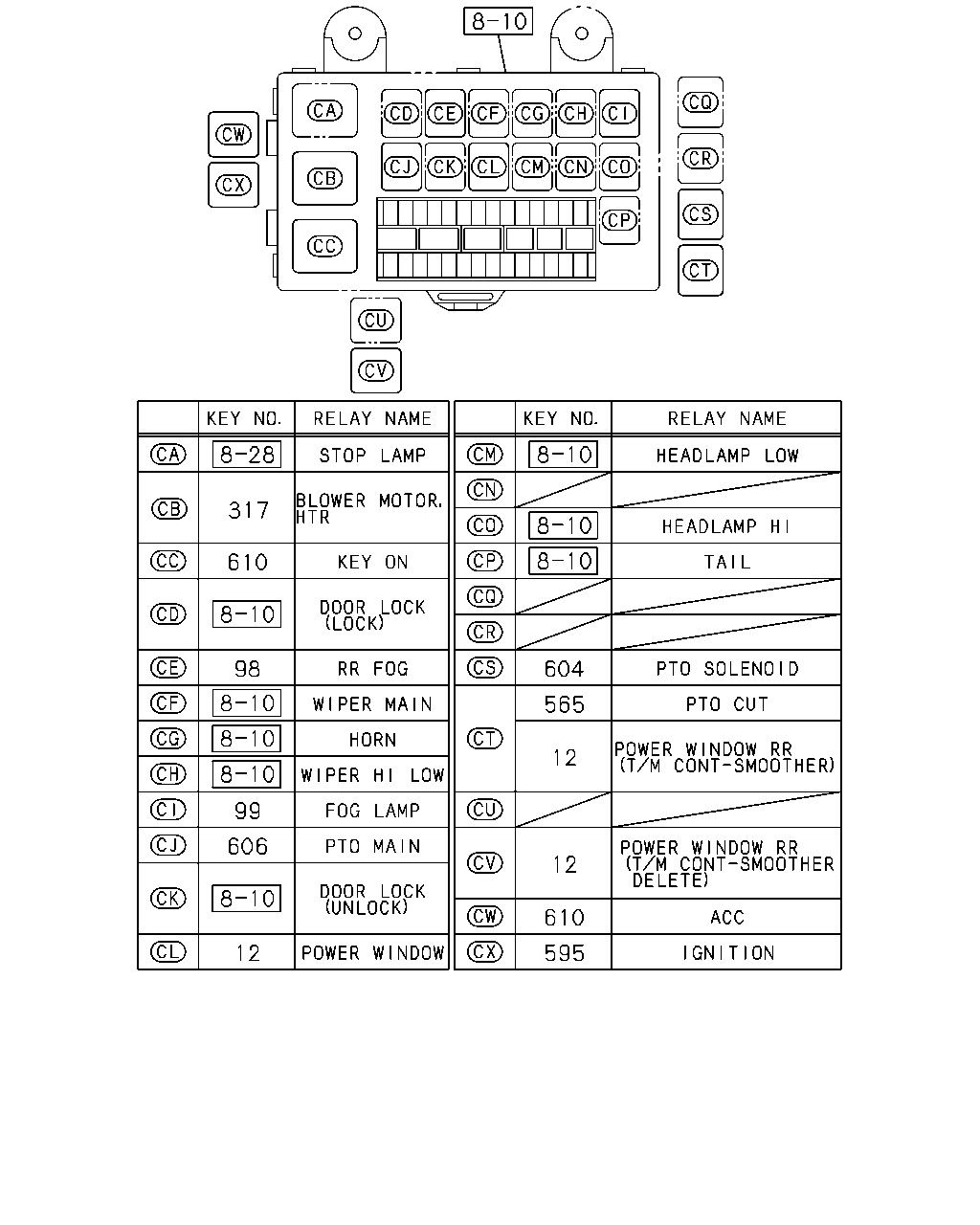

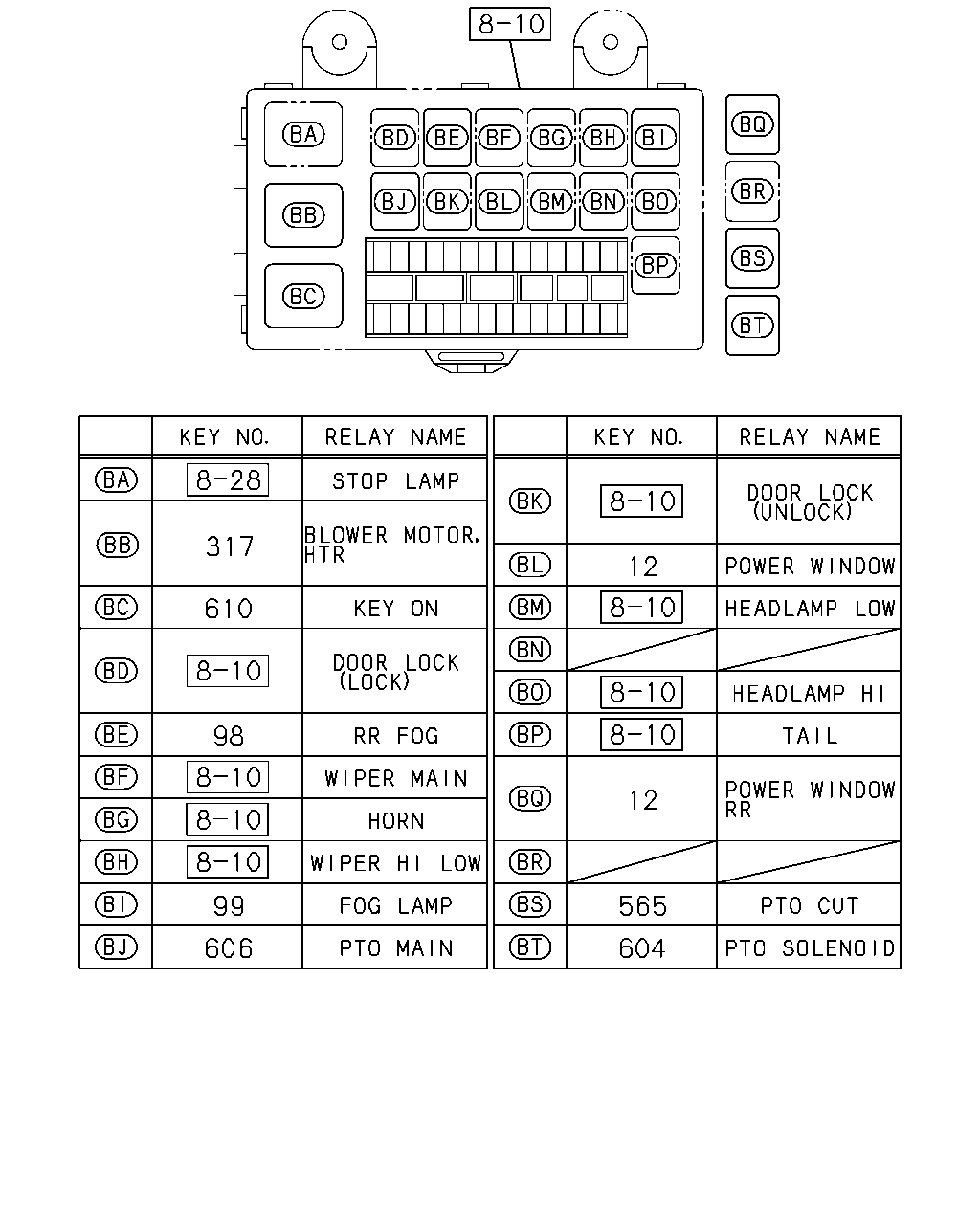

151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803	●	●
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803	●
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-0808	●	●		●
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-	●	●	●	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0803	●	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0803	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-0808	●	●		●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-	●	●	●	●
315	09.277 RELAY; EXH BRAKE CONT 4HK1-TCN ENG(RDQ) EXC. EURO4 SPECIFICATION(NT4) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0803	●
315	09.277 RELAY; EXH BRAKE CONT 4HK1-TCS ENG(RJS) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0803		●
315	09.277 RELAY; EXH BRAKE CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION(NT4) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●
315	09.277 RELAY; EXH BRAKE CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-		●
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	0803-1402	●
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●
674	02.510 RELAY; BATTERY FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0908-	●

183 39 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D

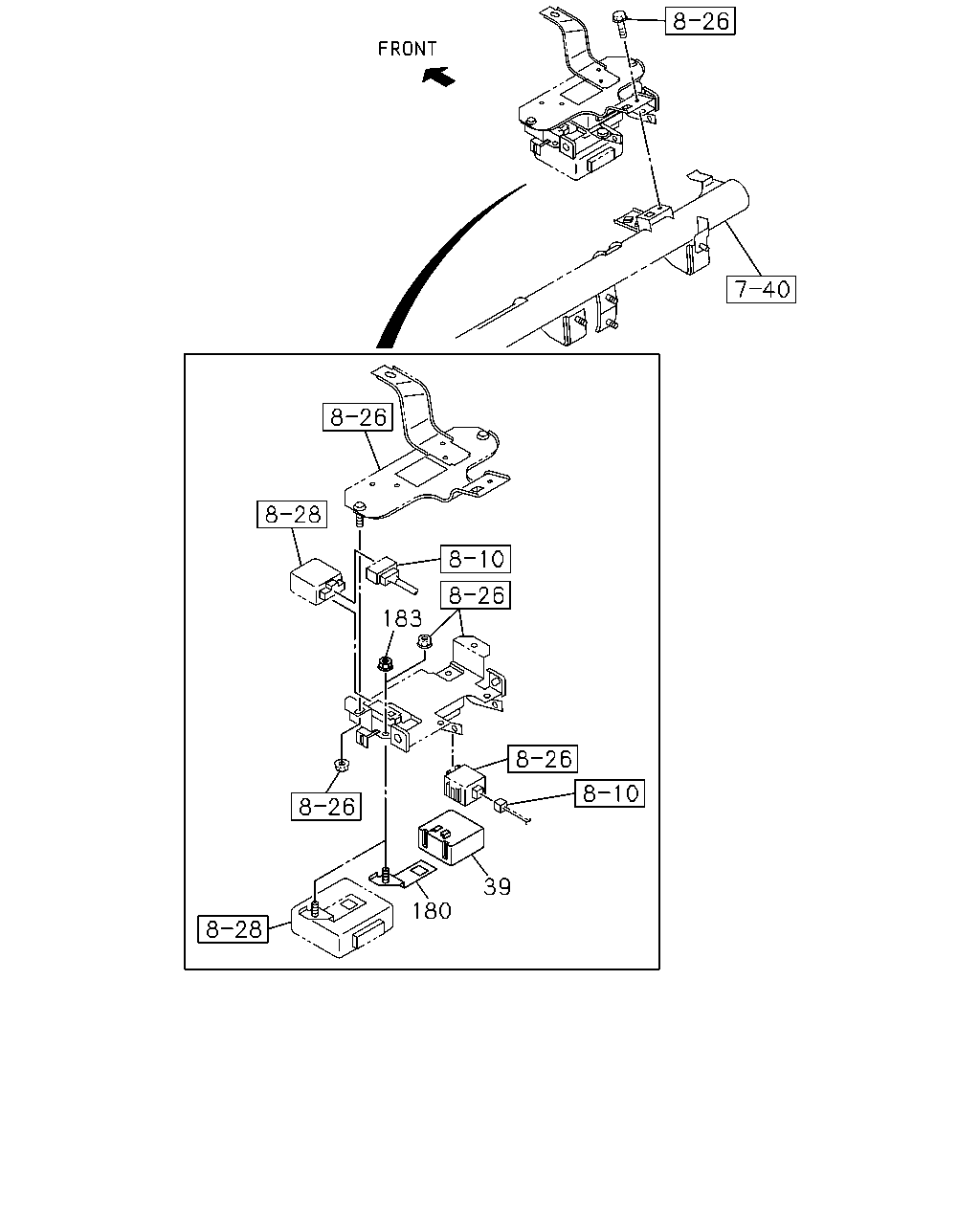

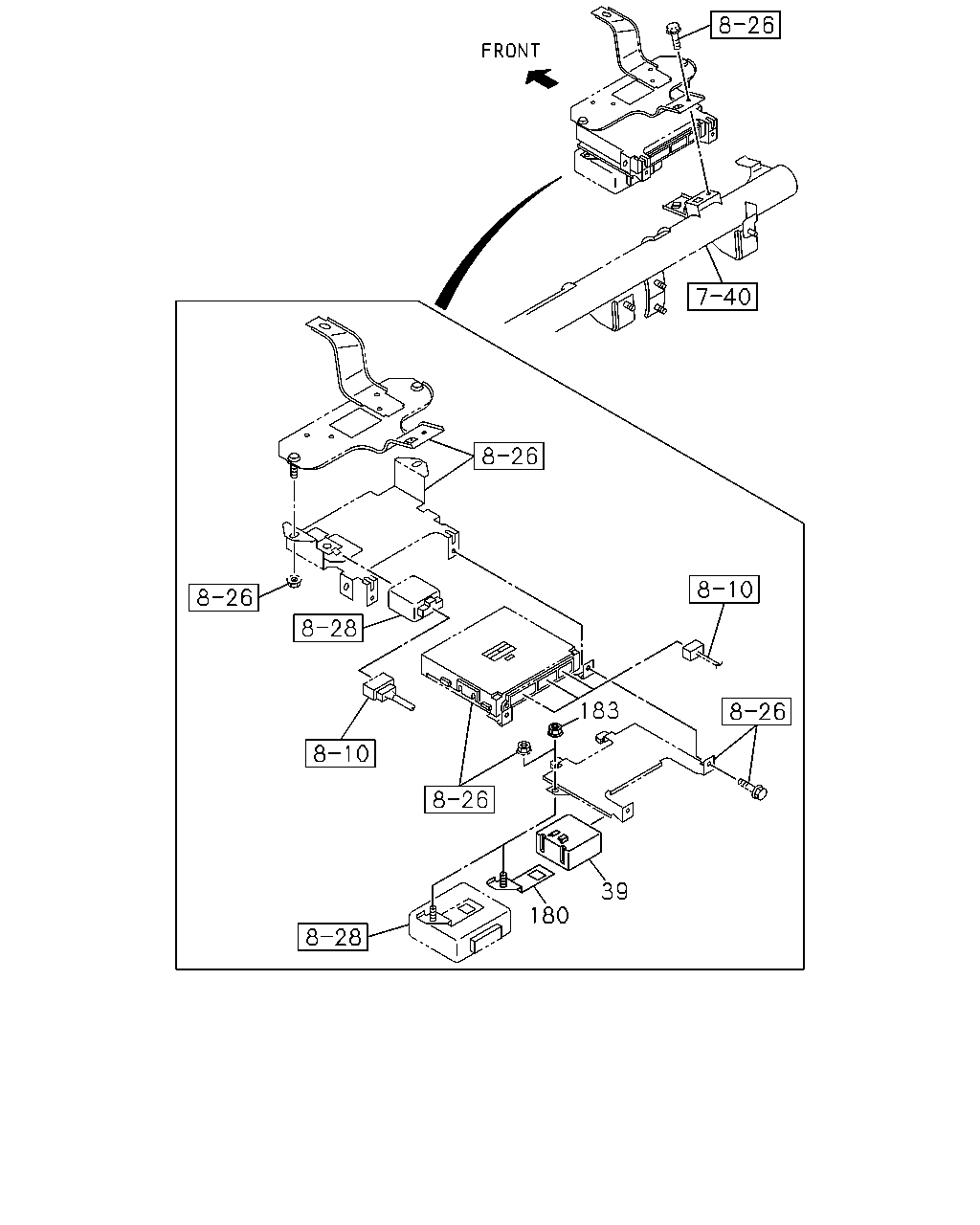

39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0803-0803	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	0803-0803		●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0804-	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	0804-		●	●
180	02.510 BRACKET; RELAY AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98091-660-0	01	1	0803-	●
183	02.510 NUT; RELAY BRKT AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-	●

1 8 3 263 10 10 8 8 8 263 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

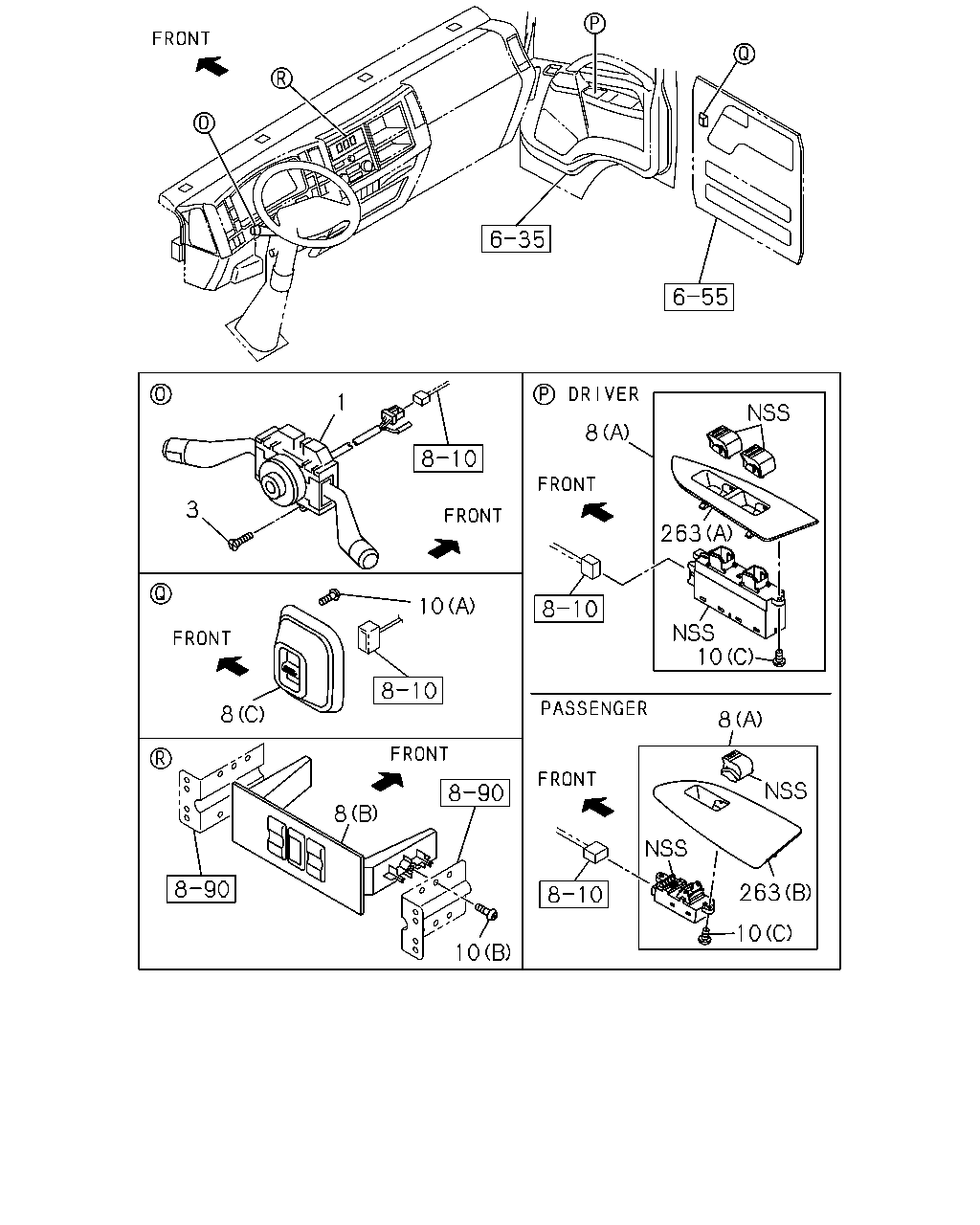

1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY>	8-98070-017-1	01	1	0803-0905	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY>	8-98146-641-0	01	1	0906-1210	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY>	8-98217-814-0	01	1	1211-1310	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY>	8-98243-741-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY>	8-98243-741-0	01	1	1510-	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>,MULTI INFORMATIONDISPLAY<7NY>	8-98070-016-1	01	1	0803-0905	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>,MULTI INFORMATIONDISPLAY<7NY>	8-98146-640-0	01	1	0906-1005	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>,MULTI INFORMATIONDISPLAY<7NY>	8-98146-640-0	01	1	1006-1210	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13>	8-98146-640-0	01	1	1006-1210		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>,MULTI INFORMATIONDISPLAY<7NY>	8-98217-813-0	01	1	1211-1310	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13>	8-98217-813-0	01	1	1211-1310		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79>,MULTI INFORMATIONDISPLAY<7NY>	8-98243-739-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13>	8-98243-739-0	01	1	1311-1509		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. RR FOG LAMP<T79>,MULTI INFORMATIONDISPLAY<7NY>	8-98243-739-0	01	1	1510-	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98243-739-0	01	1	1510-		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98070-014-2	01	1	0803-0905	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98146-638-0	01	1	0906-1005	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98146-638-0	01	1	1006-1210	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3> EXC. INTERMITTENT WIPER<C13>	8-98146-638-0	01	1	1006-1210		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98217-811-0	01	1	1211-1310	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3> EXC. INTERMITTENT WIPER<C13>	8-98217-811-0	01	1	1211-1310		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-738-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3> EXC. INTERMITTENT WIPER<C13>	8-98243-738-0	01	1	1311-1509		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-738-0	01	1	1510-	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13>	8-98243-738-0	01	1	1510-		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79>	8-98070-012-1	01	1	0803-1012	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79>,MULT I INFORMATION DISPLAY<7NY>	8-98070-010-1	01	1	0803-0803	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98070-010-1	01	1	0803-0803		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79>,MULT I INFORMATION DISPLAY<7NY>	8-98070-010-1	01	1	0804-1005	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98070-010-1	01	1	0804-1005		●		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79>,MULT I INFORMATION DISPLAY<7NY>	8-98070-010-1	01	1	1006-1310	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>	8-98070-010-1	01	1	1006-1310		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98070-010-1	01	1	1006-1310				●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79>,MULT I INFORMATION DISPLAY<7NY>	8-98243-749-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>	8-98243-749-0	01	1	1311-1509		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98243-749-0	01	1	1311-1509				●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79>,MULT I INFORMATION DISPLAY<7NY>	8-98243-749-0	01	1	1510-	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>	8-98243-749-0	01	1	1510-		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98243-749-0	01	1	1510-				●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION D ISPLAY<7NY>	8-98070-008-2	01	1	0803-0803	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98070-008-2	01	1	0803-0803		●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION D ISPLAY<7NY>	8-98070-008-2	01	1	0804-1005	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98070-008-2	01	1	0804-1005		●		●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION D ISPLAY<7NY>	8-98070-008-2	01	1	1006-1310	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>	8-98070-008-2	01	1	1006-1310		●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98070-008-2	01	1	1006-1310				●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION D ISPLAY<7NY>	8-98243-748-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>	8-98243-748-0	01	1	1311-1509		●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98243-748-0	01	1	1311-1509				●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79>,MULTI INFORMATION D ISPLAY<7NY>	8-98243-748-0	01	1	1510-	●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>	8-98243-748-0	01	1	1510-		●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98243-748-0	01	1	1510-				●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98070-015-1	01	1	0803-0808	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98070-015-1	01	1	0809-0905	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98070-015-1	01	1	0809-0905			●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98146-639-0	01	1	0906-1210	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98146-639-0	01	1	0906-1210			●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98217-812-0	01	1	1211-1310	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98217-812-0	01	1	1211-1310			●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98243-740-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98243-740-0	01	1	1311-1509			●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> EXC. MULTI INFORMATION DISPLAY<7NY>	8-98243-740-0	01	1	1510-	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98243-740-0	01	1	1510-			●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98097-621-1	01	1	0803-1310	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98243-758-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98243-758-0	01	1	1510-	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,MULTI INFORMATION DIS PLAY<7NY>	8-98073-850-1	01	1	0803-0808	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,MULTI INFORMATION DIS PLAY<7NY>	8-98073-850-1	01	1	0809-1310	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98073-850-1	01	1	0809-1310			●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,MULTI INFORMATION DIS PLAY<7NY>	8-98243-757-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98243-757-0	01	1	1311-1509			●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,MULTI INFORMATION DIS PLAY<7NY>	8-98243-757-0	01	1	1510-	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98243-757-0	01	1	1510-			●
1	02.895 SWITCH; COMB RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY>	8-98070-007-2	01	1	0803-0808	●
1	02.895 SWITCH; COMB RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY>	8-98070-007-2	01	1	0809-1310	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98070-007-2	01	1	0809-1310			●
1	02.895 SWITCH; COMB RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY>	8-98243-750-0	01	1	1311-1509	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-750-0	01	1	1311-1509			●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY>	8-98243-750-0	01	1	1510-	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-750-0	01	1	1510-			●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0803-0803	●	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0804-0808	●	●		●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0809-	●	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-98001-737-2	01	1	0803-0803	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-98001-737-2	01	1	0804-0808	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-98001-737-2	01	1	0804-0808				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-98001-737-2	01	1	0809-1509	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-98001-737-2	01	1	0809-1509				●
8	16.263 SWITCH; POWER WINDOW (A) PASSENGER SIDE	8-98001-737-2	01	1	0809-1509			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-98316-418-0	01	1	1510-	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-98316-418-0	01	1	1510-				●
8	16.263 SWITCH; POWER WINDOW (A) PASSENGER SIDE	8-98316-418-0	01	1	1510-			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98003-784-1	01	1	0803-0803	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98003-784-1	01	1	0804-0808	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98003-784-1	01	1	0804-0808				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98003-784-1	01	1	0809-0809	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98003-784-1	01	1	0809-0809				●
8	16.263 SWITCH; POWER WINDOW (A) DRIVER SIDE	8-98003-784-1	01	1	0809-0809			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98129-845-0	01	1	0810-1001	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98129-845-0	01	1	0810-1001				●
8	16.263 SWITCH; POWER WINDOW (A) DRIVER SIDE	8-98129-845-0	01	1	0810-1001			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> 06.609 (A) DRIVER SIDE	8-98159-544-0	01	1	1002-1509	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 06.609 (A) DRIVER SIDE	8-98159-544-0	01	1	1002-1509				●
8	16.263 SWITCH; POWER WINDOW 06.609 (A) DRIVER SIDE	8-98159-544-0	01	1	1002-1509			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98298-751-0	01	1	1510-	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98298-751-0	01	1	1510-				●
8	16.263 SWITCH; POWER WINDOW (A) DRIVER SIDE	8-98298-751-0	01	1	1510-			●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-97386-987-2	01	1	0804-				●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE	8-97387-035-0	02	1	0804-				●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	03	1	0803-0803	●	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	03	1	0804-0808	●	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98153-865-0	03	1	0804-0808				●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	03	1	0809-	●	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98153-865-0	03	1	0809-				●
10	03.885 SCREW; POWER WINDOW SW (C)	8-98153-865-0	03	1	0809-			●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING	0-74360-414-0	04	1	0804-				●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	0804-				●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-838-0	01	1	0803-0803	●	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-838-0	01	1	0804-0808	●	●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98153-838-0	01	1	0804-0808				●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-838-0	01	1	0809-	●	●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98153-838-0	01	1	0809-				●
263	16.081 COVER; SW (A)	8-98153-838-0	01	1	0809-			●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-843-0	01	1	0803-0803	●	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-843-0	01	1	0804-0808	●	●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-98153-843-0	01	1	0804-0808				●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-843-0	01	1	0809-	●	●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-98153-843-0	01	1	0809-				●
263	16.081 COVER; SW (B)	8-98153-843-0	01	1	0809-			●

317 12 610 98 12 99 565 606 604

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0803	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-0808	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-0808				●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-0808				●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-0910	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-0910				●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-0910				●
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0809-0910			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1112	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1112				●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1112				●
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1112			●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-				●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-				●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCS ENG(LFB) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-			●
98	02.485 RELAY; RR FOG LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0808	●
98	02.485 RELAY; RR FOG LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-	●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-			●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0803	●	●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-0808	●	●		●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-1509	●	●		●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-1509			●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1510-	●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1510-		●		●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1510-			●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803	●
317	02.510 RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803		●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-0808	●	●		●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-	●	●	●	●
565	02.510 RELAY; PTO CUT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-1112	●
565	02.510 RELAY; PTO CUT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
604	02.510 RELAY; PTO SOLENOID POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-1112	●
604	02.510 RELAY; PTO SOLENOID 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
606	02.510 RELAY; PTO MAIN POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-0808	●	●		●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-1204	●	●	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●	●	●

317 610 98 99 606 12 604 565 12 12 610 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0803	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-0808	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-0808				●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-0808				●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-0910	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-0910				●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0809-0910				●
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0809-0910			●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1112	●	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1112				●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1112				●
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0911-1112			●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
12	08.852 RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-				●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	1201-				●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCS ENG(LFB) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-			●
98	02.485 RELAY; RR FOG LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0808	●
98	02.485 RELAY; RR FOG LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-	●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-			●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-0803	●	●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-0808	●	●		●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-1509	●	●		●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0809-1509			●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1510-	●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1510-		●		●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1510-			●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803	●
317	02.510 RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803		●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-0808	●	●		●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-	●	●	●	●
565	02.510 RELAY; PTO CUT POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-1112	●
565	02.510 RELAY; PTO CUT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
595	02.510 RELAY; IGNITION 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●	●	●
604	02.510 RELAY; PTO SOLENOID POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-1112	●
604	02.510 RELAY; PTO SOLENOID 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1201-	●
606	02.510 RELAY; PTO MAIN POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0803-	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-0803	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-0808	●	●		●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0809-1204	●	●	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-	●	●	●	●

257 257 639 498 423 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	02.575 SWITCH; CLU POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447	8-94109-863-0	01	1	0805-1509	●
21	02.575 SWITCH; CLU POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447	8-94109-863-0	01	1	1510-	●
21	02.575 SWITCH; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0803-0803	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	0803-0803		●
21	02.575 SWITCH; CLU EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0804-0804	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	0804-0804		●		●
21	02.575 SWITCH; CLU EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0805-0808	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	0805-0808		●		●
21	02.575 SWITCH; CLU EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0809-1509	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	0809-1509		●	●	●
21	02.575 SWITCH; CLU EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	1510-	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1510-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0803-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0804-0808	●	●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0809-0906	●	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0907-	●	●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0907-	●		●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-		●		●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0803-0803	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0809-	●		●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0809-		●		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	0803-0811	●
257	16.081 COVER; HOLE,SW (C)	8-98029-917-0	01	1	0803-0811		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	0812-	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C)	8-98029-917-0	01	1	0812-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803	●	●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0803-0803	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0803-0803		●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0804-0808	●	●		●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0804-0808	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0808		●		●
257	16.081 COVER; HOLE,SW EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	0809-0906	●	●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A)	8-98025-954-1	01	1	0809-0906	●		●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	0809-0906	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-0906		●		●
423	03.883 SWITCH; ENG WARMING CHILE EQUIPMENT(KE1)	8-97387-010-1	01	1	0803-0803	●	●
423	03.883 SWITCH; ENG WARMING CHILE EQUIPMENT(KE1)	8-97387-010-1	01	1	0803-0803	●
423	03.883 SWITCH; ENG WARMING	8-97387-010-1	01	1	0803-0803		●
423	03.883 SWITCH; ENG WARMING CHILE EQUIPMENT(KE1)	8-97387-010-1	01	1	0804-1106	●	●
423	03.883 SWITCH; ENG WARMING 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EXC. ARGENTINA COUNTRY(CX1)	8-97387-010-2	01	1	1107-	●
423	03.883 SWITCH; ENG WARMING 4HK1-TCN ENG(RDQ) RUSSIA EQUIPMENT(B12) EXC. ARGENTINA COUNTRY(CX1)	8-97387-010-2	01	1	1107-	●
423	03.883 SWITCH; ENG WARMING 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1)	8-97387-010-2	01	1	1107-		●
498	03.883 SWITCH; ASR THROTTLE CONTROL SYSTEM<6XH>	8-97386-920-2	01	1	0803-	●
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-000-2	01	1	0803-0806	●
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	0807-	●

183 39 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0803-0803	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	0803-0803		●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0804-	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	0804-		●	●
180	02.510 BRACKET; RELAY AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98091-660-0	01	1	0803-	●
183	02.510 NUT; RELAY BRKT AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
