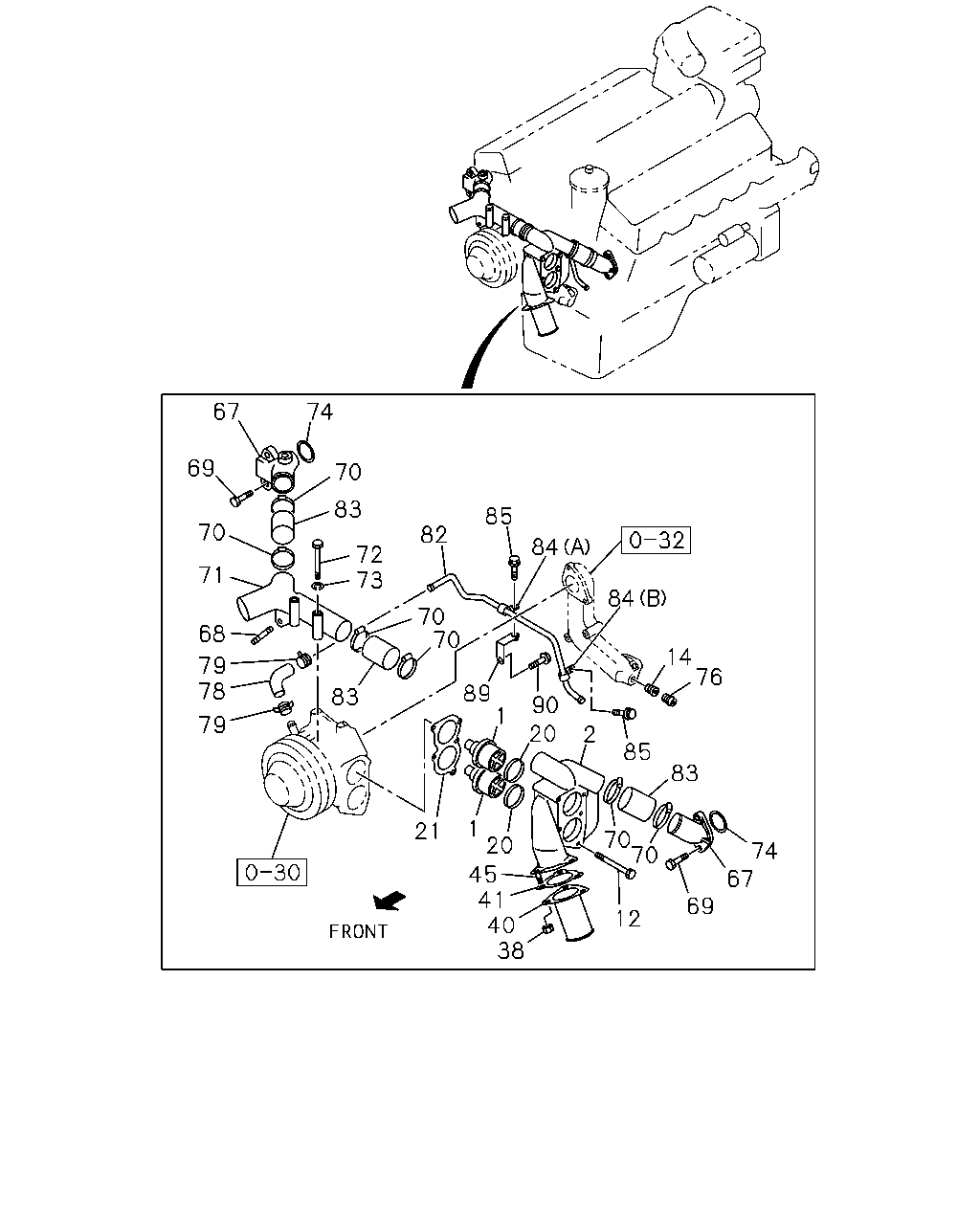

0-31B — THERMOSTAT AND HOUSING (#5493) — 142 parça

67 74 69 70 83 85 70 82 84 72 73 71 84 70 70 68 14 76 79 78 89 1 83 90 79 20 2 85 83 1 21 70 70 20 74 67 45 41 40 38 69 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	THERMOSTAT 76.5 CELSIUS	1-13770-080-0	02	1	9603-9708	●
1	THERMOSTAT EXC. TROPICAL ZONE KIT<WB6> 76.5 CELSIUS	1-13770-080-0	02	1	9709-9904	●
1	THERMOSTAT TROPICAL ZONE KIT<WB6> 71 CELSIUS	1-13770-082-1	02	1	9709-	●
1	THERMOSTAT EXC. TROPICAL ZONE KIT<WB6> 76.5 CELSIUS	1-13770-080-1	02	1	9905-	●
1	THERMOSTAT 76.5 CELSIUS	1-13770-080-1	02	1	9905-		●
2	HOUSING; THERMOSTAT	1-13716-163-0	01	1	9603-9604	●
2	HOUSING; THERMOSTAT	1-13716-188-1	01	1	9605-9904	●
2	HOUSING; THERMOSTAT	1-13716-188-1	01	1	9905-	●	●
12	BOLT; HSG M8X100 W/LK&PL WASHER	0-50140-800-0	05	1	9603-9904	●
12	BOLT; HSG M8X100 W/LK&PL WASHER	0-50140-800-0	05	1	9905-	●	●
14	PLUG; SW EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8	9-09204-517-0	01	1	9603-9904	●
14	PLUG; SW EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8	9-09204-517-0	01	1	9905-	●	●
20	RING; SEAL	1-13779-005-0	02	1	9603-9904	●
20	RING; SEAL	1-13779-005-0	02	1	9905-	●	●
21	GASKET; PUMP TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13743-023-0	01	1	9603-9904	●
21	GASKET; PUMP TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13743-023-0	01	1	9905-9909	●	●
21	GASKET; PUMP TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13743-042-1	01	1	9910-	●	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	03	1	9603-9604	●
40	DUCT; WATER,SUCTION	1-13711-330-1	01	1	9603-9604	●
41	GASKET; DUCT TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13742-012-0	01	1	9603-9604	●
45	STUD; DUCT M10X25 L=40	9-04411-025-0	03	1	9603-9604	●
67	DUCT; WATER,OUTLET LH BANK	1-13711-583-0	01	1	9603-9904	●
67	DUCT; WATER,OUTLET LH BANK	1-13711-583-0	01	1	9905-	●	●
67	DUCT; WATER,OUTLET RH BANK	1-13711-584-2	01	1	9603-9904	●
67	DUCT; WATER,OUTLET RH BANK	1-13711-617-2	01	1	9905-	●	●
68	STUD; ADJ PLATE M12X25 L=43	9-94411-225-0	01	1	9603-9904	●
68	STUD; ADJ PLATE M12X25 L=43	9-94411-225-0	01	1	9905-	●	●
69	BOLT; DUCT,WATER OUTLET M10X30 FLANGE	0-28181-030-0	04	1	9603-9904	●
69	BOLT; DUCT,WATER OUTLET M10X30 FLANGE	0-28181-030-0	04	1	9905-	●	●
70	CLIP; RUBBER HOSE,DUCT TO DUCT	1-09704-065-0	06	1	9603-9904	●
70	CLIP; RUBBER HOSE,DUCT TO DUCT	1-09704-065-0	06	1	9905-	●	●
71	DUCT; WATER,OUTLET,CONNECTOR	1-13711-380-1	01	1	9603-9904	●
71	DUCT; WATER,OUTLET,CONNECTOR	1-13711-380-1	01	1	9905-	●	●
72	BOLT; CONNECTOR M10X90	0-16806-090-0	02	1	9603-9904	●
72	BOLT; CONNECTOR M10X90	0-16806-090-0	02	1	9905-	●	●
73	WASHER; LK,CONNECTOR ID=10.2	9-09150-510-0	02	1	9603-9904	●
73	WASHER; LK,CONNECTOR ID=10.2	9-09150-510-0	02	1	9905-	●	●
74	GASKET; WATER OUTLET DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9603-9904	●
74	GASKET; WATER OUTLET DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9905-	●	●
76	JOINT; WATER DUCT PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9603-9604	●
76	JOINT; WATER DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9605-9904	●
76	JOINT; WATER DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9905-	●	●
78	HOSE; RUBBER,WATER PIPE	1-09360-378-0	01	1	9603-9604	●
78	HOSE; RUBBER,WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-09360-378-0	01	1	9605-9904	●
78	HOSE; RUBBER,WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-09360-378-0	01	1	9905-0103	●	●
78	HOSE; RUBBER,WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-09361-081-1	01	1	0104-	●	●
79	CLIP; RUBBER HOSE ID=20	1-09707-084-1	02	1	9603-9604	●
79	CLIP; RUBBER HOSE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=20	1-09707-084-1	02	1	9605-9904	●
79	CLIP; RUBBER HOSE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=20	1-09707-084-1	02	1	9905-	●	●
82	PIPE; WATER,HTR	1-13721-369-2	01	1	9603-9604	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-13721-369-2	01	1	9605-9904	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-13721-369-2	01	1	9905-	●	●
83	HOSE; RUBBER,DUCT TO DUCT	1-09360-325-0	03	1	9603-9904	●
83	HOSE; RUBBER,DUCT TO DUCT	1-09360-325-0	03	1	9905-0103	●	●
83	HOSE; RUBBER,DUCT TO DUCT	1-09361-080-1	03	1	0104-	●	●
84	CLIP; WATER PIPE (A) ID=19 L=25	1-09700-515-1	01	1	9603-9604	●
84	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A) ID=19 L=25	1-09700-515-1	01	1	9605-9904	●
84	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A) ID=19 L=25	1-09700-515-1	01	1	9905-	●	●
84	CLIP; WATER PIPE (B) ID=19 L=23	5-09700-386-0	01	1	9603-9604	●
84	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B) ID=19 L=23	5-09700-386-0	01	1	9605-9904	●
84	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B) ID=19 L=23	5-09700-386-0	01	1	9905-	●	●
85	BOLT; CLIP M10X16 W/LK WASHER	1-09033-012-0	01	1	9603-9604	●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X16 W/LK WASHER	1-09033-012-0	01	1	9605-9904	●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X16 W/LK WASHER	1-09033-012-0	01	1	9905-	●	●
85	BOLT; CLIP M10X18 FLANGE	8-94147-156-1	01	1	9603-9604	●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X18 FLANGE	8-94147-156-1	01	1	9605-9904	●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X18 FLANGE	8-94147-156-1	01	1	9905-	●	●
89	BRACKET	1-13719-027-0	01	1	9603-9604	●
89	BRACKET HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-13719-027-0	01	1	9605-9904	●
89	BRACKET HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-13719-027-0	01	1	9905-	●	●
90	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	02	1	9603-9604	●
90	BOLT; BRKT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X16 W/LK WASHER	1-09033-012-0	01	1	9605-9904	●
90	BOLT; BRKT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X16 W/LK WASHER	1-09033-012-0	01	1	9905-	●	●

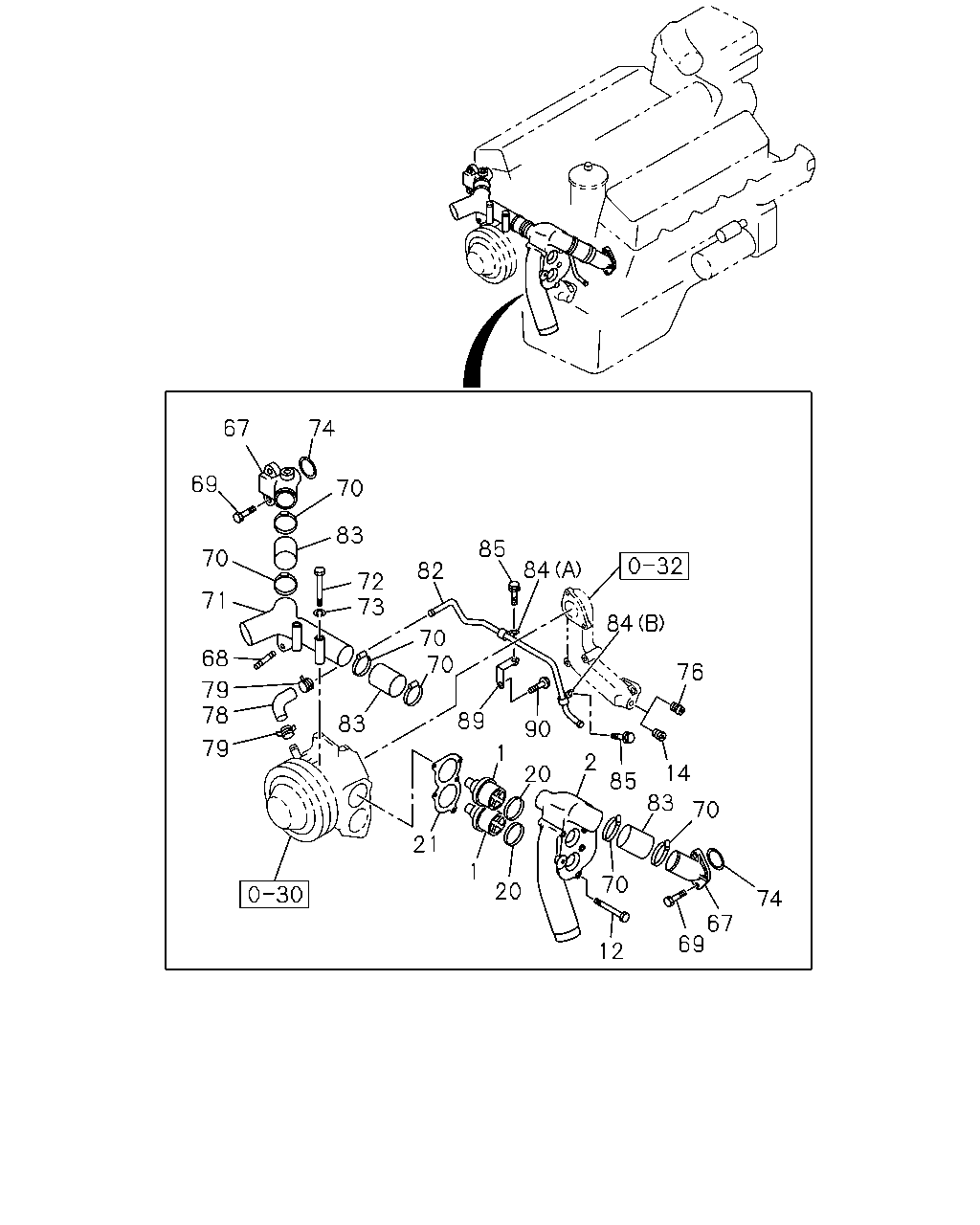

67 74 69 70 83 85 70 84 82 72 73 71 84 70 70 68 76 79 78 89 83 90 79 1 2 14 20 85 83 70 21 1 70 20 74 67 69 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	THERMOSTAT 76.5 CELSIUS	1-13770-080-0	02	1	9603-9708	●
1	THERMOSTAT EXC. TROPICAL ZONE KIT<WB6> 76.5 CELSIUS	1-13770-080-0	02	1	9709-9904	●
1	THERMOSTAT TROPICAL ZONE KIT<WB6> 71 CELSIUS	1-13770-082-1	02	1	9709-	●
1	THERMOSTAT EXC. TROPICAL ZONE KIT<WB6> 76.5 CELSIUS	1-13770-080-1	02	1	9905-	●
1	THERMOSTAT 76.5 CELSIUS	1-13770-080-1	02	1	9905-		●
2	HOUSING; THERMOSTAT	1-13716-163-0	01	1	9603-9604	●
2	HOUSING; THERMOSTAT	1-13716-188-1	01	1	9605-9904	●
2	HOUSING; THERMOSTAT	1-13716-188-1	01	1	9905-	●	●
12	BOLT; HSG M8X100 W/LK&PL WASHER	0-50140-800-0	05	1	9603-9904	●
12	BOLT; HSG M8X100 W/LK&PL WASHER	0-50140-800-0	05	1	9905-	●	●
14	PLUG; SW EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8	9-09204-517-0	01	1	9603-9904	●
14	PLUG; SW EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8	9-09204-517-0	01	1	9905-	●	●
20	RING; SEAL	1-13779-005-0	02	1	9603-9904	●
20	RING; SEAL	1-13779-005-0	02	1	9905-	●	●
21	GASKET; PUMP TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13743-023-0	01	1	9603-9904	●
21	GASKET; PUMP TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13743-023-0	01	1	9905-9909	●	●
21	GASKET; PUMP TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13743-042-1	01	1	9910-	●	●
67	DUCT; WATER,OUTLET LH BANK	1-13711-583-0	01	1	9603-9904	●
67	DUCT; WATER,OUTLET LH BANK	1-13711-583-0	01	1	9905-	●	●
67	DUCT; WATER,OUTLET RH BANK	1-13711-584-2	01	1	9603-9904	●
67	DUCT; WATER,OUTLET RH BANK	1-13711-617-2	01	1	9905-	●	●
68	STUD; ADJ PLATE M12X25 L=43	9-94411-225-0	01	1	9603-9904	●
68	STUD; ADJ PLATE M12X25 L=43	9-94411-225-0	01	1	9905-	●	●
69	BOLT; DUCT,WATER OUTLET M10X30 FLANGE	0-28181-030-0	04	1	9603-9904	●
69	BOLT; DUCT,WATER OUTLET M10X30 FLANGE	0-28181-030-0	04	1	9905-	●	●
70	CLIP; RUBBER HOSE,DUCT TO DUCT	1-09704-065-0	06	1	9603-9904	●
70	CLIP; RUBBER HOSE,DUCT TO DUCT	1-09704-065-0	06	1	9905-	●	●
71	DUCT; WATER,OUTLET,CONNECTOR	1-13711-380-1	01	1	9603-9904	●
71	DUCT; WATER,OUTLET,CONNECTOR	1-13711-380-1	01	1	9905-	●	●
72	BOLT; CONNECTOR M10X90	0-16806-090-0	02	1	9603-9904	●
72	BOLT; CONNECTOR M10X90	0-16806-090-0	02	1	9905-	●	●
73	WASHER; LK,CONNECTOR ID=10.2	9-09150-510-0	02	1	9603-9904	●
73	WASHER; LK,CONNECTOR ID=10.2	9-09150-510-0	02	1	9905-	●	●
74	GASKET; WATER OUTLET DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9603-9904	●
74	GASKET; WATER OUTLET DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9905-	●	●
76	JOINT; WATER DUCT PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9603-9604	●
76	JOINT; WATER DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9605-9904	●
76	JOINT; WATER DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9905-	●	●
78	HOSE; RUBBER,WATER PIPE	1-09360-378-0	01	1	9603-9604	●
78	HOSE; RUBBER,WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-09360-378-0	01	1	9605-9904	●
78	HOSE; RUBBER,WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-09360-378-0	01	1	9905-0103	●	●
78	HOSE; RUBBER,WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-09361-081-1	01	1	0104-	●	●
79	CLIP; RUBBER HOSE ID=20	1-09707-084-1	02	1	9603-9604	●
79	CLIP; RUBBER HOSE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=20	1-09707-084-1	02	1	9605-9904	●
79	CLIP; RUBBER HOSE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=20	1-09707-084-1	02	1	9905-	●	●
82	PIPE; WATER,HTR	1-13721-369-2	01	1	9603-9604	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-13721-369-2	01	1	9605-9904	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-13721-369-2	01	1	9905-	●	●
83	HOSE; RUBBER,DUCT TO DUCT	1-09360-325-0	03	1	9603-9904	●
83	HOSE; RUBBER,DUCT TO DUCT	1-09360-325-0	03	1	9905-0103	●	●
83	HOSE; RUBBER,DUCT TO DUCT	1-09361-080-1	03	1	0104-	●	●
84	CLIP; WATER PIPE (A) ID=19 L=25	1-09700-515-1	01	1	9603-9604	●
84	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A) ID=19 L=25	1-09700-515-1	01	1	9605-9904	●
84	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A) ID=19 L=25	1-09700-515-1	01	1	9905-	●	●
84	CLIP; WATER PIPE (B) ID=19 L=23	5-09700-386-0	01	1	9603-9604	●
84	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B) ID=19 L=23	5-09700-386-0	01	1	9605-9904	●
84	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B) ID=19 L=23	5-09700-386-0	01	1	9905-	●	●
85	BOLT; CLIP M10X16 W/LK WASHER	1-09033-012-0	01	1	9603-9604	●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X16 W/LK WASHER	1-09033-012-0	01	1	9605-9904	●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X16 W/LK WASHER	1-09033-012-0	01	1	9905-	●	●
85	BOLT; CLIP M10X18 FLANGE	8-94147-156-1	01	1	9603-9604	●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X18 FLANGE	8-94147-156-1	01	1	9605-9904	●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X18 FLANGE	8-94147-156-1	01	1	9905-	●	●
89	BRACKET	1-13719-027-0	01	1	9603-9604	●
89	BRACKET HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-13719-027-0	01	1	9605-9904	●
89	BRACKET HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-13719-027-0	01	1	9905-	●	●
90	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	02	1	9603-9604	●
90	BOLT; BRKT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X16 W/LK WASHER	1-09033-012-0	01	1	9605-9904	●
90	BOLT; BRKT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M10X16 W/LK WASHER	1-09033-012-0	01	1	9905-	●	●
