6-75 — MAT AND CARPET (#54917) — 56 parça

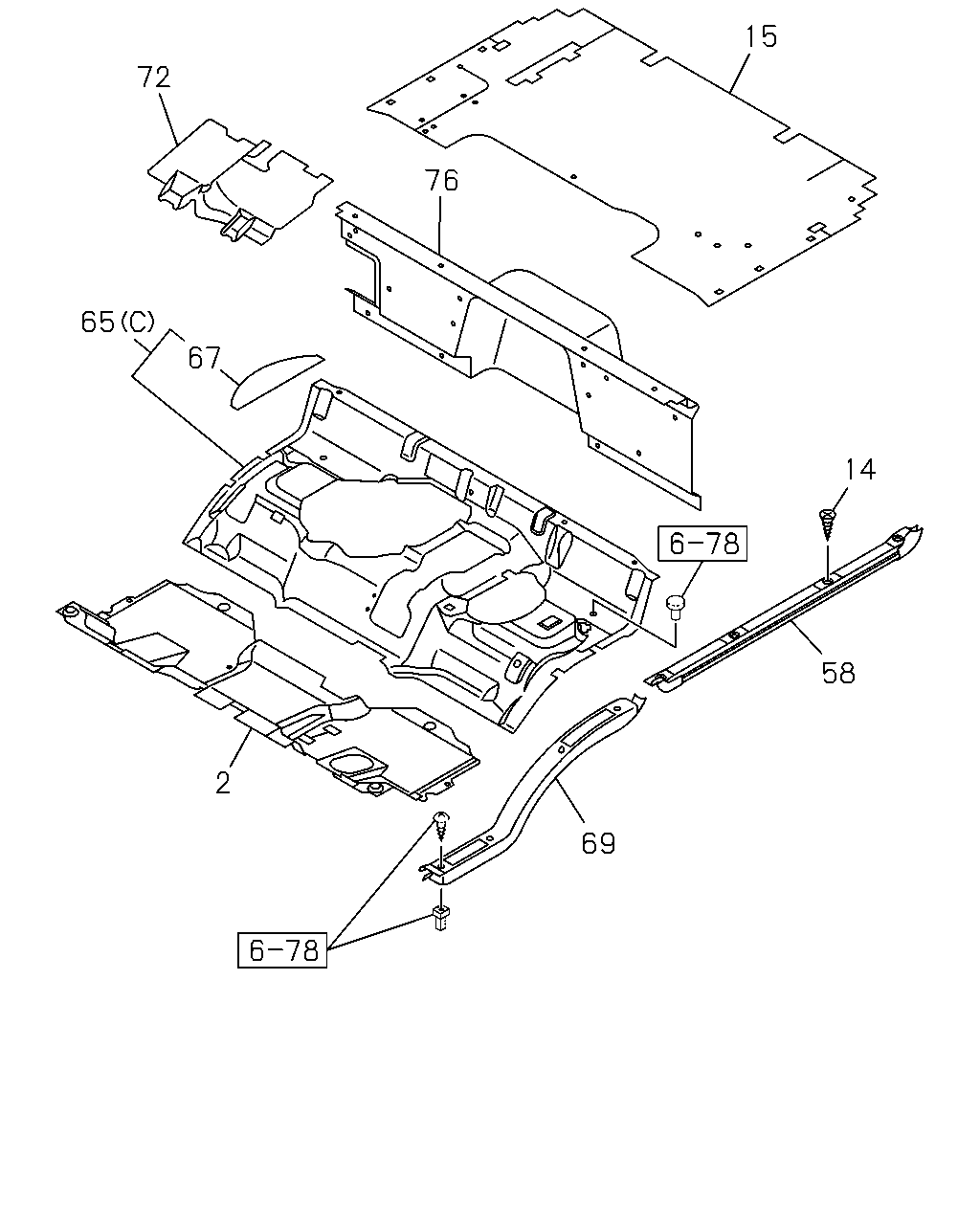

15 72 76 65 67 14 58 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0803-0803	●	●
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0804-0808	●	●	●
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0809-	●	●	●	●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	0804-			●
15	16.800 MAT; FLOOR REAR GRAY	8-97412-601-2	01	1	0804-			●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0804-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-98112-607-4	01	1	0803-0808	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-98112-607-4	01	1	0809-1303	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-115-0	01	1	1304-	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	0803-0808	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	0809-1303	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-127-0	01	1	1304-	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-98112-608-4	01	1	0804-1303			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-116-0	01	1	1304-			●
67	16.549 LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0805-0808	●	●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0805-0808			●
67	16.549 LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0809-0904	●	●		●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0809-0904			●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0803-0803	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0804-0808	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0809-	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0803-0803	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0804-0808	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0809-	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97405-998-3	01	1	0804-0809			●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97405-998-3	01	1	0810-0911	●	●		●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97405-998-3	01	1	0810-0911			●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-599-1	01	1	0912-	●	●		●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-599-1	01	1	0912-			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG GRAY	8-97412-599-1	01	1	0804-			●

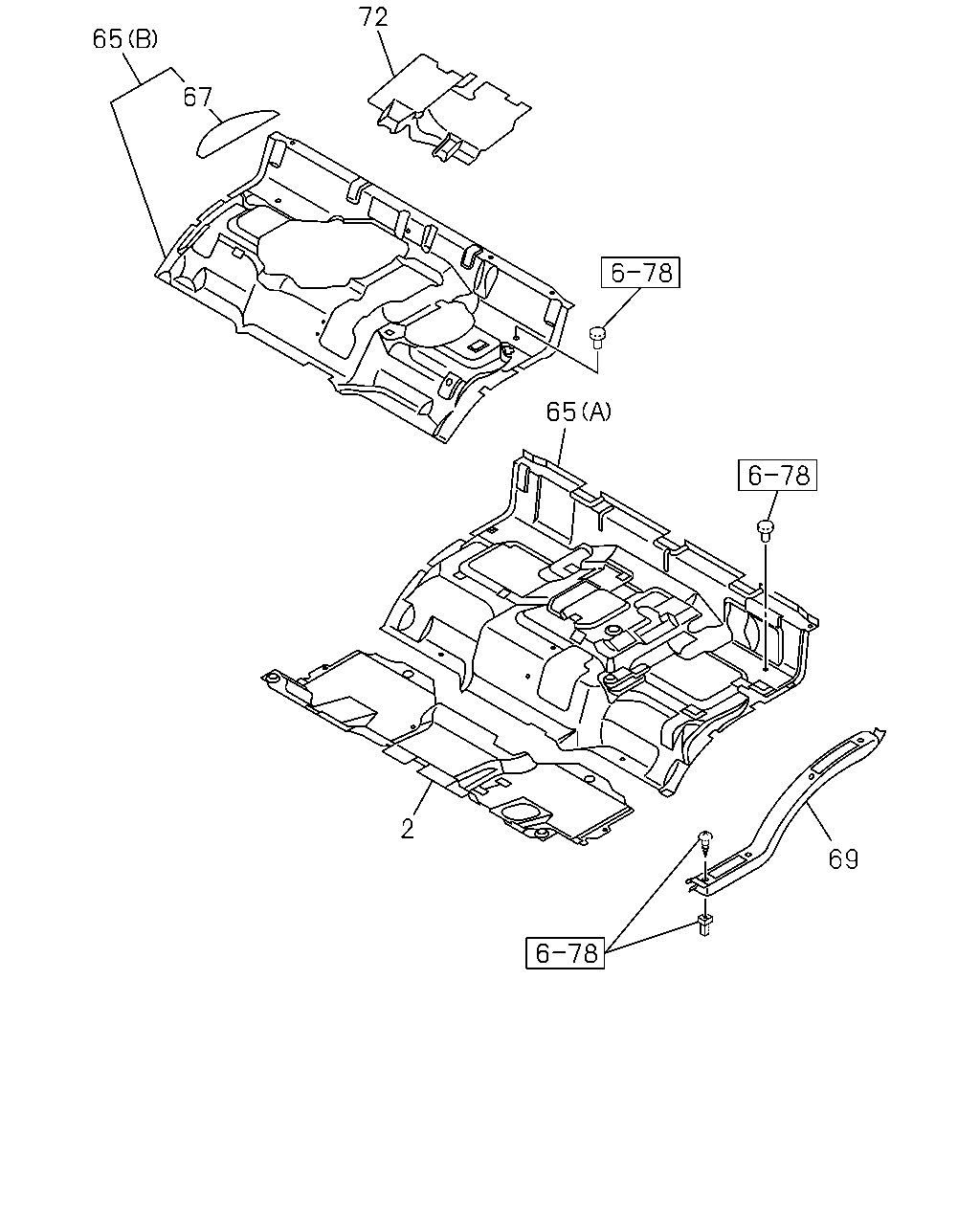

72 65 67 65 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0803-0803	●	●
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0804-0808	●	●	●
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0809-	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-98112-607-4	01	1	0803-0808	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-98112-607-4	01	1	0809-1303	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97425-115-0	01	1	1304-	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	0803-0808	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	0809-1303	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-127-0	01	1	1304-	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-98112-608-4	01	1	0804-1303			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (C) GRAY	8-97425-116-0	01	1	1304-			●
67	16.549 LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0805-0808	●	●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0805-0808			●
67	16.549 LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0809-0904	●	●		●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0809-0904			●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0803-0803	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0804-0808	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0809-	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0803-0803	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0804-0808	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0809-	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97405-998-3	01	1	0804-0809			●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97405-998-3	01	1	0810-0911	●	●		●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97405-998-3	01	1	0810-0911			●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-599-1	01	1	0912-	●	●		●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-599-1	01	1	0912-			●
