0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#54908) — 161 parça

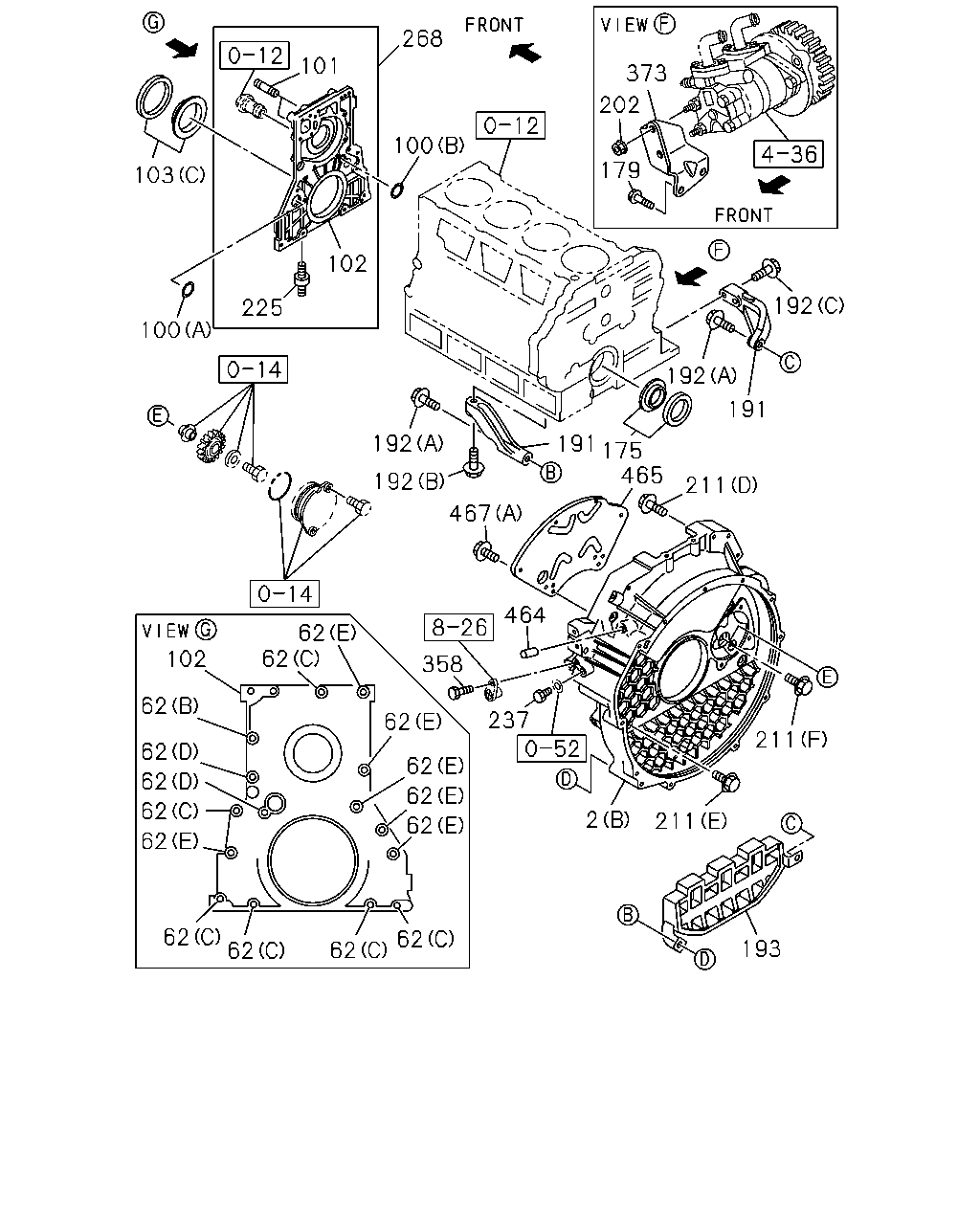

373 202 179 192 192 191 211 465 175 191 211 211 193 2 237 464 358 467 192 192 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 102 100 225 102 100 268 101 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.683 HOUSING; FLYWHEEL (A)	8-97381-492-3	01	1	0712-1310	●
2	00.683 HOUSING; FLYWHEEL (A)	8-98252-203-0	01	1	1311-	●
2	00.683 HOUSING; FLYWHEEL (B)	8-97364-901-5	01	1	0712-		●
62	00.206 BOLT; COVER 03.162 (A) M6X20 FLANGE	0-28650-620-0	04	1	0712-	●
62	00.206 BOLT; COVER 06.216 (E) M8X25 FLANGE	0-28650-825-0	06	1	0712-		●
62	00.206 BOLT; COVER 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0712-		●
62	00.206 BOLT; COVER 01.060 (C) M8X35 FLANGE	0-28650-835-0	06	1	0712-		●
62	00.206 BOLT; COVER 01.097 (D) M8X65 FLANGE	1-09044-072-1	02	1	0712-		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0712-		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0712-		●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0712-		●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0712-		●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	0712-		●
103	00.213 SEAL; OIL,CR/SHF,FRT (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97382-606-0	01	1	0712-1007	●
103	00.213 SEAL; OIL,CR/SHF,FRT (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-98158-110-0	01	1	1008-	●
103	00.213 SEAL; OIL,CR/SHF,FRT (B)	8-97386-601-0	01	1	0712-1007	●
103	00.213 SEAL; OIL,CR/SHF,FRT (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0712-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0712-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0712-		●
179	00.206 BOLT; BRKT 03.417 M10X20 FLANGE	0-28151-020-0	02	1	0712-		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0712-		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0712-		●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0712-		●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0712-		●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X40 FLANGE	0-28151-040-0	02	1	0712-		●
193	01.428 SPACER; STAY TO OIL,PAN	8-97259-536-0	01	1	0712-		●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1204-	●
202	00.206 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-		●
211	00.669 BOLT; HSG 09.003 (A) M12X35 FLANGE	0-28651-235-0	06	1	0712-	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0712-	●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0712-	●
211	00.669 BOLT; HSG 00.029 (D) M10X40 FLANGE	0-28751-040-0	01	1	0712-		●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0712-1102		●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-		●
211	00.669 BOLT; HSG (F) M12X30 FLANGE	8-97135-419-0	02	1	0712-		●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0712-		●
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0712-		●
268	00.206 COVER; FRT	8-98039-931-1	01	1	0712-1107		●
268	00.206 COVER; FRT	8-98039-931-1	02	1	1108-1112		●
268	00.206 COVER; FRT	8-98039-931-2	01	1	1201-		●
358	00.206 BOLT; ADAPTER 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0712-		●
373	00.206 BRACKET; PUMP	8-97149-333-0	01	1	0712-		●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0712-		●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0712-		●
467	00.686 BOLT; PLATE 05.815 (A) M6X10	0-20800-610-0	06	1	0712-0805		●
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	0806-		●
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	0712-		●

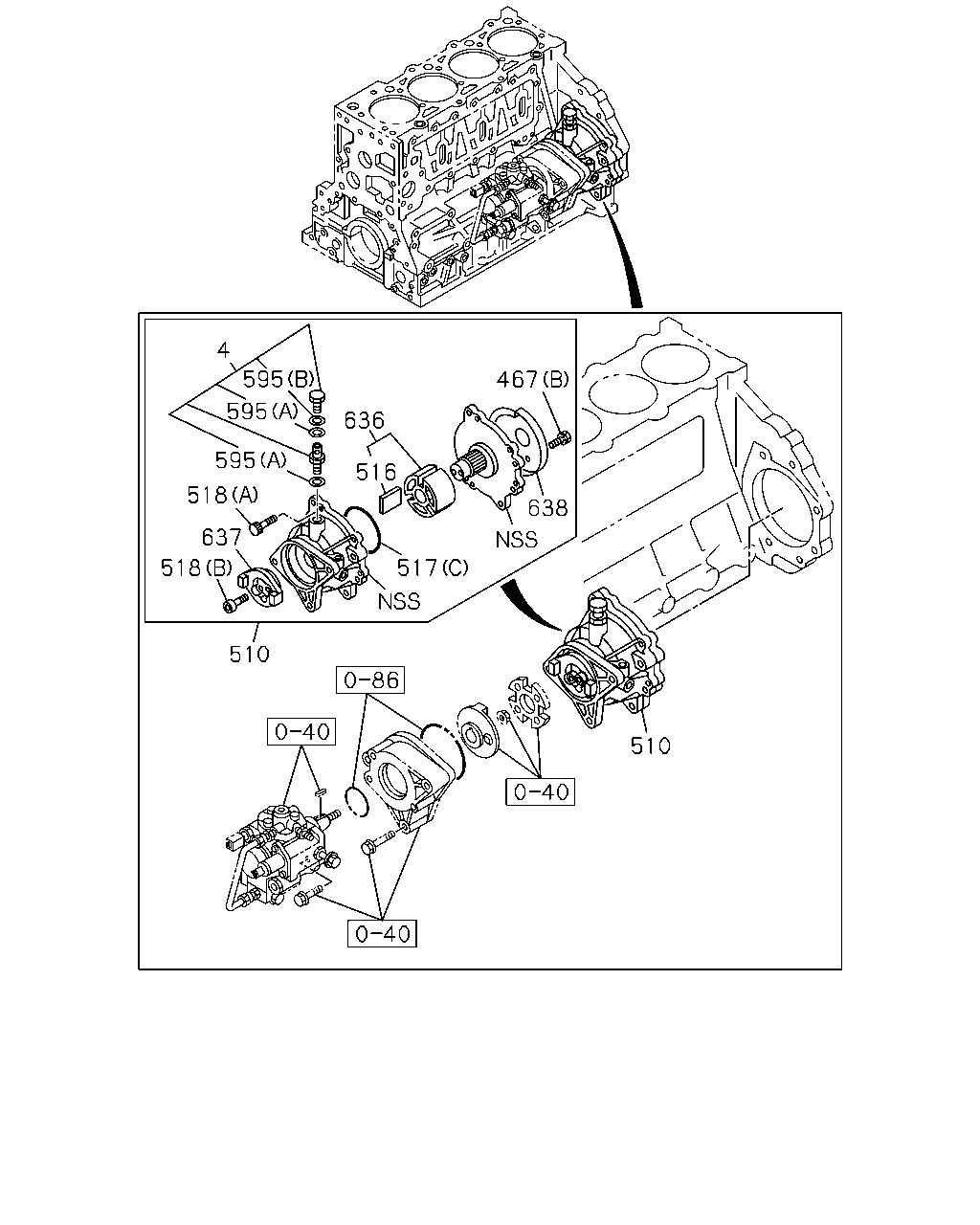

4 595 595 595 518 637 518 636 516 467 638 517 510 510

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0712-	●	●
467	00.686 BOLT; PLATE 05.815 (A) M6X10	0-20800-610-0	06	1	0712-0805		●
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	0806-		●
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	0712-		●
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0712-1005	●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-1305	●
510	04.895 PUMP ASM; VACUUM	8-98241-234-0	01	1	1306-1311	●
510	04.895 PUMP ASM; VACUUM	8-98251-764-0	01	1	1312-	●
510	04.895 PUMP ASM; VACUUM 03.306	8-97388-589-6	01	1	0712-		●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0712-	●
516	04.895 VANE; VAC PUMP	8-98051-279-0	03	1	0712-		●
517	04.895 GASKET; VAC PUMP (B)	8-98049-522-0	01	1	0712-1305	●
517	04.895 GASKET; VAC PUMP (B)	8-98244-022-0	01	1	1306-1311	●
517	04.895 GASKET; VAC PUMP (B)	8-98251-769-0	01	1	1312-	●
517	04.895 GASKET; VAC PUMP 00.206 (A) ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-271-0	01	1	0712-	●
517	04.895 GASKET; VAC PUMP (C)	8-98051-280-0	01	1	0712-		●
518	04.895 BOLT; VAC PUMP (C)	8-98049-523-0	03	1	0712-	●
518	04.895 BOLT; VAC PUMP 01.531 (A) M6X25 W/LK&PL WASHER	0-50640-625-0	03	1	0712-		●
518	04.895 BOLT; VAC PUMP (B) M8X20	8-98051-277-0	02	1	0712-		●
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	0712-	●	●
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	0712-	●	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0712-	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98051-281-0	01	1	0712-		●
637	00.206 COUPLING; VAC PUMP	8-98051-278-0	01	1	0712-		●
638	00.206 PLATE KIT; VAC PUMP	8-98051-276-0	01	1	0712-		●

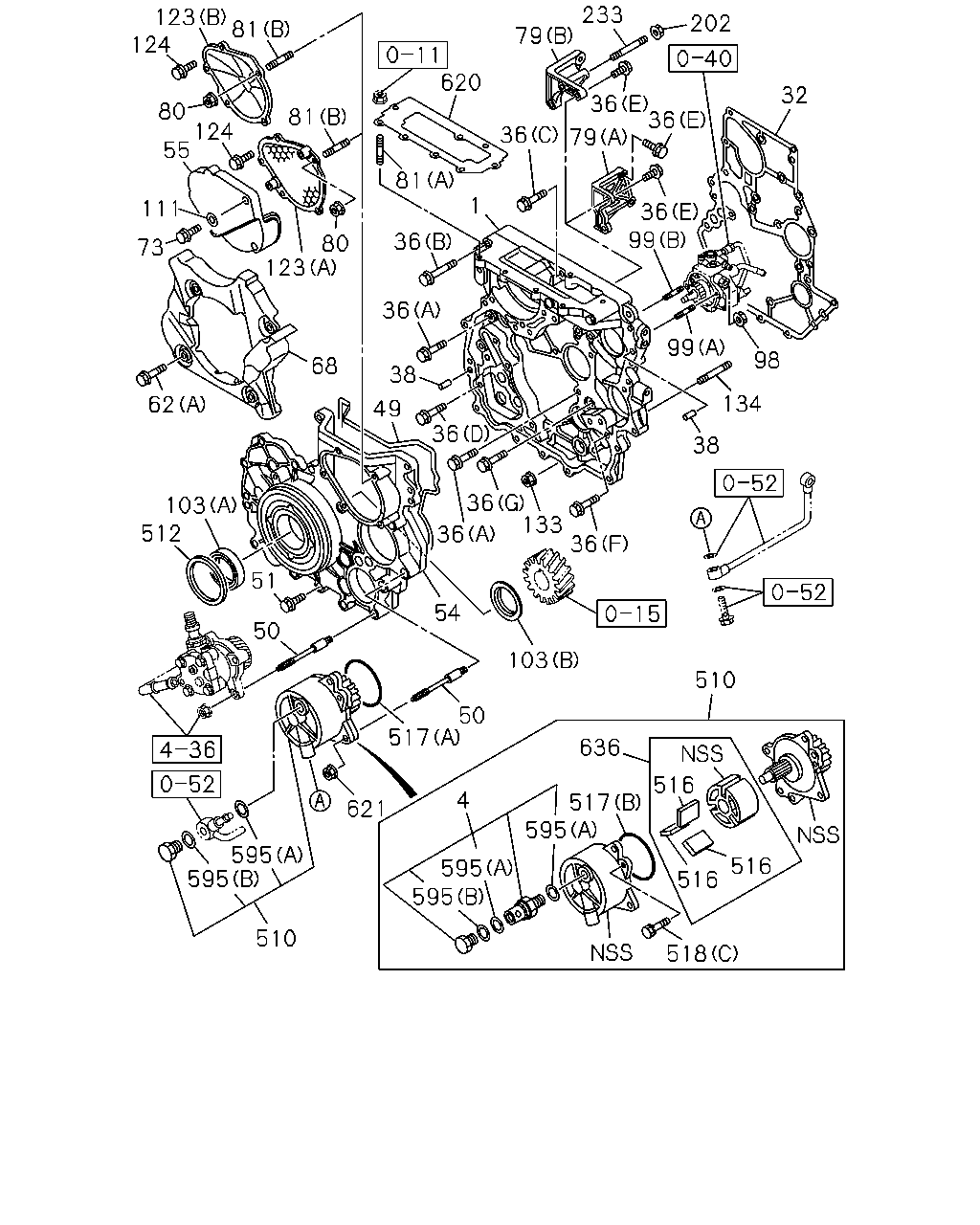

510 595 621 595 512 103 51 50 54 50 517 4 595 595 595 518 516 516 516 517 636 510 103 36 133 36 36 49 38 68 62 73 111 55 124 80 124 123 81 81 123 80 620 81 36 36 36 134 98 99 99 36 36 32 36 233 202 79 36 79 1 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	0712-1203	●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1204-	●
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0712-	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0712-	●
36	00.206 BOLT; GEAR CASE 02.343 (G) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●
36	00.206 BOLT; GEAR CASE 04.338 (A) M8X20 FLANGE	0-28050-820-0	12	1	0712-	●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0712-	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0712-	●
36	00.206 BOLT; GEAR CASE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	0712-	●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0712-	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0712-	●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	0712-	●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0712-	●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0712-	●
54	00.206 COVER; GEAR CASE	8-98012-960-2	01	1	0712-1007	●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1008-1405	●
54	00.206 COVER; GEAR CASE	8-98253-700-1	01	1	1406-	●
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	0712-1006	●
62	00.206 BOLT; COVER 03.162 (A) M6X20 FLANGE	0-28650-620-0	04	1	0712-	●
62	00.206 BOLT; COVER 06.216 (E) M8X25 FLANGE	0-28650-825-0	06	1	0712-		●
62	00.206 BOLT; COVER 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0712-		●
62	00.206 BOLT; COVER 01.060 (C) M8X35 FLANGE	0-28650-835-0	06	1	0712-		●
62	00.206 BOLT; COVER 01.097 (D) M8X65 FLANGE	1-09044-072-1	02	1	0712-		●
68	00.206 COVER ASM; GEAR CASE COVER	8-98009-466-3	01	1	0712-	●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0712-1006	●
79	00.219 BRACKET; GEAR CASE COVER (A)	8-97370-390-2	01	1	0712-1203	●
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98107-106-0	01	1	1204-	●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	0712-	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0712-	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	0712-	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0712-	●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	0712-1203	●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	02	1	1204-	●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	0712-1203	●
103	00.213 SEAL; OIL,CR/SHF,FRT (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97382-606-0	01	1	0712-1007	●
103	00.213 SEAL; OIL,CR/SHF,FRT (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-98158-110-0	01	1	1008-	●
103	00.213 SEAL; OIL,CR/SHF,FRT (B)	8-97386-601-0	01	1	0712-1007	●
103	00.213 SEAL; OIL,CR/SHF,FRT (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0712-		●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0712-1006	●
123	00.206 COVER; TIMING,LWR (A)	8-97371-720-1	01	1	0712-1006	●
123	00.206 COVER; TIMING,LWR (B)	8-98158-145-0	01	1	1007-	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0712-	●
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	0712-	●
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	0712-	●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1204-	●
202	00.206 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-		●
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-98017-063-0	01	1	1204-	●
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0712-1005	●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-1305	●
510	04.895 PUMP ASM; VACUUM	8-98241-234-0	01	1	1306-1311	●
510	04.895 PUMP ASM; VACUUM	8-98251-764-0	01	1	1312-	●
510	04.895 PUMP ASM; VACUUM 03.306	8-97388-589-6	01	1	0712-		●
512	04.895 RUBBER; SPACE	8-97322-675-0	01	1	0712-1007	●
512	04.895 RUBBER; SPACE	8-98165-120-0	01	1	1008-1011	●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0712-	●
516	04.895 VANE; VAC PUMP	8-98051-279-0	03	1	0712-		●
517	04.895 GASKET; VAC PUMP (B)	8-98049-522-0	01	1	0712-1305	●
517	04.895 GASKET; VAC PUMP (B)	8-98244-022-0	01	1	1306-1311	●
517	04.895 GASKET; VAC PUMP (B)	8-98251-769-0	01	1	1312-	●
517	04.895 GASKET; VAC PUMP 00.206 (A) ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-271-0	01	1	0712-	●
517	04.895 GASKET; VAC PUMP (C)	8-98051-280-0	01	1	0712-		●
518	04.895 BOLT; VAC PUMP (C)	8-98049-523-0	03	1	0712-	●
518	04.895 BOLT; VAC PUMP 01.531 (A) M6X25 W/LK&PL WASHER	0-50640-625-0	03	1	0712-		●
518	04.895 BOLT; VAC PUMP (B) M8X20	8-98051-277-0	02	1	0712-		●
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	0712-	●	●
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	0712-	●	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	0712-	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	0712-	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	0712-	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	0712-	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0712-	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98051-281-0	01	1	0712-		●

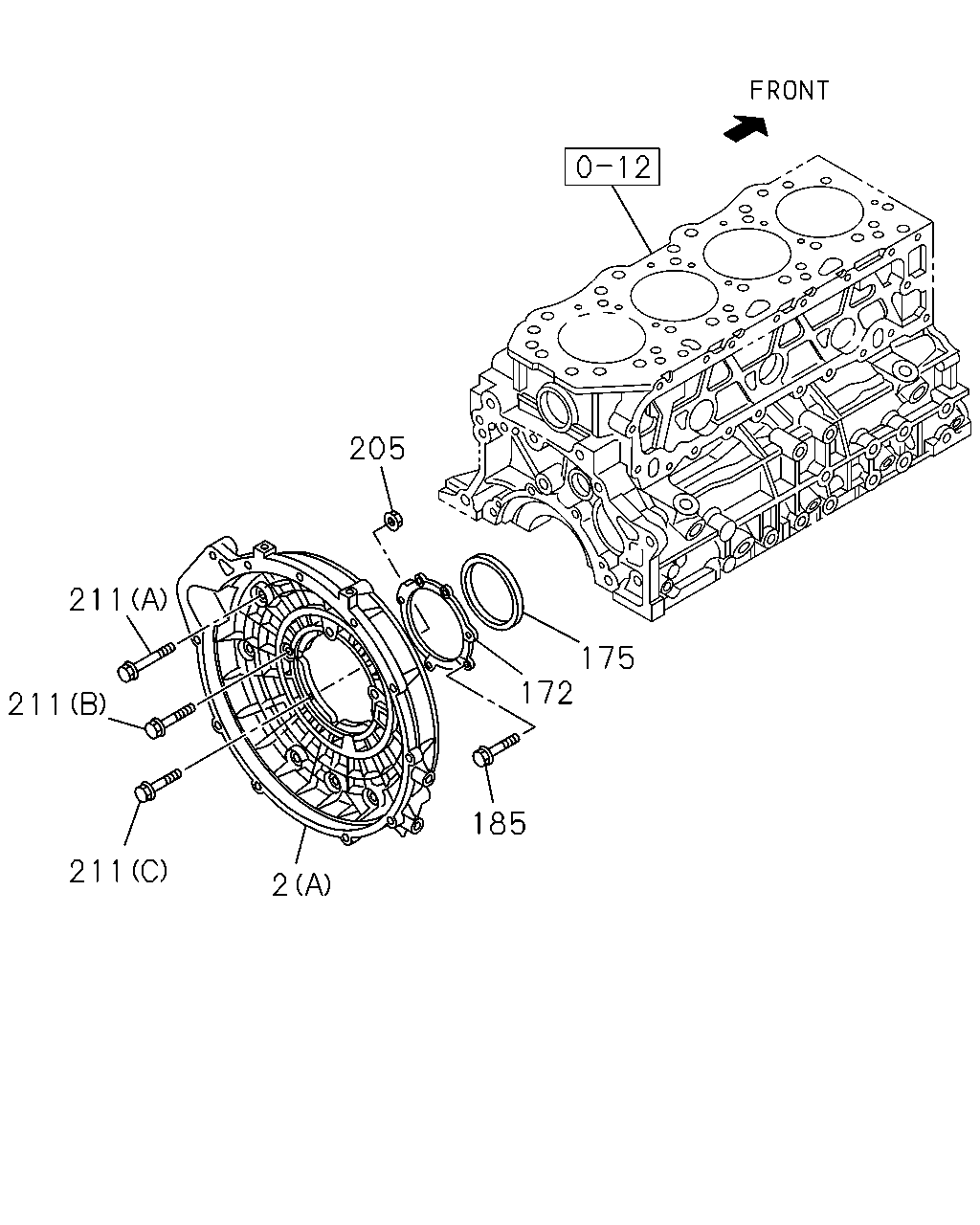

205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.683 HOUSING; FLYWHEEL (A)	8-97381-492-3	01	1	0712-1310	●
2	00.683 HOUSING; FLYWHEEL (A)	8-98252-203-0	01	1	1311-	●
2	00.683 HOUSING; FLYWHEEL (B)	8-97364-901-5	01	1	0712-		●
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	0712-1012	●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1101-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0712-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0712-		●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0712-	●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0712-	●
211	00.669 BOLT; HSG 09.003 (A) M12X35 FLANGE	0-28651-235-0	06	1	0712-	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0712-	●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0712-	●
211	00.669 BOLT; HSG 00.029 (D) M10X40 FLANGE	0-28751-040-0	01	1	0712-		●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0712-1102		●
211	00.669 BOLT; HSG (E) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-		●
211	00.669 BOLT; HSG (F) M12X30 FLANGE	8-97135-419-0	02	1	0712-		●
