9-01 — TOOLS (#54895) — 237 parça

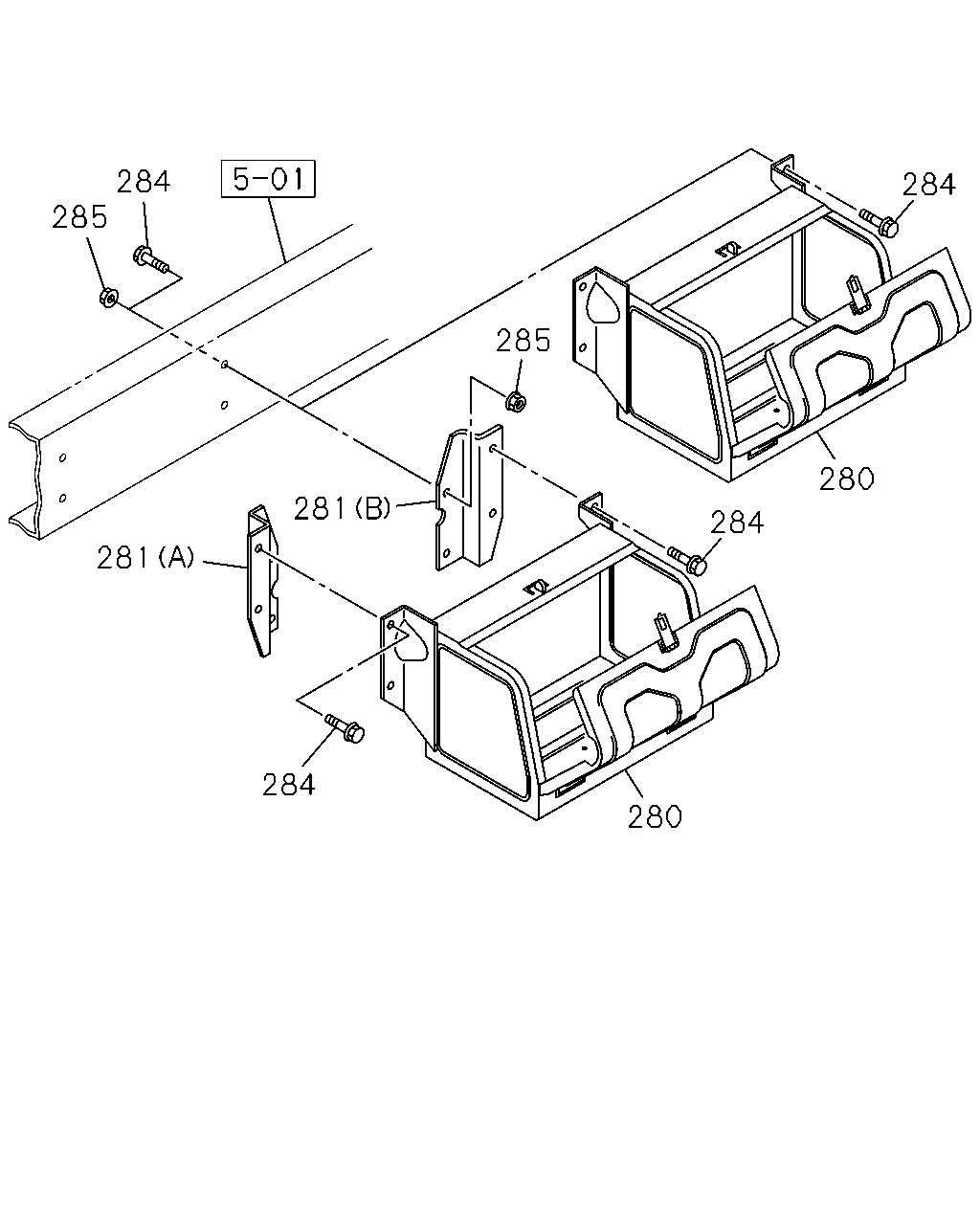

çizim 156280
284 285 284 285 280 281 284 281 284 280
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 0710- ● ● ● ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> (B) 		8-98045-642-1 01 1 0710-0803 ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) (B) 		8-98045-642-1 01 1 0710-0803 ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98045-642-1 01 1 0710-0803 ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (B) 		8-98045-642-1 01 1 0804- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) (B) 		8-98045-642-1 01 1 0804- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) (B) 		8-98045-642-1 01 1 0804- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> (A) 		8-98046-374-1 01 1 0710-0803 ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) (A) 		8-98046-374-1 01 1 0710-0803 ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (A) 		8-98046-374-1 01 1 0710-0803 ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (A) 		8-98046-374-1 01 1 0804-0901 ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) (A) 		8-98046-374-1 01 1 0804-0901 ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) (A) 		8-98046-374-1 01 1 0804-0901 ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (A) 		8-98130-709-0 01 1 0902- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) (A) 		8-98130-709-0 01 1 0902- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) (A) 		8-98130-709-0 01 1 0902- ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0710-0803 ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0710-0803 ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0710-0803 ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ● ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ●

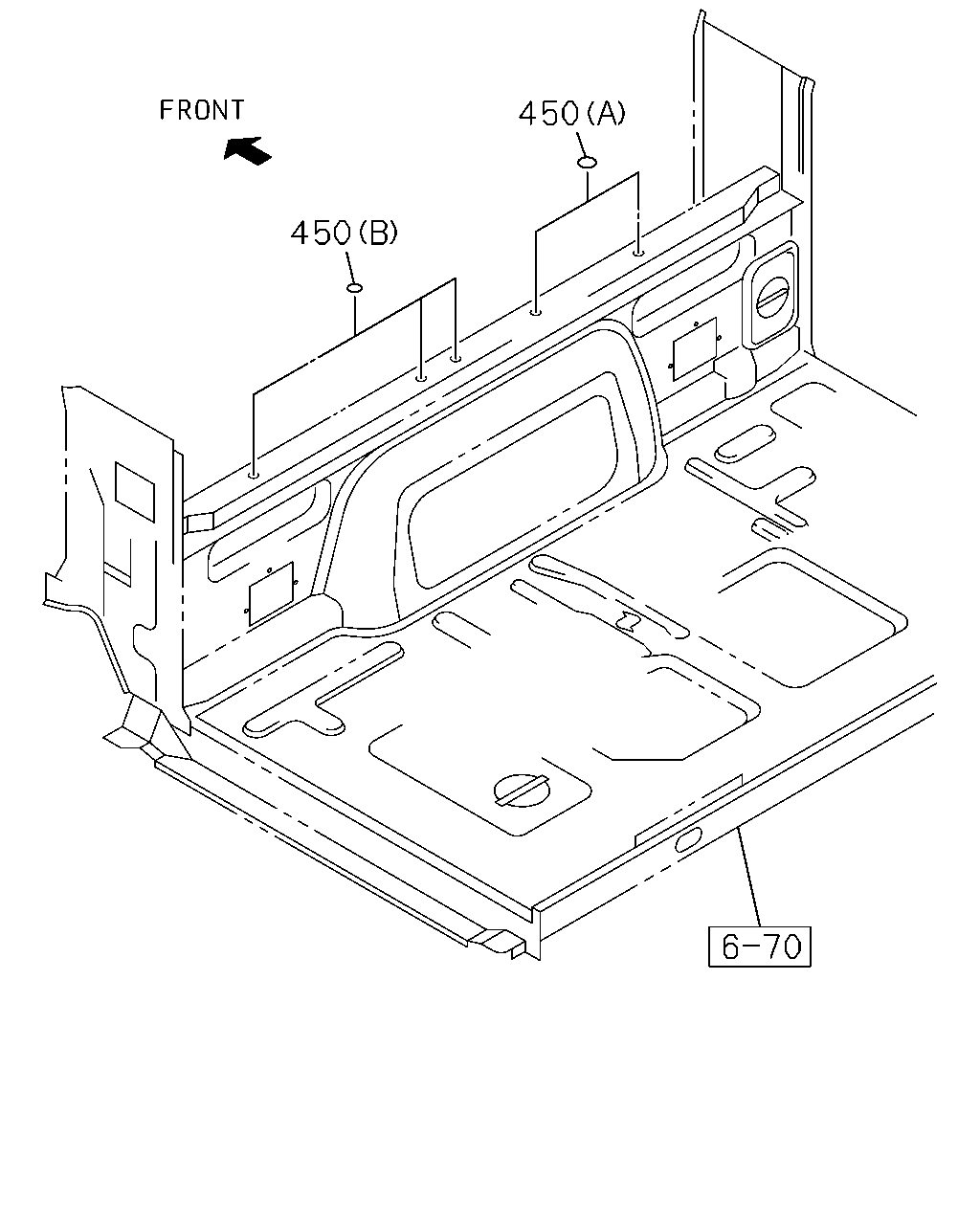

çizim 156282
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710- ● ● ●
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710- ● ●
450 16.064 SEAL; HOLE
AUSTRALIA EQUIPMENT(B13) 02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710- ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0710- ● ● ●

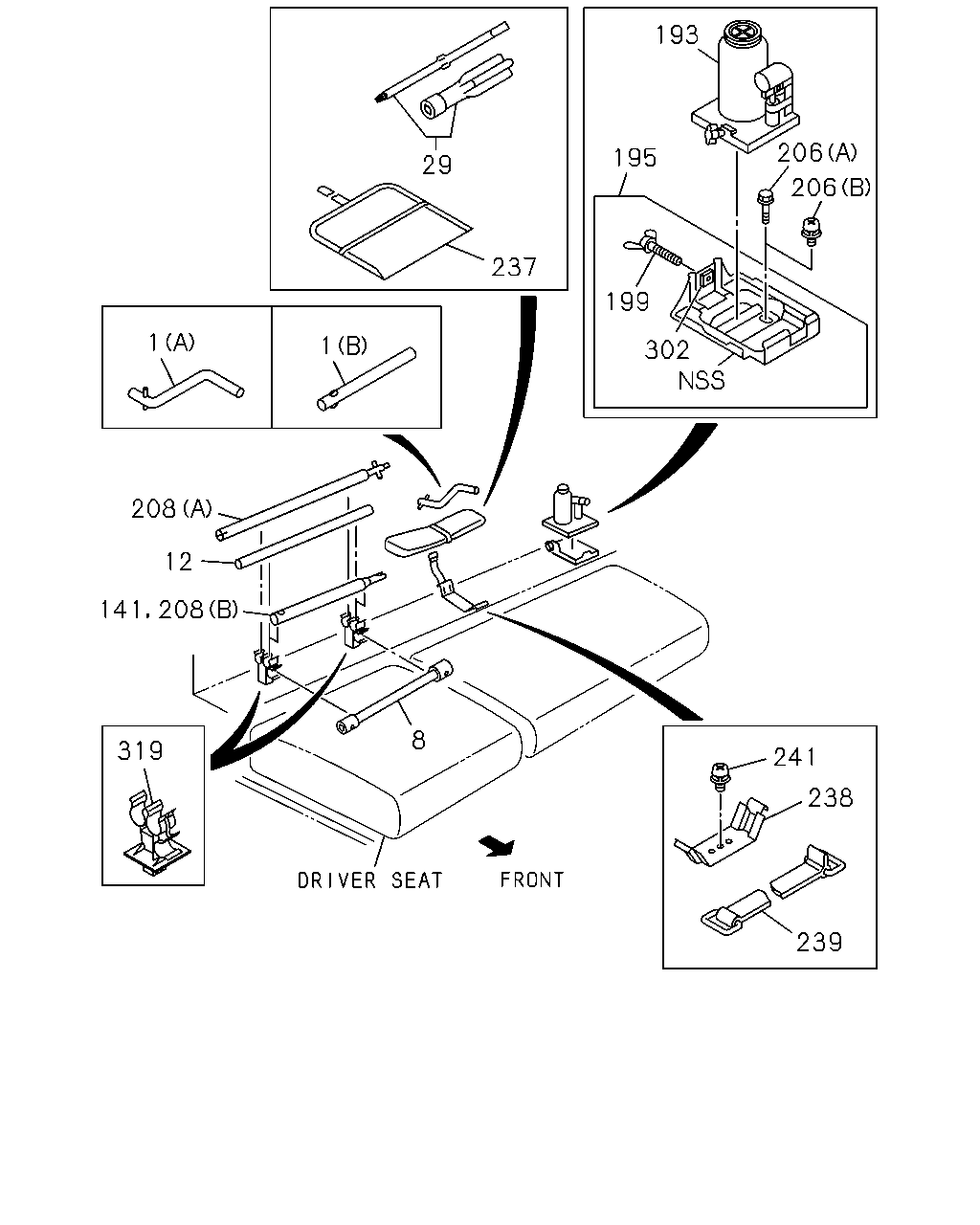

çizim 156324
193 206 195 29 206 237 199 1 1 302 208 12 8 319 241 238 239 141 208
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280 		1-85515-007-0 01 1 0710-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) EXC. SMALL DOUBLE RR TIRE(6YE) 08.821 (B) L=280 		1-85515-007-0 01 1 0710-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280 		1-85515-007-0 01 1 0710-0808 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0710-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0710-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280 		1-85515-007-0 01 1 0710-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0710-0808 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> EXC. SMALL DOUBLE RR TIRE(6YE) 08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> EXC. SMALL DOUBLE RR TIRE(6YE) 08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. SMALL DOUBLE RR TIRE(6YE),FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> EXC. SMALL DOUBLE RR TIRE(6YE) 08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SMALL DOUBLE RR TIRE(6YE),FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0809-1108 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> EXC. SMALL DOUBLE RR TIRE(6YE) (B) L=280 		8-98181-251-0 01 1 1109- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> EXC. SMALL DOUBLE RR TIRE(6YE) (B) L=280 		8-98181-251-0 01 1 1109- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. SMALL DOUBLE RR TIRE(6YE),FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1109- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> EXC. SMALL DOUBLE RR TIRE(6YE) (B) L=280 		8-98181-251-0 01 1 1109- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SMALL DOUBLE RR TIRE(6YE),FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1109- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) 		8-97218-985-0 01 1 0710- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (A) 		8-97218-985-0 01 1 0710- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 0710- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) 		8-97218-985-0 01 1 0710- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-97218-985-0 01 1 0710- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0710- ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT 195/85R16X 5.5J-116.5RR 185/80R15X5J-116.5(CUE), FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7. 5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 16X5.5F-1 15 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H) B=41X19 L=330 		8-94386-490-1 01 1 0710-0710 ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R 16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-11 6.5(CUE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7 .5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) B=41X19 L=330 		8-94386-490-1 01 1 0710-0809 ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R 16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-11 6.5(CUE),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7.5R-16-12 6GSX16-127(19H) B=41X19 L=330 		8-94386-490-1 01 1 0810-0908 ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R 16 16X5.5J-116.5 5-WHL/NUT(CSK),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-11 6.5(CUE),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-12 7(19H) B=41X19 L=330 		8-94386-490-1 01 1 0909-0910 ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT 195/85R16X5.5J- 116.5RR 185/80R15X5J-116.5(CUE), FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV), FRT&RR 7.00R-16-10 R/L DISC 5.50FX16- 115(CUW),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS), FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7.5R-16-12 6GSX16-127(19H) B=41X19 L=330 		8-94386-490-1 01 1 0911-1005 ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT 195/85R16X5.5J- 116.5RR 185/80R15X5J-116.5(CUE), FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV), FRT&RR 7.00R-16-10 R/L DISC 5.50FX16- 115(CUW),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS), F&R195/85R16(BS BRAND)16X5.5J-116.5 5 -WHL/NUT(CVU),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-12 7(19H) B=41X19 L=330 		8-94386-490-1 01 1 1006- ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17. 5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127 SILVER(CTV),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6 GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R R 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-1 35 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7. 5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WH L/NUT DYNAMIC(97V) B=41X21 L=440 		1-85113-015-1 01 1 0710-0809 ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17. 5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127 SILVER(CTV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25 R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NU T(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) B=41X21 L=440 		1-85113-015-1 01 1 0810-1005 ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1 27 WHITE(AVU),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R1 9.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR 215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-12 7(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 D ISC 17.5-6-127SILVER(CTV), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),F&R TIRE 205/75R17.5(BSBRAND)17.5X6.00-127(CVV),F&R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12 7 6-WHL/NUT(83V) B=41X21 L=440 		1-85113-015-1 01 1 1006- ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> OD=25 L=590 		8-97332-988-0 01 1 0710-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) OD=25 L=590 		8-97332-988-0 01 1 0710-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-97332-988-0 01 1 0710-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> OD=25 L=590 		8-97332-988-0 01 1 0710-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) OD=25 L=590 		8-97332-988-0 01 1 0710-1001 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0710-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,FRAME STRAIGHT TYPE<7KJ> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) OD=25 L=480 		8-98257-407-0 01 1 1408- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1408- ●
29 08.821 DRIVER; SCREW
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R 215/85R16 16X6K-128(CSC),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215- 75R17.5 DISC 17.5-6-127SILVER(CTV), FRT 195/85R16X5.5J-116.5RR 185/80R15X5J -116.5(CUE),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6 GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R R 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16- 10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX1 6-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-1 2 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7.5-16-10L 6GSX16- 127 6WHL/NUT DYNAMIC(95V),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V),FR T&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) <+>,<-> L=160 		8-94242-798-1 01 1 0710-0710 ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F RT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVE R(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5 -16-12L 6GSX16-127 6-WHL/NUT(04C), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6G SX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7-16-10 16X5.5F-1 15 T/VLV TR177A(95H),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMI C(97V),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) <+>,<-> L=160 		8-94242-798-1 01 1 0710-0809 ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F RT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVE R(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.5R-16-1 0 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FR T&RR7.50R-16-12 R/L 6.00GSX16-127 6-W HL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR7.50R-16 -12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NU T(05C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V) <+>,<-> L=160 		8-94242-798-1 01 1 0810-0908 ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F RT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVE R(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.5R-16-1 0 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FR T&RR7.50R-16-12 R/L 6.00GSX16-127 6-W HL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR7.50R-16 -12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX1 6-127 6-WHL/NUT(83V) <+>,<-> L=160 		8-94242-798-1 01 1 0909-0910 ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F &R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6-127SILVER(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116. 5(CUE),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DI SC 5.50FX16-115(CUW), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FR T&RR 8.25R-16-14 6.00GSX16-135 6-WHL/ NUT(CUZ),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NU T(05C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V) <+>,<-> L=160 		8-94242-798-1 01 1 0911-1005 ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1 27 WHITE(AVU),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R1 9.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16 X6K-128(CSC),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVE R(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.5R-16-1 0 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FR T&RR7.50R-16-12 R/L 6.00GSX16-127 6-W HL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR7.50R-16 -12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7.5R-16-126GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) <+>,<-> L=160 		8-94242-798-1 01 1 1006- ● ● ● ● ● ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		1-85515-005-1 01 1 0712-0808 ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.820 L=580 		1-85515-005-1 01 1 0712-0808 ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		1-85515-005-1 01 1 0809-1108 ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 08.820 L=580 		1-85515-005-1 01 1 0809-1108 ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 L=580 		1-85515-005-1 01 1 0809-1108 ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		8-98181-249-0 01 1 1109- ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 08.820 L=580 		8-98181-249-0 01 1 1109- ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 L=580 		8-98181-249-0 01 1 1109- ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5 (CUE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) AUSTRALIA EQUIPMENT(B13) 4TON 		8-94438-019-2 01 1 0710-0710 ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X 5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) AUSTRALIA EQUIPMENT(B13) 4TON 		8-94438-019-2 01 1 0710-0809 ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.00R-16-10 R/LDISC 5.50FX16-115(CUW),FRT&RR 7R-16- 10 16X5.5F-115(07H) AUSTRALIA EQUIPMENT(B13) 4TON 		8-94438-019-2 01 1 0810-0908 ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.00R-16-10 R/LDISC 5.50FX16-115(CUW), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) ,FRT&RR 7R-16-10 16X5.5F-115(07H) AUSTRALIA EQUIPMENT(B13) 4TON 		8-94438-019-2 01 1 0909-0910 ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F& R TIRE 205/75R17.5(MICHELIN)17.5X6.00 -127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT 195/85R16 X5.5J-116.5RR 185/80R15X5J-116.5(CUE) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT&RR 7R-16-10 16X5.5F-115(07H) AUSTRALIA EQUIPMENT(B13) 4TON 		8-94438-019-2 01 1 0911-1005 ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F& R TIRE 205/75R17.5(MICHELIN)17.5X6.00 -127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT 195/85R16 X5.5J-116.5RR 185/80R15X5J-116.5(CUE) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS), F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) ,F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW),FRT&RR 7R- 16-10 16X5.5F-115(07H) AUSTRALIA EQUIPMENT(B13) 4TON 		8-94438-019-2 01 1 1006- ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5 (CUE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(B13) 4TON 		8-98012-285-0 01 1 0710-0710 ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X 5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(B13) 4TON 		8-98012-285-0 01 1 0710-0809 ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.00R-16-10 R/LDISC 5.50FX16-115(CUW),FRT&RR 7R-16- 10 16X5.5F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) 4TON 		8-98012-285-0 01 1 0810-0908 ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.00R-16-10 R/LDISC 5.50FX16-115(CUW), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) ,FRT&RR 7R-16-10 16X5.5F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) 4TON 		8-98012-285-0 01 1 0909-0910 ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F& R TIRE 205/75R17.5(MICHELIN)17.5X6.00 -127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT 195/85R16 X5.5J-116.5RR 185/80R15X5J-116.5(CUE) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT&RR 7R-16-10 16X5.5F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) 4TON 		8-98012-285-0 01 1 0911-1005 ● ● ● ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F& R TIRE 205/75R17.5(MICHELIN)17.5X6.00 -127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT 195/85R16 X5.5J-116.5RR 185/80R15X5J-116.5(CUE) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS), F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) ,F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW),FRT&RR 7R- 16-10 16X5.5F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) 4TON 		8-98012-285-0 01 1 1006- ● ● ● ●
193 08.820 JACK ASM
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16- 127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GS X16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127 (19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16- 127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYN AMIC(97V) EXC. AUSTRALIA EQUIPMENT(B13) 5TON 		8-97371-124-0 01 1 0710-0805 ● ● ●
193 08.820 JACK ASM
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16- 127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GS X16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127 (19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16- 127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYN AMIC(97V) EXC. AUSTRALIA EQUIPMENT(B13) 5TON 		8-98114-047-0 01 1 0806-0809 ● ● ●
193 08.820 JACK ASM
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00 GSX16-127 6-WHL/NUT(CUX), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127 (19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) EXC. AUSTRALIA EQUIPMENT(B13) 5TON 		8-98114-047-0 01 1 0810-1005 ● ● ●
193 08.820 JACK ASM
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1 27 WHITE(AVU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R- 16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-1275-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16 -12 6GSX16-127(19H),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V) EXC. AUSTRALIA EQUIPMENT(B13) 5TON 		8-98114-047-0 01 1 1006- ● ● ●
193 08.820 JACK ASM
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16- 127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GS X16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127 (19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16- 127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYN AMIC(97V) AUSTRALIA EQUIPMENT(B13) 5TON 		8-94438-021-2 01 1 0710-0809 ● ● ● ●
193 08.820 JACK ASM
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00 GSX16-127 6-WHL/NUT(CUX), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127 (19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) AUSTRALIA EQUIPMENT(B13) 5TON 		8-94438-021-2 01 1 0810-1005 ● ● ● ●
193 08.820 JACK ASM
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1 27 WHITE(AVU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R- 16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-1275-WHL/NUT(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16 -12 6GSX16-127(19H),FRT&RR 7.5R-16-106GSX16-127 6-WHL/NUT(83V) AUSTRALIA EQUIPMENT(B13) 5TON 		8-94438-021-2 01 1 1006- ● ● ● ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. AUSTRALIA EQUIPMENT(B13) 5TON 		8-97131-077-2 01 1 0710-0805 ●
193 08.820 JACK ASM
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. AUSTRALIA EQUIPMENT(B13) 5TON 		8-98114-045-0 01 1 0806-0809 ●
193 08.820 JACK ASM
FRT&RR 8.25R-16-14 6.00GSX16-135 6-WH L/NUT(CUZ) EXC. AUSTRALIA EQUIPMENT(B13) 5TON 		8-98114-045-0 01 1 0810- ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-1 6-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-1 27(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1 27 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&R R 7.5-16-10 6GSX16-127 6-WHL/NUT DYNA MIC(97V) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97589-376-1 01 1 0806-0809 ●
195 08.820 BRACKET; JACK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00G S-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97589-376-1 01 1 0806-0809 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-1 6-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH) ,FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97589-376-2 01 1 0810- ●
195 08.820 BRACKET; JACK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00GSX16-1356-WHL/NUT(CUZ) EXC. AUSTRALIA EQUIPMENT(B13) 		8-97589-376-2 01 1 0810- ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-1 6-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-1 27(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-1 27 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(B13) 		8-94273-287-7 01 1 0806-0809 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-1 6-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH) ,FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. AUSTRALIA EQUIPMENT(B13) 		8-94273-287-7 01 1 0810-0912 ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-1 6-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH) ,FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) EXC. AUSTRALIA EQUIPMENT(B13) 		8-94273-287-7 01 1 1001- ●
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(B13) 		8-98034-917-0 01 1 0710- ● ● ●
195 08.820 BRACKET; JACK
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-1 01 1 0710-0805 ● ● ●
195 08.820 BRACKET; JACK
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-1 01 1 0806-0808 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR1 77A(98H) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-1 01 1 0806-0808 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-1 01 1 0806-0808 ●
195 08.820 BRACKET; JACK
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-1 01 1 0809-0809 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT&RR 7R-16-10 16X5.5F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-1 01 1 0809-0809 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-1 01 1 0809-0809 ●
195 08.820 BRACKET; JACK
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-2 01 1 0810-0910 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115 (07H) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-2 01 1 0810-0910 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-2 01 1 0810-0910 ●
195 08.820 BRACKET; JACK
FRT 195/85R16X5.5J-116.5RR 185/80R15X 5J-116.5(CUE), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-2 01 1 0911- ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F& R TIRE 205/75R17.5(MICHELIN)17.5X6.00 -127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7.00R- 16-10 R/L DISC 5.50FX16-115(CUW), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL /NUT(CVS),FRT&RR 7R-16-10 16X5.5F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-2 01 1 0911- ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-2 01 1 0911- ●
195 08.820 BRACKET; JACK 8-94273-769-5 01 1 0710- ● ●
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(B13) 		8-94273-769-5 01 1 0710- ●
195 08.820 BRACKET; JACK
EXC. AUSTRALIA EQUIPMENT(B13) 		8-94262-068-3 01 1 0710-0805 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 16X6K-128(CSC),F&R TIRE 20 5/75R17.5(MICHELIN)17.5X6.00-127(CSM) ,FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7R-16-10 16X5.5 F-115(07H),FRT&RR 7-16-10 16X5.5F-115T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16 -115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(B13) 		8-94262-068-3 01 1 0806-0808 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 16X6K-128(CSC),F&R TIRE 20 5/75R17.5(MICHELIN)17.5X6.00-127(CSM) ,FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7R-16-10 16X5.5 F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) 		8-94262-068-3 01 1 0809-0809 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 16X6K-128(CSC),F&R TIRE 20 5/75R17.5(MICHELIN)17.5X6.00-127(CSM) ,FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16- 10 16X5.5F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) 		8-94262-068-3 01 1 0810- ●
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-98005-536-0 01 1 0710-0805 ● ● ●
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-98005-536-0 01 1 0806-0809 ● ● ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-1 6-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-1 27(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-1 27 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&R R 7.5-16-10 6GSX16-127 6-WHL/NUT DYNA MIC(97V) EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-98005-536-0 01 1 0806-0809 ●
199 08.820 BOLT; JACK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00G S-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-98005-536-0 01 1 0806-0809 ●
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-98005-536-0 01 1 0810- ● ● ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-1 6-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH) ,FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-98005-536-0 01 1 0810- ●
199 08.820 BOLT; JACK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00GSX16-1356-WHL/NUT(CUZ) EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-98005-536-0 01 1 0810- ●
199 08.820 BOLT; JACK
EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0710-0805 ● ● ●
199 08.820 BOLT; JACK
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0806-0808 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR1 77A(98H) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0806-0808 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0806-0808 ●
199 08.820 BOLT; JACK
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0809-0809 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT&RR 7R-16-10 16X5.5F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0809-0809 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0809-0809 ●
199 08.820 BOLT; JACK
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5 -WHL/NUT(CSK),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0810-0910 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FR T&RR TIRE 195/85R16 16X5.5J-116.5 5-W HL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) ,FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115 (07H) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0810-0910 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0810-0910 ●
199 08.820 BOLT; JACK
FRT 195/85R16X5.5J-116.5RR 185/80R15X 5J-116.5(CUE), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0911- ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F& R TIRE 205/75R17.5(MICHELIN)17.5X6.00 -127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7.00R- 16-10 R/L DISC 5.50FX16-115(CUW), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL /NUT(CVS),FRT&RR 7R-16-10 16X5.5F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0911- ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0911- ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0710-0805 ● ●
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-94279-018-1 01 1 0710-0805 ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0806-0809 ● ●
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-94279-018-1 01 1 0806-0809 ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-1 27 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-1 6-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-1 27(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-1 27 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-94279-018-1 01 1 0806-0809 ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0810-0912 ● ●
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-94279-018-1 01 1 0810-0912 ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-1 6-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH) ,FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H) EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-94279-018-1 01 1 0810-0912 ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1001- ● ●
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-94279-018-1 01 1 1001- ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR7.50R-1 6-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH) ,FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-94279-018-1 01 1 1001- ●
199 08.820 BOLT; JACK
EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-94279-136-0 01 1 0710-0805 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 16X6K-128(CSC),F&R TIRE 20 5/75R17.5(MICHELIN)17.5X6.00-127(CSM) ,FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7R-16-10 16X5.5 F-115(07H),FRT&RR 7-16-10 16X5.5F-115T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16 -115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-94279-136-0 01 1 0806-0808 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 16X6K-128(CSC),F&R TIRE 20 5/75R17.5(MICHELIN)17.5X6.00-127(CSM) ,FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7R-16-10 16X5.5 F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-94279-136-0 01 1 0809-0809 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 215/85R16 16X6K-128(CSC),F&R TIRE 20 5/75R17.5(MICHELIN)17.5X6.00-127(CSM) ,FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16- 10 16X5.5F-115(07H) EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-94279-136-0 01 1 0810- ●
206 08.820 SCREW; OIL JACK BRKT
06.216 (A) BOLT M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 (B) BOLT M6X16 		0-38050-616-0 01 1 0710- ● ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0710-0711 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) EXC. SMALL DOUBLE RR TIRE(6YE) (B) L=580 		1-85515-005-1 01 1 0710-0711 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0710-0711 ● ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0710-0711 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0710-0711 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0710-0711 ●
208 08.820 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0710-0711 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0712-0808 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) EXC. SMALL DOUBLE RR TIRE(6YE) (B) L=580 		1-85515-005-1 01 1 0712-0808 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0712-0808 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0712-0808 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0712-0808 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		1-85515-005-1 01 1 0712-0808 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. SMALL DOUBLE RR TIRE(6YE) (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SMALL DOUBLE RR TIRE(6YE) (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		1-85515-005-1 01 1 0809-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. SMALL DOUBLE RR TIRE(6YE) (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SMALL DOUBLE RR TIRE(6YE) (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) L=642 		8-97217-800-0 01 1 0710-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (A) L=642 		8-97217-800-0 01 1 0710-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 0710-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) L=642 		8-97217-800-0 01 1 0710-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) L=642 		8-97217-800-0 01 1 0710-1108 ● ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0710-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15>,FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) L=642 		8-98181-477-0 01 1 1109- ● ●
208 08.820 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1109- ●
237 08.821 BAG; TOOL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R 215/85R16 16X6K-128(CSC),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215- 75R17.5 DISC 17.5-6-127SILVER(CTV), FRT 195/85R16X5.5J-116.5RR 185/80R15X5J -116.5(CUE),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6 GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&R R 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16- 10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX1 6-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-1 2 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7.5-16-10L 6GSX16- 127 6WHL/NUT DYNAMIC(95V),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V),FR T&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) 		8-97130-903-0 01 1 0710-0710 ● ● ● ● ● ●
237 08.821 BAG; TOOL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F RT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVE R(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5 -16-12L 6GSX16-127 6-WHL/NUT(04C), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7.5-16-8 6GSX16-127(10H), FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7. 5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6G SX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 7-16-10 16X5.5F-1 15 T/VLV TR177A(95H),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMI C(97V),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-97130-903-0 01 1 0710-0809 ● ● ● ● ● ●
237 08.821 BAG; TOOL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F RT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVE R(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.5R-16-1 0 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FR T&RR7.50R-16-12 R/L 6.00GSX16-127 6-W HL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR7.50R-16 -12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NU T(05C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V) 		8-97130-903-0 01 1 0810-0908 ● ● ● ● ● ●
237 08.821 BAG; TOOL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F RT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVE R(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.5R-16-1 0 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FR T&RR7.50R-16-12 R/L 6.00GSX16-127 6-W HL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR7.50R-16 -12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX1 6-127 6-WHL/NUT(83V) 		8-97130-903-0 01 1 0909-0910 ● ● ● ● ● ●
237 08.821 BAG; TOOL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR 225/70R19.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&R R TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),F &R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6-127SILVER(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116. 5(CUE),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DI SC 5.50FX16-115(CUW), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FR T&RR 8.25R-16-14 6.00GSX16-135 6-WHL/ NUT(CUZ),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NU T(05C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V) 		8-97130-903-0 01 1 0911-1005 ● ● ● ● ● ●
237 08.821 BAG; TOOL
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1 27 WHITE(AVU),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R1 9.5 19.5X6.00-127(CRR),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16 X6K-128(CSC),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVE R(CTV),FRT 195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),FRT&RR 7.5R-16-1 0 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FR T&RR7.50R-16-12 R/L 6.00GSX16-127 6-W HL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR7.50R-16 -12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7R-16- 10 16X5.5F-115(07H),FRT&RR 7.5R-16-126GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 		8-97130-903-1 01 1 1006- ● ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0710- ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0710- ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0710- ● ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0710-0805 ● ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0806- ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0710-0805 ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0806- ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0710- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
