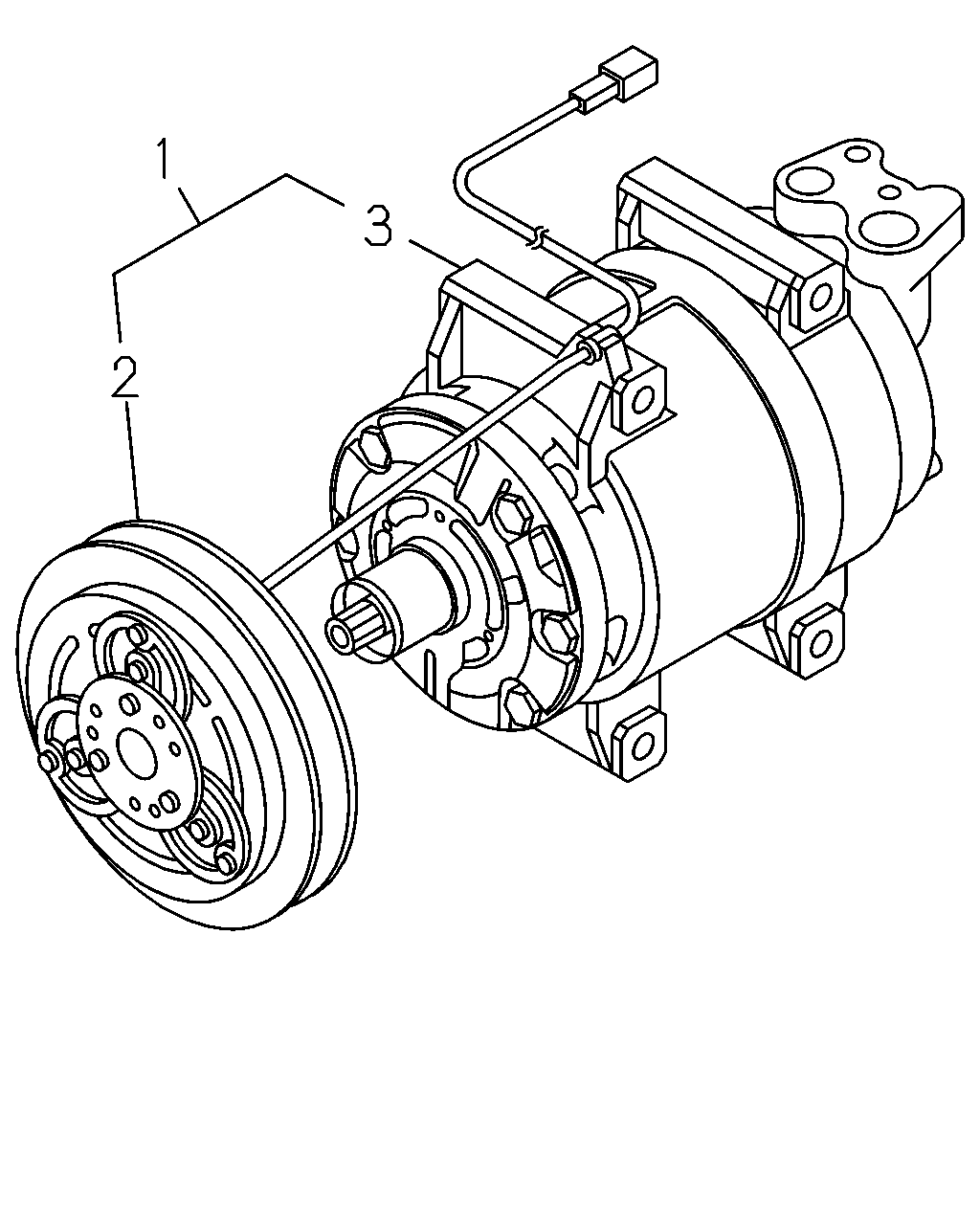

8-71 — COMPRESSOR; AIR CONDITIONING (#54890) — 14 parça

1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) VALEO	8-98000-988-2	01	1	0710-0803	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDIT IONER(C68) VALEO	8-98000-988-2	01	1	0804-1211	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDIT IONER(C68) VALEO	8-98214-324-0	01	1	1212-1410	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDIT IONER(C68) VALEO	8-98286-199-0	01	1	1411-	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) VALEO	8-98037-146-2	01	1	0710-0803		●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDIT IONER(C68) VALEO	8-98037-146-2	01	1	0804-1211		●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDIT IONER(C68) VALEO	8-98214-321-0	01	1	1212-1410		●		●	●	●
1	09.170 COMPRESSOR ASM; A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDIT IONER(C68) VALEO	8-98286-197-0	01	1	1411-		●		●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98208-772-1	01	1	0710-0803	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDIT IONER(C68)	8-98208-772-1	01	1	0804-	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98208-773-0	01	1	0710-0803		●		●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDIT IONER(C68)	8-98208-773-1	01	1	0804-		●		●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98042-531-1	01	1	0710-0803	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98042-531-1	01	1	0804-	●	●	●	●	●	●
