◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51157 - NN/NP/NQR-R EXC.EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#54880) — 354 parça
çizim 155988
608 151 154 315
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-0803 ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ● ● ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0803 ● ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0804- ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0804- ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION(NT4) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0804- ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0710-1402 ● ● ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ● ● ● ● ●

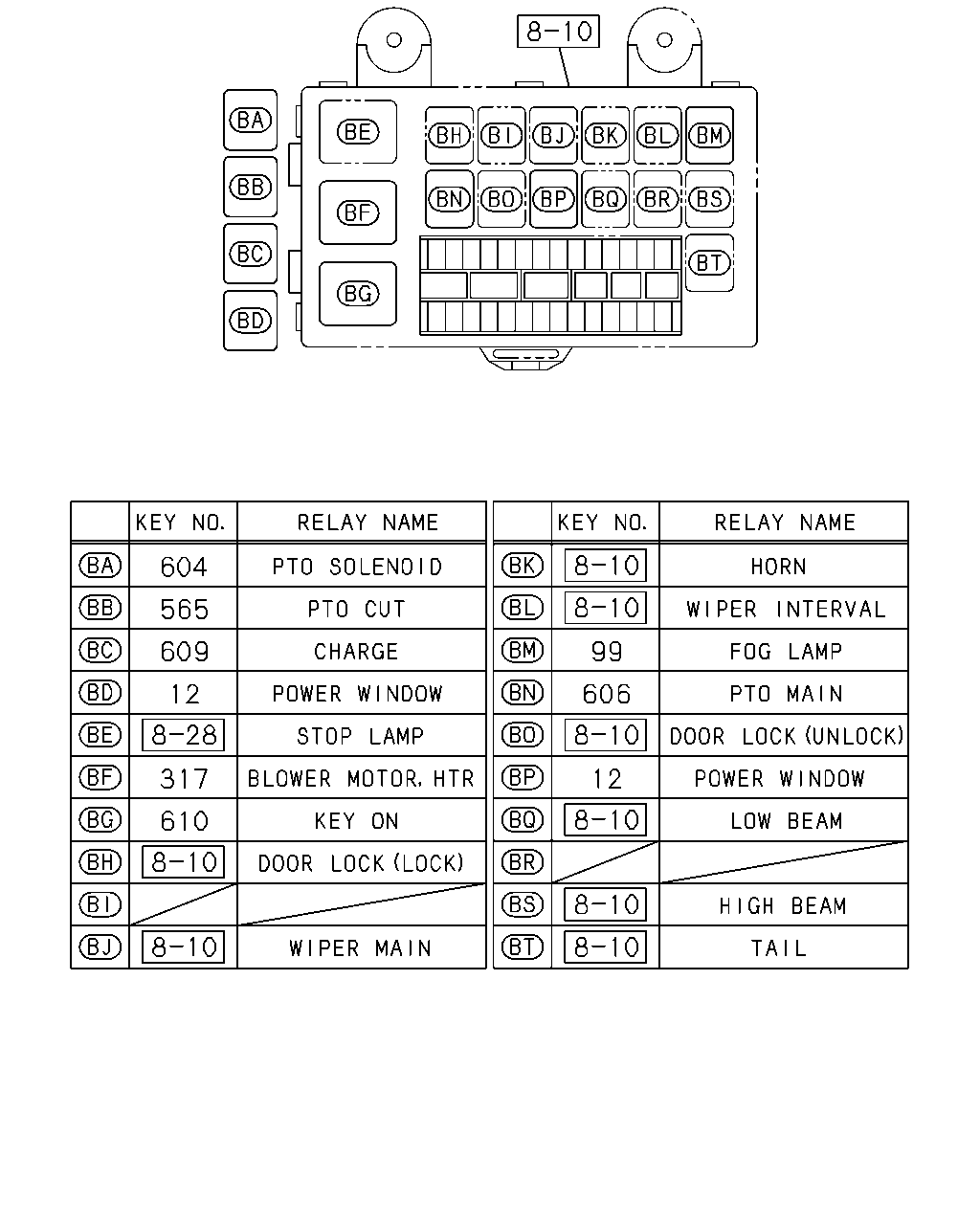

çizim 156000
604 565 609 99 12 606 317 12 610
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-0803 ● ● ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65),FULL AUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ● ● ● ● ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0903 ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0904-1112 ● ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0903 ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0904-1112 ● ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0903 ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0904- ● ●
609 02.485 RELAY; CHARGE
H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-1204 ● ● ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ● ● ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ●
610 02.510 RELAY; KEY ON
4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ● ● ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), H.S.A SYSTEM<6EP> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
DUMP CONTROL LEVER<RC4> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68),H.S.A SYSTEM<6EP>, REMOTECONT DOOR LOCK<6NF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> DUMP CONTROL LEVER<RC4> REMOTE CONT DOOR LOCK<6NF> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68),DUMP CONTROL LEVER<RC4>, POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,REMOTE CONT DOO R LOCK<6NF>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), H.S.A SYSTEM<6EP> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●

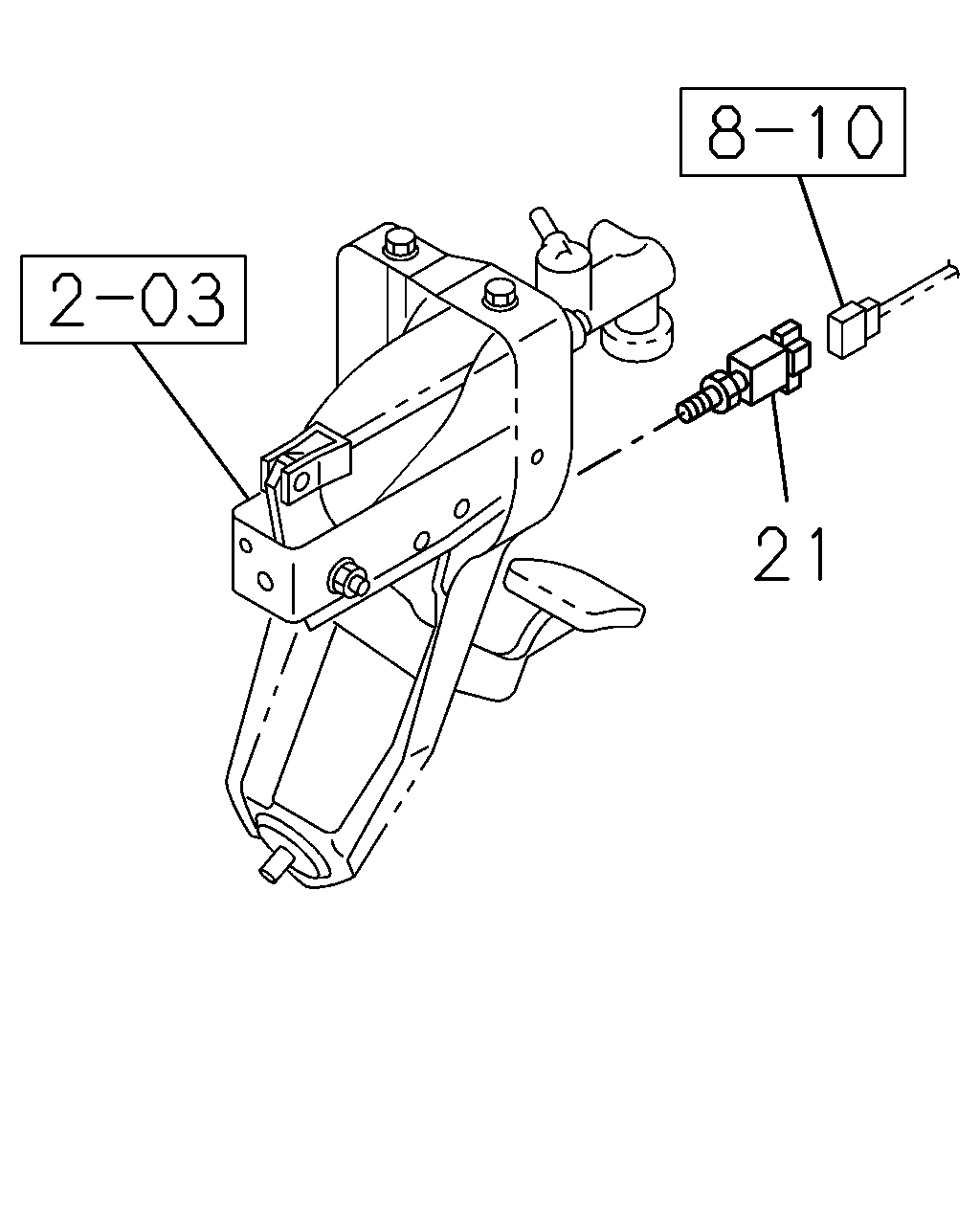

çizim 156001
21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447 		8-94109-863-0 01 1 0805-0903 ●
21 02.575 SWITCH; CLU
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447 		8-94109-863-0 01 1 0904-1509 ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447 		8-94109-863-0 01 1 1510- ● ●
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0710-0804 ● ● ● ● ● ●
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0805-0903 ● ● ● ● ●
21 02.575 SWITCH; CLU
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0805-0903 ●
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0904-1509 ● ● ● ●
21 02.575 SWITCH; CLU
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0904-1509 ● ●
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 1510- ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 1510- ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 1510- ●

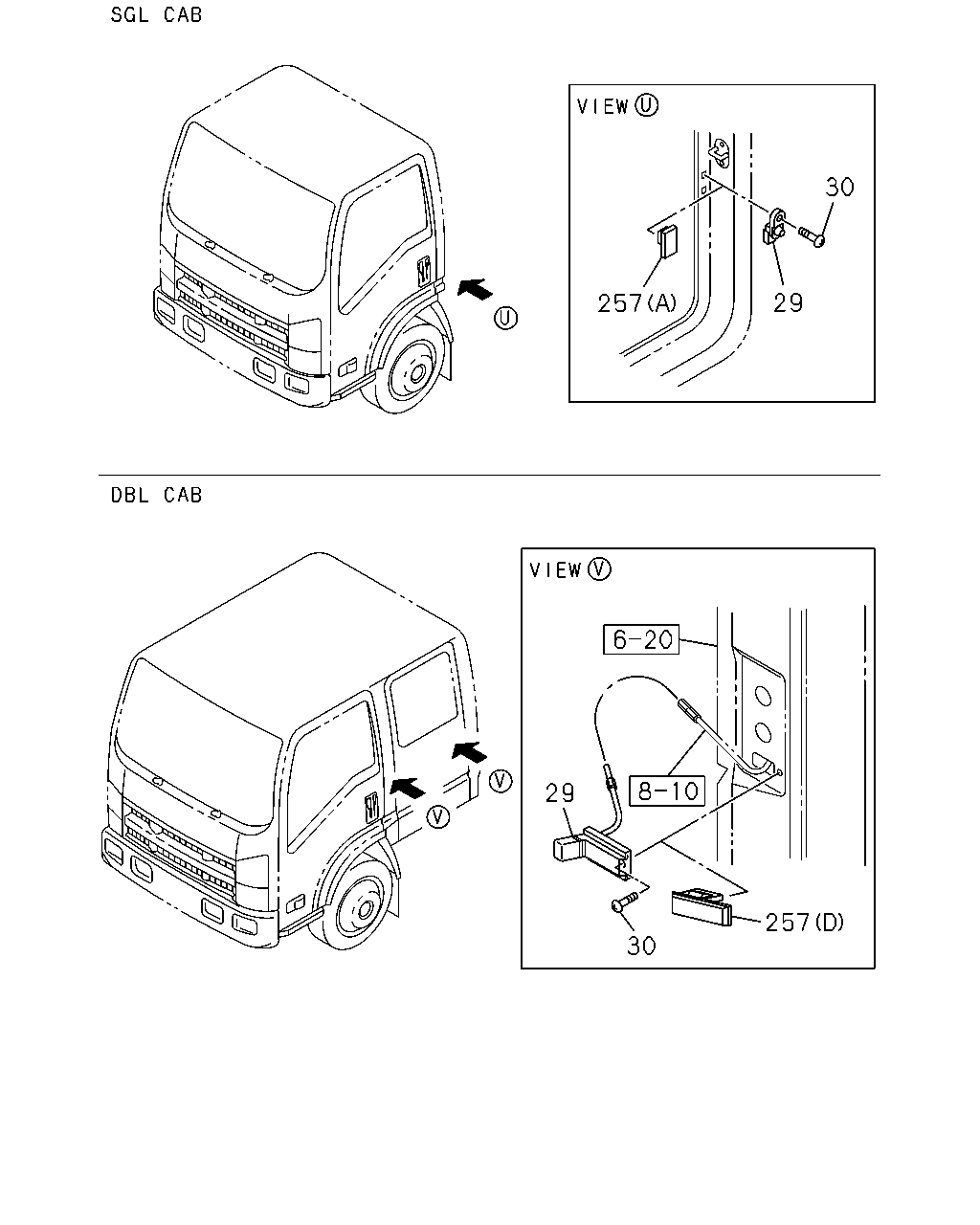

çizim 156003
30 29 257 29 257 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 16.263 SWITCH; DOOR
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT BLACK 		8-98022-211-0 02 1 0710-0710 ● ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMO OTHER(8GF) FRONT BLACK 		8-98022-211-0 02 1 0710-0710 ● ● ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT BLACK 		8-98022-211-0 02 1 0710-0710 ● ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT BLACK 		8-98022-211-0 02 1 0710-0710 ● ● ●
29 16.263 SWITCH; DOOR
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT BLACK 		8-98022-211-0 01 1 0710-0710 ● ● ●
29 16.263 SWITCH; DOOR
FRONT BLACK 		8-98022-211-0 01 1 0710- ● ● ●
29 16.263 SWITCH; DOOR
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT BLACK 		8-98022-211-0 01 1 0710- ● ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMO OTHER(8GF) FRONT BLACK 		8-98022-211-0 01 1 0710- ● ● ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT BLACK 		8-98022-211-0 01 1 0710- ● ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT BLACK 		8-98022-211-0 01 1 0710- ● ● ●
29 16.263 SWITCH; DOOR
REAR 		8-97855-032-3 02 1 0710-0710 ● ● ●
29 16.263 SWITCH; DOOR
REAR 		8-97855-032-3 01 1 0711- ● ● ●
29 16.263 SWITCH; DOOR
REAR 		8-97855-032-3 01 1 0711- ● ● ●
29 16.263 SWITCH; DOOR
REAR 		8-98054-195-0 02 1 0710-0710 ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) REAR 		8-98054-195-0 02 1 0710-0710 ●
29 16.263 SWITCH; DOOR
REAR 		8-98054-195-0 01 1 0711- ● ● ●
29 16.263 SWITCH; DOOR
REAR 		8-98054-195-0 01 1 0711- ● ● ●
30 16.263 SCREW; DOOR SW
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 0710- ● ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMO OTHER(8GF) M5X18 		8-98047-201-0 02 1 0710- ● ● ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 0710- ● ● ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 0710- ● ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 01 1 0710- ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 0710-0712 ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 04 1 0710-0712 ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 0801- ● ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 02 1 0710-0712 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98029-917-0 01 1 0710- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0710-0710 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0710-0803 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98025-954-1 01 1 0710-0803 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98025-954-1 01 1 0804-0903 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0804-0903 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98025-954-1 01 1 0804-0903 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98025-954-1 01 1 0904-0906 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98025-954-1 01 1 0904-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0904-0906 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 0710-0906 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0907- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98025-954-1 01 1 0907- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0907- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0710- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (D) 		8-94229-914-1 02 1 0710-0712 ●

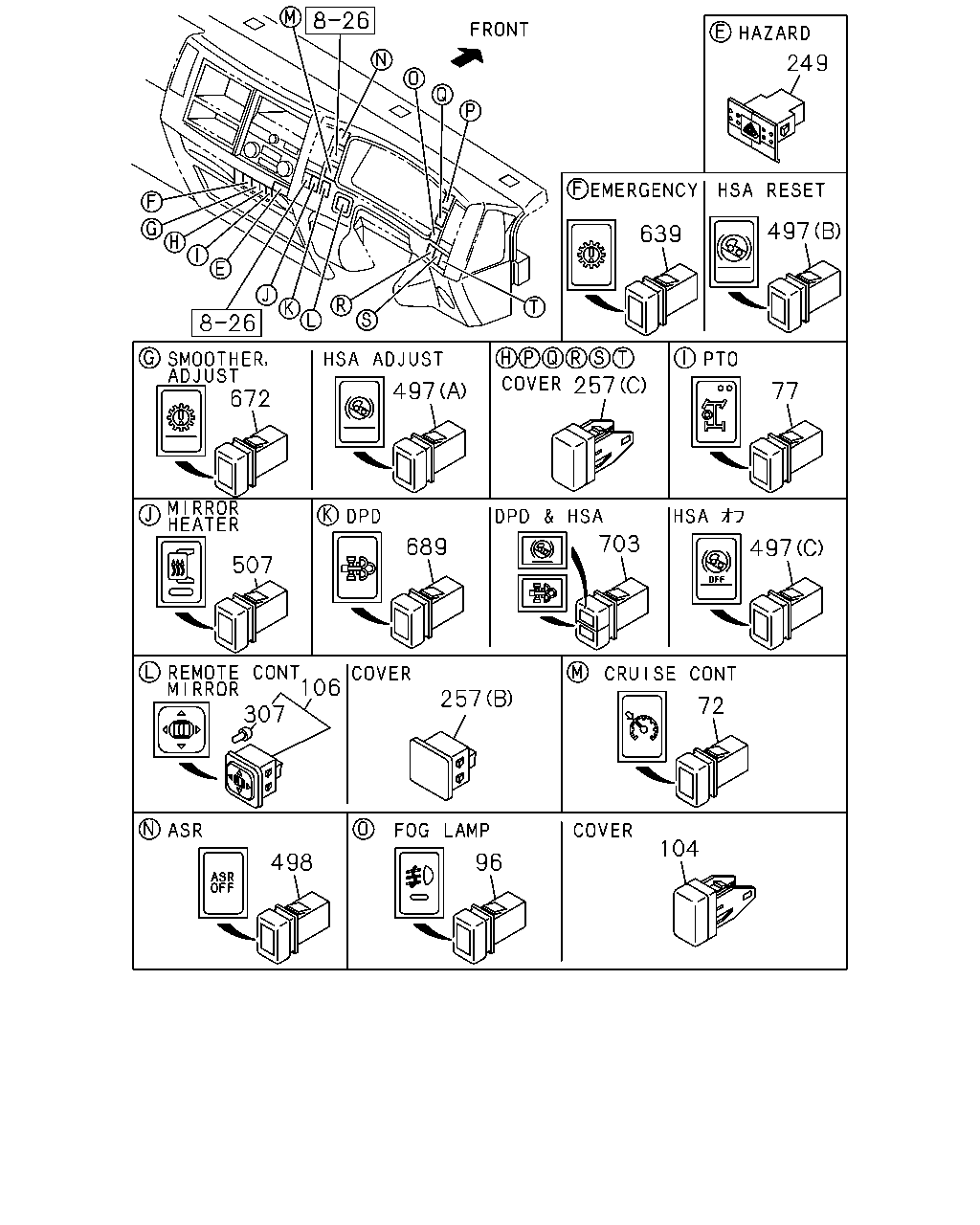

çizim 156004
249 497 639 672 257 497 77 703 689 497 507 307 106 257 72 104 498 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
72 02.485 SWITCH; CRUISE CONT
MULTI INFORMATION DISPLAY<7NY> 		8-98011-344-1 01 1 0710- ● ● ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-1 01 1 0710-0903 ● ● ● ● ● ●
77 04.439 SWITCH; PTO
DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 		8-97386-964-1 01 1 0710-0903 ●
77 04.439 SWITCH; PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 0904- ● ● ● ● ● ●
77 04.439 SWITCH; PTO
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO MANUAL CONTROL(6WC) 		8-97386-964-2 01 1 0904- ● ● ●
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97386-993-4 01 1 0802-0903 ●
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97386-993-4 01 1 0904- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0710- ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 0710- ● ● ● ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> 		8-97173-294-1 01 1 0710- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0710- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98029-917-0 01 1 0710- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0710-0710 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0710-0710 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0710-0803 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0710-0803 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98025-954-1 01 1 0710-0803 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0804-0903 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98025-954-1 01 1 0804-0903 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0804-0903 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98025-954-1 01 1 0804-0903 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0904-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98025-954-1 01 1 0904-0906 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98025-954-1 01 1 0904-0906 ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0904-0906 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 0710-0906 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0907- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98025-954-1 01 1 0907- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0907- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0710- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (D) 		8-94229-914-1 02 1 0710-0712 ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> 24V 		8-98226-896-0 01 1 0710- ● ● ● ● ● ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-97386-967-2 01 1 0710-0806 ● ● ● ● ● ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 0807- ● ● ● ● ● ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-97386-985-1 01 1 0710-0806 ● ● ● ● ● ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 0807- ● ● ● ● ● ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) OFF 		8-97386-923-2 01 1 0804- ● ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 0710- ● ● ● ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 0710- ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-97386-924-3 01 1 0710- ● ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97387-000-2 01 1 0710-0806 ● ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0807- ● ● ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-971-2 01 1 0710-0806 ● ● ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 0807- ● ● ● ● ● ●
689 02.780 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0710-0803 ● ● ● ● ● ●
689 02.780 SWITCH; DPD
CATALYSIS CONTROL WITH DPD(8JM) EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0804- ● ● ● ● ● ●
703 02.780 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 0710-0803 ● ● ● ● ● ●
703 02.780 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD(8JM) 		8-98011-346-2 01 1 0804- ● ● ● ● ● ●

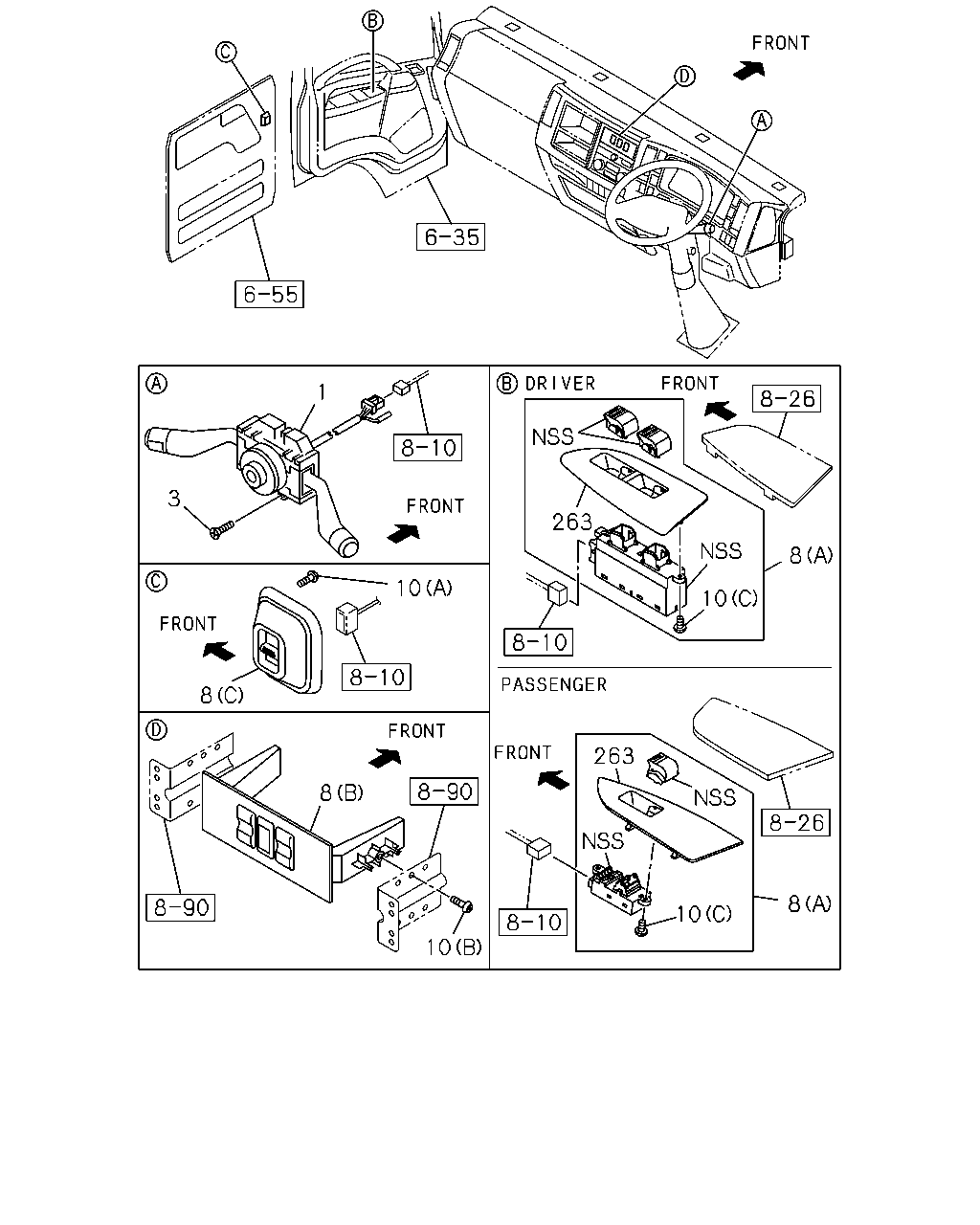

çizim 156005
1 3 263 8 10 10 8 263 8 8 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98070-001-1 01 1 0710-0905 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98146-635-0 01 1 0906-1210 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98217-808-0 01 1 1211-1310 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98243-725-0 01 1 1311-1509 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98243-725-0 01 1 1510- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPE R<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98069-993-2 01 1 0710-1310 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPE R<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98243-728-0 01 1 1311-1509 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPE R<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98243-728-0 01 1 1510- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MULTI INFORMATION DISPLAY<7NY> 		8-98069-995-1 01 1 0710-1310 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MULTI INFORMATION DISPLAY<7NY> 		8-98243-729-0 01 1 1311-1509 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MULTI INFORMATION DISPLAY<7NY> 		8-98243-729-0 01 1 1510- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98070-005-1 01 1 0710-0905 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98146-637-0 01 1 0906-1210 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98217-809-0 01 1 1211-1310 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98243-726-0 01 1 1311-1509 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> MULTI INFORMATION DISPLAY<7NY> 		8-98243-726-0 01 1 1510- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98243-726-0 01 1 1510- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98069-997-1 01 1 0710-1310 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-730-0 01 1 1311-1509 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-730-0 01 1 1510- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-730-0 01 1 1510- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0710- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-97387-034-2 01 1 0710-1509 ● ● ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-97387-034-2 01 1 0710-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-97387-034-2 01 1 0710-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ● ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ● ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98003-785-1 01 1 0710-0809 ● ● ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98003-785-1 01 1 0710-0809 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98003-785-1 01 1 0710-0809 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98129-844-0 01 1 0810-1001 ● ● ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98129-844-0 01 1 0810-1001 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98129-844-0 01 1 0810-1001 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98159-543-0 01 1 1002-1509 ● ● ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98159-543-0 01 1 1002-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98159-543-0 01 1 1002-1509 ●
8 16.263 SWITCH; POWER WINDOW
(B) 		8-97386-987-2 01 1 0710- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 0710- ●
8 16.263 SWITCH; POWER WINDOW
(C) REAR SIDE 		8-97387-035-0 02 1 0710- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 0710- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 0710- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 0710- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 03 1 0710- ●
10 03.885 SCREW; POWER WINDOW SW
16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 0710- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 0710- ●
10 03.885 SCREW; POWER WINDOW SW
16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-98153-836-0 01 1 0710- ● ● ●
263 16.081 COVER; SW 8-98153-836-0 01 1 0710- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98153-836-0 01 1 0710- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-98153-841-0 01 1 0710- ● ● ●
263 16.081 COVER; SW 8-98153-841-0 01 1 0710- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98153-841-0 01 1 0710- ●

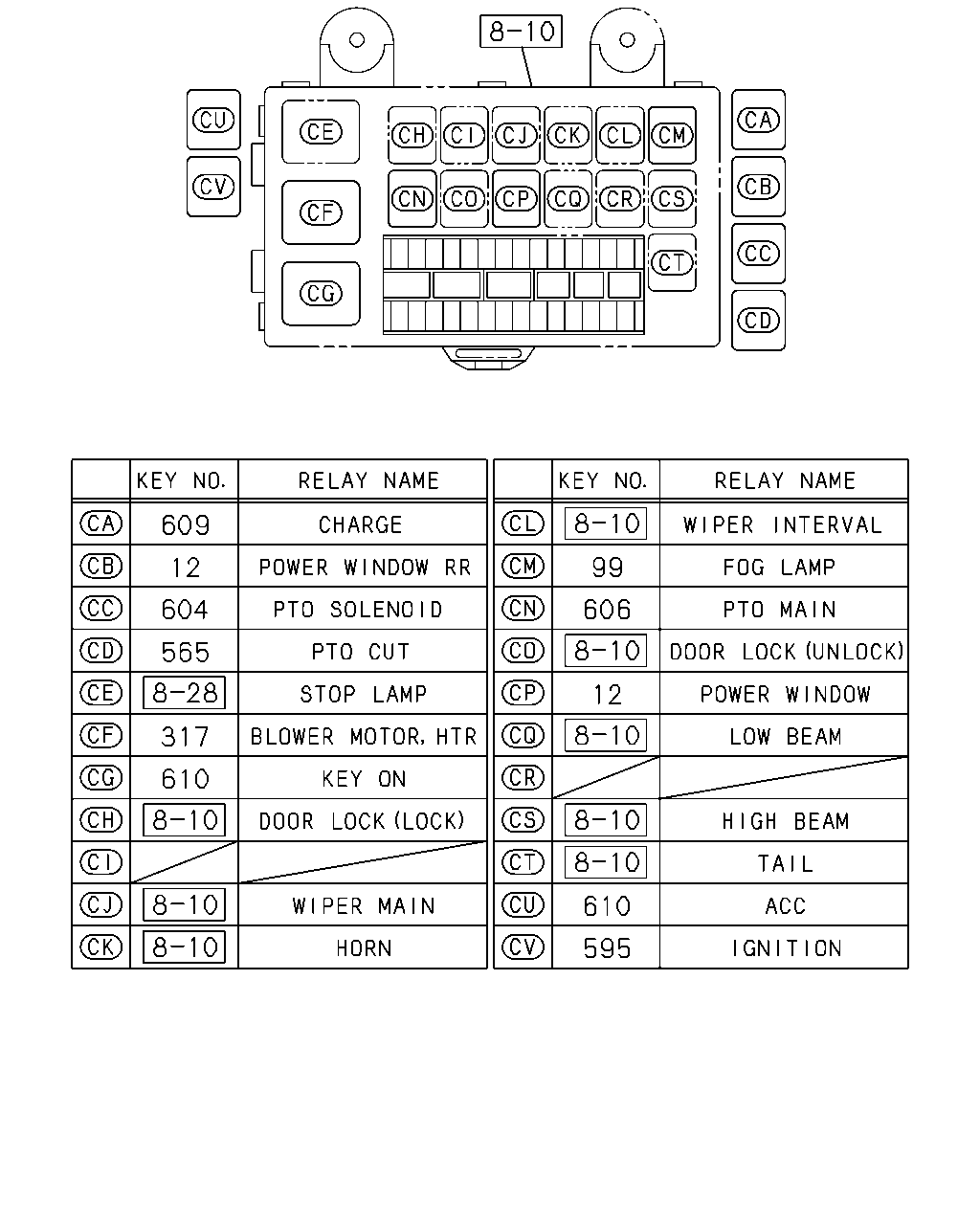

çizim 156249
609 12 99 604 606 565 12 317 610 610 595
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-0803 ● ● ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65),FULL AUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ● ● ● ● ● ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0903 ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0904-1112 ● ●
565 02.510 RELAY; PTO CUT
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ● ● ● ● ● ●
595 02.510 RELAY; IGNITION
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), H.S.A SYSTEM<6EP> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ● ●
595 02.510 RELAY; IGNITION
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
DUMP CONTROL LEVER<RC4> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68),H.S.A SYSTEM<6EP>, REMOTECONT DOOR LOCK<6NF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> DUMP CONTROL LEVER<RC4> REMOTE CONT DOOR LOCK<6NF> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68),DUMP CONTROL LEVER<RC4>, POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,REMOTE CONT DOO R LOCK<6NF>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
595 02.510 RELAY; IGNITION
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), H.S.A SYSTEM<6EP> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0903 ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0904-1112 ● ●
604 02.510 RELAY; PTO SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-0903 ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0904- ● ●
609 02.485 RELAY; CHARGE
H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-1204 ● ● ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ● ● ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ●
610 02.510 RELAY; KEY ON
4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1206 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ● ● ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), H.S.A SYSTEM<6EP> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
DUMP CONTROL LEVER<RC4> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68),H.S.A SYSTEM<6EP>, REMOTECONT DOOR LOCK<6NF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> DUMP CONTROL LEVER<RC4> REMOTE CONT DOOR LOCK<6NF> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68),DUMP CONTROL LEVER<RC4>, POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,REMOTE CONT DOO R LOCK<6NF>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●
610 02.510 RELAY; KEY ON
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), H.S.A SYSTEM<6EP> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1207- ●

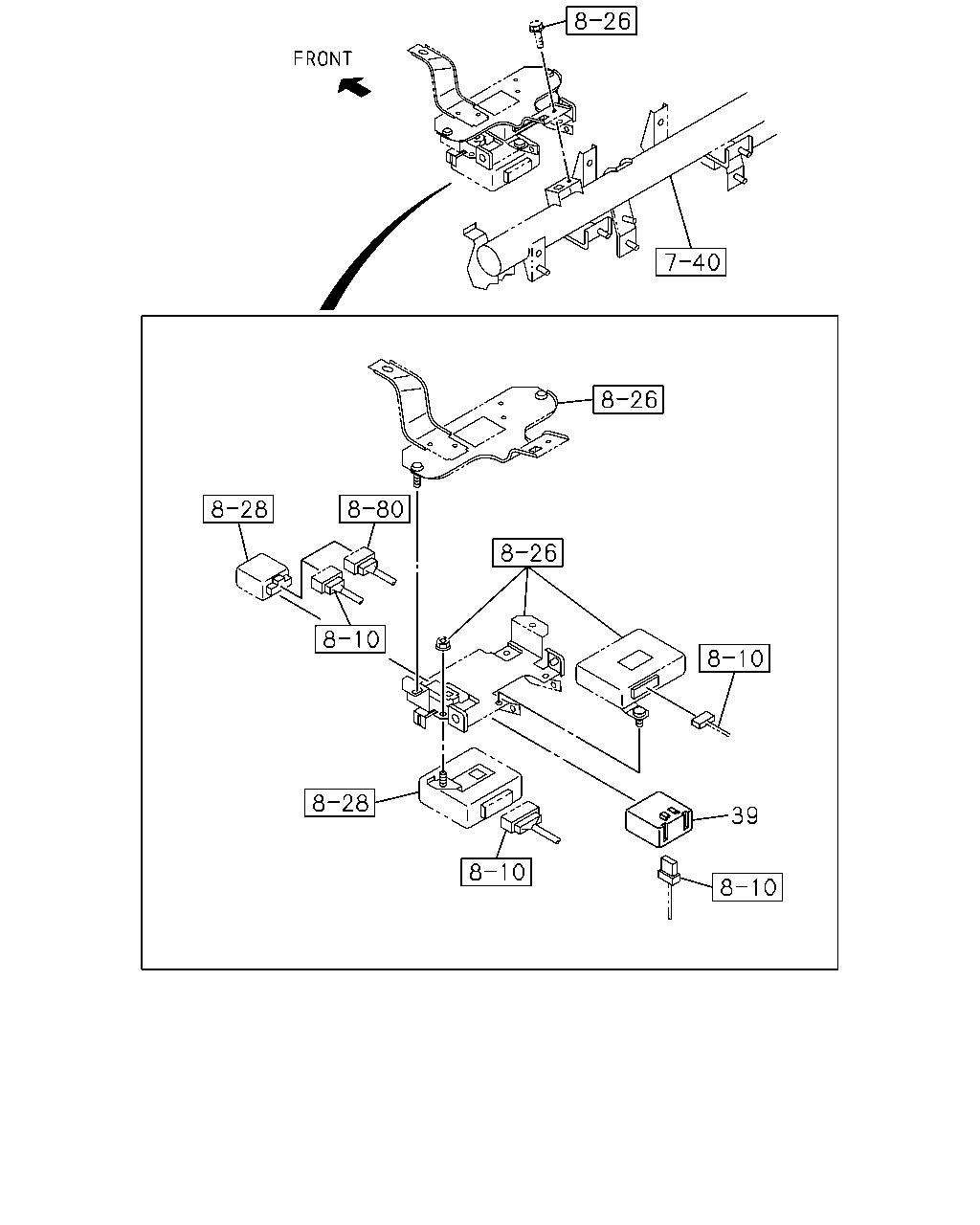

çizim 156311
39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0710-0906 ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0907- ● ● ● ●

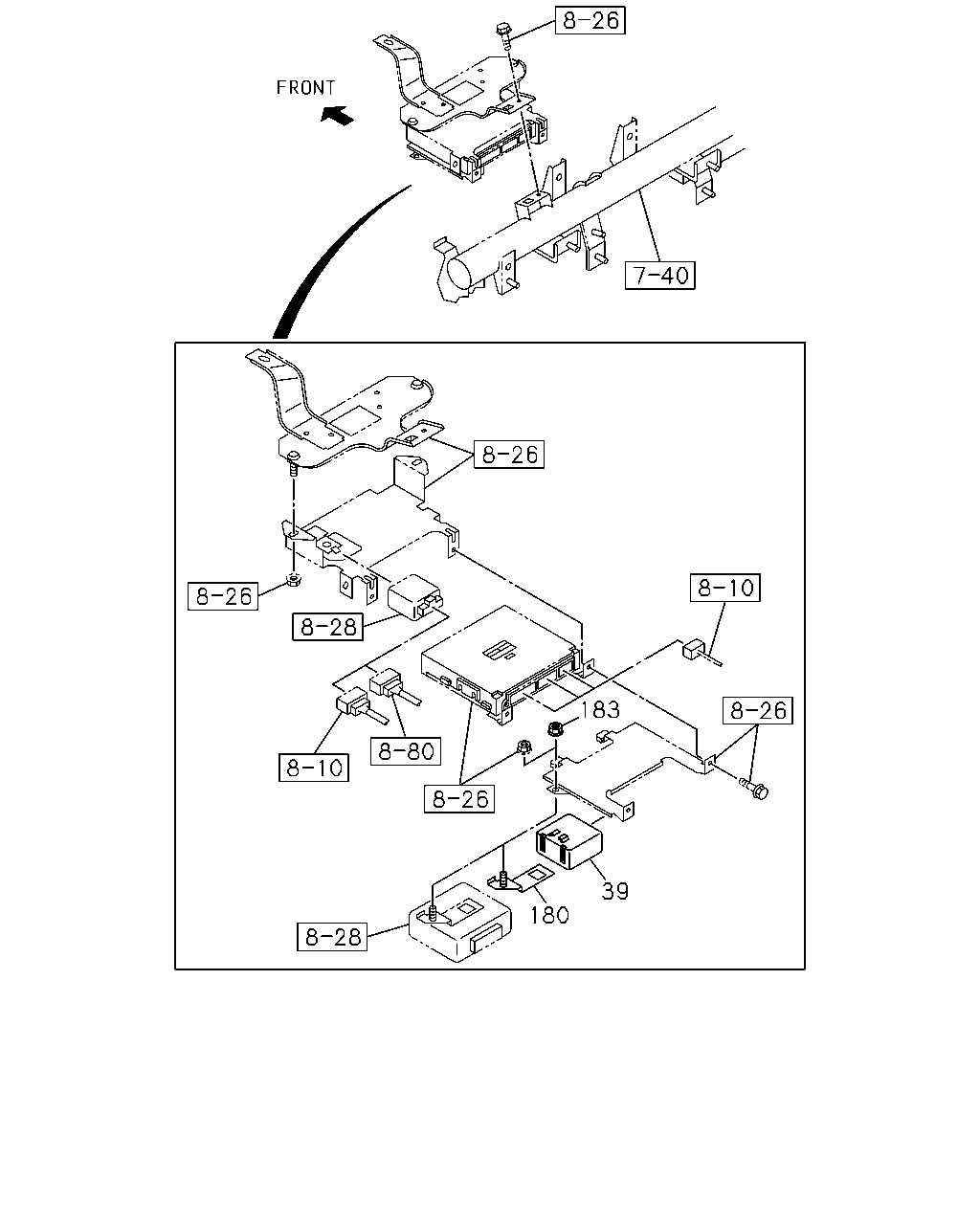

çizim 283486
183 39 180
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0710-0906 ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0907- ● ● ● ●
180 02.510 BRACKET; RELAY
AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98091-660-0 01 1 0710-0906 ● ● ●
180 02.510 BRACKET; RELAY
AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98091-660-0 01 1 0907- ● ● ●
183 02.510 NUT; RELAY BRKT
AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0906 ● ● ●
183 02.510 NUT; RELAY BRKT
AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0907- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
