Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#54878) — 880 parça

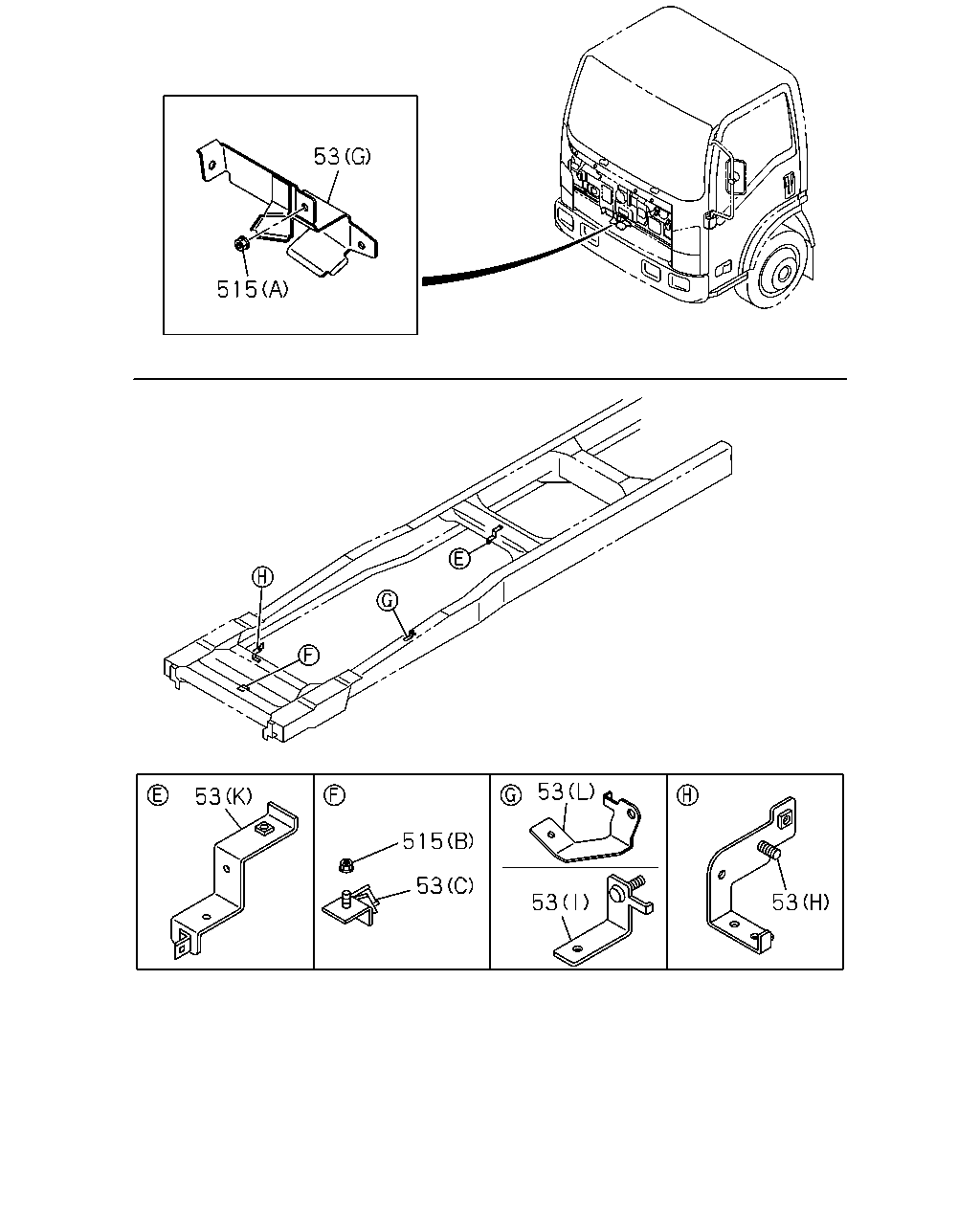

53 515 53 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (J)	8-98084-590-0	01	1	0710-0810	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0811-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0710-0805	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (D)	8-98074-502-0	01	1	0710-0906	●	●	●		●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (D)	8-98074-502-0	01	1	0907-	●	●	●		●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0710-0802	●			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0803-0803	●			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0804-	●			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0804-		●	●		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-0802					●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0803-0803			●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0804-		●	●		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0710-0802					●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0803-0803			●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0804-		●	●		●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0804-						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0710-0802					●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0803-0803			●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0804-0809		●	●		●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0804-0809						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (L)	8-98094-629-0	01	1	0810-1303		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0810-1303			●		●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0810-1303						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (L)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1304-			●		●
53	02.483 BRACKET; HARNESS (L)	8-98130-669-1	01	1	1304-						●

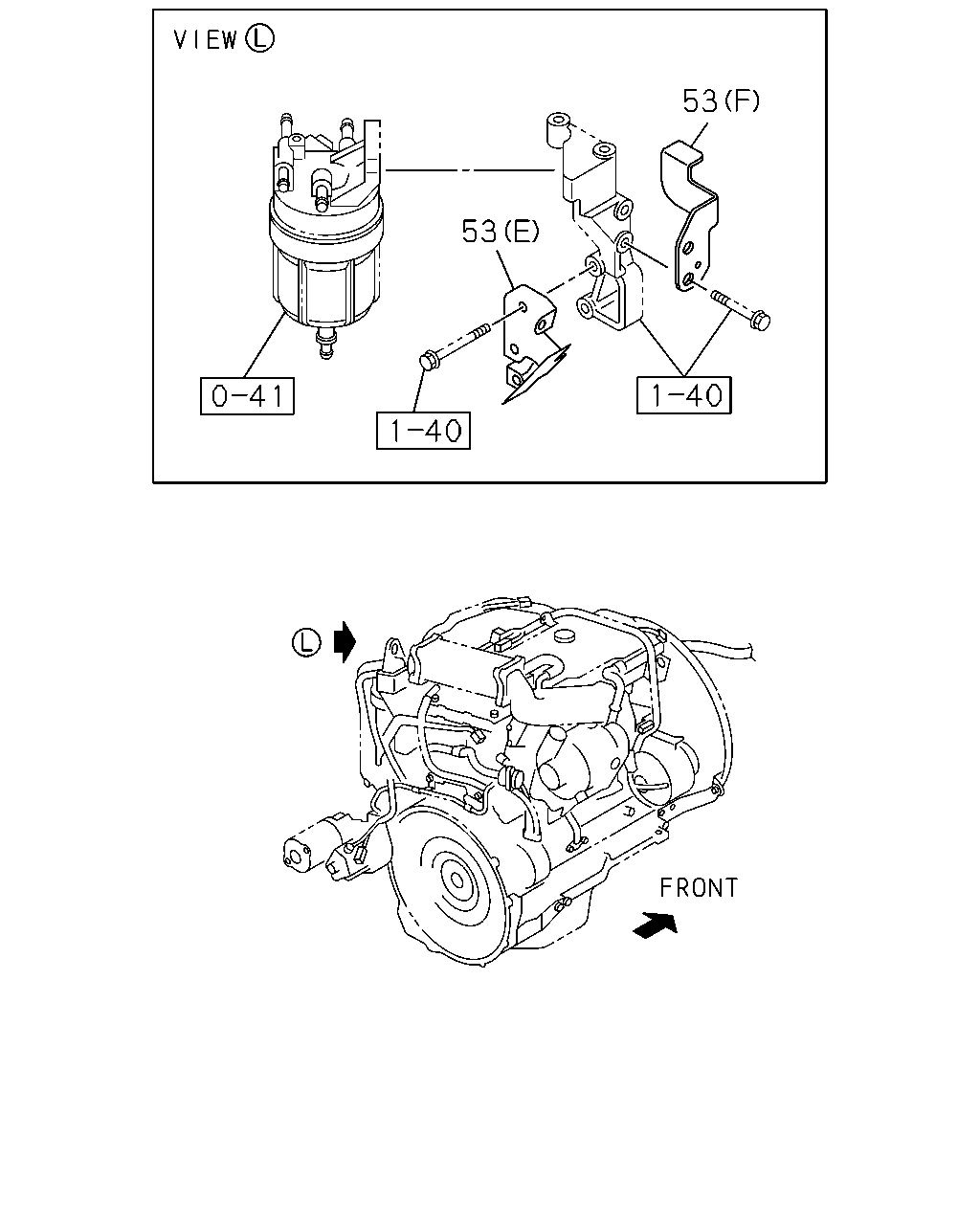

53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	0710-0803		●	●		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.559 (E)	8-98055-636-0	01	1	0804-		●	●		●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●	●	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-0802	●	●	●	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-0802		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-0802					●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●	●	●	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803			●		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809	●	●	●	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809		●	●		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809						●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909	●		●	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909		●	●		●
515	02.559 NUT; BRKT EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909						●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-		●	●		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-						●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-	●	●	●	●	●	●

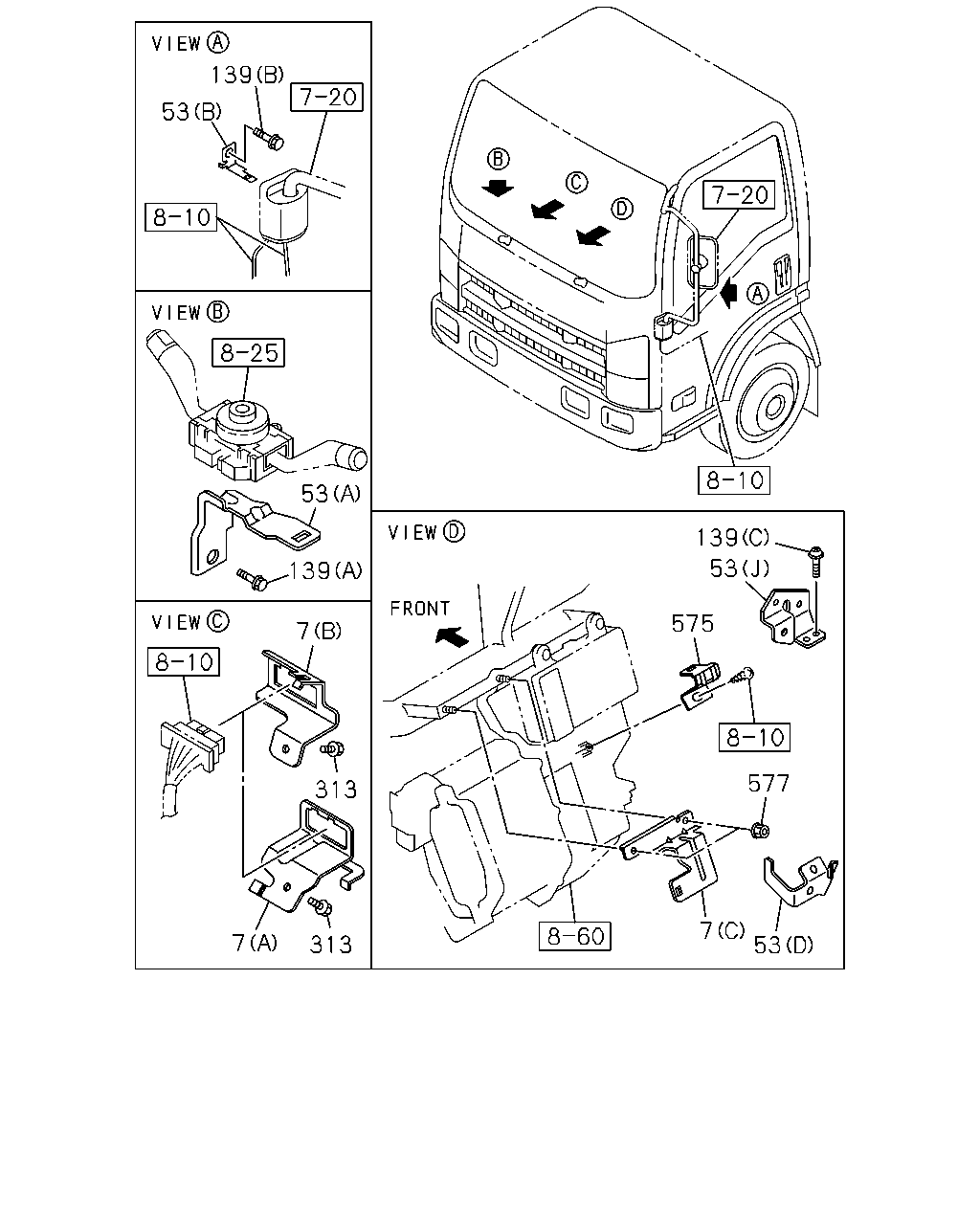

139 53 53 139 53 139 575 7 577 313 7 53 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

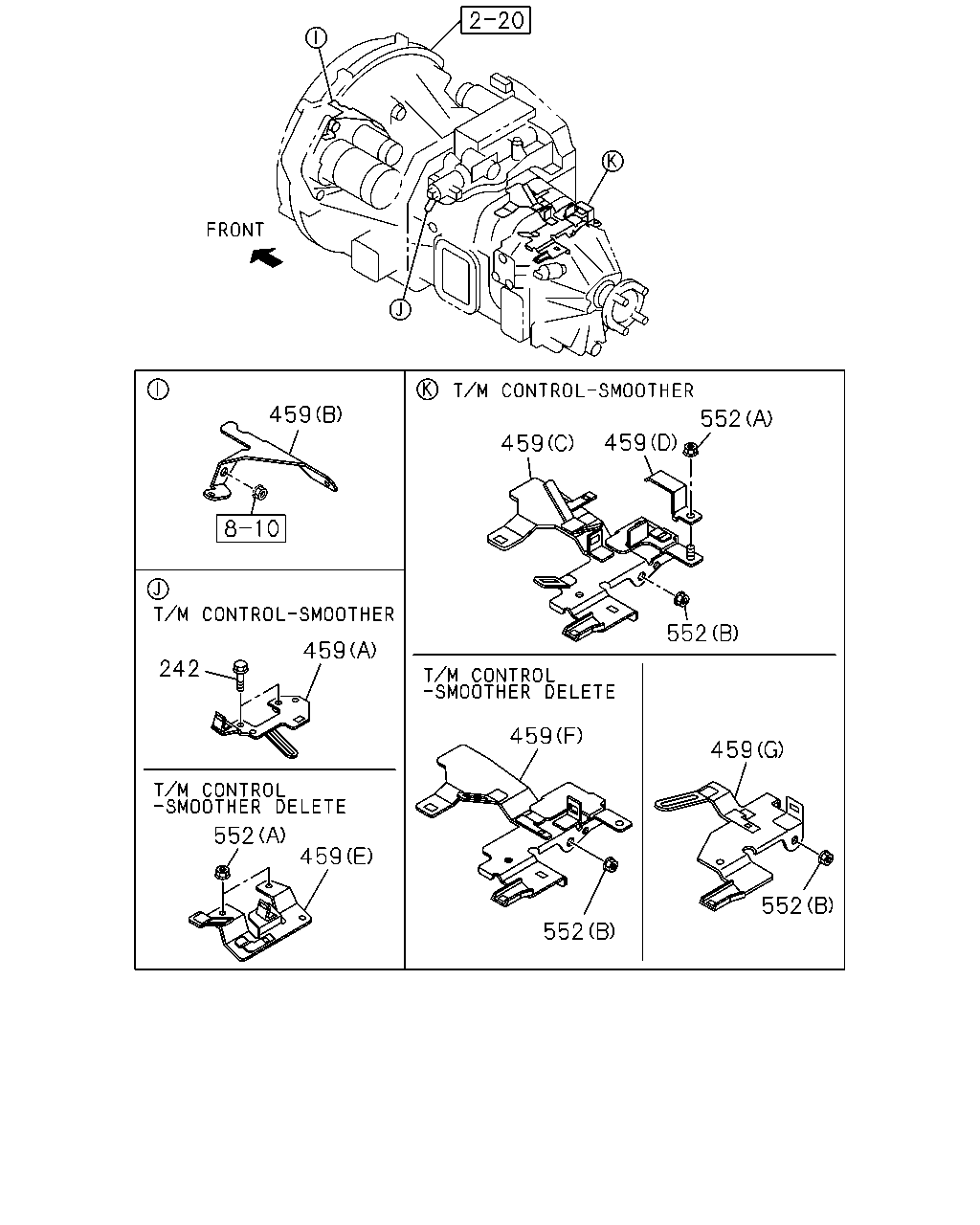

7	02.559 BRACKET; CONNECTOR (C)	8-98029-762-4	01	1	0710-	●	●	●	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	0710-	●	●	●	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-069-1	01	1	0710-0803	●	●	●	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	0804-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (J)	8-98084-590-0	01	1	0710-0810	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0811-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0710-0805	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (D)	8-98074-502-0	01	1	0710-0906	●	●	●		●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (D)	8-98074-502-0	01	1	0907-	●	●	●		●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0710-0802	●			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0803-0803	●			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0804-	●			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0804-		●	●		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-0802					●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0803-0803			●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0804-		●	●		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0710-0802					●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0803-0803			●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0804-		●	●		●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0804-						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0710-0802					●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0803-0803			●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0804-0809		●	●		●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0804-0809						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (L)	8-98094-629-0	01	1	0810-1303		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0810-1303			●		●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0810-1303						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (L)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1304-			●		●
53	02.483 BRACKET; HARNESS (L)	8-98130-669-1	01	1	1304-						●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	0710-0803		●	●		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.559 (E)	8-98055-636-0	01	1	0804-		●	●		●	●

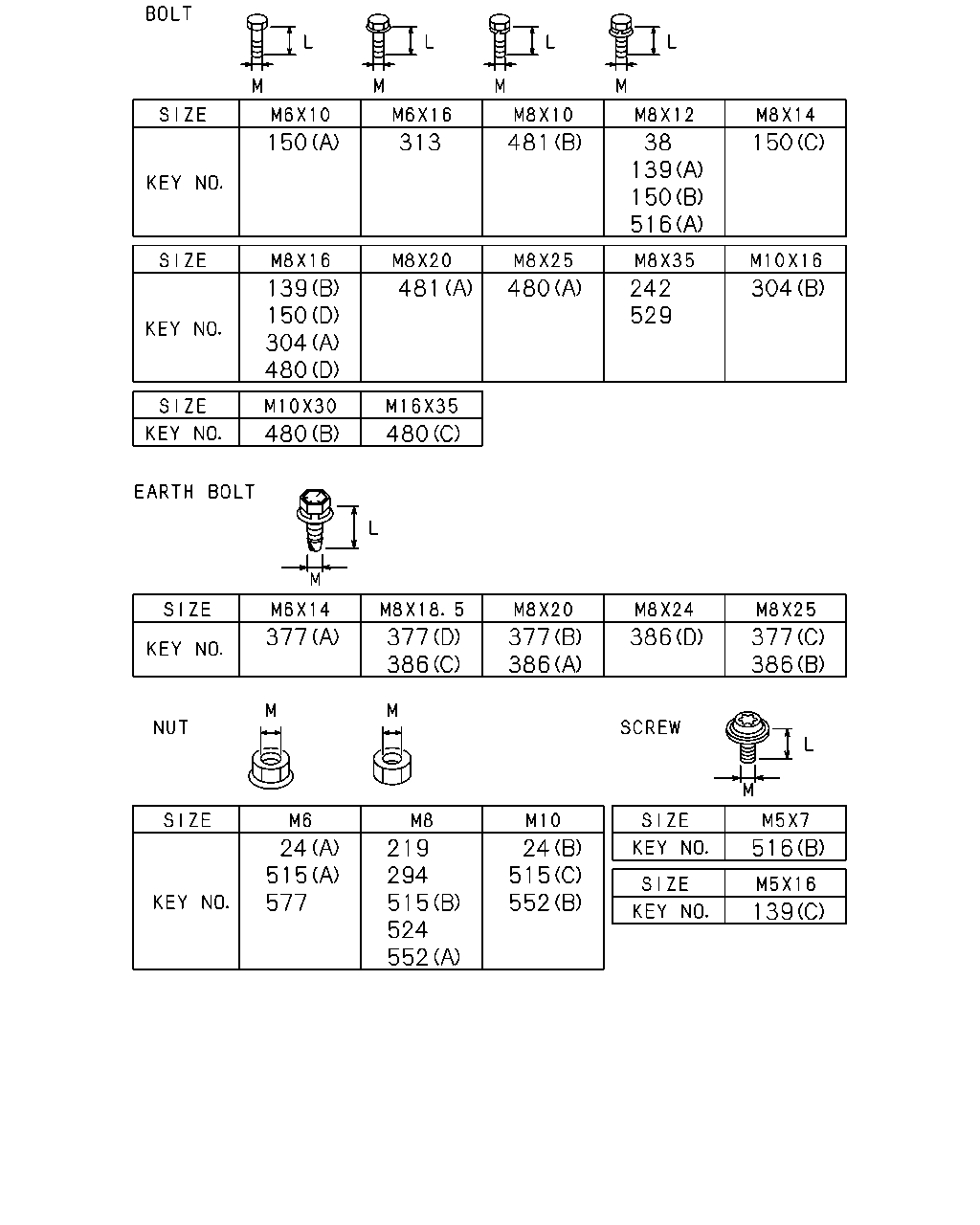

139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-0810	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-1101	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0805	●	●	●	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●	●	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-	●	●	●	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0710-	●	●	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-	●	●	●	●	●	●

488 14 102 48 570 22 14 22 16 102 570 617 22 488 102 22 16 22 22 22 22 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

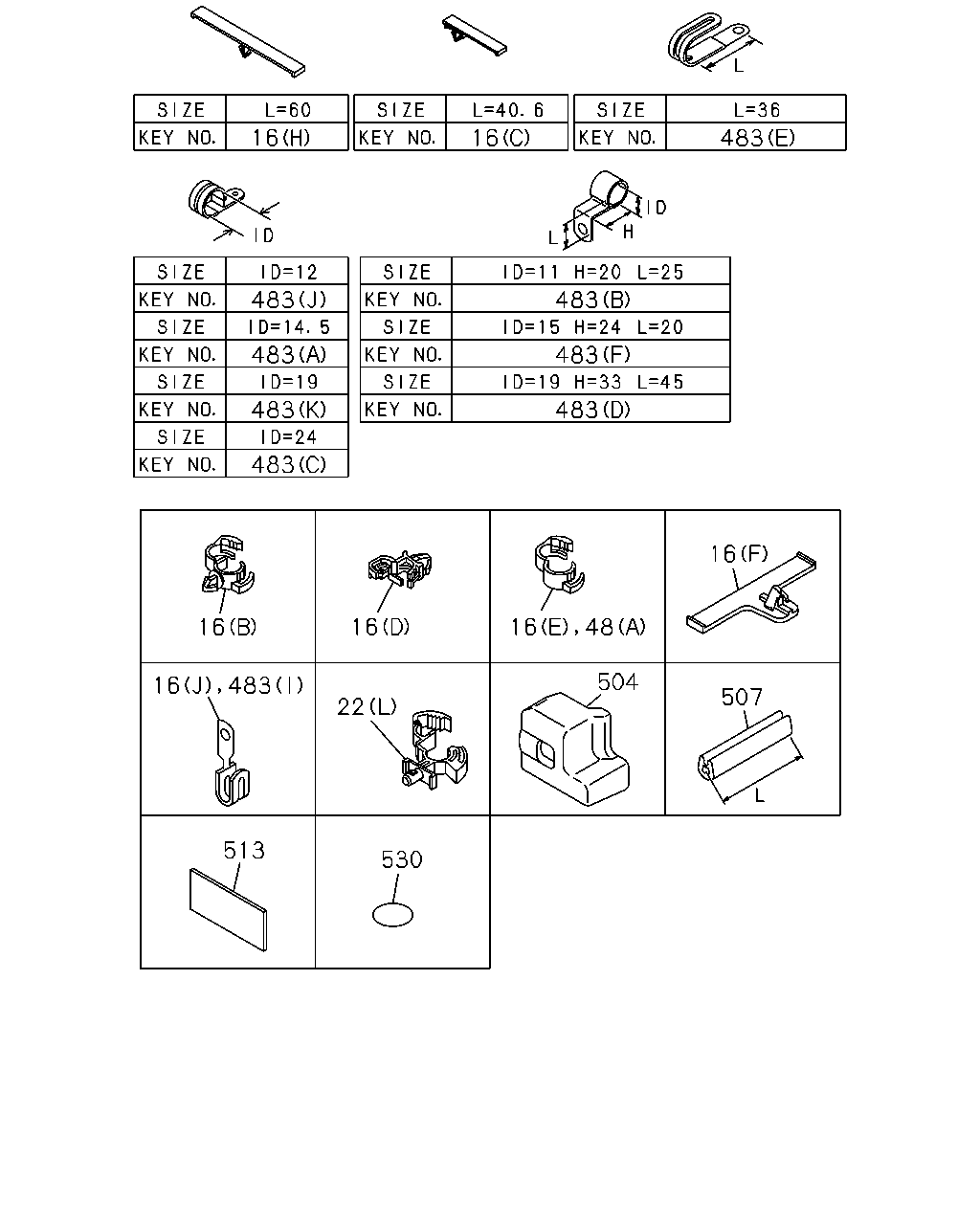

14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) GLOW SYSTEM DELETE<7RK> 03.162 (B) L=140	5-09707-031-1	01	1	1502-		●	●		●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (A) L=150	8-97355-273-0	02	1	0710-0801		●	●		●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (A) L=150	8-97355-273-0	01	1	0802-0810		●	●		●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (A) L=150	8-97355-273-0	02	1	0811-0906		●	●		●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (A) L=150	8-97355-273-0	01	1	0907-		●	●		●	●
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (K) L=140	5-09707-031-1	01	1	1401-		●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0710-0802	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0710-0802		●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0710-0802				●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0803-0803	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0803-0803		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0803-0803				●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0804-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0804-		●	●		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0804-				●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	0710-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	0710-					●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●	●	●	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (A) L=155	8-97173-307-0	14	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-				●		●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (F)	8-98052-679-0	02	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0710-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0710-0803	●	●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0804-	●	●		●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (J)	8-97101-436-0	01	1	0711-		●	●		●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	0710-					●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	0710-					●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	0804-0804		●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	0805-0809		●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	02	1	0805-0809		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	02	1	0810-0902		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0903-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0903-	●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0903-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0903-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (N) L=250	5-09707-030-1	01	1	0804-0804		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (N) L=250	5-09707-030-1	01	1	0805-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (N) L=250	5-09707-030-1	01	1	0903-1505		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) L=170.3	1-09987-182-0	01	1	0710-0711		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0712-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0711-0803		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804	●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804		●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-0803		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-1501		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-1501		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 (M) L=350	8-94152-256-1	02	1	0801-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 08.852 (M) L=350	8-94152-256-1	02	1	0903-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (L) ID=14-20	8-97061-603-0	01	1	0710-0711		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (L) ID=14-20	8-97061-603-0	02	1	0712-1505		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (L) ID=14-20	8-97061-603-0	01	1	1506-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) HYDRO BRAKE BOOSTER(7QQ) (I) ID=20	5-09700-321-0	01	1	0710-0711		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) HYDRO BRAKE BOOSTER(7QQ) 04.930 (J) ID=10 & 16.5	8-94360-745-0	01	1	0710-0710		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (K)	8-97037-154-0	01	1	0710-0710		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0710-0802	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0803-0803	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0803-0803					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0803-0803					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0804-0804	●	●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0804-0804					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0804-0804					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-	●	●	●		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0710-0802	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0803-0803	●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0804-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0710-0802	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0803-0803	●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0804-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0710-0803	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0710-0803	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0710-0803		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0804-	●			●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-		●	●		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-		●
48	02.559 CLIP; FRAME HARNESS 03.115 (C) T=9 & 10.5	8-97041-091-0	01	1	0710-0710	●			●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (C) T=9 & 10.5	8-97041-091-0	01	1	0710-0710		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802				●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803				●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804				●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (H) ID=10 & 16.5	8-94424-440-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0803-0803			●		●	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0804-0804						●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0710-0801		●	●
48	02.559 CLIP; FRAME HARNESS (I) T=6.0	5-09709-024-0	01	1	0710-0801					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0802-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0803-0803			●		●	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0804-0804						●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0803-0803			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0804-		●	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (K) L=450	1-09707-142-1	01	1	0804-		●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (K) L=450	1-09707-142-1	01	1	0804-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	0710-0803				●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	0804-				●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (E) L=350	8-94152-256-1	01	1	0804-					●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 03.162 (C) L=170	5-09707-054-0	01	1	1104-		●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=250	5-09707-030-1	01	1	0804-1103		●	●		●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) L=250	5-09707-030-1	01	1	1104-		●	●		●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 03.162 (A) L=140	5-09707-031-1	03	1	0804-		●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	04	1	0710-0801		●	●		●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	11	1	0710-0801		●	●		●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	06	1	0802-0803		●	●		●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	06	1	0804-1110		●	●		●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	07	1	1111-		●	●		●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	04	1	0804-1202		●	●		●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	1203-		●	●		●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) (B) L=250	5-09707-030-1	01	1	0710-	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED(RS6) 02.587 (A) L=112	8-94232-618-0	05	1	0710-		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	03	1	0911-1509					●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	03	1	1510-					●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0710-0903		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0904-0910		●			●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0911-1509		●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1510-		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=6.0	8-97371-948-0	01	1	0710-0804		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	0805-0903		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	0904-1509		●			●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	1510-		●			●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0801-0903		●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0904-		●			●
617	02.559 STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106	●	●	●	●	●	●
617	02.559 STRAP; BAND M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1107-1108		●
617	02.559 STRAP; BAND M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1107-1108			●
617	02.559 STRAP; BAND M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1107-1108						●

38 139 150 516 150 150 313 481 139 150 304 480 481 480 242 529 304 480 480 377 377 386 377 386 386 377 386 24 515 577 219 294 515 524 552 24 515 552 516 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-1409	●	●	●	●	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●	●	●	●
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0801-		●	●		●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-0712	●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0801-0803	●	●		●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0801-0803		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-0903	●			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-0903		●			●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-0903		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-0903		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0904-	●			●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0904-		●			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0904-		●			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0904-		●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-0810	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-1101	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0805	●	●	●	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0907-		●	●		●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0710-0801		●	●		●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) M8X12 FLANGE	0-28050-812-0	01	1	0710-0803		●	●		●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) M8X12 FLANGE	0-28050-812-0	01	1	0804-		●	●		●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) M8X16 FLANGE	0-28050-816-0	01	1	0710-0801		●	●		●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.662 (C) M8X14 FLANGE	0-28080-814-0	01	1	0710-0801		●	●		●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (D) M8X16 FLANGE	0-28050-816-0	03	1	0804-0906		●	●		●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (D) M8X16 FLANGE	0-28050-816-0	04	1	0907-		●	●		●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0802		●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0802					●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803		●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803			●		●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-		●	●		●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-						●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0710-	●	●	●	●	●	●
294	02.559 NUT 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●		●	●
294	02.559 NUT 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●	●	●	●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0801-0904		●	●		●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-0801		●	●		●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0710-0803		●	●		●	●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0804-		●	●		●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0710-1004	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-1004	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0710-1004	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-1004	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-1004	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●	●	●	●
480	02.483 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 09.023 (C) M16X35 FLANGE	0-28851-635-0	02	1	0906-0906		●	●
480	02.483 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (D) M8X16 FLANGE	0-28050-816-0	02	1	0906-		●	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0710-0809	●	●	●	●	●	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-	●		●	●	●	●
480	02.483 BOLT; BRKT EXC. DUMP CHASSIS(V4D) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-		●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0802		●	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0802					●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803		●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803			●		●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-		●	●		●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-						●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0802	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0802		●	●
481	13.090 BOLT; CABLE HARNESS 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0802				●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-0803	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-0803		●
481	13.090 BOLT; CABLE HARNESS 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-0803				●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0903	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0903		●	●		●
481	13.090 BOLT; CABLE HARNESS 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0903				●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0710-0802	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0710-0802		●	●
481	13.090 BOLT; CABLE HARNESS 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0710-0802				●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0803-0803	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0803-0803		●
481	13.090 BOLT; CABLE HARNESS 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0803-0803				●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0804-	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0804-		●	●		●
481	13.090 BOLT; CABLE HARNESS 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0804-				●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●	●	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-0802	●	●	●	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-0802		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0710-0802					●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●	●	●	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803			●		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809	●	●	●	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809		●	●		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809						●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909	●		●	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909		●	●		●
515	02.559 NUT; BRKT EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909						●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-		●	●		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-						●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-	●	●	●	●	●	●
516	02.559 BOLT; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0710-	●	●	●		●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●		●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-1111	●	●		●	●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-	●	●		●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-	●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-		●	●		●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-				●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0710-0907	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-	●			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-		●	●		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-	●	●	●	●	●	●

22 48 22 22 483 22 483 570 22 16 48 48 48 570 48 16 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (K) L=140	5-09707-031-1	01	1	1401-		●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0710-0802	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0710-0802		●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0710-0802				●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0803-0803	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0803-0803		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0803-0803				●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0804-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0804-		●	●		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0804-				●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	0710-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	0710-					●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●	●	●	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (A) L=155	8-97173-307-0	14	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-				●		●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (F)	8-98052-679-0	02	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0710-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0710-0803	●	●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0804-	●	●		●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (J)	8-97101-436-0	01	1	0711-		●	●		●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	0710-					●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	0710-					●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	0804-0804		●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	0805-0809		●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	02	1	0805-0809		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	02	1	0810-0902		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0903-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0903-	●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0903-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0903-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (N) L=250	5-09707-030-1	01	1	0804-0804		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (N) L=250	5-09707-030-1	01	1	0805-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (N) L=250	5-09707-030-1	01	1	0903-1505		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) L=170.3	1-09987-182-0	01	1	0710-0711		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0712-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0711-0803		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804	●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804		●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-0803		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-1501		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-1501		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 (M) L=350	8-94152-256-1	02	1	0801-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 08.852 (M) L=350	8-94152-256-1	02	1	0903-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (L) ID=14-20	8-97061-603-0	01	1	0710-0711		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (L) ID=14-20	8-97061-603-0	02	1	0712-1505		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (L) ID=14-20	8-97061-603-0	01	1	1506-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) HYDRO BRAKE BOOSTER(7QQ) (I) ID=20	5-09700-321-0	01	1	0710-0711		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) HYDRO BRAKE BOOSTER(7QQ) 04.930 (J) ID=10 & 16.5	8-94360-745-0	01	1	0710-0710		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (K)	8-97037-154-0	01	1	0710-0710		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0710-0802	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0803-0803	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0803-0803					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0803-0803					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0804-0804	●	●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0804-0804					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0804-0804					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-	●	●	●		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0710-0802	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0803-0803	●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0804-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0710-0802	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0803-0803	●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0804-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0710-0803	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0710-0803	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0710-0803		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0804-	●			●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-		●	●		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-		●
48	02.559 CLIP; FRAME HARNESS 03.115 (C) T=9 & 10.5	8-97041-091-0	01	1	0710-0710	●			●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (C) T=9 & 10.5	8-97041-091-0	01	1	0710-0710		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802				●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803				●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804				●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (H) ID=10 & 16.5	8-94424-440-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0803-0803			●		●	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0804-0804						●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0710-0801		●	●
48	02.559 CLIP; FRAME HARNESS (I) T=6.0	5-09709-024-0	01	1	0710-0801					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0802-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0803-0803			●		●	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0804-0804						●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0803-0803			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0804-		●	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (K) L=450	1-09707-142-1	01	1	0804-		●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (K) L=450	1-09707-142-1	01	1	0804-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	0710-0803				●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	0804-				●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (E) L=350	8-94152-256-1	01	1	0804-					●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (G) ID=12	8-97329-630-0	01	1	1111-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (K) ID=19 L=60	0-95235-896-0	01	1	0907-		●	●		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.671 (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-		●	●		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-0803		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0804-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0710-0803		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0804-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0803		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0804-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	0710-0803		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.152 (E) L=36	8-94224-891-1	01	1	0804-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (H) ID=16.5 & 16.5	8-94468-380-0	02	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.483 (I)	8-97101-436-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=12	8-97329-630-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 04.785 (J) ID=12 L=70	1-09700-097-1	01	1	0804-		●	●		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) ID=24 L=24	1-09701-001-1	01	1	0804-		●	●		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	04	1	0804-		●	●		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	03	1	0911-1509					●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	03	1	1510-					●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0710-0903		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0904-0910		●			●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0911-1509		●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1510-		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=6.0	8-97371-948-0	01	1	0710-0804		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	0805-0903		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	0904-1509		●			●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	1510-		●			●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0801-0903		●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0904-		●			●

459 552 459 459 552 459 242 459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0710-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0710-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0710-1109	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0710-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0710-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0710-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0710-0907	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0908-	●			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98044-758-2	01	1	0908-		●	●		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0710-0907	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-	●			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-		●	●		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●	●	●	●	●

483 16 16 483 483 483 483 483 483 483 16 16 16 504 507 22 513 530 483 16 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (K) L=140	5-09707-031-1	01	1	1401-		●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0710-0802	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0710-0802		●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0710-0802				●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0803-0803	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0803-0803		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0803-0803				●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0804-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=20	8-94241-972-0	01	1	0804-		●	●		●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0804-				●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	0710-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	0710-					●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●	●	●	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (A) L=155	8-97173-307-0	14	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-				●		●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (F)	8-98052-679-0	02	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F)	8-98052-679-0	02	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	0710-	●	●	●		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0710-					●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0710-0803	●	●		●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	0804-	●	●		●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (J)	8-97101-436-0	01	1	0711-		●	●		●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	0710-					●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	0710-				●		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	0710-					●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	0804-0804		●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	0805-0809		●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	02	1	0805-0809		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	02	1	0810-0902		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0903-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0903-	●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0903-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0903-		●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (N) L=250	5-09707-030-1	01	1	0804-0804		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (N) L=250	5-09707-030-1	01	1	0805-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (N) L=250	5-09707-030-1	01	1	0903-1505		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) L=170.3	1-09987-182-0	01	1	0710-0711		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0712-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=170.3	1-09987-182-0	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0710	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0711-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0711-0803		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804	●	●		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0804-0804		●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0805-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0710-0803	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.446 (H) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-0803		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-1501		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-1501		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 (M) L=350	8-94152-256-1	02	1	0801-0902		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 08.852 (M) L=350	8-94152-256-1	02	1	0903-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (L) ID=14-20	8-97061-603-0	01	1	0710-0711		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (L) ID=14-20	8-97061-603-0	02	1	0712-1505		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (L) ID=14-20	8-97061-603-0	01	1	1506-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) HYDRO BRAKE BOOSTER(7QQ) (I) ID=20	5-09700-321-0	01	1	0710-0711		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) HYDRO BRAKE BOOSTER(7QQ) 04.930 (J) ID=10 & 16.5	8-94360-745-0	01	1	0710-0710		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (K)	8-97037-154-0	01	1	0710-0710		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0710-0802	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0803-0803	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0803-0803					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (F) T=5.5	8-97371-951-0	01	1	0803-0803					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0804-0804	●	●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0804-0804					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0804-0804					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-	●	●	●		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	0805-					●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0710-0802	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0803-0803	●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	0804-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0710-0802	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0803-0803	●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0804-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0710-0803	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0710-0803	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0710-0803		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0804-	●			●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-		●	●		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-		●
48	02.559 CLIP; FRAME HARNESS 03.115 (C) T=9 & 10.5	8-97041-091-0	01	1	0710-0710	●			●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (C) T=9 & 10.5	8-97041-091-0	01	1	0710-0710		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0710-0802				●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0803-0803				●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804	●			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0804-0804				●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	0805-		●	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (H) ID=10 & 16.5	8-94424-440-0	01	1	0710-		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805		●	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0803-0803			●		●	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (G) T=6.0	5-09709-012-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS (G) T=6.0	5-09709-012-0	01	1	0804-0804						●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0710-0801		●	●
48	02.559 CLIP; FRAME HARNESS (I) T=6.0	5-09709-024-0	01	1	0710-0801					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (I) T=6.0	5-09709-024-0	01	1	0802-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0710-0802					●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0803-0803			●		●	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 01.240 (J) T=5.5	5-09709-047-0	01	1	0804-0804		●	●		●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0804-0804						●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0710-0802		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0803-0803		●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0803-0803			●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (K) L=450	1-09707-142-1	01	1	0804-		●	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (K) L=450	1-09707-142-1	01	1	0804-		●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (K) L=450	1-09707-142-1	01	1	0804-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0712-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0801-0805		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●	●		●	●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	0710-0803				●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	0804-				●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (E) L=350	8-94152-256-1	01	1	0804-					●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (G) ID=12	8-97329-630-0	01	1	1111-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (K) ID=19 L=60	0-95235-896-0	01	1	0907-		●	●		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.671 (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-		●	●		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-0803		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 06.602 (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0804-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.001 (B) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) ID=24 L=24	1-09701-001-1	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0710-0803		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0804-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0803		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0804-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36	8-94224-891-1	01	1	0710-0803		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.152 (E) L=36	8-94224-891-1	01	1	0804-		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (H) ID=16.5 & 16.5	8-94468-380-0	02	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.483 (I)	8-97101-436-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=12	8-97329-630-0	01	1	0710-0801		●	●		●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 04.785 (J) ID=12 L=70	1-09700-097-1	01	1	0804-		●	●		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) ID=24 L=24	1-09701-001-1	01	1	0804-		●	●		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	04	1	0804-		●	●		●
504	02.559 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB)	8-98208-886-0	01	1	1201-	●	●		●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0711-0902	●	●	●	●	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0903-1301				●	●	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309	●	●	●	●	●	●
513	02.559 TAPE; SOFT,HARNESS MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 130X80	8-97304-373-0	01	1	0710-0807		●	●		●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 130X80	8-97304-373-0	01	1	0808-	●	●	●	●	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0710-	●	●	●	●	●	●

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (J)	8-98084-590-0	01	1	0710-0810	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0811-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0710-0805	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (D)	8-98074-502-0	01	1	0710-0906	●	●	●		●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (D)	8-98074-502-0	01	1	0907-	●	●	●		●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0710-0802	●			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0803-0803	●			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	0804-	●			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	0804-		●	●		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-0802					●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0803-0803			●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	0804-		●	●		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0710-0802					●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0803-0803			●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0804-		●	●		●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0804-						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0710-0802		●	●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0710-0802					●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0803-0803		●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0803-0803			●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0804-0809		●	●		●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0804-0809						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (L)	8-98094-629-0	01	1	0810-1303		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	0810-1303			●		●
53	02.483 BRACKET; HARNESS (L)	8-98094-629-0	01	1	0810-1303						●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (L)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1304-			●		●
53	02.483 BRACKET; HARNESS (L)	8-98130-669-1	01	1	1304-						●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F)	8-98052-804-0	01	1	0710-		●	●		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E)	8-98055-636-0	01	1	0710-0803		●	●		●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.559 (E)	8-98055-636-0	01	1	0804-		●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
