◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51157 - NN/NP/NQR-R EXC.EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#54874) — 127 parça
çizim 155977
1 4 20 20 23 457 382 5 5 408 420 420 256 82 292 83 80 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD 8-97585-165-3 01 1 0710-0710 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98095-403-0 01 1 0710-0710 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98098-480-1 01 1 0711-1208 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-600-0 01 1 1209-1301 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-641-0 01 1 1302-1305 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-326-0 01 1 1306- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97585-164-3 01 1 0710-0710 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98095-402-0 01 1 0710-0710 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98098-479-1 01 1 0711-1208 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-599-0 01 1 1209-1301 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-640-0 01 1 1302-1305 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-325-0 01 1 1306- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98051-401-0 01 1 0710-1301 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98226-183-0 01 1 1302- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98051-400-0 01 1 0710-1301 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98226-182-0 01 1 1302- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0710- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0710- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 0710- ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0710- ● ● ● ● ● ●
80 08.991 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 24V 5W 		8-94135-397-0 02 1 0710- ● ● ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0710- ● ●
82 02.587 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 0710- ● ● ● ●
82 02.587 SCREW; MARKER LAMP 1-82219-011-0 04 1 0710- ● ●
83 02.589 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		8-98057-958-0 02 1 0710- ● ● ● ●
83 02.589 LENS; MARKER LAMP 8-98057-958-0 02 1 0710- ● ●
86 02.587 NUT; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0710- ● ● ● ●
86 02.587 NUT; MARKER LAMP
01.062 M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-597-4 01 1 0710- ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-597-4 01 1 0710- ● ●
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-596-4 01 1 0710- ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-596-4 01 1 0710- ● ●
292 02.587 WASHER; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 0710- ● ● ● ●
292 02.587 WASHER; MARKER LAMP 1-82219-012-0 04 1 0710- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0710-1208 ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209- ● ● ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0710- ● ● ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP
(A) 		8-97378-875-0 02 1 0710-1301 ● ● ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP
(B) 		8-98218-601-0 02 1 1302- ● ● ● ● ● ●
457 16.450 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ● ● ● ● ●

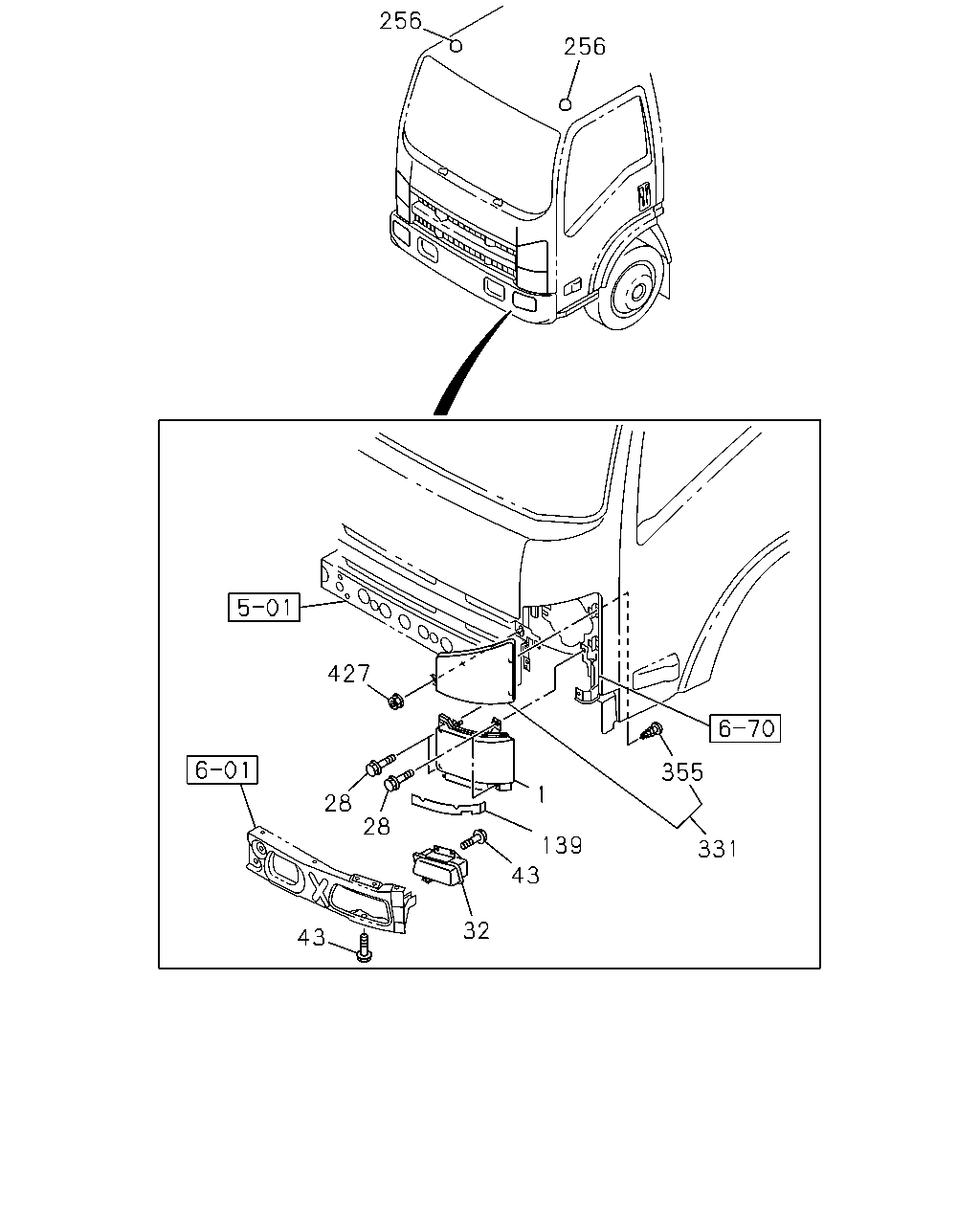

çizim 155987
256 256 427 355 1 28 28 139 331 43 32 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD 8-97585-165-3 01 1 0710-0710 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98095-403-0 01 1 0710-0710 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98098-480-1 01 1 0711-1208 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-600-0 01 1 1209-1301 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-641-0 01 1 1302-1305 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-326-0 01 1 1306- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97585-164-3 01 1 0710-0710 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98095-402-0 01 1 0710-0710 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98098-479-1 01 1 0711-1208 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-599-0 01 1 1209-1301 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98225-640-0 01 1 1302-1305 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98241-325-0 01 1 1306- ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0710-1005 ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0710-0909 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0910-1301 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0710-0909 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0910-1301 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302- ● ● ● ● ● ●
43 02.736 BOLT; FOG LAMP
FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0710- ● ● ● ● ● ●
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 0710- ● ● ● ● ● ●
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-597-4 01 1 0710- ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-597-4 01 1 0710- ● ●
256 02.589 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-97587-596-4 01 1 0710- ● ● ● ●
256 02.589 LAMP; MARKER 8-97587-596-4 01 1 0710- ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0710-0911 ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0710-0911 ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ● ● ● ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0710- ● ● ● ● ● ●
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710- ● ● ● ● ● ●
çizim 155995
331 431 357 399 355 432 32 47 49 15 36 421 448 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0710- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0710-0909 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0910-1301 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0710-0909 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0910-1301 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302- ● ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0710- ● ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0710- ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 0910- ● ● ● ● ● ●
47 02.737 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 0910- ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 0710- ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 0710- ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0710-0911 ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0710-0911 ● ● ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ● ● ● ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0710- ● ● ● ● ● ●
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0710- ● ● ● ● ● ●
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0710- ● ● ● ● ● ●
421 02.593 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 02.596 		8-97025-128-0 02 1 0710-0909 ● ● ● ● ● ●
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0710- ● ● ● ● ● ●
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0710- ● ● ● ● ● ●
448 02.727 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0910- ● ● ● ● ● ●

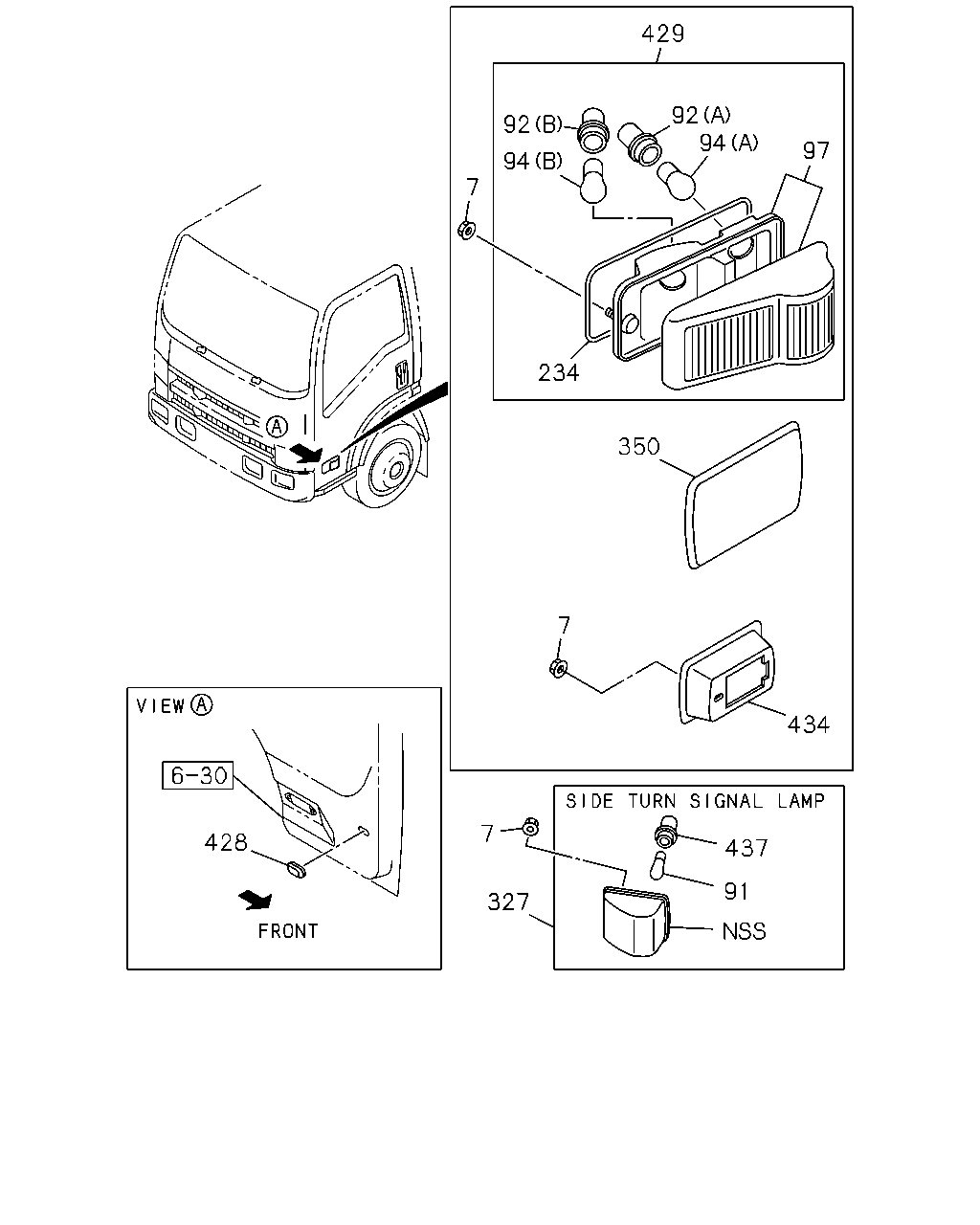

çizim 156010
429 92 94 92 97 94 7 234 350 7 434 7 428 437 91 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710- ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 24V 21W 		8-98051-495-0 02 1 0710- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0710- ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> 02.575 (B) 		8-97172-959-0 02 1 0710- ● ● ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 		8-98051-390-0 02 1 0710- ● ● ● ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W 		8-98051-495-0 02 1 0710- ● ● ● ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W 		8-98051-496-0 02 1 0710- ● ● ● ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-420-0 01 1 0710- ● ● ● ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-419-0 01 1 0710- ● ● ● ●
234 02.590 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> 		8-98051-432-0 02 1 0710- ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-181-3 01 1 0710- ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0710- ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-180-4 01 1 0710- ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0710- ● ●
350 02.596 COVER; SIDE TURN HOLE
AUSTRALIA EQUIPMENT(B13) 		8-98061-390-0 02 1 0710-1509 ● ● ●
350 02.596 COVER; SIDE TURN HOLE
AUSTRALIA EQUIPMENT(B13) EXC. CORNERING LAMP<T87> 		8-98061-390-0 02 1 1510- ● ● ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 0710- ● ● ● ● ● ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-777-2 01 1 0710- ● ● ● ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-776-2 01 1 0710- ● ● ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-816-0 01 1 0710-0711 ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(B13) 		8-98064-816-0 01 1 0710-0711 ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(B13) 		8-98064-816-0 01 1 0712-0712 ● ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-816-0 01 1 0801- ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(B13) 		8-98064-816-0 01 1 0801- ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-815-0 01 1 0710-0711 ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(B13) 		8-98064-815-0 01 1 0710-0711 ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(B13) 		8-98064-815-0 01 1 0712-0712 ● ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL 8-98064-815-0 01 1 0801- ● ●
434 02.585 BASE; LAMP,SIDE TURN SIGNAL
AUSTRALIA EQUIPMENT(B13) 		8-98064-815-0 01 1 0801- ●
437 02.596 SOCKET; SIDE,TURN
EXC. CORNERING LAMP<T87> 		8-98051-390-0 02 1 0710- ● ● ● ●
437 02.596 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0710- ● ●
