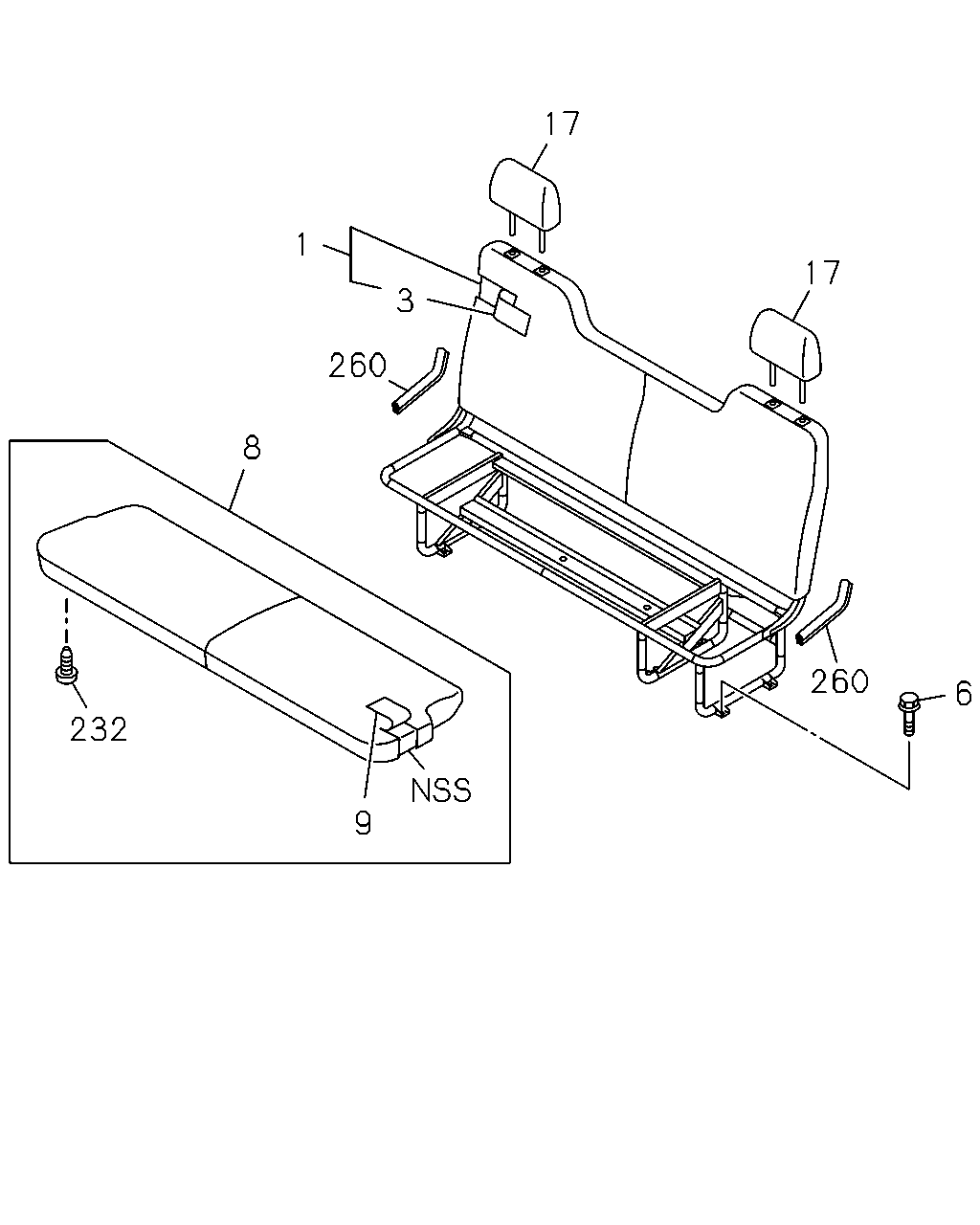

7-55 — REAR SEAT (#54872) — 28 parça

17 1 17 3 260 8 260 6 232 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.720 BACK ASM; RR SEAT DARK GRAY	8-97409-436-3	01	1	0710-1009	●	●
1	16.720 BACK ASM; RR SEAT SEAT CLOTH<7FL> DARK GRAY	8-97409-436-3	01	1	0710-1009			●
1	16.720 BACK ASM; RR SEAT DARK GRAY	8-97421-358-0	01	1	1010-	●	●
1	16.720 BACK ASM; RR SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-358-0	01	1	1010-			●
1	16.720 BACK ASM; RR SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-433-1	01	1	0710-			●
3	16.714 COVER; TRIM,RR SEAT BACK DARK GRAY	8-97411-865-2	01	1	0710-1009	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL> DARK GRAY	8-97411-865-2	01	1	0710-1009			●
3	16.714 COVER; TRIM,RR SEAT BACK DARK GRAY	8-97421-369-0	01	1	1010-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-369-0	01	1	1010-			●
3	16.714 COVER; TRIM,RR SEAT BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-867-1	01	1	0710-			●
6	16.679 BOLT; RR SEAT M8X25 W/WASHER	0-51640-825-0	06	1	0710-	●	●	●
8	16.715 CUSHION ASM; RR SEAT DARK GRAY	8-97409-437-4	01	1	0710-1009	●	●
8	16.715 CUSHION ASM; RR SEAT SEAT CLOTH<7FL> DARK GRAY	8-97409-437-4	01	1	0710-1009			●
8	16.715 CUSHION ASM; RR SEAT DARK GRAY	8-97421-364-0	01	1	1010-	●	●
8	16.715 CUSHION ASM; RR SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-364-0	01	1	1010-			●
8	16.715 CUSHION ASM; RR SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-440-2	01	1	0710-			●
9	16.717 COVER ASM; TRIM,RR,CUSHION DARK GRAY	8-97411-866-1	01	1	0710-1009	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97411-866-1	01	1	0710-1009			●
9	16.717 COVER ASM; TRIM,RR,CUSHION DARK GRAY	8-97421-372-0	01	1	1010-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-372-0	01	1	1010-			●
9	16.717 COVER ASM; TRIM,RR,CUSHION EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-868-0	01	1	0710-			●
17	16.718 REST; HD,RR SEAT DARK GRAY	8-97409-448-1	02	1	0710-1009	●	●
17	16.718 REST; HD,RR SEAT SEAT CLOTH<7FL> DARK GRAY	8-97409-448-1	02	1	0710-1009			●
17	16.718 REST; HD,RR SEAT DARK GRAY	8-97421-366-0	02	1	1010-	●	●
17	16.718 REST; HD,RR SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-366-0	02	1	1010-			●
17	16.718 REST; HD,RR SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97409-447-0	02	1	0710-			●
232	16.680 SCREW; RR SEAT 05.812 M6X16 CK-HEAD	9-03090-616-0	12	1	0710-	●	●	●
260	16.715 FINISHER; RR SEAT 03.417 L=250 SERVICED BY L=314	8-94262-845-0	02	1	0710-	●	●	●
