7-30 — LOCK CYLINDER SET (#54866) — 327 parça

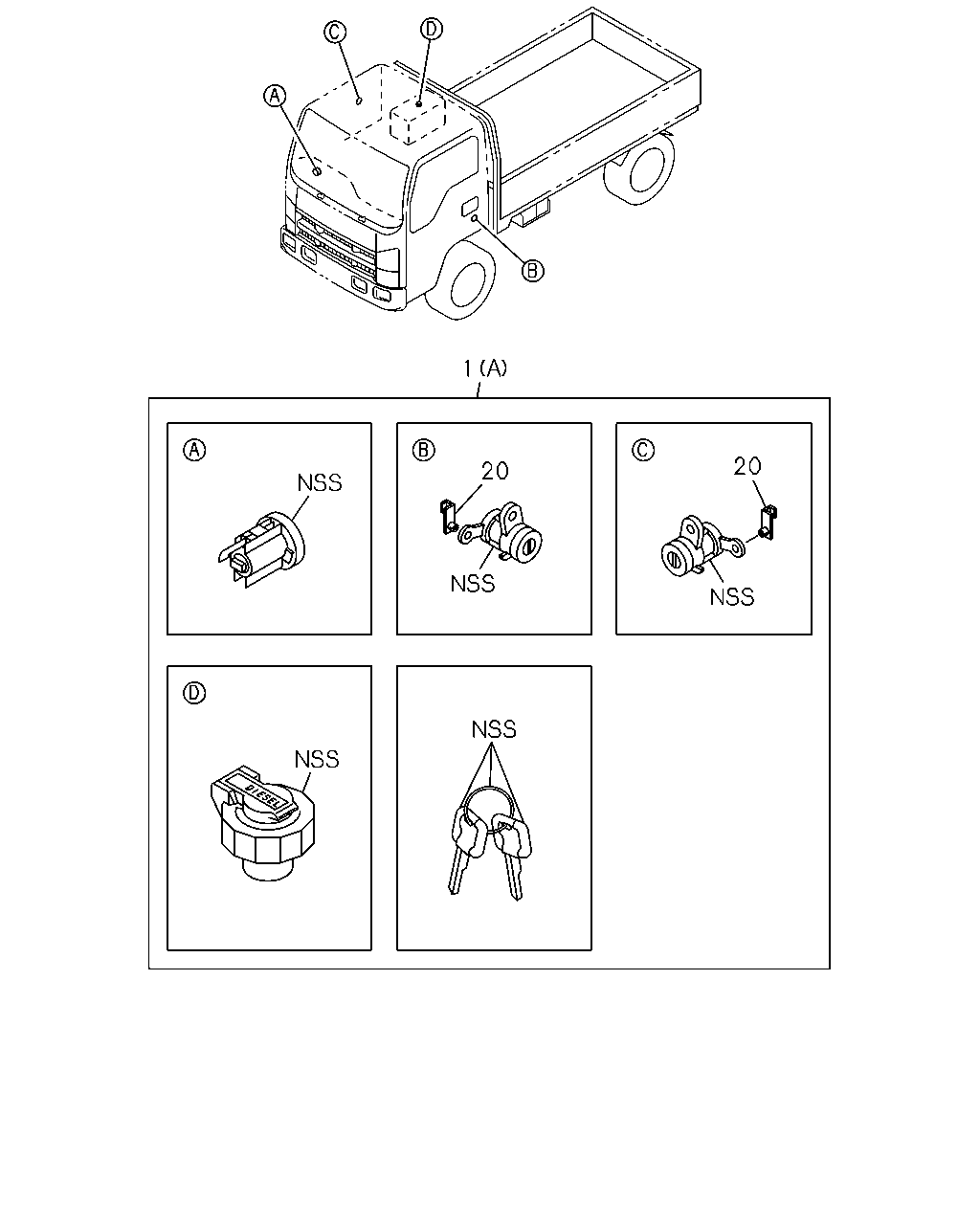

çizim 155956
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (C) 		8-98041-685-2 01 1 0907-0908 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98064-874-0 01 1 0710-0802 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98064-874-0 01 1 0803-0804 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98088-954-0 01 1 0805-0912 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98145-979-0 01 1 1001-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-216-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98115-300-0 01 1 0803-0912 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98146-009-0 01 1 1001-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98201-230-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98031-807-1 01 1 0803-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98201-158-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98056-003-0 01 1 0710-0802 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98056-003-0 01 1 0803-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-161-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98029-406-1 01 1 0710-0804 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98029-406-1 01 1 0710-0804 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98088-949-0 01 1 0805-0912 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98088-949-0 01 1 0805-0912 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98145-977-0 01 1 1001-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98145-977-0 01 1 1001-1203 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98201-214-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98201-214-0 01 1 1204- ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05> (A) 		8-98041-686-1 01 1 0710-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05> (A) 		8-98201-160-0 01 1 1204- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-181-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0909- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-182-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0909- ● ● ● ● ● ●

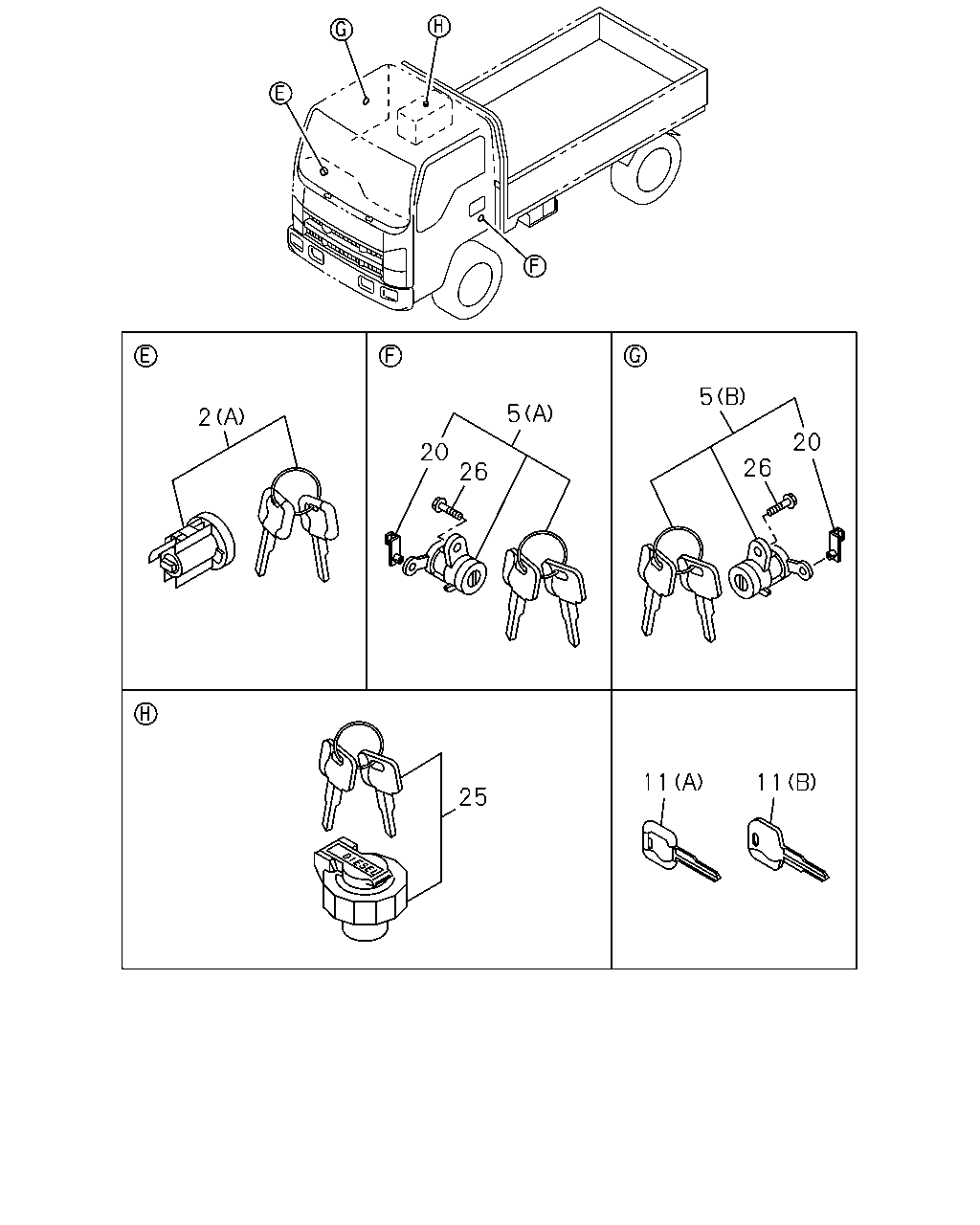

çizim 155957
5 5 2 20 20 26 26 11 11 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-160-0 01 1 0803-1203 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98201-352-0 01 1 1204- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (C) 		8-98055-146-0 01 1 0907-0908 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-147-0 01 1 0710-1203 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
(A) 		8-98055-147-0 01 1 0710-1203 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98201-341-0 01 1 1204- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
(A) 		8-98201-341-0 01 1 1204- ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0710-0802 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0803-0908 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0909-1203 ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0909-1203 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-342-0 01 1 1204- ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-342-0 01 1 1204- ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 0803- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 0803- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0710-0802 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0803-0906 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0907-0908 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0907-0908 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0909- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0909- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0710-0802 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0803-0906 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0907-0908 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0907-0908 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0909- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0909- ● ● ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (C) 		8-98055-169-0 AR 1 0907-0908 ●
11 02.187 KEY; BLANK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-171-0 AR 1 0803- ● ● ● ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0710-0802 ● ● ● ● ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0803-0906 ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0803-0906 ● ● ● ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0803-0906 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0907-0908 ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0907-0908 ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0907-0908 ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0907-0908 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0909- ● ● ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0909- ● ● ● ● ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0710-0906 ● ● ● ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0710-0906 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0907-0908 ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0907-0908 ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0907-0908 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0909- ● ● ● ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0909- ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-181-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0909- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-182-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0909- ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> 		8-98088-980-0 01 1 0803-0912 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> 		8-98146-014-0 01 1 1001- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98033-157-0 01 1 0710-0802 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98033-157-0 01 1 0710-0802 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98033-157-0 01 1 0803-0804 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98033-157-0 01 1 0803-0804 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98033-157-0 01 1 0803-0804 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98088-982-0 01 1 0805-0912 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98088-982-0 01 1 0805-0912 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98088-982-0 01 1 0805-0912 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98146-010-0 01 1 1001- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98146-010-0 01 1 1001- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1001- ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0710- ● ● ● ● ● ●
çizim 155958
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (C) 		8-98041-685-2 01 1 0907-0908 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98064-874-0 01 1 0710-0802 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98064-874-0 01 1 0803-0804 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98088-954-0 01 1 0805-0912 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98145-979-0 01 1 1001-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-216-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98115-300-0 01 1 0803-0912 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98146-009-0 01 1 1001-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98201-230-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98031-807-1 01 1 0803-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98201-158-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98056-003-0 01 1 0710-0802 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98056-003-0 01 1 0803-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-161-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98029-406-1 01 1 0710-0804 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98029-406-1 01 1 0710-0804 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98088-949-0 01 1 0805-0912 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98088-949-0 01 1 0805-0912 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98145-977-0 01 1 1001-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98145-977-0 01 1 1001-1203 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98201-214-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98201-214-0 01 1 1204- ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05> (A) 		8-98041-686-1 01 1 0710-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05> (A) 		8-98201-160-0 01 1 1204- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-181-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0909- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-182-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0909- ● ● ● ● ● ●

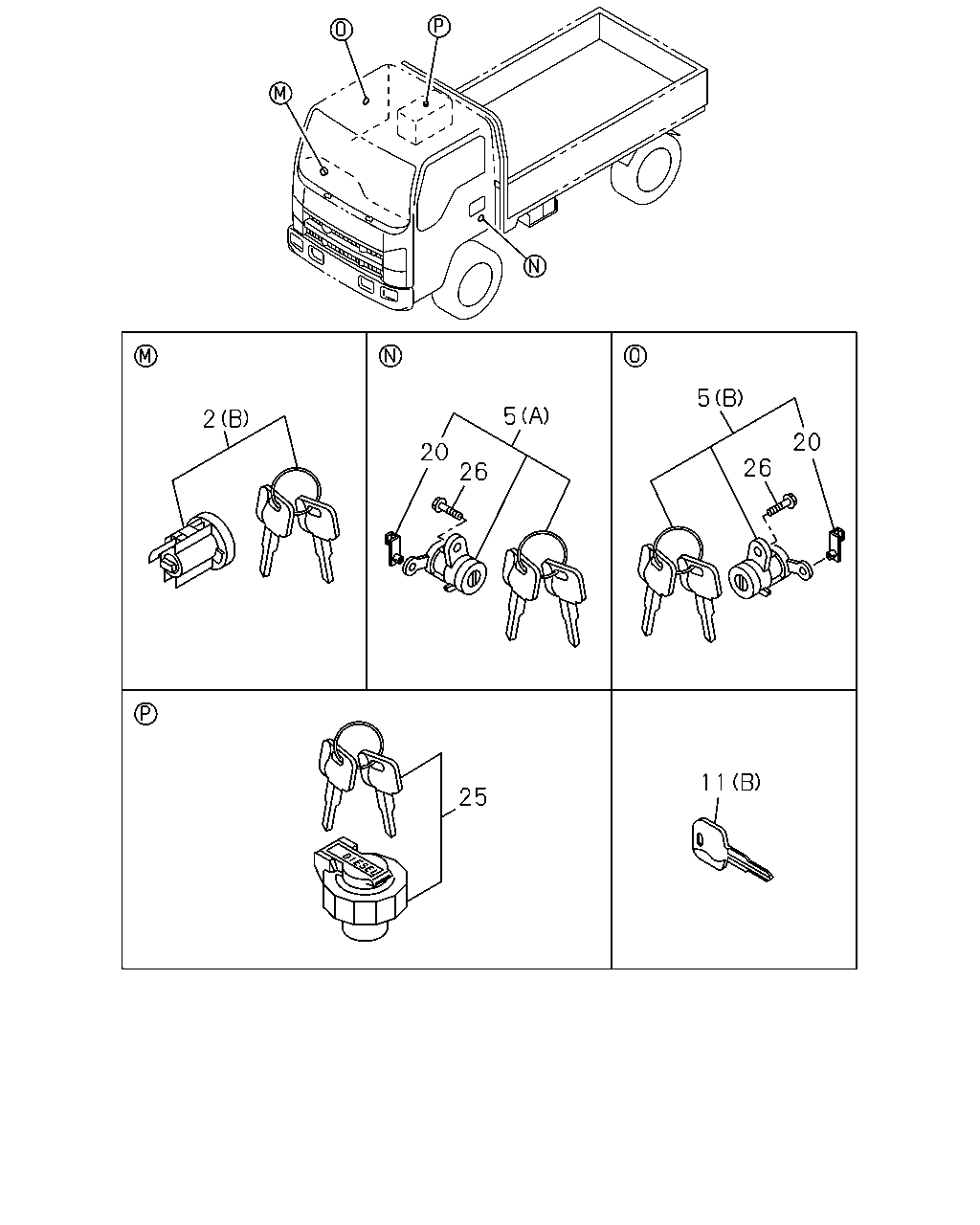

çizim 155959
5 5 2 20 20 26 26 11 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-160-0 01 1 0803-1203 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98201-352-0 01 1 1204- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (C) 		8-98055-146-0 01 1 0907-0908 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-147-0 01 1 0710-1203 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
(A) 		8-98055-147-0 01 1 0710-1203 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98201-341-0 01 1 1204- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
(A) 		8-98201-341-0 01 1 1204- ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0710-0802 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0803-0908 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0909-1203 ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0909-1203 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-342-0 01 1 1204- ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-342-0 01 1 1204- ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 0803- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 0803- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0710-0802 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0803-0906 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0907-0908 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0907-0908 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0909- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0909- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0710-0802 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0803-0906 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0907-0908 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0907-0908 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0909- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0909- ● ● ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (C) 		8-98055-169-0 AR 1 0907-0908 ●
11 02.187 KEY; BLANK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-171-0 AR 1 0803- ● ● ● ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0710-0802 ● ● ● ● ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0803-0906 ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0803-0906 ● ● ● ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0803-0906 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0907-0908 ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0907-0908 ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0907-0908 ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0907-0908 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0909- ● ● ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0909- ● ● ● ● ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0710-0906 ● ● ● ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0710-0906 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0907-0908 ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0907-0908 ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0907-0908 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0909- ● ● ● ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0909- ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-181-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0909- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-182-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0909- ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> 		8-98088-980-0 01 1 0803-0912 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> 		8-98146-014-0 01 1 1001- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98033-157-0 01 1 0710-0802 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98033-157-0 01 1 0710-0802 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98033-157-0 01 1 0803-0804 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98033-157-0 01 1 0803-0804 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98033-157-0 01 1 0803-0804 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98088-982-0 01 1 0805-0912 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98088-982-0 01 1 0805-0912 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98088-982-0 01 1 0805-0912 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98146-010-0 01 1 1001- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98146-010-0 01 1 1001- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1001- ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0710- ● ● ● ● ● ●

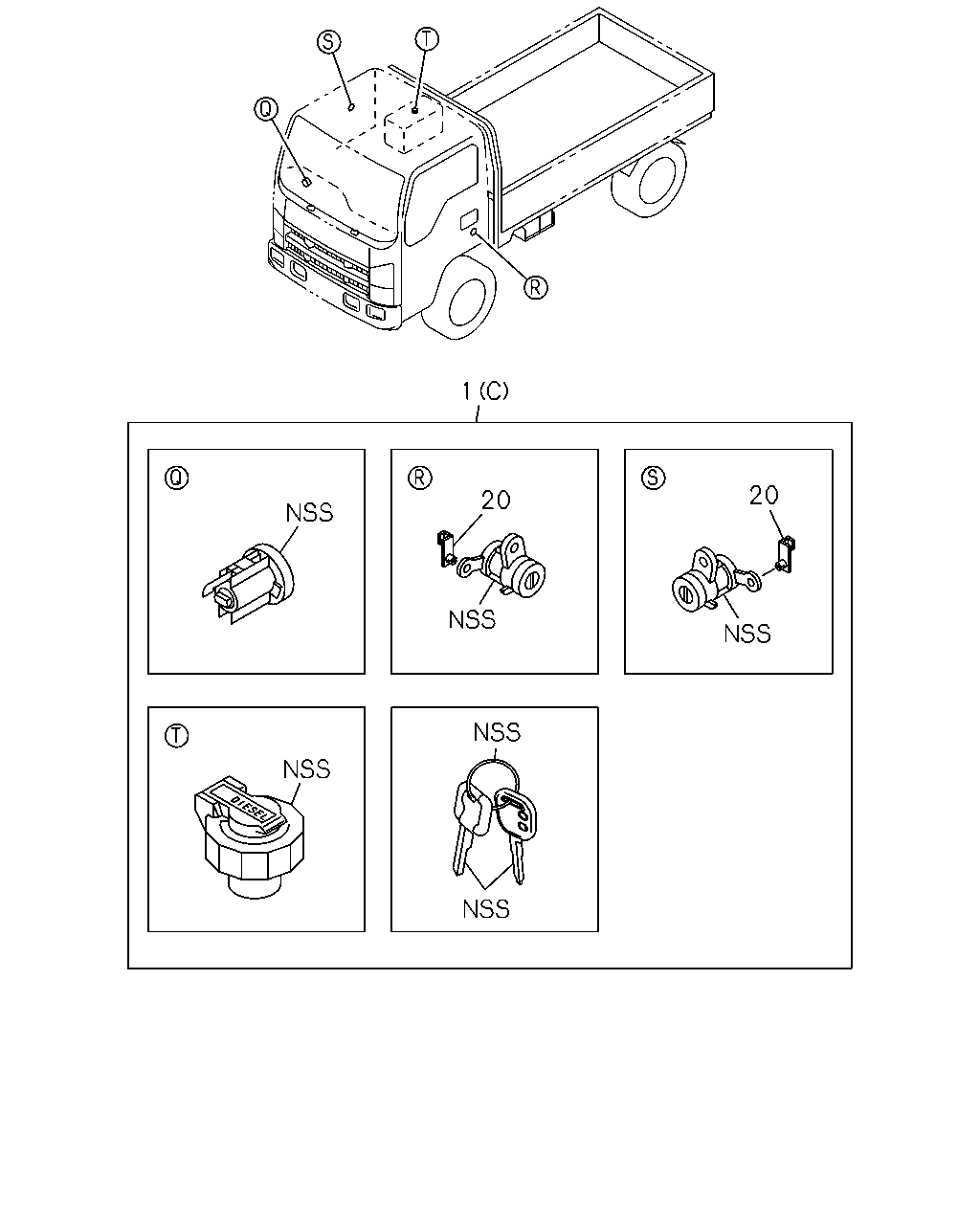

çizim 156365
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (C) 		8-98041-685-2 01 1 0907-0908 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98064-874-0 01 1 0710-0802 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98064-874-0 01 1 0803-0804 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98088-954-0 01 1 0805-0912 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98145-979-0 01 1 1001-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-216-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98115-300-0 01 1 0803-0912 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98146-009-0 01 1 1001-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98201-230-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98031-807-1 01 1 0803-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98201-158-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98056-003-0 01 1 0710-0802 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98056-003-0 01 1 0803-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-161-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98029-406-1 01 1 0710-0804 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98029-406-1 01 1 0710-0804 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98088-949-0 01 1 0805-0912 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98088-949-0 01 1 0805-0912 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98145-977-0 01 1 1001-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98145-977-0 01 1 1001-1203 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) (A) 		8-98201-214-0 01 1 1204- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
(A) 		8-98201-214-0 01 1 1204- ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05> (A) 		8-98041-686-1 01 1 0710-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM(7KC) EXC. FUEL TANK CAP W/LOCK<N05> (A) 		8-98201-160-0 01 1 1204- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-181-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0909- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-182-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0909- ● ● ● ● ● ●

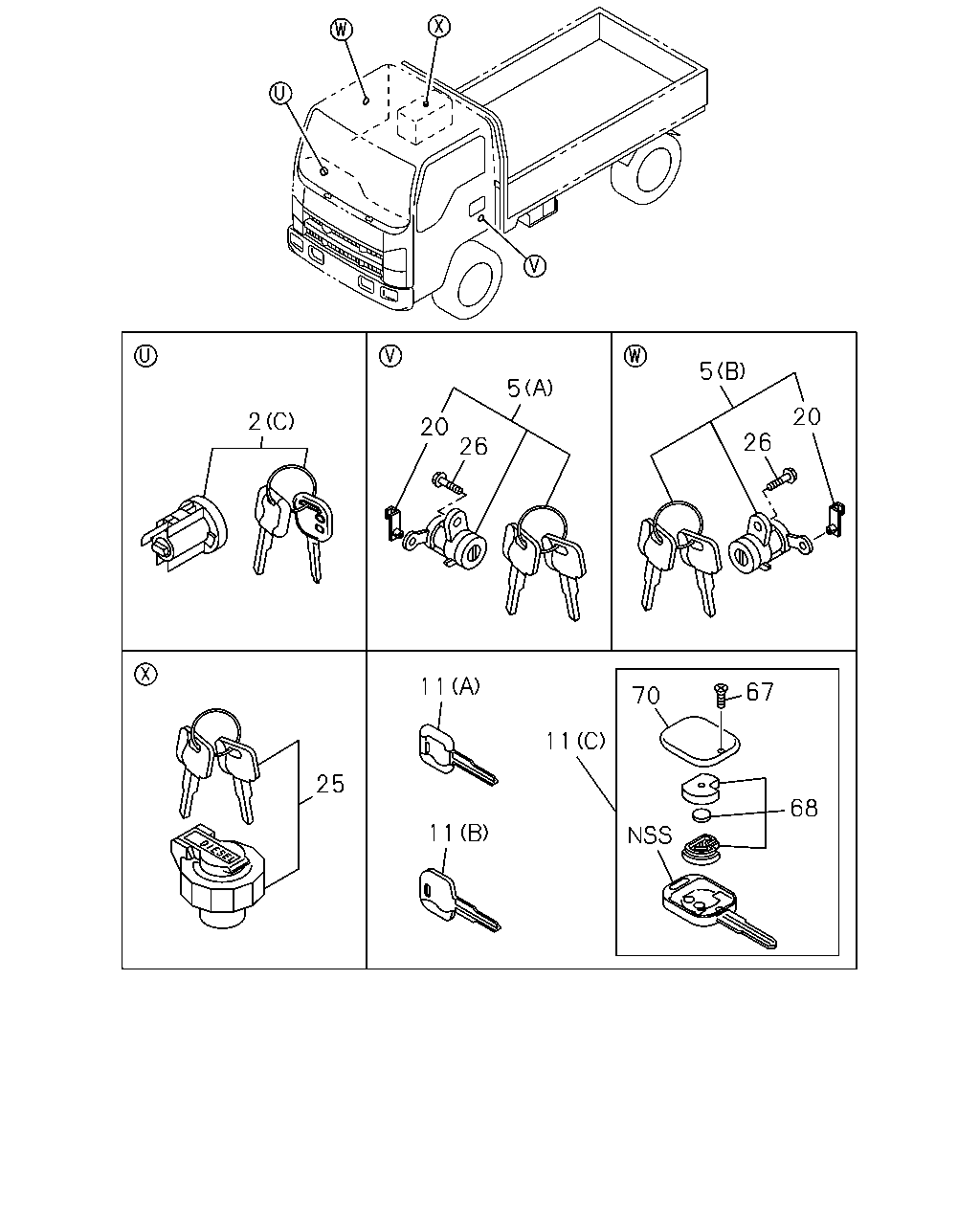

çizim 156386
68 67 70 11 11 11 25 2 20 26 5 5 26 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-160-0 01 1 0803-1203 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98201-352-0 01 1 1204- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (C) 		8-98055-146-0 01 1 0907-0908 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-147-0 01 1 0710-1203 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
(A) 		8-98055-147-0 01 1 0710-1203 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98201-341-0 01 1 1204- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
(A) 		8-98201-341-0 01 1 1204- ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0710-0802 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0803-0908 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0909-1203 ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-148-0 01 1 0909-1203 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-342-0 01 1 1204- ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98201-342-0 01 1 1204- ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 0803- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 0803- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0710-0802 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0803-0906 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0907-0908 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0907-0908 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0909- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A) 		8-98055-150-0 01 1 0909- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0710-0802 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0803-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0803-0906 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0907-0908 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0907-0908 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0907-0908 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0909- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-149-0 01 1 0909- ● ● ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (C) 		8-98055-169-0 AR 1 0907-0908 ●
11 02.187 KEY; BLANK
EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B) 		8-98055-171-0 AR 1 0803- ● ● ● ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0710-0802 ● ● ● ● ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0803-0906 ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0803-0906 ● ● ● ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0803-0906 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0907-0908 ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0907-0908 ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0907-0908 ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0907-0908 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0909- ● ● ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B) 		8-98055-170-0 AR 1 0909- ● ● ● ● ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0710-0906 ● ● ● ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0710-0906 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0907-0908 ● ● ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0907-0908 ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0907-0908 ● ●
11 02.187 KEY; BLANK
IMMOBILIZER SYSTEM(7KC) (A) IMMOBILIZER 		8-98055-168-0 AR 1 0909- ● ● ● ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0909- ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-181-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0909- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710-0906 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0907-0908 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98055-182-0 01 1 0907-0908 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0909- ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> 		8-98088-980-0 01 1 0803-0912 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> 		8-98146-014-0 01 1 1001- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98033-157-0 01 1 0710-0802 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98033-157-0 01 1 0710-0802 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98033-157-0 01 1 0803-0804 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98033-157-0 01 1 0803-0804 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98033-157-0 01 1 0803-0804 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98088-982-0 01 1 0805-0912 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98088-982-0 01 1 0805-0912 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98088-982-0 01 1 0805-0912 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) 		8-98146-010-0 01 1 1001- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98146-010-0 01 1 1001- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1001- ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0710- ● ● ● ● ● ●
67 16.328 SCREW; CASE,KEY
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98066-948-0 01 1 0907-0908 ●
68 02.440 TRANSMITTER; DOOR LOCK
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98039-493-0 01 1 0907-0908 ●
70 16.165 COVER; CASE,KEY
REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC) 		8-98233-285-0 01 1 0907-0908 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
