7-20 — MIRROR AND MIRROR STAY (#54865) — 260 parça

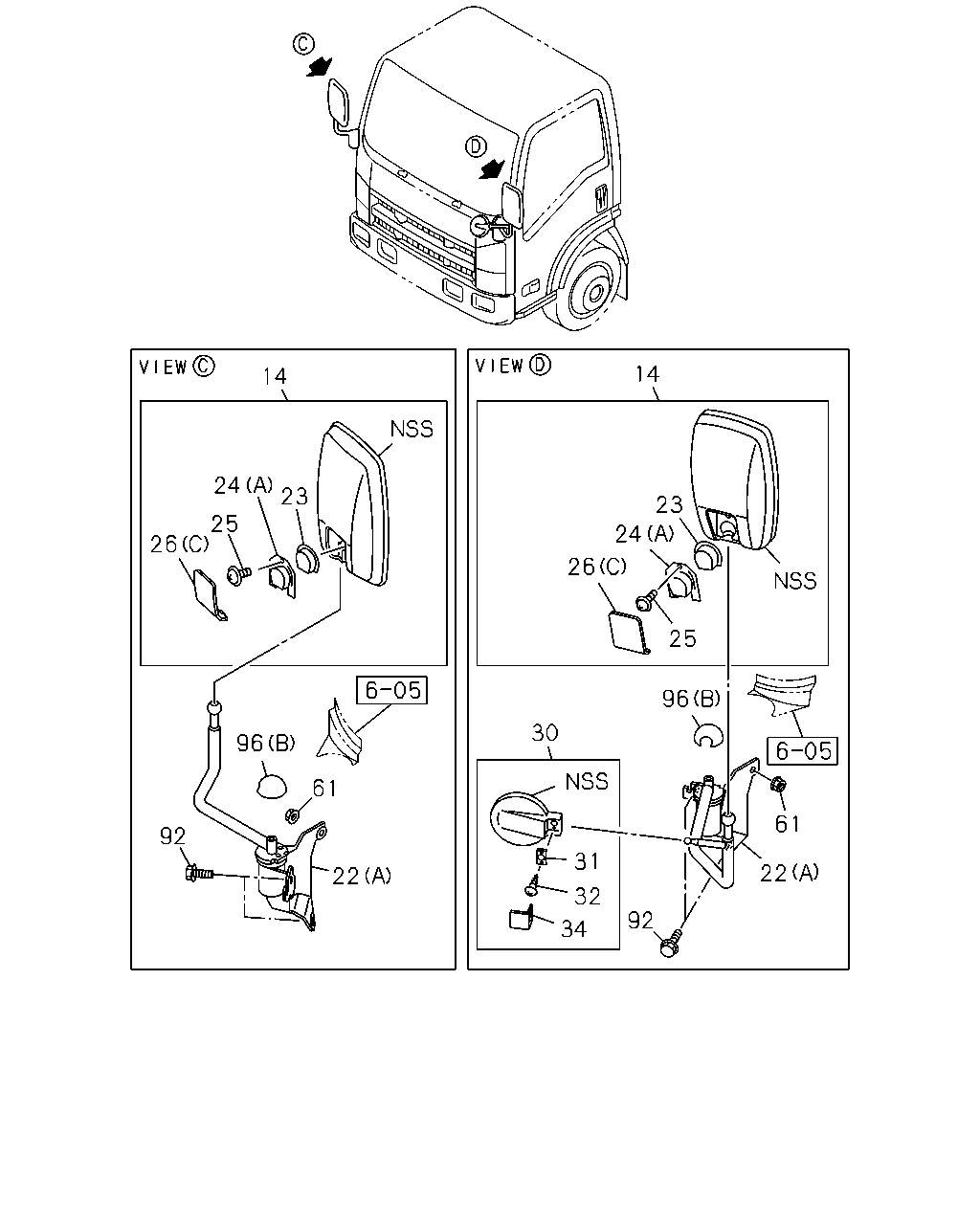

çizim 155952
14 14 24 23 23 25 26 24 26 25 96 30 96 61 61 92 31 22 32 92 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-542-3 01 1 0710-0905 ● ● ● ● ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-542-3 01 1 0710-0905 ● ● ● ● ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-542-3 01 1 0906- ● ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-542-3 01 1 0906- ● ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-542-3 01 1 0906- ● ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-542-3 01 1 0906- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (A) 		8-98147-079-0 01 1 0906- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (A) 		8-98147-082-0 01 1 0906- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> (A) 		8-98147-080-0 01 1 0906- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 		8-98038-224-1 01 1 0710- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (A) 		8-98070-509-0 01 1 0710- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 		8-98027-519-0 01 1 0710- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-033-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-033-0 01 1 0710-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-032-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-032-0 01 1 0710-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-035-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-035-0 01 1 0710-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-042-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-042-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-034-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-034-0 01 1 0710-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-041-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-041-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98075-049-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98075-049-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-185-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-185-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98075-048-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98075-048-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-184-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-184-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-047-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-047-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-183-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-183-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-046-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-046-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-182-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-182-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-040-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-040-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-039-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-039-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-511-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-847-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-510-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-846-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-031-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-177-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-030-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-176-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-038-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-179-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-037-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-178-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-515-1 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98166-181-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-514-1 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98166-180-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-045-1 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98188-202-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-044-1 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98188-201-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-513-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-849-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-512-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-848-0 01 1 1203- ● ● ● ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0 		8-94262-545-0 01 1 0710-0905 ● ● ● ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0 		8-94262-545-0 01 1 0710-0905 ● ● ● ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0 		8-94262-545-0 01 1 0906- ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0 		8-94262-545-0 01 1 0906- ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.0 		8-94262-545-0 01 1 0906- ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> T=2.0 		8-94262-545-0 01 1 0906- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-94447-536-0 02 1 0901- ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 0710-0905 ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 0710-0905 ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 0906- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 0906- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (A) T=1.6 		8-94262-546-1 01 1 0906- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (A) T=1.6 		8-94262-546-1 01 1 0906- ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30 		8-94279-365-0 01 1 0710-0905 ● ● ● ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30 		8-94279-365-0 01 1 0710-0905 ● ● ● ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30 		8-94279-365-0 01 1 0906- ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30 		8-94279-365-0 01 1 0906- ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M6X30 		8-94279-365-0 01 1 0906- ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M6X30 		8-94279-365-0 01 1 0906- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 0710-0905 ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 0710-0905 ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 0906- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 0906- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (C) T=2.3 		8-94262-547-2 01 1 0906- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (C) T=2.3 		8-94262-547-2 01 1 0906- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0710- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0710- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0710- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0710- ● ● ● ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-625-2 01 1 0710-0905 ● ● ● ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-625-2 01 1 0906- ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-625-2 01 1 0906- ● ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-631-0 01 1 0710-0905 ● ● ● ● ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-631-0 01 1 0906- ● ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-631-0 01 1 0906- ● ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M5X18 		8-94279-372-0 02 1 0710-0905 ● ● ● ● ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M5X18 		8-94279-372-0 02 1 0906- ● ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M5X18 		8-94279-372-0 02 1 0906- ● ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-629-0 01 1 0710-0905 ● ● ● ● ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-629-0 01 1 0906- ● ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-629-0 01 1 0906- ● ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0905 ● ● ● ● ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0906- ● ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0906- ● ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0710-0905 ● ● ● ● ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0906- ● ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0906- ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-552-2 02 1 0710-0905 ● ● ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-552-2 02 1 0906- ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98027-552-2 02 1 0906- ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 0710- ● ● ● ● ● ●

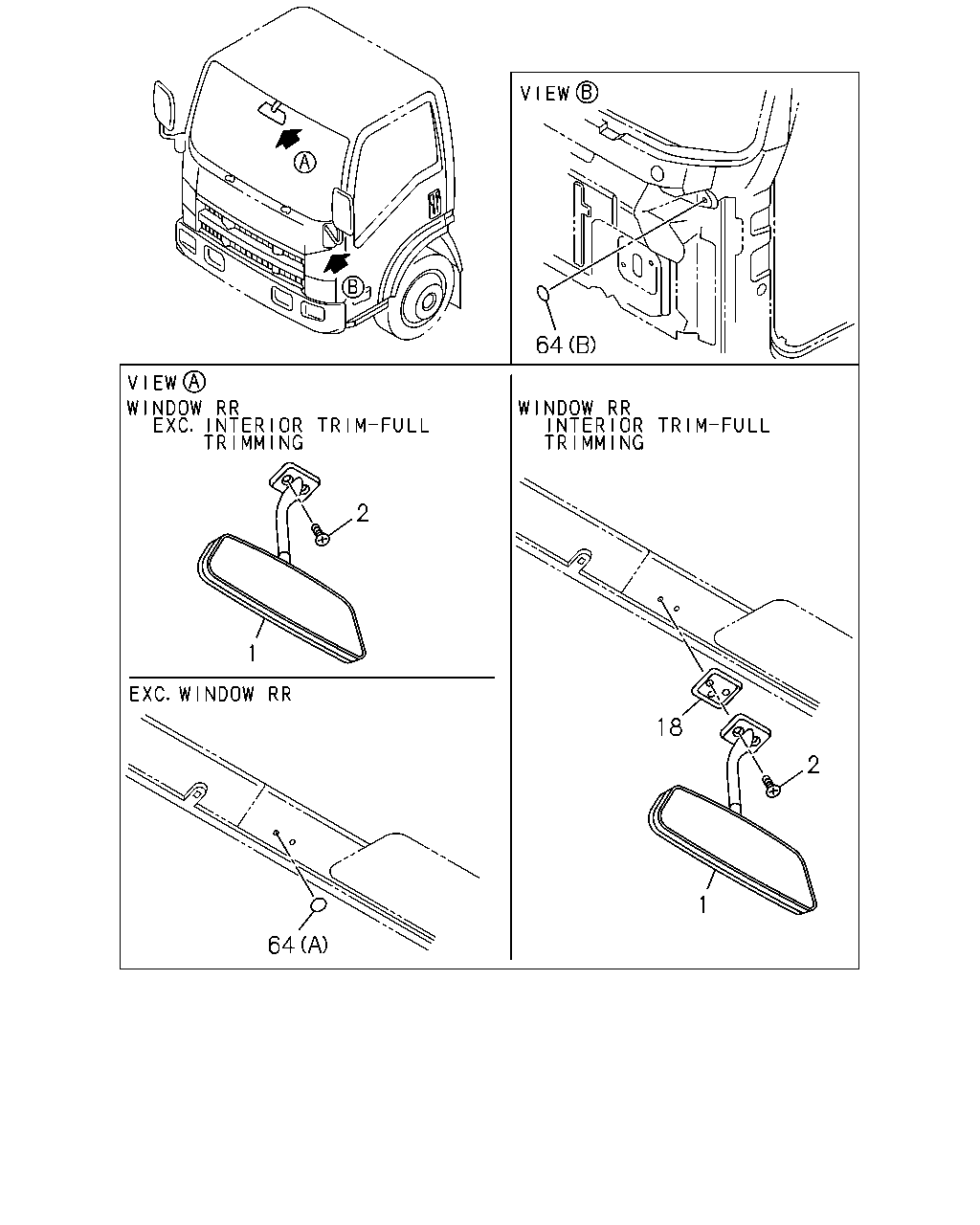

çizim 155953
64 2 1 18 2 1 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-97405-193-1 01 1 0710-0802 ● ● ●
1 16.068 MIRROR; ROOM
4JJ1-TCS ENG(LFB) DARK GRAY 		8-97405-193-1 01 1 0710-0802 ●
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 0803- ● ● ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0803- ● ● ●
1 16.068 MIRROR; ROOM
4HK1-TCN ENG(RDQ) DARK GRAY 		8-97414-309-0 01 1 0710-0802 ●
1 16.068 MIRROR; ROOM
4HK1-TCS ENG(RJS) DARK GRAY 		8-97414-309-0 01 1 0710-0802 ●
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 0710- ● ● ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 0710- ● ● ●
18 16.069 CLIP; MIRROR
INTERIOR TRIM-FULL TRIMMING<WM3> WINDOW RR<8LF> DARK GRAY 		8-97408-241-0 01 1 0710- ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,WINDOW RR<8LF> 16.570 (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0710-0903 ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,WINDOW RR<8LF> 16.570 (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0904- ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR FT ORANGE(609),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0710-0802 ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0803-0903 ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0904- ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> 16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0710-0710 ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 0803- ● ● ● ● ● ●

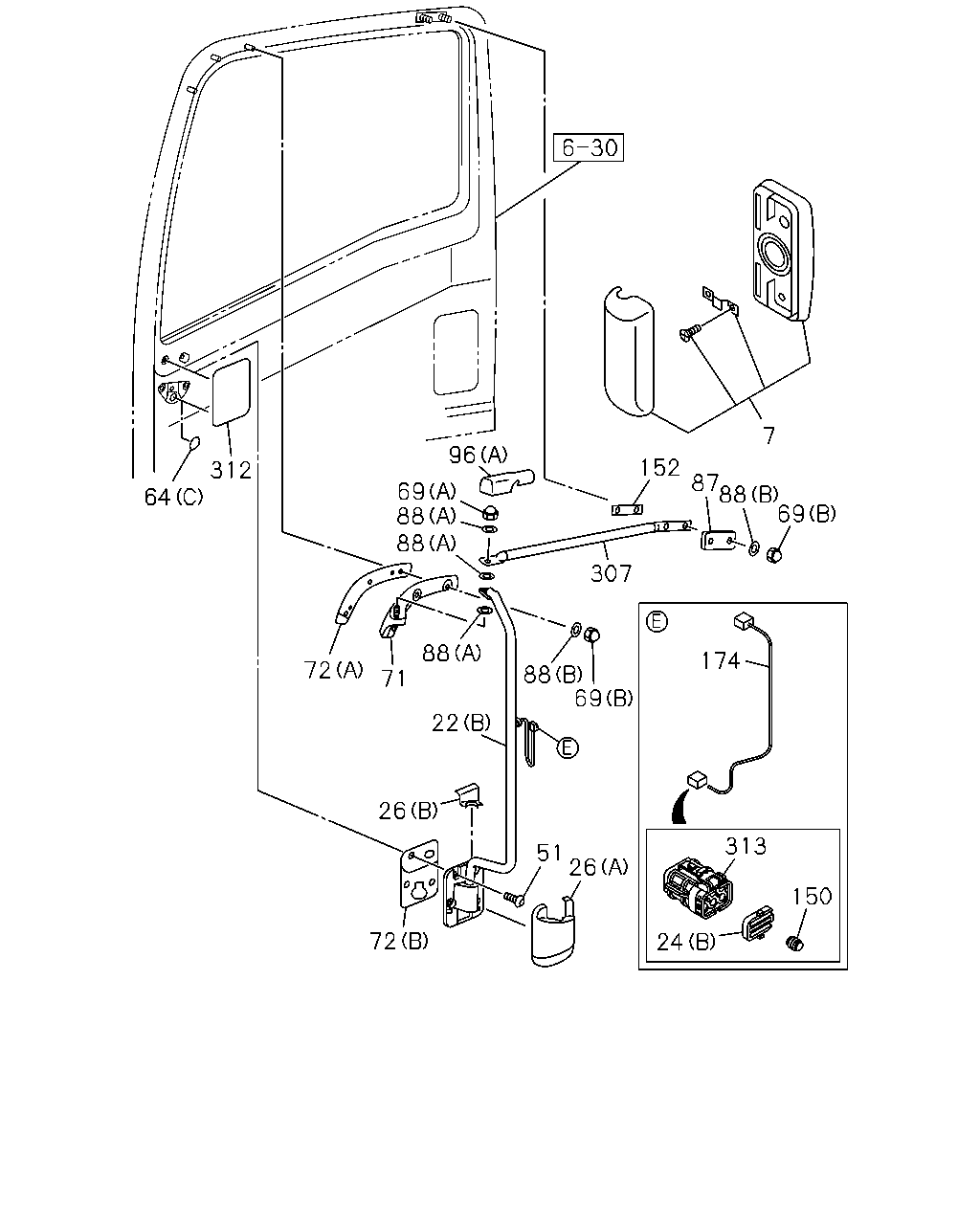

çizim 155954
7 96 152 312 64 87 88 69 69 88 88 307 88 174 72 88 69 71 22 26 313 51 26 150 72 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98043-174-1 01 1 0710- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98043-176-1 01 1 0710- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-992-1 01 1 0710- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98043-058-1 01 1 0710- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98043-060-1 01 1 0710- ● ● ● ●
7 16.068 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98055-991-1 01 1 0710- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (A) 		8-98147-079-0 01 1 0906- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (A) 		8-98147-082-0 01 1 0906- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> (A) 		8-98147-080-0 01 1 0906- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 		8-98038-224-1 01 1 0710- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (A) 		8-98070-509-0 01 1 0710- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 		8-98027-519-0 01 1 0710- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-033-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-033-0 01 1 0710-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-032-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-032-0 01 1 0710-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-035-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-035-0 01 1 0710-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-042-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-042-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-034-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98075-034-0 01 1 0710-1204 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-041-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98075-041-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98075-049-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98075-049-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-185-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-185-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98075-048-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98075-048-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-184-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-98166-184-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-047-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-047-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-183-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-183-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-046-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-046-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-182-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98166-182-0 01 1 1203- ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-040-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-040-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-039-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98075-039-0 01 1 0710-1202 ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-511-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-847-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-510-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-846-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-031-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-177-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-030-0 01 1 0710-1204 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B) 		8-98166-176-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-038-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-179-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-037-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98166-178-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-515-1 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98166-181-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-514-1 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98166-180-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-045-1 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98188-202-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98075-044-1 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98188-201-0 01 1 1203- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-513-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-849-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) 		8-98067-512-0 01 1 0710-1202 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B) 		8-98158-848-0 01 1 1203- ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B) 		8-94447-536-0 02 1 0901- ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 0710-0905 ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 0710-0905 ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 0906- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6 		8-94262-546-1 01 1 0906- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (A) T=1.6 		8-94262-546-1 01 1 0906- ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (A) T=1.6 		8-94262-546-1 01 1 0906- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 0710-0905 ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 0710-0905 ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 0906- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 0906- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (C) T=2.3 		8-94262-547-2 01 1 0906- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (C) T=2.3 		8-94262-547-2 01 1 0906- ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0710- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0710- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0710- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0710- ● ● ● ● ● ●
51 16.069 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 16.323 M8X23 		8-97310-216-1 08 1 0710- ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,WINDOW RR<8LF> 16.570 (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0710-0903 ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,WINDOW RR<8LF> 16.570 (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0904- ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR FT ORANGE(609),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0710-0802 ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0803-0903 ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,WINDOW RR<8LF> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0904- ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> 16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0710-0710 ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 0803- ● ● ● ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) M10 CAP NUT 		8-98059-913-0 02 1 0710-1404 ● ● ● ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) M10 CAP NUT 		1-09984-134-0 02 1 1405- ● ● ● ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 0710- ● ● ● ● ● ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98031-794-2 01 1 0710- ● ● ● ● ● ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98031-793-2 01 1 0710- ● ● ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 0710- ● ● ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 0710- ● ● ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 0710- ● ● ● ● ● ●
87 16.069 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-789-0 02 1 0710- ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0710- ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0710-0812 ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0901-0901 ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0902- ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0901-0901 ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0901-0901 ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0901-0901 ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0901-0901 ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-552-2 02 1 0710-0905 ● ● ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-552-2 02 1 0906- ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98027-552-2 02 1 0906- ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 0710- ● ● ● ● ● ●
150 08.155 PLUG; MIRROR HOLE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		1-82691-026-0 02 1 0901- ● ● ● ● ● ●
152 16.069 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-786-0 02 1 0710- ● ● ● ● ● ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 02.480 		8-98079-660-0 02 1 0710-0812 ● ● ● ● ● ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. AUSTRALIA EQUIPMENT(B13) 02.480 		8-98079-660-0 02 1 0901- ● ● ● ●
174 16.068 HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98137-208-0 02 1 0901- ● ● ● ● ● ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-785-2 01 1 0710- ● ● ● ● ● ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-784-2 01 1 0710- ● ● ● ● ● ●
312 16.081 TAPE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98164-812-0 02 1 1003- ● ● ● ● ● ●
313 02.195 CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-94447-532-0 02 1 0901- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
