◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51157 - NN/NP/NQR-R EXC.EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#54862) — 50 parça

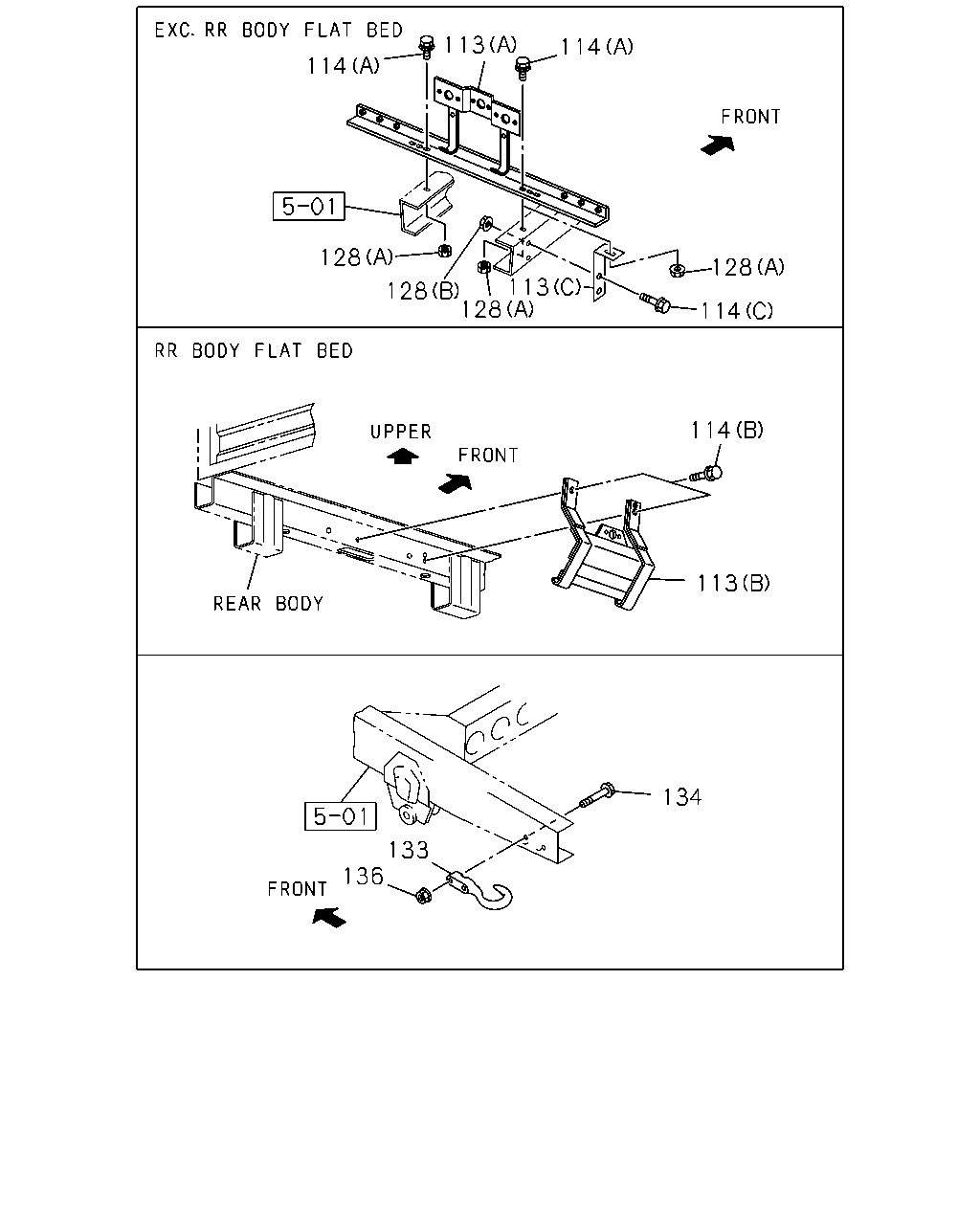

çizim 155945
113 114 114 128 128 128 113 128 114 114 113 134 133 136
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) (A) 		8-98029-390-3 01 1 0710- ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) (B) 		8-97077-573-2 01 1 0710- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) (C) 		8-98091-681-0 02 1 0710- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) 		8-98091-681-0 02 1 0710- ● ●
113 07.800 BRACKET; LICENSE PLATE
(C) 		8-98091-681-0 02 1 0710- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 0710- ● ● ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 02 1 0710- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) 07.833 (C) M10X25 FLANGE 		0-28661-025-0 04 1 0710- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 (C) M10X25 FLANGE 		0-28661-025-0 04 1 0710- ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
07.833 (C) M10X25 FLANGE 		0-28661-025-0 04 1 0710- ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. RR BODY FLAT BED(RS6) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0710- ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0710- ● ●
128 02.662 NUT; CROSS PLATE
03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0710- ●
133 07.112 HOOK
07.068 		8-97387-665-0 01 1 0710-0802 ● ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-97387-665-0 01 1 0710-0802 ● ●
133 07.112 HOOK
07.068 		8-97387-665-0 01 1 0803-0803 ● ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-97387-665-0 01 1 0803-0803 ●
133 07.112 HOOK
07.068 		8-97387-665-0 01 1 0804- ● ●
133 07.112 HOOK
EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.068 		8-97387-665-0 01 1 0804- ● ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-97387-665-0 01 1 0804- ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0710-0802 ● ●
133 07.112 HOOK
07.068 		8-94249-270-2 01 1 0710-0802 ● ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0803-0803 ●
133 07.112 HOOK
07.068 		8-94249-270-2 01 1 0803-0803 ● ● ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 07.068 		8-94249-270-2 01 1 0804-1209 ● ●
133 07.112 HOOK
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0804-1209 ●
133 07.112 HOOK
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0804-1209 ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0804-1209 ●
133 07.112 HOOK
07.068 		8-94249-270-2 01 1 0804-1209 ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 1210- ● ● ●
133 07.112 HOOK
07.068 		8-94249-270-2 01 1 1210- ●
134 07.068 BOLT; HOOK
EXC. MINI BUS CHASSIS(V4B), IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1012-1209 ● ● ● ●
134 07.068 BOLT; HOOK
INDONESIA EQUIPMENT(B00),INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10) MINI BUS CHASSIS(V4B) EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1012-1209 ● ●
134 07.068 BOLT; HOOK
M14X60 		0-10861-460-0 02 1 1012-1209 ● ●
134 07.068 BOLT; HOOK
EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1210- ● ● ● ●
134 07.068 BOLT; HOOK
M14X60 		0-10861-460-0 02 1 1210- ● ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10856-450-0 02 1 0710-0803 ● ● ● ● ● ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10856-450-0 02 1 0804-1011 ● ● ● ●
134 07.068 BOLT; HOOK
EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50 		0-10856-450-0 02 1 0804-1011 ● ●
134 07.068 BOLT; HOOK
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10) MINI BUS CHASSIS(V4B) 07.039 M14X50 		0-10856-450-0 02 1 0804-1011 ●
134 07.068 BOLT; HOOK
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) MINI BUS CHASSIS(V4B) 07.039 M14X50 		0-10856-450-0 02 1 0804-1011 ●
134 07.068 BOLT; HOOK
IDENTIFICATION LABEL FOR KD<6UT> EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50 		0-10856-450-0 02 1 1012- ● ● ● ●
134 07.068 BOLT; HOOK
INDONESIA EQUIPMENT(B00),INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10) MINI BUS CHASSIS(V4B) IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50 		0-10856-450-0 02 1 1012- ● ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 0710-0803 ● ● ● ● ● ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 0804-1209 ● ● ● ●
136 07.068 NUT; HOOK
EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0804-1209 ● ●
136 07.068 NUT; HOOK
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10) MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0804-1209 ●
136 07.068 NUT; HOOK
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0804-1209 ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 1210- ● ● ● ● ● ●
