Isuzu WW
▶
TRUCKS
▶
EXR
▶
10725 - EXR LHD FUEL TANK 200L+200L/400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-27A - EXHAUST MANIFOLD
▶

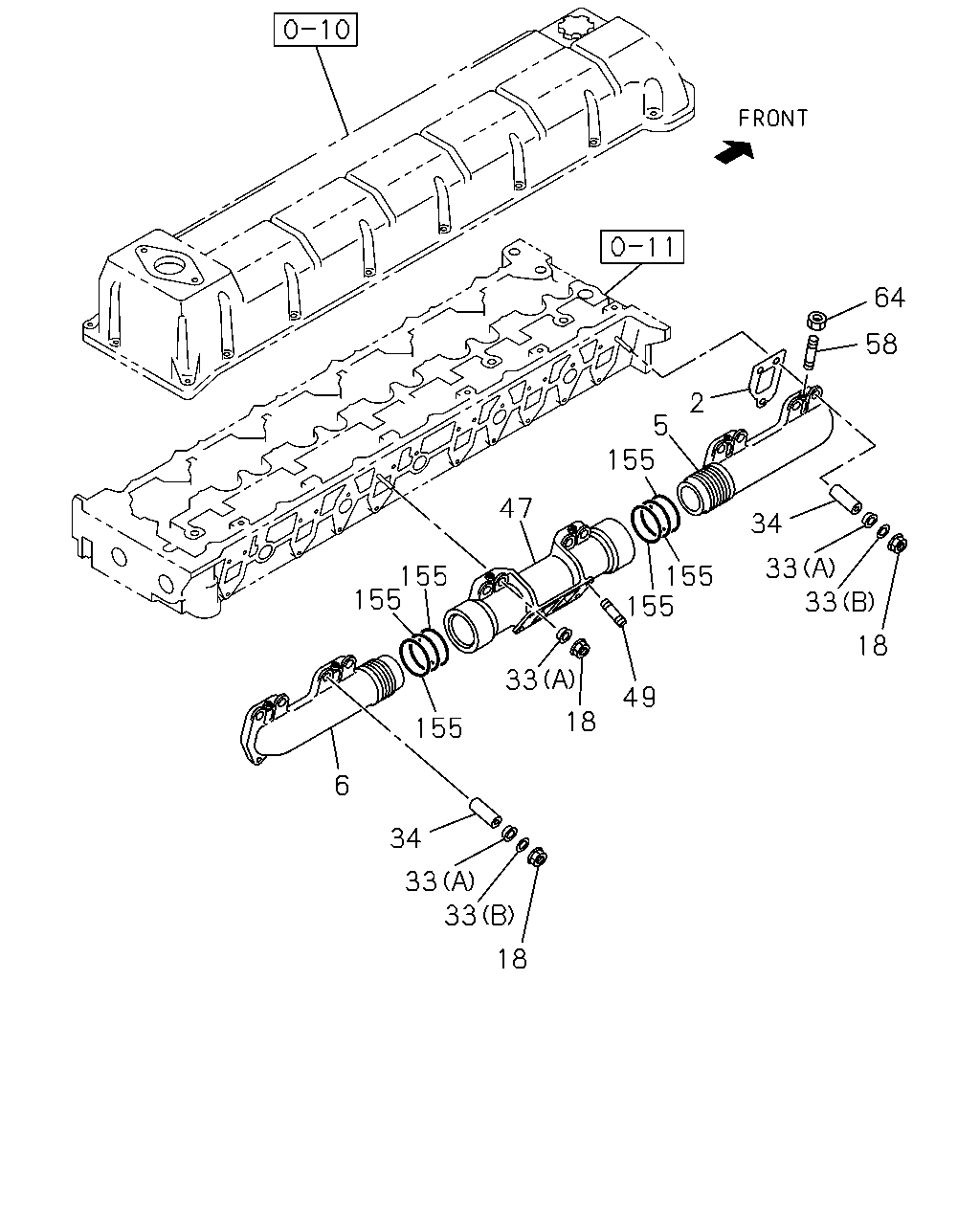

0-27A — EXHAUST MANIFOLD
(#5486) — 37 parça
Tümü
A - 6WA1 TC-S
B - 6WA1 TC-C
C - 6WA1 TC-N
D - 6WA1 TC-R
64
58
2
5
155
47
34
33
33
155
155
155
155
18
33
49
18
155
6
34
33
33
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-182-1
06
1
9603-9810
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-182-1
06
1
9811-9904
●
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-182-1
06
1
9905-
●
●
●
5
MANIFOLD; EXH,FRT
1-14141-801-2
01
1
9603-9810
●
5
MANIFOLD; EXH,FRT
1-14141-801-2
01
1
9811-9904
●
●
5
MANIFOLD; EXH,FRT
1-14141-801-2
01
1
9905-
●
●
●
6
MANIFOLD; EXH,RR
1-14141-803-2
01
1
9603-9810
●
6
MANIFOLD; EXH,RR
1-14141-803-2
01
1
9811-9904
●
●
6
MANIFOLD; EXH,RR
1-14141-803-2
01
1
9905-
●
●
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
18
1
9603-9810
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
18
1
9811-9904
●
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
18
1
9905-
●
●
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
18
1
9603-9810
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
18
1
9811-9904
●
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
13
1
9603-9810
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
13
1
9811-9904
●
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
13
1
9905-
●
●
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
18
1
9905-
●
●
●
34
COLLAR; DIST,EXH MANIF
L=43
8-94396-406-0
13
1
9603-9810
●
34
COLLAR; DIST,EXH MANIF
L=43
8-94396-406-0
13
1
9811-9904
●
●
34
COLLAR; DIST,EXH MANIF
L=43
8-94396-406-0
13
1
9905-
●
●
●
47
MANIFOLD; EXH,CENTER
1-14141-802-3
01
1
9603-9810
●
47
MANIFOLD; EXH,CENTER
1-14141-802-3
01
1
9811-9904
●
●
47
MANIFOLD; EXH,CENTER
1-14141-802-3
01
1
9905-
●
●
●
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X30,M10X22.5 L=45
9-04731-030-0
04
1
9603-9810
●
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X30,M10X22.5 L=45
9-04731-030-0
04
1
9811-9904
●
●
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X30,M10X22.5 L=45
9-04731-030-0
04
1
9905-
●
●
●
58
STUD; HEAT PROTECTOR
M8X25 L=37
9-04110-825-0
06
1
9603-9611
●
58
STUD; HEAT PROTECTOR
M8X20 L=32
9-04110-820-0
06
1
9612-9810
●
58
STUD; HEAT PROTECTOR
M8X20 L=32
9-04110-820-0
06
1
9811-9904
●
●
58
STUD; HEAT PROTECTOR
M8X20 L=32
9-04110-820-0
06
1
9905-
●
●
●
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91150-108-0
05
1
9603-9810
●
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91150-108-0
05
1
9811-9904
●
●
64
NUT; HEAT PROTECTOR
M8 FLANGE
0-91150-108-0
05
1
9905-
●
●
●
155
RING; SEAL,EXH MANIF
1-14149-151-0
06
1
9603-9810
●
155
RING; SEAL,EXH MANIF
1-14149-151-0
06
1
9811-9904
●
●
155
RING; SEAL,EXH MANIF
1-14149-151-0
06
1
9905-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
