Sayfa 6-78 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51157 - NN/NP/NQR-R EXC.EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶

6-78 — FLOOR HOLE PLUG (#54858) — 47 parça

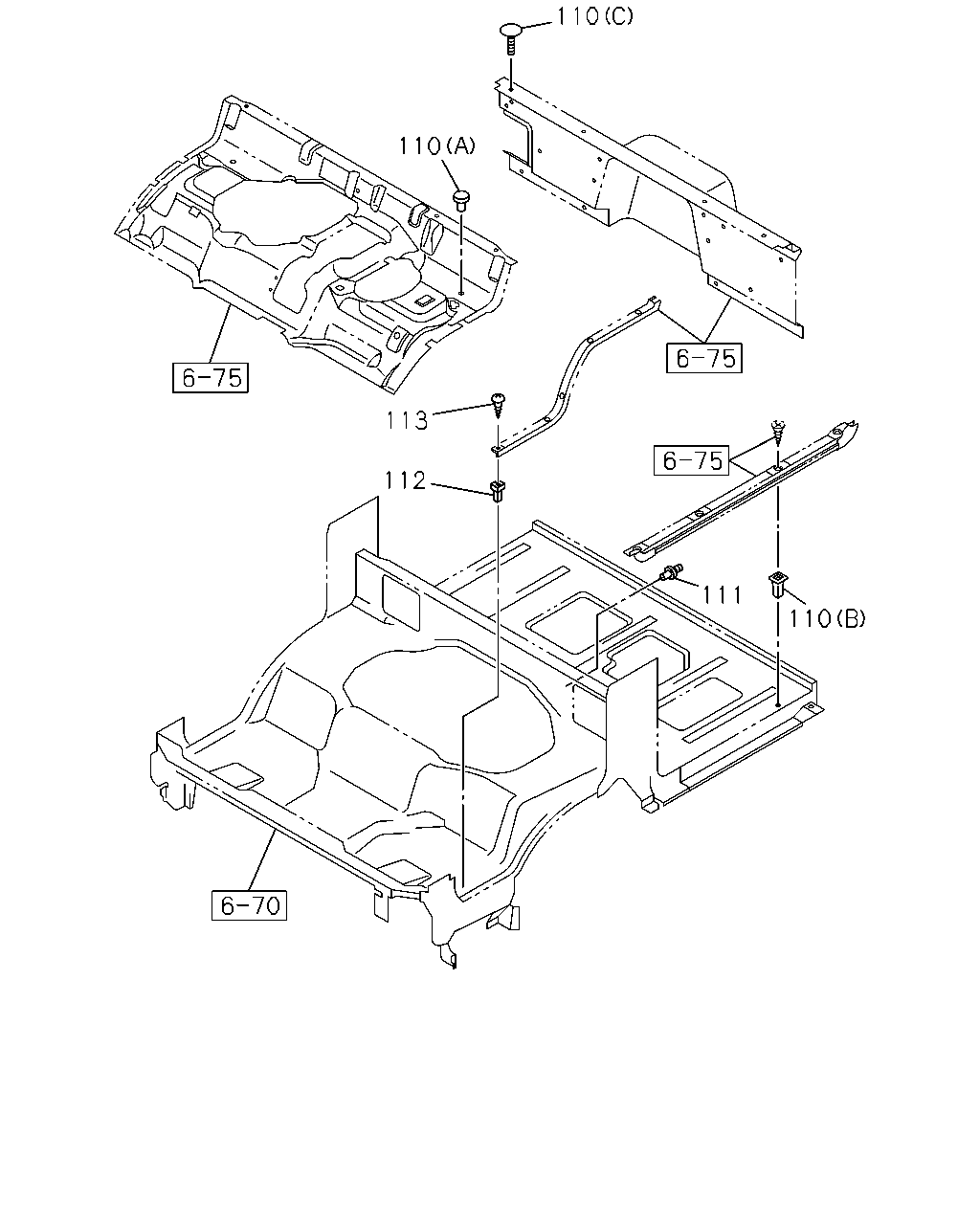

110 113 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
110	16.802 FASTENER; FLOOR MAT HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) 04.931 (B) H=15	8-94463-268-1	04	1	1004-1004	●
110	16.802 FASTENER; FLOOR MAT INSPECTION ENGINE COVER<8GA> (A) BLACK	8-94279-089-0	10	1	0710-		●	●	●
110	16.802 FASTENER; FLOOR MAT EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK	8-94279-089-0	11	1	0710-		●	●	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0711-0802					●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0803-0803					●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCN ENG(RDQ) (A) BLACK	8-94279-089-0	02	1	0803-0803	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	0803-0803						●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0804-					●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCN ENG(RDQ) (A) BLACK	8-94279-089-0	02	1	0804-	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0804-	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	0804-						●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-94279-089-0	04	1	0711-0803					●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-94279-089-0	04	1	0804-					●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-94279-089-0	04	1	0804-	●
110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	09	1	0710-	●				●	●
110	16.802 FASTENER; FLOOR MAT 04.931 (B) H=15	8-94463-268-1	08	1	0710-	●				●	●
110	16.802 FASTENER; FLOOR MAT 16.742 (C) DARK GRAY	8-97098-326-0	04	1	0710-	●				●	●
112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	08	1	0710-	●	●	●	●	●	●
113	16.800 SCREW; TRIM COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	0710-	●	●	●	●	●	●

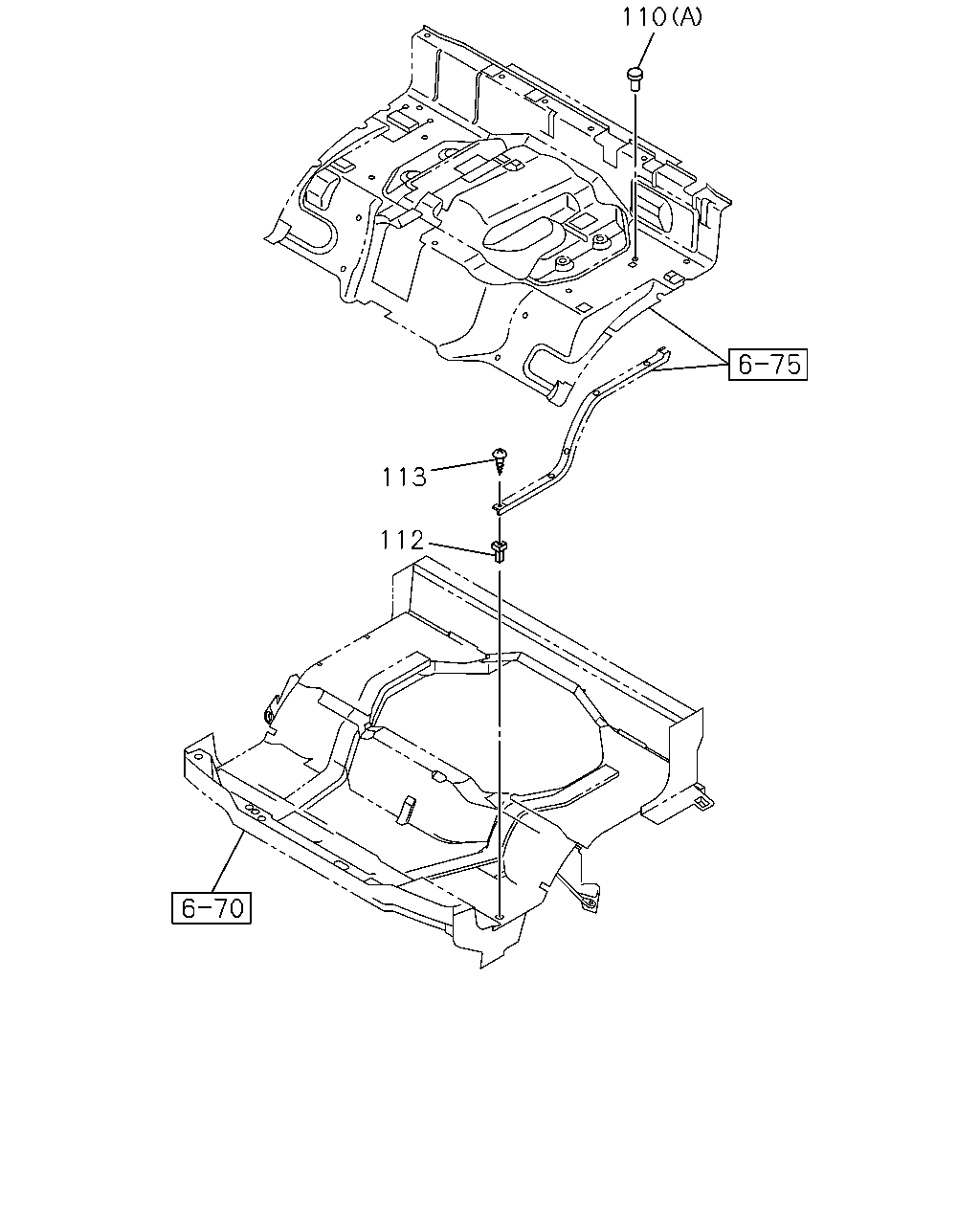

110 110 113 112 111 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
110	16.802 FASTENER; FLOOR MAT HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) 04.931 (B) H=15	8-94463-268-1	04	1	1004-1004	●
110	16.802 FASTENER; FLOOR MAT INSPECTION ENGINE COVER<8GA> (A) BLACK	8-94279-089-0	10	1	0710-		●	●	●
110	16.802 FASTENER; FLOOR MAT EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK	8-94279-089-0	11	1	0710-		●	●	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0711-0802					●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0803-0803					●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCN ENG(RDQ) (A) BLACK	8-94279-089-0	02	1	0803-0803	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	0803-0803						●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0804-					●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCN ENG(RDQ) (A) BLACK	8-94279-089-0	02	1	0804-	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0804-	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	0804-						●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-94279-089-0	04	1	0711-0803					●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-94279-089-0	04	1	0804-					●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-94279-089-0	04	1	0804-	●
110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	09	1	0710-	●				●	●
110	16.802 FASTENER; FLOOR MAT 04.931 (B) H=15	8-94463-268-1	08	1	0710-	●				●	●
110	16.802 FASTENER; FLOOR MAT 16.742 (C) DARK GRAY	8-97098-326-0	04	1	0710-	●				●	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.802 BLACK	8-94279-089-0	10	1	0710-0710	●				●	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4HK1-TCN ENG(RDQ) 16.802 BLACK	8-94279-089-0	09	1	0711-0802	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4HK1-TCS ENG(RJS) 16.802 BLACK	8-94279-089-0	09	1	0711-0802						●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4HK1-TCN ENG(RDQ) 16.802 BLACK	8-94279-089-0	11	1	0803-	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4HK1-TCS ENG(RJS) 16.802 BLACK	8-94279-089-0	11	1	0803-						●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG TRANSMISSION CONTROL-SMOOTHER(8GF) 16.802 BLACK	8-94279-089-0	12	1	0710-0710	●				●	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.802 BLACK	8-94279-089-0	08	1	0711-0803					●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.802 BLACK	8-94279-089-0	08	1	0804-					●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.802 BLACK	8-94279-089-0	08	1	0804-	●
112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	08	1	0710-	●	●	●	●	●	●
113	16.800 SCREW; TRIM COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	0710-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
