Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#54848) — 149 parça

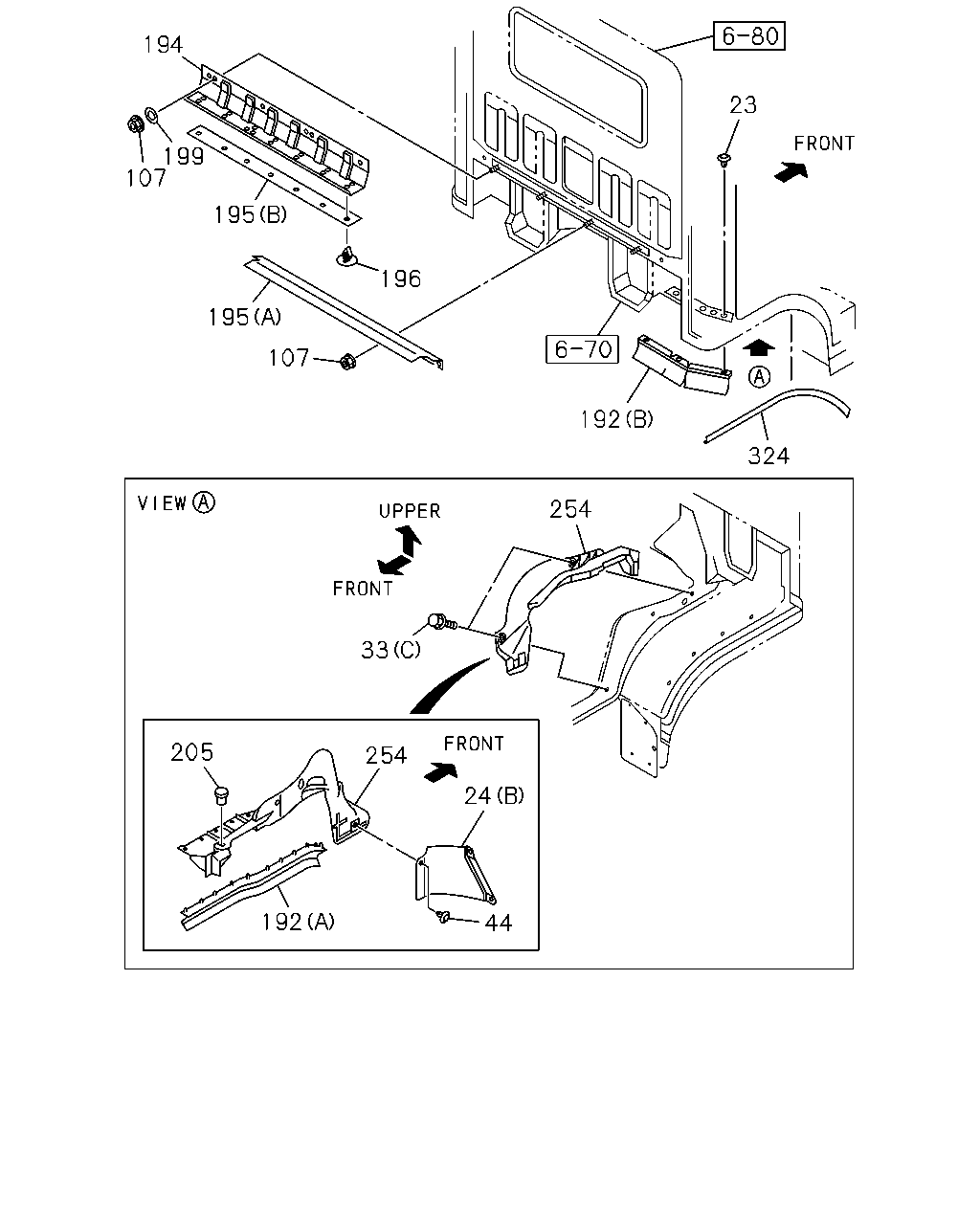

194 23 199 107 195 196 195 107 192 324 254 33 205 254 24 192 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0710-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0710-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98037-561-0	02	1	0710-0910	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	0911-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0710-1209	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0710-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.832 (C) M6X16 FLANGE	8-98016-982-0	04	1	0710-0804	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0805-	●	●	●	●	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	0710-	●	●	●	●	●	●
107	08.214 NUT; HEAT PROTECTOR RR BODY FLAT BED(RS6) 03.417 M6 FLANGE	8-94279-514-0	04	1	0710-		●
107	08.214 NUT; HEAT PROTECTOR DUMP CHASSIS(V4D) 03.417 M6 FLANGE	8-94279-514-0	04	1	0710-		●
107	08.214 NUT; HEAT PROTECTOR 03.417 M6 FLANGE	8-94279-514-0	04	1	0710-				●	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	0710-	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	0710-	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	0710-	●	●	●	●	●	●
194	03.602 BRACKET; HEAT PROTECTOR	8-98065-107-0	01	1	0710-				●	●	●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6) (A)	8-98028-224-1	01	1	0710-		●
195	03.602 PROTECTOR; HEAT DUMP CHASSIS(V4D) (A)	8-98028-224-1	01	1	0710-		●
195	03.602 PROTECTOR; HEAT (B)	8-94272-528-1	01	1	0710-				●	●	●
196	03.602 CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	0710-				●	●	●
199	03.602 WASHER; PL,HEAT PROTECTOR	8-94292-135-0	04	1	0710-				●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0710-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	0710-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	0710-	●	●	●	●	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	0710-	●	●	●	●	●	●

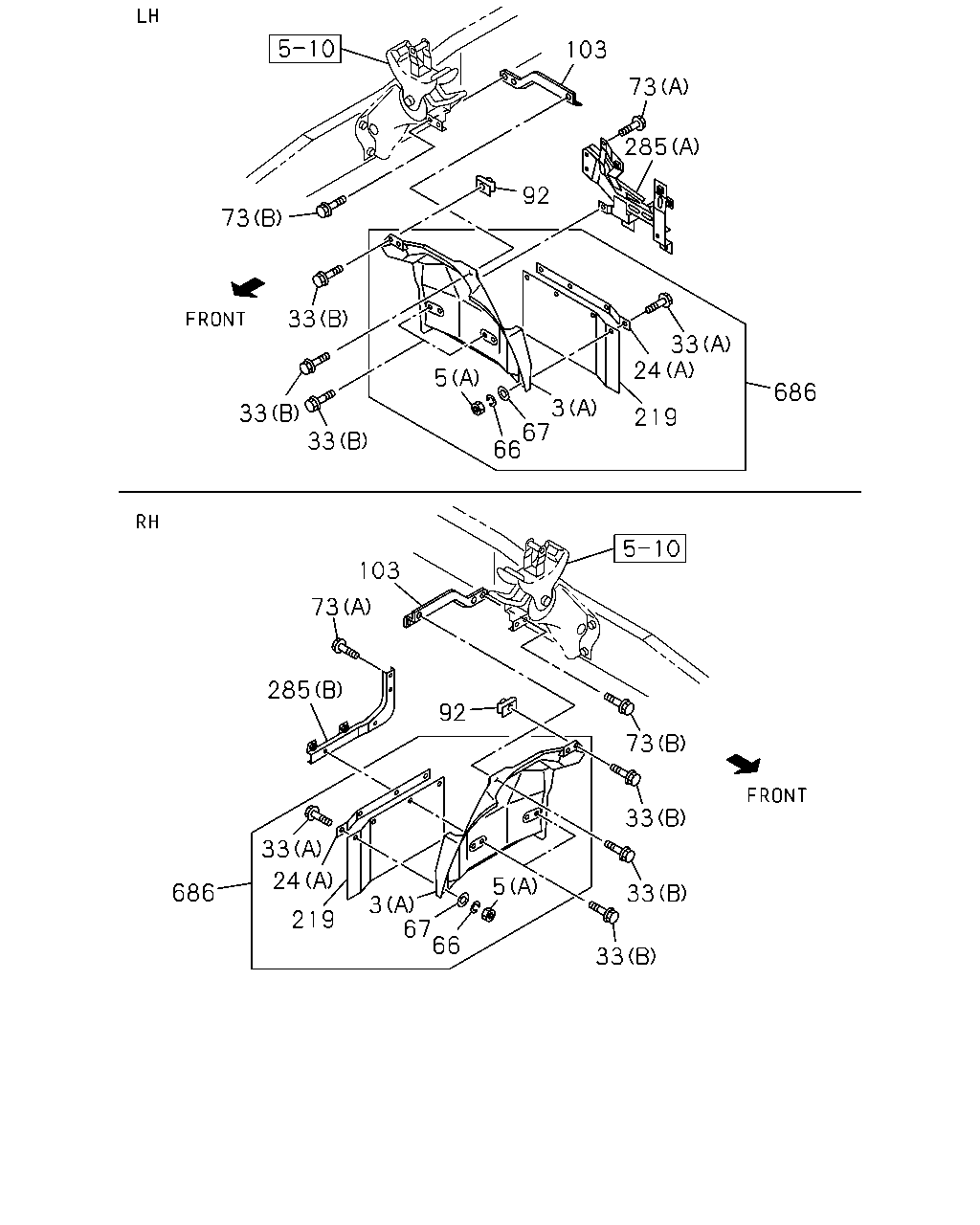

103 73 285 92 73 33 33 24 5 686 3 67 66 33 33 219 103 73 285 92 73 33 33 24 5 686 33 3 67 66 219 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	08.153 GUARD; MUD,RR (A)	8-98004-030-4	01	1	0710-	●	●	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-98004-029-5	01	1	0710-	●	●	●	●	●	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	0710-		●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	0710-1209	●	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1210-	●	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0710-				●	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0710-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98037-561-0	02	1	0710-0910	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	0911-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0710-1209	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0710-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.832 (C) M6X16 FLANGE	8-98016-982-0	04	1	0710-0804	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0805-	●	●	●	●	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	0710-1209	●	●	●	●	●	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	0710-1209	●	●	●	●	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●	●	●	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0710-	●	●	●	●	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	0710-	●	●	●	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	0710-	●	●	●	●	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	0710-	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-98004-032-1	02	1	0710-	●			●
219	08.155 FLAP; MUD GUARD G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW)	8-98004-032-1	02	1	0710-		●			●
219	08.155 FLAP; MUD GUARD G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-98004-033-1	02	1	0710-		●			●
219	08.155 FLAP; MUD GUARD	8-98004-033-1	02	1	0710-			●			●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	0710-	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	0710-	●	●	●	●	●	●
686	08.155 FLAP ASM; MUD	8-97387-746-7	01	1	0710-	●			●
686	08.155 FLAP ASM; MUD G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW)	8-97387-746-7	01	1	0710-		●			●
686	08.155 FLAP ASM; MUD	8-97387-747-6	01	1	0710-	●			●
686	08.155 FLAP ASM; MUD G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW)	8-97387-747-6	01	1	0710-		●			●
686	08.155 FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97387-750-7	01	1	0710-		●			●
686	08.155 FLAP ASM; MUD	8-97387-750-7	01	1	0710-			●			●
686	08.155 FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97387-751-6	01	1	0710-		●			●
686	08.155 FLAP ASM; MUD	8-97387-751-6	01	1	0710-			●			●

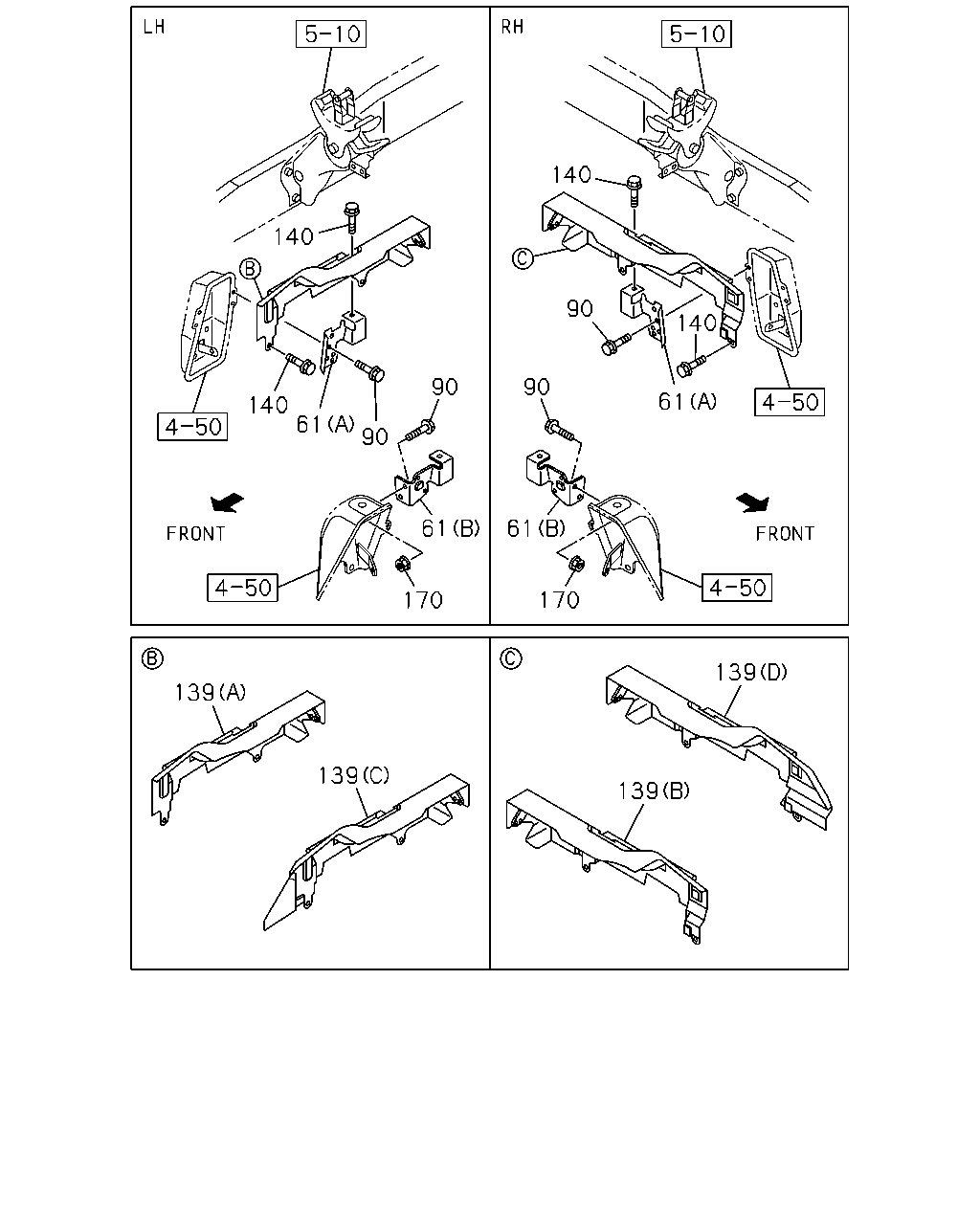

140 140 90 140 90 90 61 140 61 90 61 61 170 170 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-993-0	01	1	0906-		●	●
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-994-0	01	1	0906-		●	●
61	08.155 BRACKET; COVER (A)	8-98040-465-1	01	1	0710-0905	●	●	●	●	●	●
61	08.155 BRACKET; COVER (A)	8-98040-465-1	01	1	0906-	●			●	●	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-465-1	01	1	0906-		●	●
61	08.155 BRACKET; COVER (A)	8-98040-466-1	01	1	0710-0905	●	●	●	●	●	●
61	08.155 BRACKET; COVER (A)	8-98040-466-1	01	1	0906-	●			●	●	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-466-1	01	1	0906-		●	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●	●	●	●	●
139	08.153 PANEL; SIDE (C)	8-97387-728-8	01	1	0710-0802	●			●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-8	01	1	0710-0802		●	●
139	08.153 PANEL; SIDE (C)	8-97387-728-8	01	1	0803-0803	●			●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-8	01	1	0803-0803		●
139	08.153 PANEL; SIDE (C)	8-97387-728-8	01	1	0804-	●			●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-8	01	1	0804-		●	●		●
139	08.153 PANEL; SIDE (D)	8-97387-727-4	01	1	0710-0802	●			●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	0710-0802		●	●
139	08.153 PANEL; SIDE (D)	8-97387-727-4	01	1	0803-0803	●			●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	0803-0803		●
139	08.153 PANEL; SIDE (D)	8-97387-727-4	01	1	0804-	●			●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	0804-		●	●		●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-595-0	01	1	0710-0802		●	●
139	08.153 PANEL; SIDE (A)	8-98092-595-0	01	1	0710-0802					●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-595-0	01	1	0803-0803		●
139	08.153 PANEL; SIDE (A)	8-98092-595-0	01	1	0803-0803			●		●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-595-0	01	1	0804-0806		●	●		●
139	08.153 PANEL; SIDE (A)	8-98092-595-0	01	1	0804-0806						●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98115-458-1	01	1	0807-		●	●		●
139	08.153 PANEL; SIDE (A)	8-98115-458-1	01	1	0807-						●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	0710-0802		●	●
139	08.153 PANEL; SIDE (B)	8-98043-920-2	01	1	0710-0802					●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	0803-0803		●
139	08.153 PANEL; SIDE (B)	8-98043-920-2	01	1	0803-0803			●		●	●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	0804-		●	●		●
139	08.153 PANEL; SIDE (B)	8-98043-920-2	01	1	0804-						●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	0710-	●	●	●	●	●	●
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	04	1	0906-		●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	0710-0802			●			●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	0803-0803			●			●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	0804-		●	●			●

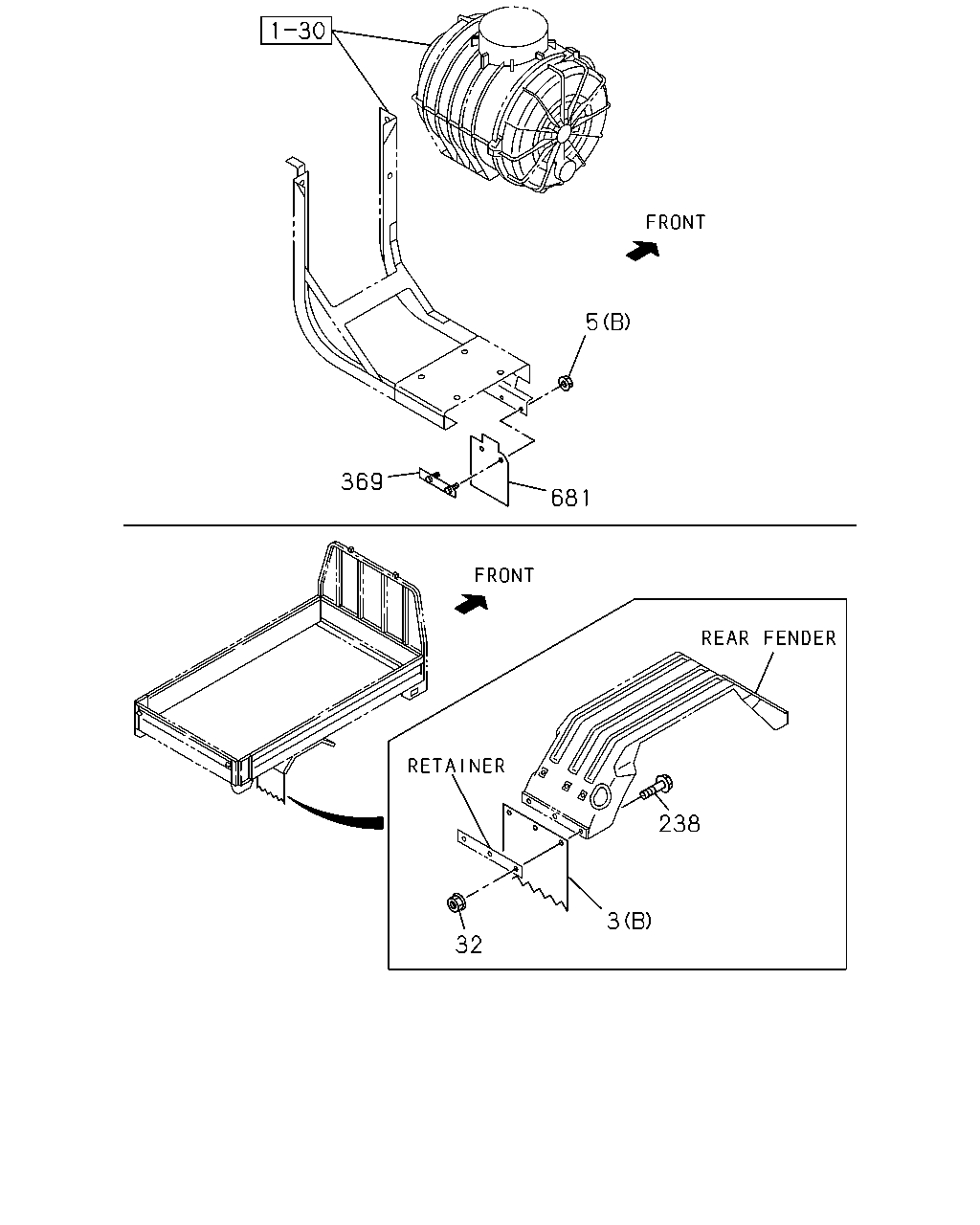

5 369 681 238 3 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	08.153 GUARD; MUD,RR (A)	8-98004-030-4	01	1	0710-	●	●	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-98004-029-5	01	1	0710-	●	●	●	●	●	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	0710-		●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	0710-1209	●	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1210-	●	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0710-				●	●	●
32	08.155 NUT; MUD GUARD RR BODY FLAT BED(RS6) 08.212 M6 FLANGE	8-97065-431-0	06	1	0710-		●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED(RS6) 08.212 M6X16 FLANGE	8-97065-432-2	06	1	0710-0711		●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED(RS6) 17.208 M6X16 FLANGE	8-98098-459-0	06	1	0712-		●
369	08.155 PLATE	8-98061-674-0	01	1	0710-				●	●	●
681	03.402 FLAP; AIR CLEANER	8-98061-671-0	01	1	0710-				●	●	●

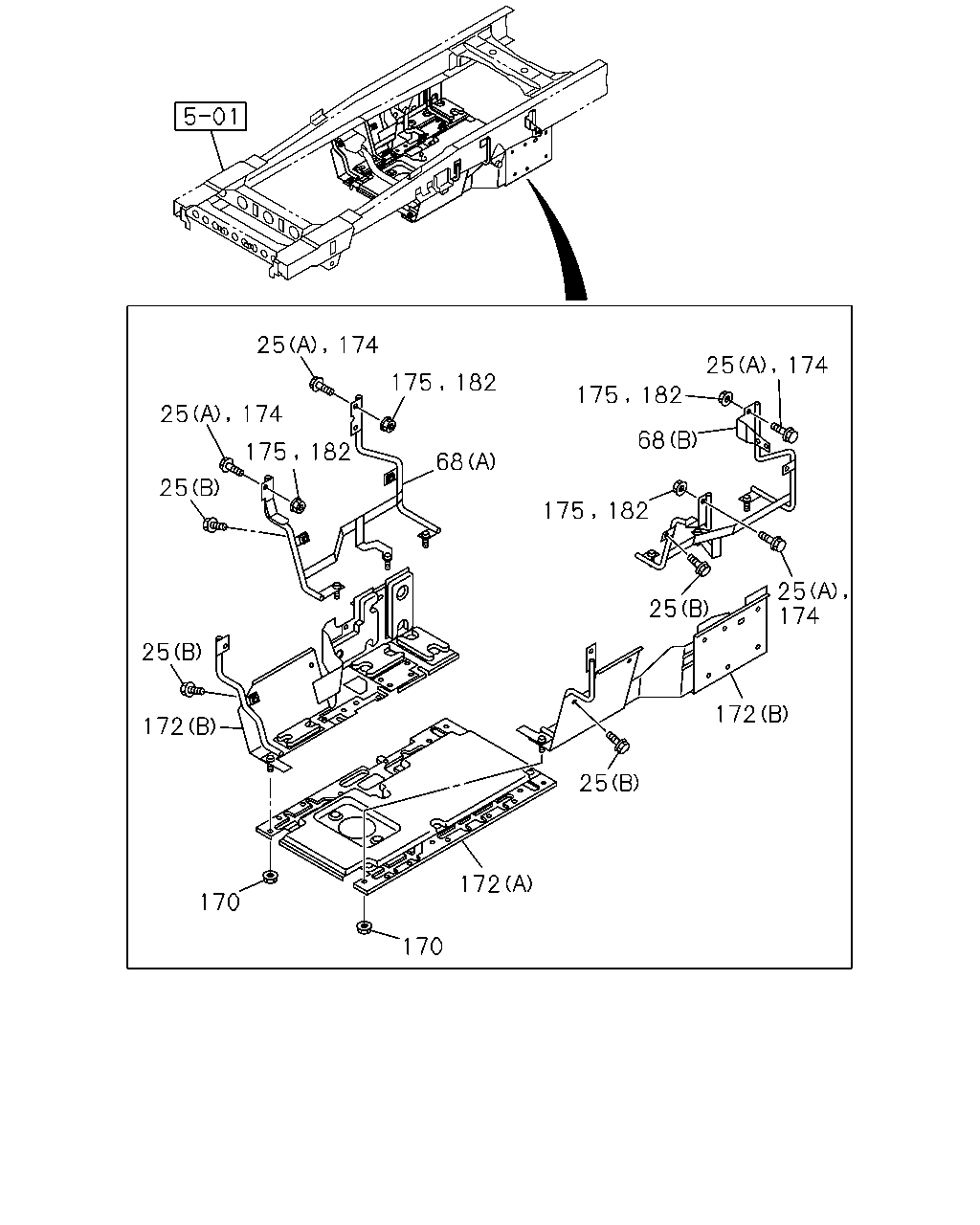

170 172 25 172 174 25 170 172 25 25 25 25 17 175 182 174 175 182 68 175 175 182 25 182 68 25 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	F
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	0710-0802		●	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	0803-0803		●	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	0804-1312	●	●	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0710-0802		●	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0803-0803		●	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	0804-	●	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) (B)	8-98150-453-0	01	1	0912-	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98150-453-0	01	1	0912-			●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-387-2	01	1	0710-0802		●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-387-2	01	1	0803-0803		●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) (B)	8-98080-387-2	01	1	0804-0911	●	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASS IS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-387-2	01	1	0912-1112	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) EXC. POOR QUALITY DIESEL FUEL(KF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98080-387-2	01	1	0912-1112			●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASS IS(V4B),TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98201-755-0	01	1	1201-	●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) EXC. POOR QUALITY DIESEL FUEL(KF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98201-755-0	01	1	1201-			●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98080-386-2	01	1	0710-0802		●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98080-386-2	01	1	0803-0803		●	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) (A)	8-98080-386-2	01	1	0804-	●	●	●
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	04	1	0906-	●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	0710-0802		●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	0803-0803		●	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) 01.840 M8 W/DISHED WASHER	8-97329-625-0	08	1	0804-	●	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98024-942-1	01	1	0710-0802		●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98024-942-1	01	1	0803-0803		●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) (A)	8-98024-942-1	01	1	0804-	●	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-016-3	01	1	0710-0802		●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-016-3	01	1	0803-0803		●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) (B)	8-98079-016-3	01	1	0804-1312	●	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) (B)	8-98225-680-0	01	1	1401-	●	●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-017-4	01	1	0710-0802		●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-017-4	01	1	0803-0803		●	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) (B)	8-98079-017-4	01	1	0804-	●	●	●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1401-	●	●	●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	1401-	●	●	●
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-0802		●	●
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	0803-0803		●	●
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),TRANSMISSION CONTROL-S MOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	0804-1312	●	●	●
