◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51157 - NN/NP/NQR-R EXC.EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#54843) — 61 parça

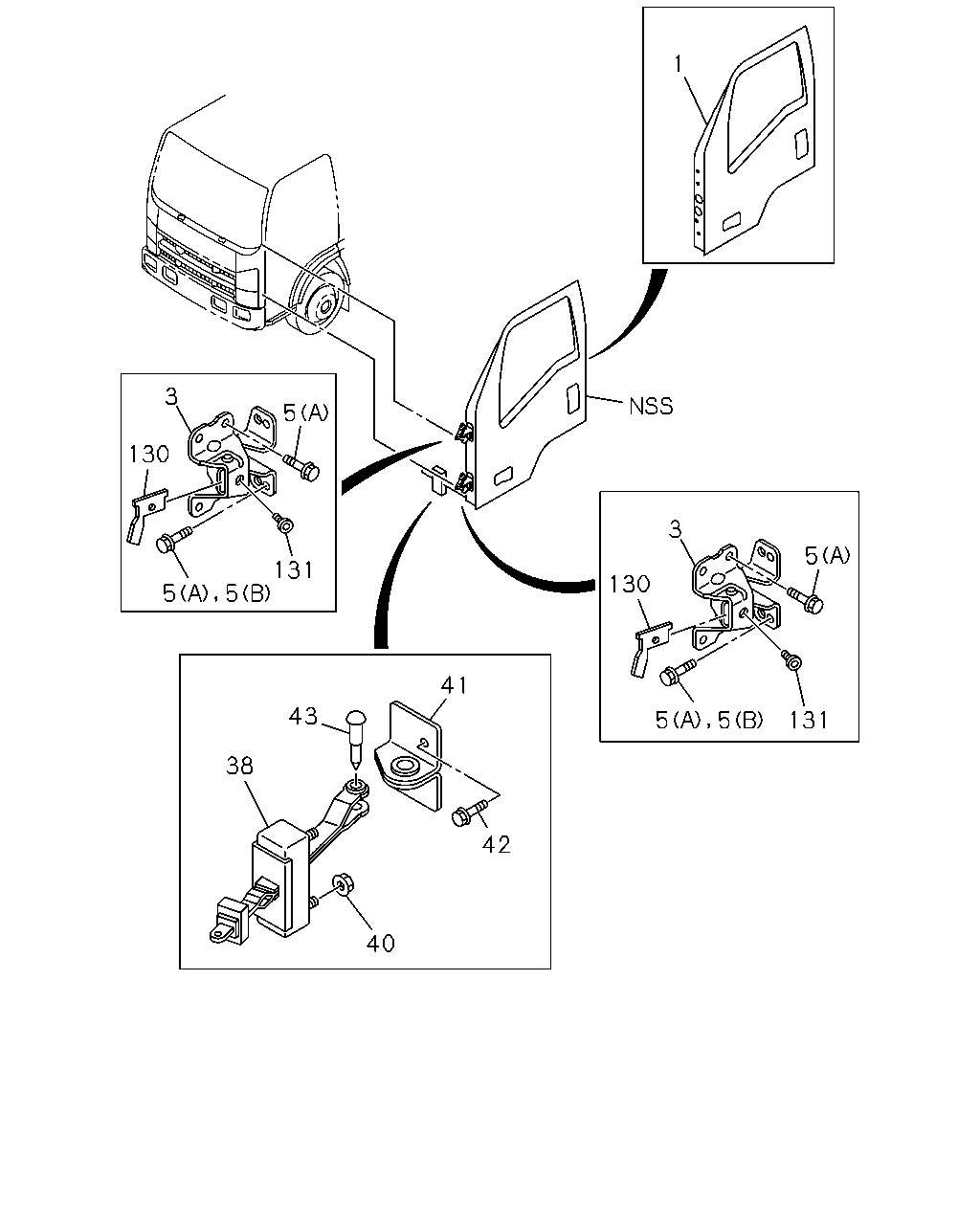

çizim 155890
1 3 5 130 3 5 131 5 130 5 41 43 5 5 131 38 42 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98025-691-4 01 1 0710-1012 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98171-228-0 01 1 1101-1411 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98260-594-0 01 1 1412- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98025-690-4 01 1 0710-1012 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98171-220-0 01 1 1101-1411 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98260-593-0 01 1 1412- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,CORNERING LAMP<T87>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-729-0 01 1 0710-1012 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> 		8-98075-729-0 01 1 0710-1012 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,CORNERING LAMP<T87>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98171-234-0 01 1 1101-1411 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> 		8-98171-234-0 01 1 1101-1411 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,CORNERING LAMP<T87>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98260-604-0 01 1 1412- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> 		8-98260-604-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,CORNERING LAMP<T87>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-728-0 01 1 0710-1012 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> 		8-98075-728-0 01 1 0710-1012 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,CORNERING LAMP<T87>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98171-226-0 01 1 1101-1411 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> 		8-98171-226-0 01 1 1101-1411 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,CORNERING LAMP<T87>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98260-603-0 01 1 1412- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> 		8-98260-603-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. CORNERING LAMP<T87> 		8-98075-727-1 01 1 0710-1012 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98075-727-1 01 1 0710-1012 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. CORNERING LAMP<T87> 		8-98171-233-0 01 1 1101-1411 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98171-233-0 01 1 1101-1411 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. CORNERING LAMP<T87> 		8-98260-602-0 01 1 1412- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98260-602-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> CORNERING LAMP<T87> 		8-98084-119-0 01 1 0710-1012 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> CORNERING LAMP<T87> 		8-98171-236-0 01 1 1101-1411 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> CORNERING LAMP<T87> 		8-98260-606-0 01 1 1412- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. CORNERING LAMP<T87> 		8-98075-726-1 01 1 0710-1012 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98075-726-1 01 1 0710-1012 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. CORNERING LAMP<T87> 		8-98171-225-0 01 1 1101-1411 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98171-225-0 01 1 1101-1411 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. CORNERING LAMP<T87> 		8-98260-601-0 01 1 1412- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98260-601-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> CORNERING LAMP<T87> 		8-98084-118-0 01 1 0710-1012 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> CORNERING LAMP<T87> 		8-98171-227-0 01 1 1101-1411 ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> CORNERING LAMP<T87> 		8-98260-605-0 01 1 1412- ● ● ● ●
3 16.320 HINGE; DOOR FRT 8-98038-293-0 04 1 0710-1104 ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT 8-98191-302-0 04 1 1105- ● ● ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 16 1 0710-0712 ● ● ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0801-0904 ● ● ● ● ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 0801-0904 ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0801-0904 ● ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0905-1408 ● ● ● ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 0905-1408 ● ● ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 1409- ● ● ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 1409- ● ● ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 1409- ● ●
5 16.320 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 0710- ● ● ● ● ● ●
5 16.320 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE 		8-98049-756-0 08 1 0801- ● ● ● ●
38 16.320 CHECKER ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98031-730-6 02 1 0710-1508 ● ● ● ● ● ●
38 16.320 CHECKER ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98296-602-0 02 1 1509- ● ● ● ● ● ●
38 16.320 CHECKER ASM; DOOR
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> 		8-98029-417-5 02 1 0710-1203 ● ● ● ● ● ●
38 16.320 CHECKER ASM; DOOR
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> 		8-98208-189-1 02 1 1204-1508 ● ● ● ● ● ●
38 16.320 CHECKER ASM; DOOR
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> 		8-98296-601-0 02 1 1509- ● ● ● ● ● ●
40 16.320 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 0710-1012 ● ● ● ● ● ●
40 16.320 NUT; CHECKER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 04 1 1101- ● ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-98029-290-3 02 1 0710- ● ● ● ● ● ●
42 16.320 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 0710- ● ● ● ● ● ●
43 16.320 PIN 8-98037-152-2 02 1 0710- ● ● ● ● ● ●
130 16.320 STOPPER; HINGE
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> 		8-98038-299-1 04 1 0710- ● ● ● ● ● ●
131 16.350 BOLT; DOOR STOPPER
EXC. O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RRVIEW MIDDLE ARM<8ML> M10X11 		8-98039-593-1 04 1 0710- ● ● ● ● ● ●
