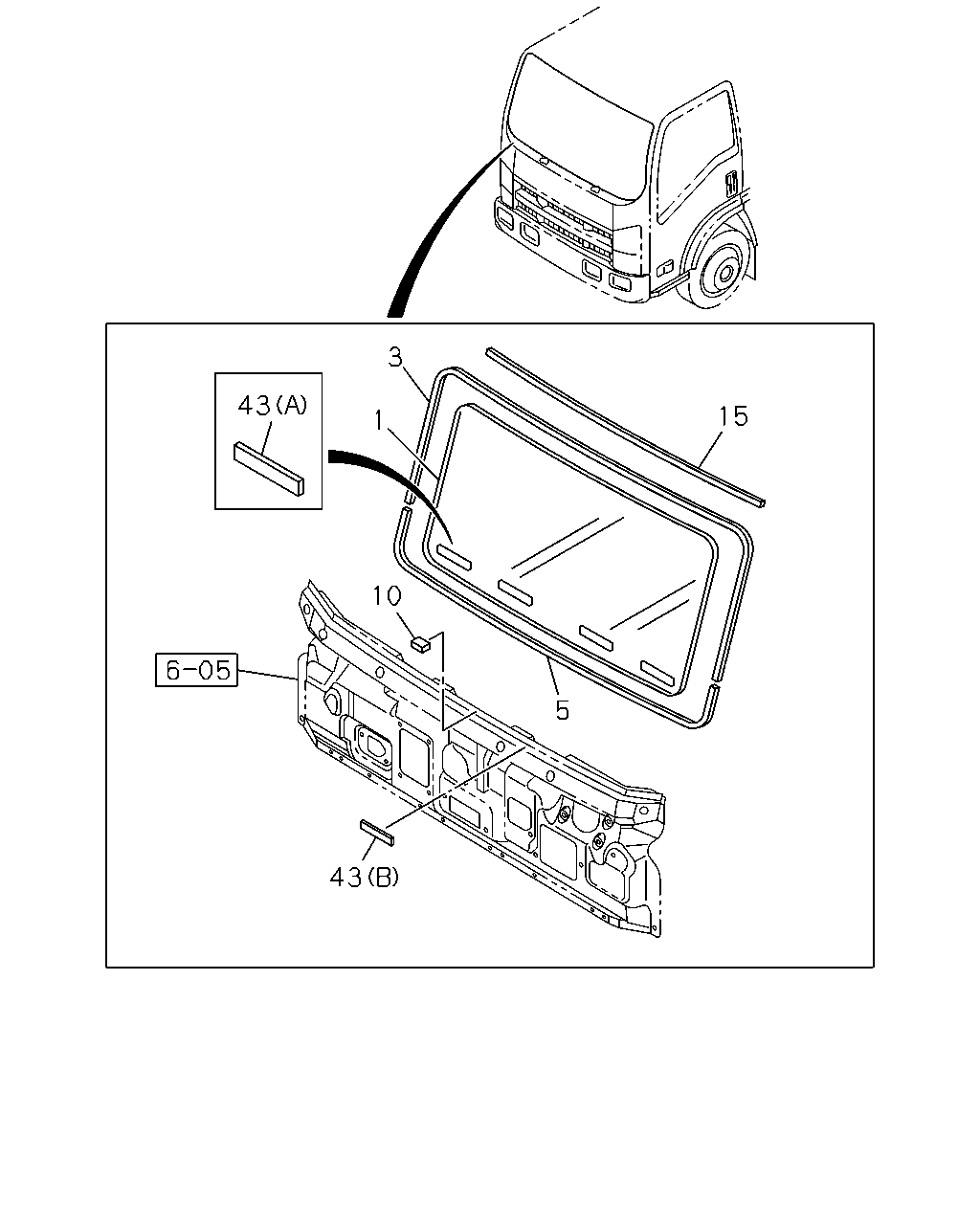

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#54841) — 37 parça

3 43 15 1 10 5 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.005 GLASS; WINDSHIELD AUSTRALIA EQUIPMENT(B13) EXC. NEW ZEALAND COUNTRY(CX6)	8-98029-064-1	01	1	0906-	●	●	●	●
1	16.005 GLASS; WINDSHIELD HONG KONG EQUIPMENT(B14)	8-98029-064-1	01	1	0906-		●	●	●
1	16.005 GLASS; WINDSHIELD EXC. NEW ZEALAND COUNTRY(CX6)	8-98029-064-1	01	1	0906-					●	●
1	16.005 GLASS; WINDSHIELD AUSTRALIA EQUIPMENT(B13)	8-98029-064-1	01	1	0710-0806	●
1	16.005 GLASS; WINDSHIELD AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)	8-98029-064-1	01	1	0710-0806		●	●	●
1	16.005 GLASS; WINDSHIELD	8-98029-064-1	01	1	0710-0806					●	●
1	16.005 GLASS; WINDSHIELD AUSTRALIA EQUIPMENT(B13) EXC. NEW ZEALAND COUNTRY(CX6)	8-98029-064-1	01	1	0807-0905	●	●	●	●
1	16.005 GLASS; WINDSHIELD HONG KONG EQUIPMENT(B14)	8-98029-064-1	01	1	0807-0905		●	●	●
1	16.005 GLASS; WINDSHIELD EXC. NEW ZEALAND COUNTRY(CX6)	8-98029-064-1	01	1	0807-0905					●	●
1	16.005 GLASS; WINDSHIELD SINGAPORE EQUIPMENT(2G0)	8-98029-063-1	01	1	0710-0710	●	●
1	16.005 GLASS; WINDSHIELD EXC. AUSTRALIA EQUIPMENT(B13)	8-98029-063-1	01	1	0710-0806	●
1	16.005 GLASS; WINDSHIELD EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)	8-98029-063-1	01	1	0710-0806		●	●	●
1	16.005 GLASS; WINDSHIELD NEW ZEALAND COUNTRY(CX6)	8-98029-063-1	01	1	0807-0905	●	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD EXC. AUSTRALIA EQUIPMENT(B13)	8-98029-063-1	01	1	0807-0905	●
1	16.005 GLASS; WINDSHIELD EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)	8-98029-063-1	01	1	0807-0905		●	●	●
1	16.005 GLASS; WINDSHIELD AUSTRALIA EQUIPMENT(B13) NEW ZEALAND COUNTRY(CX6)	8-98029-063-1	01	1	0906-	●	●	●	●
1	16.005 GLASS; WINDSHIELD KD PREPARATORY PACK VAR.4<7TV>	8-98029-063-1	01	1	0906-	●	●	●	●
1	16.005 GLASS; WINDSHIELD EXC. AUSTRALIA EQUIPMENT(B13)	8-98029-063-1	01	1	0906-	●
1	16.005 GLASS; WINDSHIELD EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)	8-98029-063-1	01	1	0906-		●	●	●
1	16.005 GLASS; WINDSHIELD NEW ZEALAND COUNTRY(CX6)	8-98029-063-1	01	1	0906-					●	●
3	16.470 MOLDING; WINDSHIELD	8-98029-079-1	01	1	0710-	●	●	●	●	●	●
5	16.041 MOLDING; WINDSHIELD,LWR	8-98083-542-1	01	1	0710-	●	●	●	●	●	●
10	08.160 SPACER; WINDSHIELD GLASS L=100 B=1.5	8-98095-044-0	02	1	0710-	●	●	●	●	●	●
15	16.041 FINISHER; WINDSHIELD EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97412-958-0	01	1	0710-	●	●	●
15	16.041 FINISHER; WINDSHIELD DARK GRAY	8-97412-958-0	01	1	0710-				●	●	●
43	16.041 TAPE; WINDSHIELD INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8	8-98029-086-1	09	1	1007-	●	●	●
43	16.041 TAPE; WINDSHIELD INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10	8-98083-198-1	09	1	1007-	●	●	●
43	16.041 TAPE; WINDSHIELD EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8	8-98029-086-1	04	1	1007-	●	●	●
43	16.041 TAPE; WINDSHIELD (A) L=100 B=8	8-98029-086-1	04	1	1007-				●	●	●
43	16.041 TAPE; WINDSHIELD EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10	8-98083-198-1	04	1	1007-	●	●	●
43	16.041 TAPE; WINDSHIELD (B) L=100 B=10	8-98083-198-1	04	1	1007-				●	●	●
43	16.041 TAPE; WINDSHIELD INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8	8-98029-086-1	09	1	0710-1006	●	●	●
43	16.041 TAPE; WINDSHIELD INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10	8-98083-198-1	09	1	0710-1006	●	●	●
43	16.041 TAPE; WINDSHIELD EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8	8-98029-086-1	04	1	0710-1006	●	●	●
43	16.041 TAPE; WINDSHIELD (A) L=100 B=8	8-98029-086-1	04	1	0710-1006				●	●	●
43	16.041 TAPE; WINDSHIELD EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10	8-98083-198-1	04	1	0710-1006	●	●	●
43	16.041 TAPE; WINDSHIELD (B) L=100 B=10	8-98083-198-1	04	1	0710-1006				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
