5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
G.V.W. 6.0-6.5TON(RPV)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0710-0805 |
● |
|
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0806-0903 |
● |
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0806-0903 |
● |
|
● |
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0806-0903 |
|
|
|
|
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,FRAME STRAIGHT TYPE<7KJ>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
0904- |
● |
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
0904- |
● |
|
● |
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
0904- |
|
|
|
|
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0710- |
● |
|
● |
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0710- |
|
|
|
|
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
G.V.W. 6.0-6.5TON(RPV)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0710-0805 |
● |
|
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0806- |
● |
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0806- |
● |
|
● |
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0806- |
|
|
|
|
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0710- |
● |
|
● |
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0710- |
|
|
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
SMALL DOUBLE RR TIRE(6YE)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
08 |
1 |
0710- |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0710-0802 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0710-0802 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0710-0802 |
|
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0710-0802 |
|
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0710-0802 |
|
|
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0803-0803 |
|
|
● |
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0803-0803 |
|
|
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0804- |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0804- |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0804- |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0804- |
|
|
● |
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0804- |
|
|
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0710- |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0710- |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0710- |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0710- |
|
|
● |
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0710- |
|
|
|
|
|
● |
| |
11 |
07.629 NUT; TIRE HANGER
SMALL DOUBLE RR TIRE(6YE)
01.062
M8 FLANGE
|
0-91180-108-0 |
08 |
1 |
0710- |
|
● |
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
SMALL DOUBLE RR TIRE(6YE)
03.162
M10 FLANGE
|
0-91180-110-0 |
06 |
1 |
0710- |
|
● |
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0710- |
|
● |
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0710- |
● |
|
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0710- |
● |
|
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0710- |
|
|
● |
● |
|
|
| |
18 |
07.633 NUT; MEMBER
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0710- |
|
|
|
|
|
● |
| |
19 |
07.632 BOLT; C/MBR
SMALL DOUBLE RR TIRE(6YE)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
06 |
1 |
0710- |
|
● |
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0710- |
|
● |
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0710- |
● |
|
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0710- |
● |
|
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0710- |
|
|
● |
● |
|
|
| |
19 |
07.632 BOLT; C/MBR
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0710- |
|
|
|
|
|
● |
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(A)
|
8-98072-378-1 |
01 |
1 |
0710-0711 |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-1 |
01 |
1 |
0710-0711 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-1 |
01 |
1 |
0710-0711 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-1 |
01 |
1 |
0710-0711 |
|
|
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
(A)
|
8-98072-378-1 |
01 |
1 |
0710-0711 |
|
|
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
(A)
|
8-98072-378-1 |
01 |
1 |
0710-0711 |
|
|
|
|
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
(A)
|
8-98072-378-2 |
01 |
1 |
0712-0802 |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
0712-0802 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
0712-0802 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
0712-0802 |
|
|
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
(A)
|
8-98072-378-2 |
01 |
1 |
0712-0802 |
|
|
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
(A)
|
8-98072-378-2 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
(A)
|
8-98072-378-2 |
01 |
1 |
0803-0803 |
|
|
● |
● |
|
|
| |
21 |

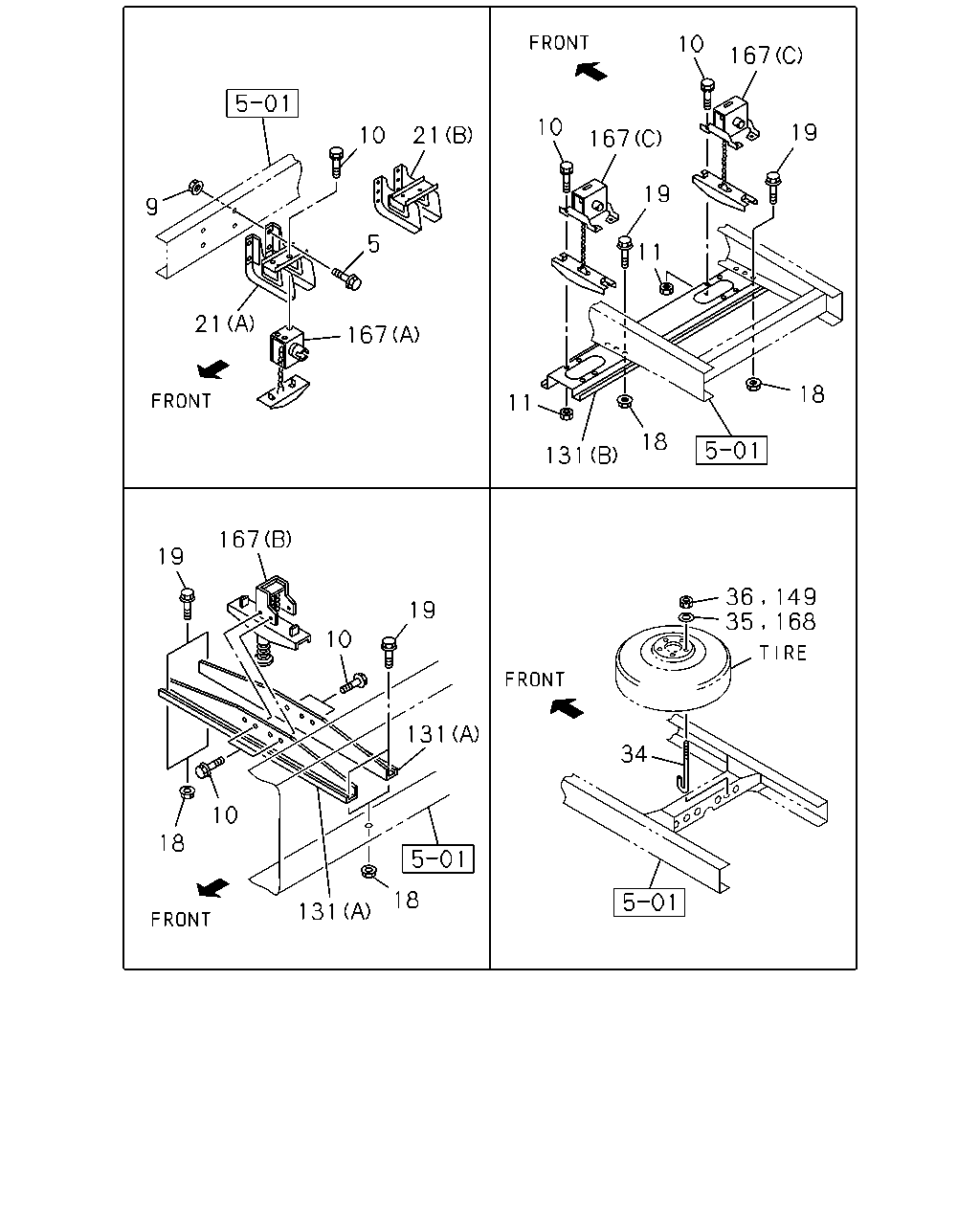

07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
(A)
|
8-98072-378-2 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
0804- |
|
|
● |
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-085-2 |
01 |
1 |
0712-0802 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-085-2 |
01 |
1 |
0712-0802 |
|
|
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
(B)
|
8-98036-085-2 |
01 |
1 |
0712-0802 |
|
|
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
(B)
|
8-98036-085-2 |
01 |
1 |
0712-0802 |
|
|
|
|
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-085-2 |
01 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
(B)
|
8-98036-085-2 |
01 |
1 |
0803-0803 |
|
|
● |
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
(B)
|
8-98036-085-2 |
01 |
1 |
0803-0803 |
|
|
|
|
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-085-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-085-2 |
01 |
1 |
0804- |
|
|
● |
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
(B)
|
8-98036-085-2 |
01 |
1 |
0804- |
|
|
|
|
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
M12X305
|
8-94441-189-0 |
01 |
1 |
0710-1209 |
● |
● |
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
M12X330
|
8-98226-501-0 |
01 |
1 |
1210- |
● |
● |
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
02 |
1 |
0710-0802 |
● |
|
● |
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X305
|
8-94441-189-0 |
02 |
1 |
0710-0802 |
|
|
|
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X305
|
8-94441-189-0 |
02 |
1 |
0803-0803 |
|
|
● |
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
02 |
1 |
0804-1209 |
● |
|
● |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X305
|
8-94441-189-0 |
02 |
1 |
0804-1209 |
|
|
|
|
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X330
|
8-98226-501-0 |
02 |
1 |
1210- |
● |
|
● |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X330
|
8-98226-501-0 |
02 |
1 |
1210- |
|
|
|
|
● |
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
0710- |
● |
● |
|
|
|
|
| |
36 |
07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
05.002
M12
|
0-91110-512-0 |
01 |
1 |
0710- |
● |
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98029-266-1 |
01 |
1 |
0710- |
|
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(A)
|
8-98024-842-2 |
02 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98024-842-2 |
02 |
1 |
0710-0802 |
● |
|
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98024-842-2 |
02 |
1 |
0710-0802 |
|
|
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
(A)
|
8-98024-842-2 |
02 |
1 |
0710-0802 |
|
|
|
|
|
● |
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(A)
|
8-98024-842-2 |
02 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98024-842-2 |
02 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
(A)
|
8-98024-842-2 |
02 |
1 |
0803-0803 |
|
|
|
|
|
● |
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(A)
|
8-98024-842-2 |
02 |
1 |
0804- |
|
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98024-842-2 |
02 |
1 |
0804- |
● |
|
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98024-842-2 |
02 |
1 |
0804- |
|
|
● |
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
(A)
|
8-98024-842-2 |
02 |
1 |
0804- |
|
|
|
|
|
● |
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98035-827-1 |
02 |
1 |
0710-0802 |
● |
|
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98035-827-1 |
02 |
1 |
0710-0802 |
|
|
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
0710-0802 |
|
|
|
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98035-827-1 |
02 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
0803-0803 |
|
|
● |
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98035-827-1 |
02 |
1 |
0804- |
● |
|
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98035-827-1 |
02 |
1 |
0804- |
|
|
● |
● |
|
|
| |
149 |
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ>
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0710-0802 |
● |
|
● |
|
|
|
| |
149 |
07.629 NUT; CARRIER
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0710-0802 |
|
|
|
● |
● |
|
| |
149 |
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ>
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
149 |
07.629 NUT; CARRIER
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0803-0803 |
|
|
● |
● |
● |
|
| |
149 |
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ>
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0804- |
● |
|
● |
● |
|
|
| |
149 |
07.629 NUT; CARRIER
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0804- |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(A)
|
8-94382-875-1 |
01 |
1 |
0710-0710 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 195/85R16
16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16-1
0 16X5.5F-115(07H),FRT&RR 7.5-16-8
6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16
-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),F
RT&RR 7-16-10 16X5.5F-115 T/VLV TR177
A(95H),FRT&RR 7-16-12
16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV
TR177A(98H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94382-875-1 |
01 |
1 |
0710-0710 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(A)
|
8-94382-875-1 |
01 |
1 |
0710-0809 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.
5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6
GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-1
27(19H),FRT&RR 7-16-10 16X5.5F-115
T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5
F-115(96H),FRT&RR 7-16-10L
5.5FX16-115 T/VLV TR177A(98H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94382-875-1 |
01 |
1 |
0710-0809 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(A)
|
8-94382-875-1 |
01 |
1 |
0810-0908 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R-16-1
0 16X5.5F-115(07H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94382-875-1 |
01 |
1 |
0810-0908 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),F&R195/85
R16(MICHELIN)16X5.5J-116.5
5-WHL/NUT(CVS)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(A)
|
8-94382-875-1 |
01 |
1 |
0909-0910 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94382-875-1 |
01 |
1 |
0909-0910 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(A)
|
8-94382-875-1 |
01 |
1 |
0911-1005 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 D
ISC 6.00GSX16-127(CUV),FRT&RR
7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&R
R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/
NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT&RR
7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94382-875-1 |
01 |
1 |
0911-1005 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85
R16(BS BRAND)16X5.5J-116.5
5-WHL/NUT(CVU)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(A)
|
8-94382-875-1 |
01 |
1 |
1006- |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 D
ISC 6.00GSX16-127(CUV),FRT&RR
7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&R
R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/
NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94382-875-1 |
01 |
1 |
1006- |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE)
SPARE WHEEL CARRIER<P10>
SMALL DOUBLE RR TIRE(6YE)
(C)
|
8-97182-113-1 |
02 |
1 |
0710-0908 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),F&R195/85
R16(MICHELIN)16X5.5J-116.5
5-WHL/NUT(CVS)
SPARE WHEEL CARRIER<P10>
SMALL DOUBLE RR TIRE(6YE)
(C)
|
8-97182-113-1 |
02 |
1 |
0909-0910 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS)
SPARE WHEEL CARRIER<P10>
SMALL DOUBLE RR TIRE(6YE)
(C)
|
8-97182-113-1 |
02 |
1 |
0911-1005 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85
R16(BS BRAND)16X5.5J-116.5
5-WHL/NUT(CVU)
SPARE WHEEL CARRIER<P10>
SMALL DOUBLE RR TIRE(6YE)
(C)
|
8-97182-113-1 |
02 |
1 |
1006- |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98036-384-0 |
01 |
1 |
0710-0710 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 195/85R16
16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16-1
0 16X5.5F-115(07H),FRT&RR 7.5-16-8
6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16
-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),F
RT&RR 7-16-10 16X5.5F-115 T/VLV TR177
A(95H),FRT&RR 7-16-12
16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV
TR177A(98H)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0710-0710 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 195/85R16
16X5.5J-116.5 5-WHL/NUT(CSK),FRT&RR 7R-16-1
0 16X5.5F-115(07H),FRT&RR 7.5-16-8
6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16
-127(11H),FRT&RR 7.5-16-12
6GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),F
RT&RR 7-16-10 16X5.5F-115 T/VLV TR177
A(95H),FRT&RR 7-16-12
16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV
TR177A(98H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0710-0710 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
(B)
|
8-98036-384-0 |
01 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR 7.5-16-10 6GSX16-127(11H),
FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7
.5-16-8L 6GSX16-127(14H),FRT&RR
7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR
7-16-12 16X5.5F-115(96H),FRT&RR
7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
(B)
|
8-98036-384-0 |
01 |
1 |
0710-0710 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98036-384-0 |
01 |
1 |
0710-0809 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.
5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6
GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-1
27(19H),FRT&RR 7-16-10 16X5.5F-115
T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5
F-115(96H),FRT&RR 7-16-10L
5.5FX16-115 T/VLV TR177A(98H)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0710-0809 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.
5-16-8 6GSX16-127(10H),FRT&RR
7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6
GSX16-127(12H),FRT&RR 7.5-16-8L
6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-1
27(19H),FRT&RR 7-16-10 16X5.5F-115
T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5
F-115(96H),FRT&RR 7-16-10L
5.5FX16-115 T/VLV TR177A(98H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0710-0809 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
(B)
|
8-98036-384-0 |
01 |
1 |
0710-0809 |
|
|
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR 7R-16-10
16X5.5F-115(07H),FRT&RR 7.5-16-8 6GSX16-127(10H),
FRT&RR 7.5-16-10 6GSX16-127(11H),
FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7
.5-16-8L 6GSX16-127(14H),FRT&RR
7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10
16X5.5F-115 T/VLV TR177A(95H),FRT&RR
7-16-12 16X5.5F-115(96H),FRT&RR
7-16-10L 5.5FX16-115 T/VLV TR177A(98H)
(B)
|
8-98036-384-0 |
01 |
1 |
0710-0809 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98036-384-0 |
01 |
1 |
0810-0908 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R-16-1
0 16X5.5F-115(07H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0810-0908 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R-16-1
0 16X5.5F-115(07H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0810-0908 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
(B)
|
8-98036-384-0 |
01 |
1 |
0810-0908 |
|
|
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
(B)
|
8-98036-384-0 |
01 |
1 |
0810-0908 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98036-384-0 |
01 |
1 |
0909-0909 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R-16-1
0 16X5.5F-115(07H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0909-0909 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R-16-1
0 16X5.5F-115(07H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0909-0909 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK)
(B)
|
8-98036-384-0 |
01 |
1 |
0909-0909 |
|
|
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
(B)
|
8-98036-384-0 |
01 |
1 |
0909-0909 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),FRT
195/85R16X5.5J-116.5RR 185/80R15X5J-116.5(CUE),F&R195/85
R16(MICHELIN)16X5.5J-116.5
5-WHL/NUT(CVS)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98036-384-0 |
01 |
1 |
0909-0910 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0909-0910 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR TIRE 195/85R
16 16X5.5J-116.5 5-WHL/NUT(CSK),
FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-
115(CUW),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 5-WHL/NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0909-0910 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5
-WHL/NUT(CSK),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS)
(B)
|
8-98036-384-0 |
01 |
1 |
0909-0910 |
|
|
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
(B)
|
8-98036-384-0 |
01 |
1 |
0909-0910 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98036-384-0 |
01 |
1 |
0911-1005 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 D
ISC 6.00GSX16-127(CUV),FRT&RR
7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&R
R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/
NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT&RR
7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0911-1005 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 D
ISC 6.00GSX16-127(CUV),FRT&RR
7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&R
R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/
NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT&RR
7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12
6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0911-1005 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
(B)
|
8-98036-384-0 |
01 |
1 |
0911-1005 |
|
|
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
(B)
|
8-98036-384-0 |
01 |
1 |
0911-1005 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT 195/85R16X5.5J-116.5RR 185/80R15X
5J-116.5(CUE),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85
R16(BS BRAND)16X5.5J-116.5
5-WHL/NUT(CVU)
SPARE WHEEL CARRIER<P10>
EXC. SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98036-384-0 |
01 |
1 |
1006- |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 D
ISC 6.00GSX16-127(CUV),FRT&RR
7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&R
R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/
NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
1006- |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 D
ISC 6.00GSX16-127(CUV),FRT&RR
7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&R
R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/
NUT(CVH),
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),
F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
1006- |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
(B)
|
8-98036-384-0 |
01 |
1 |
1006- |
|
|
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-11
6.5(CSA),FRT&RR 7.5R-16-10 DISC
6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L
DISC 5.50FX16-115(CUW),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),
FRT&RR 7R-16-10 16X5.5F-115(07H),
FRT&RR 7.5R-16-12 6GSX16-127(19H)
(B)
|
8-98036-384-0 |
01 |
1 |
1006- |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6
WHL/NUT DYNAMIC(95V),FRT&RR
7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-383-0 |
01 |
1 |
0710-0809 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6
WHL/NUT DYNAMIC(95V),FRT&RR
7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-383-0 |
01 |
1 |
0710-0809 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16
-127 6-WHL/NUT(9BP),FRT&RR
8.25-16-1216X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR
8.25-16-14 16X6.00GS-135
6-WHL/NUT(9ZP)
(B)
|
8-98036-383-0 |
01 |
1 |
0710-0809 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),
FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16
-127 6-WHL/NUT DYNAMIC(97V)
(B)
|
8-98036-383-0 |
01 |
1 |
0710-0809 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-383-0 |
01 |
1 |
0810-0912 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-383-0 |
01 |
1 |
0810-0912 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00
GSX16-135 6-WHL/NUT(CUZ)
(B)
|
8-98036-383-0 |
01 |
1 |
0810-0912 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C)
(B)
|
8-98036-383-0 |
01 |
1 |
0810-0912 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-383-0 |
01 |
1 |
1001-1005 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-383-0 |
01 |
1 |
1001-1005 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00
GSX16-135 6-WHL/NUT(CUZ)
(B)
|
8-98036-383-0 |
01 |
1 |
1001-1005 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
(B)
|
8-98036-383-0 |
01 |
1 |
1001-1005 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),F&R TIRE 205
/75R17.5(BS BRAND)17.5X6.00-127(CVV),
F&R 215/75R17.5(BS BRAND)17.5X6.00-12
7 SILVER(CVW),FRT&RR 7.5R-16-12
6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-1
0 6GSX16-127 6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-383-0 |
01 |
1 |
1006- |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),F&R TIRE 205
/75R17.5(BS BRAND)17.5X6.00-127(CVV),
F&R 215/75R17.5(BS BRAND)17.5X6.00-12
7 SILVER(CVW),FRT&RR 7.5R-16-12
6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-1
0 6GSX16-127 6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-383-0 |
01 |
1 |
1006- |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R1
9.5 19.5X6.00-127(CRR),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 8.
25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ)
(B)
|
8-98036-383-0 |
01 |
1 |
1006- |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),F&R TIRE 205
/75R17.5(BS BRAND)17.5X6.00-127(CVV),
F&R 215/75R17.5(BS BRAND)17.5X6.00-12
7 SILVER(CVW),FRT&RR 7.5R-16-12
6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-1
0 6GSX16-127 6-WHL/NUT(83V)
(B)
|
8-98036-383-0 |
01 |
1 |
1006- |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6
WHL/NUT DYNAMIC(95V),FRT&RR
7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0710-0710 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16
-127 6-WHL/NUT(9BP),FRT&RR
8.25-16-1216X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR
8.25-16-14 16X6.00GS-135
6-WHL/NUT(9ZP)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0710-0710 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),
FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16
-127 6-WHL/NUT DYNAMIC(97V)
(A)
|
8-97010-955-1 |
01 |
1 |
0710-0710 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
(A)
|
8-97010-955-1 |
01 |
1 |
0710-0710 |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6
WHL/NUT DYNAMIC(95V),FRT&RR
7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0710-0802 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6
WHL/NUT DYNAMIC(95V),FRT&RR
7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0710-0802 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16
-127 6-WHL/NUT(9BP),FRT&RR
8.25-16-1216X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR
8.25-16-14 16X6.00GS-135
6-WHL/NUT(9ZP)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0710-0802 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),
FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16
-127 6-WHL/NUT DYNAMIC(97V)
(A)
|
8-97010-955-1 |
01 |
1 |
0710-0802 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
(A)
|
8-97010-955-1 |
01 |
1 |
0710-0802 |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6
WHL/NUT DYNAMIC(95V),FRT&RR
7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6
WHL/NUT DYNAMIC(95V),FRT&RR
7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16
-127 6-WHL/NUT(9BP),FRT&RR
8.25-16-1216X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR
8.25-16-14 16X6.00GS-135
6-WHL/NUT(9ZP)
(A)
|
8-97010-955-1 |
01 |
1 |
0803-0803 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),
FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16
-127 6-WHL/NUT DYNAMIC(97V)
(A)
|
8-97010-955-1 |
01 |
1 |
0803-0803 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
(A)
|
8-97010-955-1 |
01 |
1 |
0803-0803 |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6
WHL/NUT DYNAMIC(95V),FRT&RR
7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0804-0809 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)
,FRT&RR 7.5-16-14 6GSX16-127
6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6
WHL/NUT DYNAMIC(95V),FRT&RR
7.5-16-106GSX16-127 6-WHL/NUT DYNAMIC(97V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0804-0809 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16
-127 6-WHL/NUT(9BP),FRT&RR
8.25-16-1216X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR
8.25-16-14 16X6.00GS-135
6-WHL/NUT(9ZP)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0804-0809 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR 7.5-16-12
6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L
6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1
6-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),
FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT
DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16
-127 6-WHL/NUT DYNAMIC(97V)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0804-0809 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
(A)
|
8-97010-955-1 |
01 |
1 |
0804-0809 |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0810-0912 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0810-0912 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00
GSX16-135 6-WHL/NUT(CUZ)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0810-0912 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0810-0912 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
(A)
|
8-97010-955-1 |
01 |
1 |
0810-0912 |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1001-1005 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1001-1005 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC
6.00GSX16-127(CTF),FRT&RR 8.25R-16-14 6.00
GSX16-135 6-WHL/NUT(CUZ)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1001-1005 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-
16-12 6GSX16-127 6-WHL/NUT(05C),
FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1001-1005 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
(A)
|
8-97010-955-1 |
01 |
1 |
1001-1005 |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),F&R TIRE 205
/75R17.5(BS BRAND)17.5X6.00-127(CVV),
F&R 215/75R17.5(BS BRAND)17.5X6.00-12
7 SILVER(CVW),FRT&RR 7.5R-16-12
6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-1
0 6GSX16-127 6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1006- |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),F&R TIRE 205
/75R17.5(BS BRAND)17.5X6.00-127(CVV),
F&R 215/75R17.5(BS BRAND)17.5X6.00-12
7 SILVER(CVW),FRT&RR 7.5R-16-12
6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-1
0 6GSX16-127 6-WHL/NUT(83V)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1006- |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 215/75R17.5
17.5X6.00-127 SILVER(CQU),FRT&RR 225/70R1
9.5 19.5X6.00-127(CRR),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 8.
25R-16-14 6.00GSX16-135
6-WHL/NUT(CUZ)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1006- |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR
215/85R16 16X6K-128(CSC),F&R TIRE 205/75R17.5
(MICHELIN)17.5X6.00-127(CSM),FRT&RR
7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),FRT&RR7.50R-16-12 R/L
6.00GSX16-127 6-WHL/NUT(CUX),F&R TIRE 205
/75R17.5(BS BRAND)17.5X6.00-127(CVV),
F&R 215/75R17.5(BS BRAND)17.5X6.00-12
7 SILVER(CVW),FRT&RR 7.5R-16-12
6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-1
0 6GSX16-127 6-WHL/NUT(83V)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1006- |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-1
27 WHITE(AVU),FRT&RR 225/70R19.5
19.5X6.00-127(CRR)
(A)
|
8-97010-955-1 |
01 |
1 |
1006- |
|
|
|
|
● |
|
| |
168 |
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
0710-0802 |
● |
|
● |
|
|
|
| |
168 |
07.633 WASHER; SPARE TIRE
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
0710-0802 |
|
|
|
● |
● |
|
| |
168 |
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
168 |
07.633 WASHER; SPARE TIRE
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
0803-0803 |
|
|
● |
● |
● |
|
| |
168 |
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
0804- |
● |
|
● |
● |
|
|
| |
168 |
07.633 WASHER; SPARE TIRE
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
0804- |
|
|
|
|
● |
|
