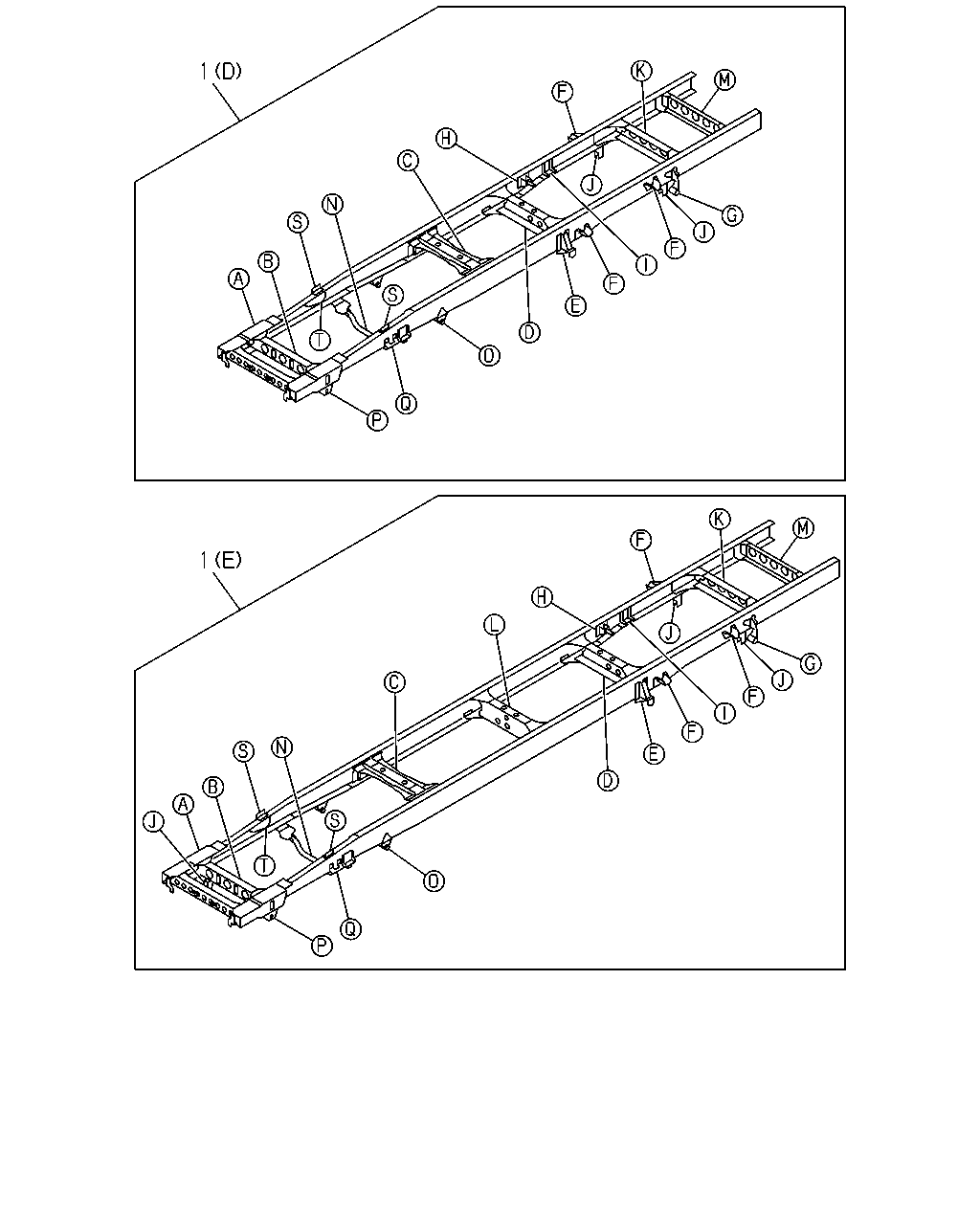

1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRONT STABILIZER SHAFT<F59>,
STABILIZER REAR<GN1>
(E)
|
8-98157-949-1 |
01 |
1 |
1005- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRONT STABILIZER SHAFT<F59>,
STABILIZER REAR<GN1>
(E)
|
8-98157-949-1 |
01 |
1 |
1005- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRONT STABILIZER
SHAFT<F59>,STABILIZER REAR<GN1>
(E)
|
8-98157-948-1 |
01 |
1 |
1005- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRONT STABILIZER
SHAFT<F59>,STABILIZER REAR<GN1>
(E)
|
8-98157-948-1 |
01 |
1 |
1005- |
|
● |
|
|
|
|
| |
1 |

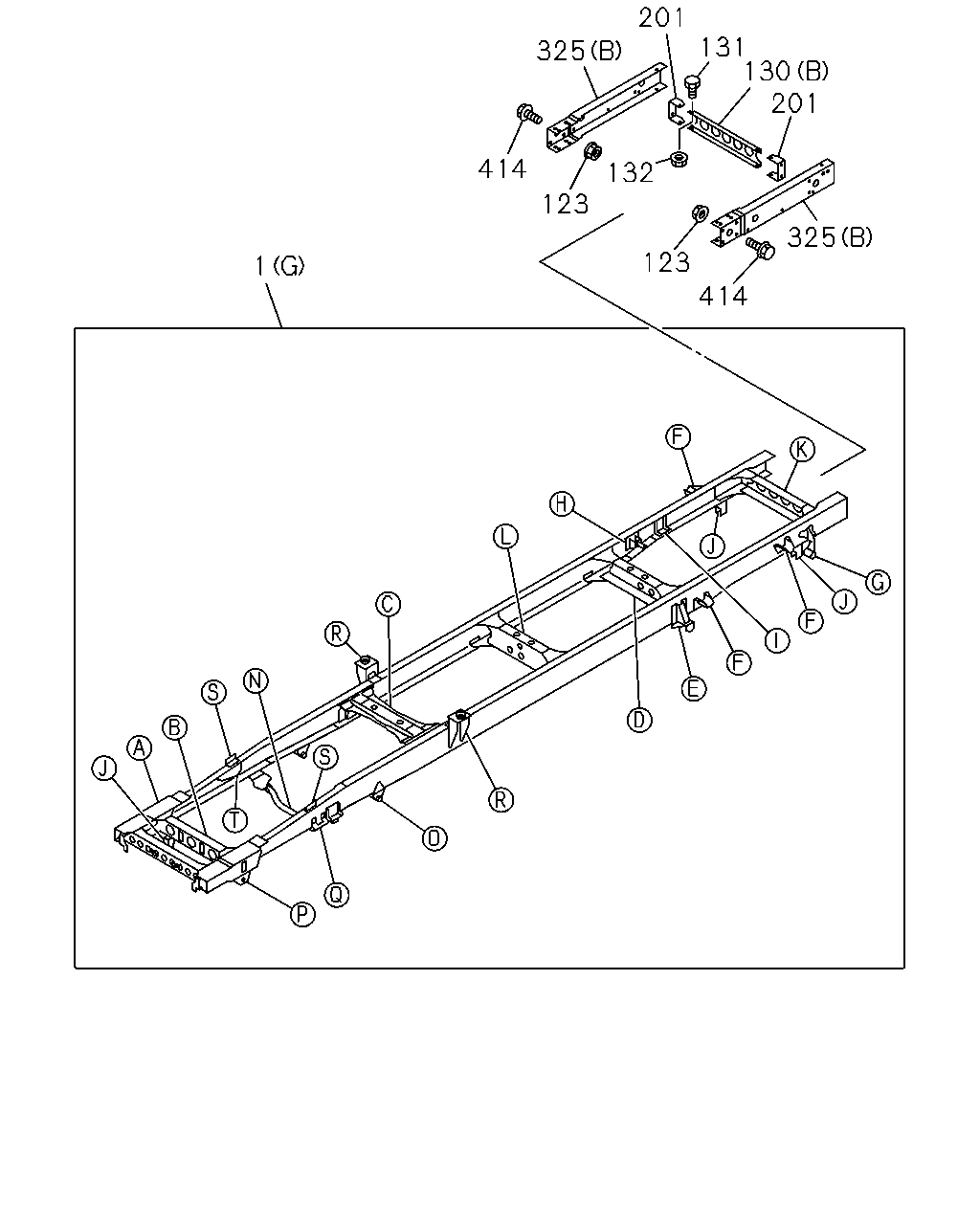

07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(G)
|
8-98071-633-5 |
01 |
1 |
0811- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(G)
|
8-98071-632-5 |
01 |
1 |
0811- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(G)
|
8-98071-631-4 |
01 |
1 |
0811- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(G)
|
8-98071-630-4 |
01 |
1 |
0811- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
G.V.W. 7.0-7.5TON(RPX)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TY
PE<7KJ>
(B)
|
8-98116-130-0 |
01 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
G.V.W. 7.0-7.5TON(RPX)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TY
PE<7KJ>
(B)
|
8-98116-130-0 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |

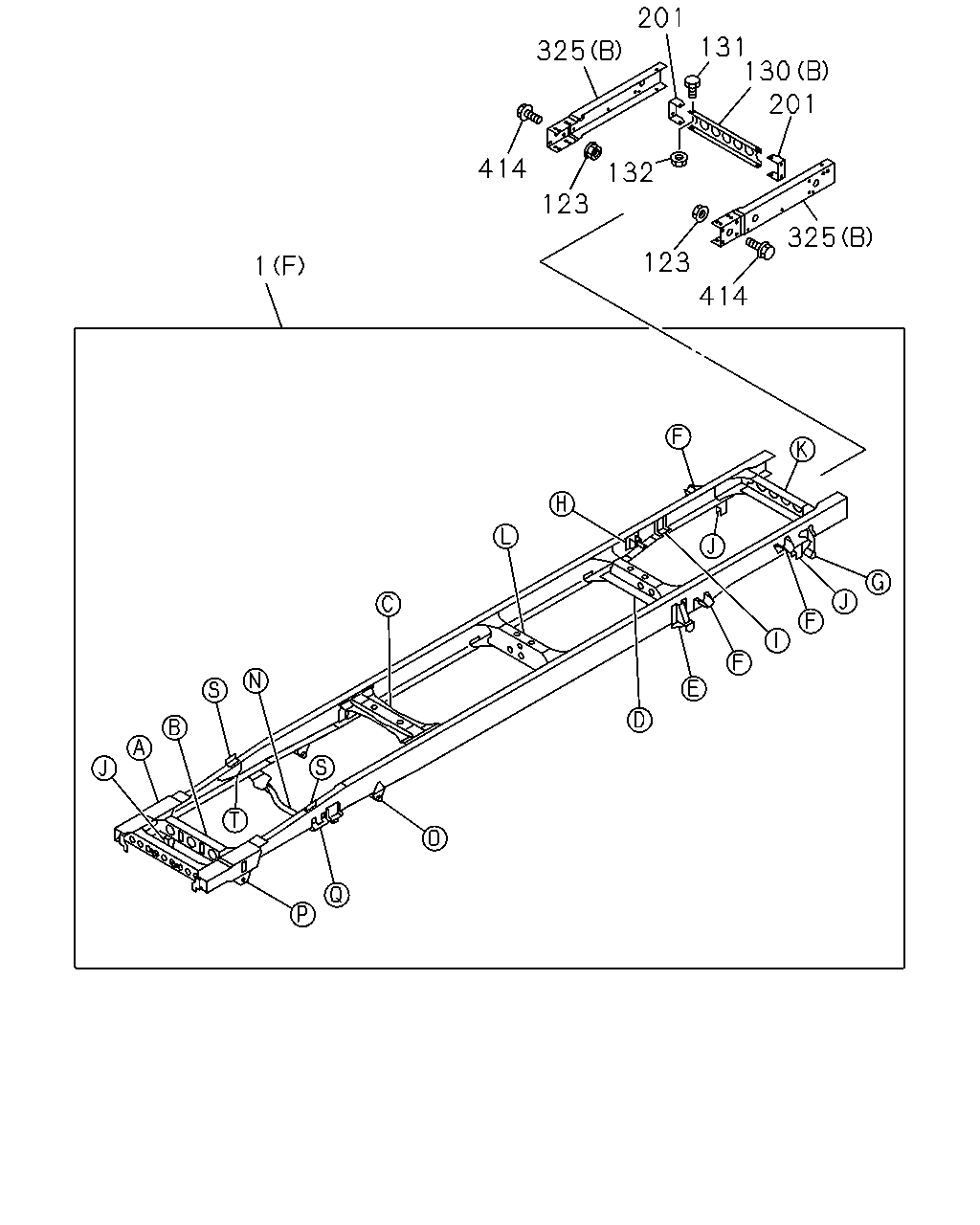

07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98115-412-1 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98115-412-1 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98110-998-0 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98110-998-0 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |

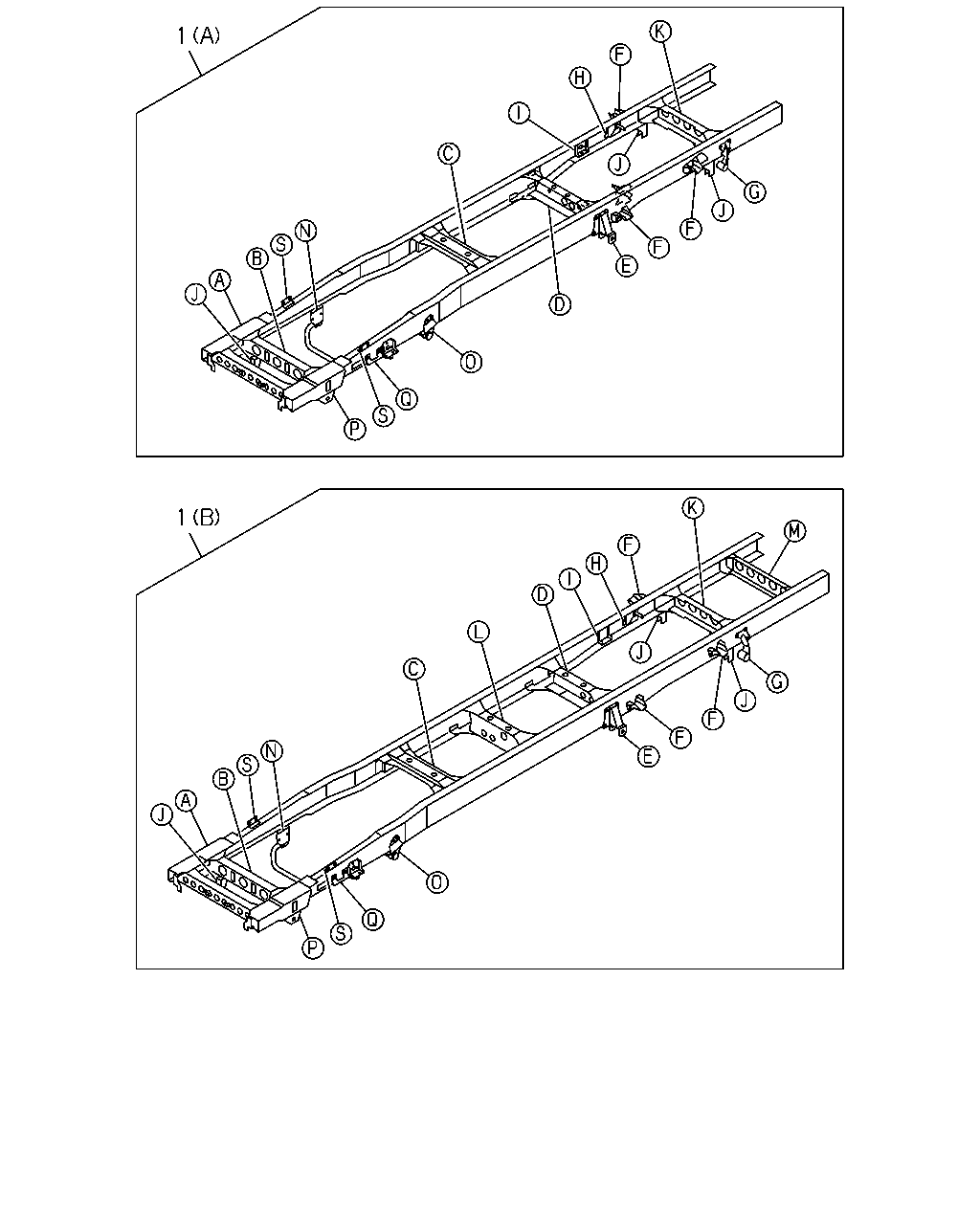

07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(A)
|
8-98071-510-2 |
01 |
1 |
0710-0803 |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98071-510-2 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(A)
|
8-98071-510-2 |
01 |
1 |
0804- |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98071-510-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98071-511-2 |
01 |
1 |
0710-0803 |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98071-511-2 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98071-511-2 |
01 |
1 |
0804- |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98071-511-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,SMALL DOUBLE RR T
IRE(6YE)
(B)
|
8-98071-515-1 |
01 |
1 |
0710-0803 |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TY
PE<7KJ>
(B)
|
8-98071-515-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,SMALL DOUBLE RR T
IRE(6YE)
(B)
|
8-98071-515-1 |
01 |
1 |
0804- |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TY
PE<7KJ>
(B)
|
8-98071-515-1 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,SMALL DOUBLE RR T
IRE(6YE)
(B)
|
8-98071-516-1 |
01 |
1 |
0710-0803 |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TY
PE<7KJ>
(B)
|
8-98071-516-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,SMALL DOUBLE RR T
IRE(6YE)
(B)
|
8-98071-516-1 |
01 |
1 |
0804- |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TY
PE<7KJ>
(B)
|
8-98071-516-1 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-517-1 |
01 |
1 |
0710-0803 |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-517-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
|
8-98071-517-1 |
01 |
1 |
0804- |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-517-1 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98071-518-1 |
01 |
1 |
0710-0803 |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-518-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98071-518-1 |
01 |
1 |
0804- |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-518-1 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |

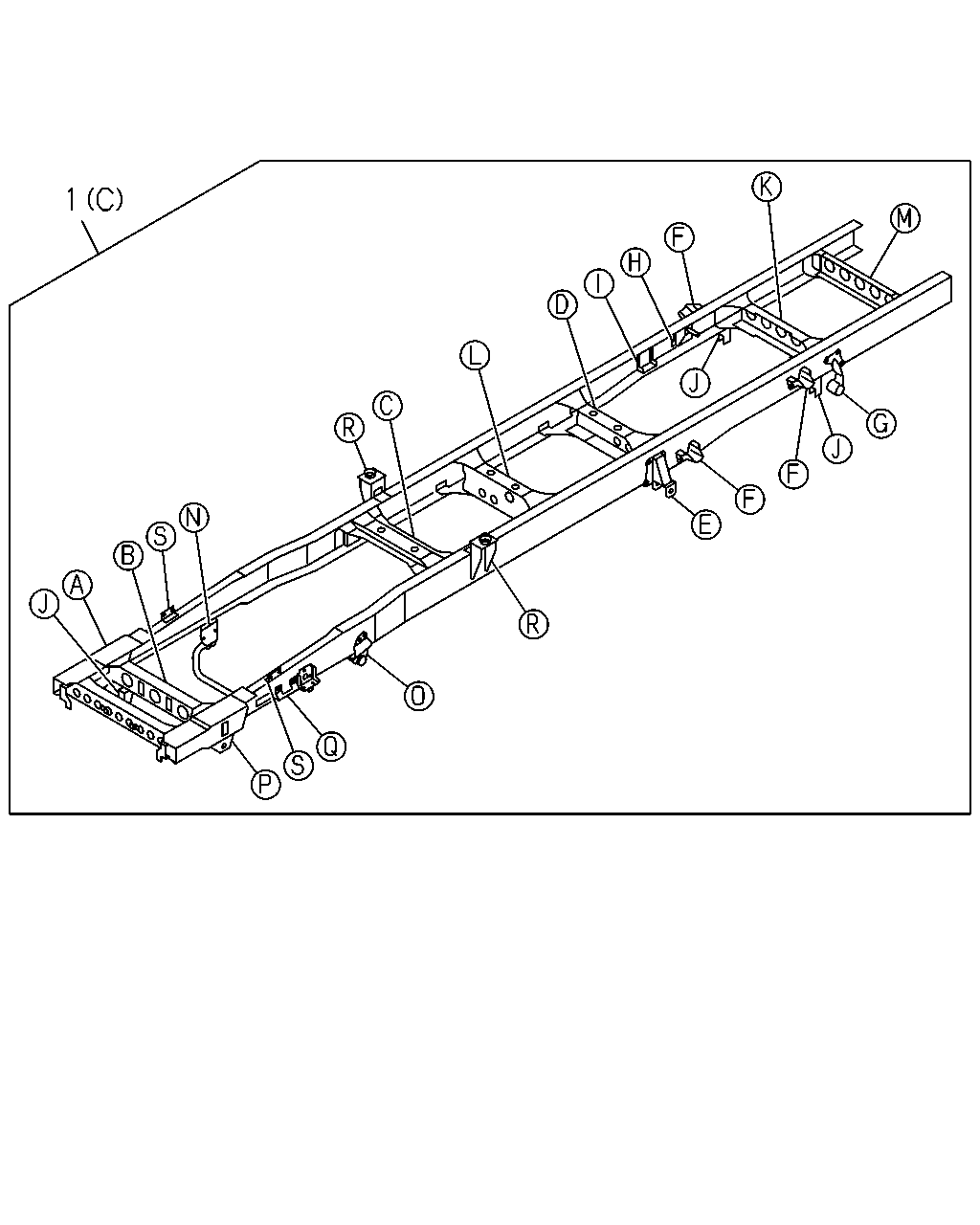

07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
SMALL DOUBLE RR TIRE(6YE)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(B)
|
8-98077-239-1 |
01 |
1 |
0710- |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
SMALL DOUBLE RR TIRE(6YE)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(B)
|
8-98077-240-1 |
01 |
1 |
0710- |
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,DUMP CHASSIS(V4D)
(D)
|
8-98071-608-4 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,DUMP CHASSIS(V4D)
(D)
|
8-98071-608-4 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(D)
|
8-98071-609-4 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(D)
|
8-98071-609-4 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(D)
|
8-98071-610-2 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(D)
|
8-98071-610-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(D)
|
8-98071-611-2 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(D)
|
8-98071-611-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
DUMP CHASSIS(V4D)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(D)
|
8-98088-800-4 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 2700MM(27W)
DUMP CHASSIS(V4D)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(D)
|
8-98088-800-4 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-615-4 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-615-4 |
01 |
1 |
0804-1004 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-615-4 |
01 |
1 |
0804-1004 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-615-4 |
01 |
1 |
1005- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
STABILIZER REAR<GN1>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRONT STABILIZER
SHAFT<F59>
(E)
|
8-98071-615-4 |
01 |
1 |
1005- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-615-4 |
01 |
1 |
1005- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
STABILIZER REAR<GN1>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRONT STABILIZER
SHAFT<F59>
(E)
|
8-98071-615-4 |
01 |
1 |
1005- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-616-4 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-616-4 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-616-4 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-617-3 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-617-3 |
01 |
1 |
0804-1004 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-617-3 |
01 |
1 |
0804-1004 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-617-3 |
01 |
1 |
1005- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
STABILIZER REAR<GN1>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRONT STABILIZER SHAFT<F59>
(E)
|
8-98071-617-3 |
01 |
1 |
1005- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRONT STABILIZER SHAFT<F59>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-617-3 |
01 |
1 |
1005- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
STABILIZER REAR<GN1>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRONT STABILIZER SHAFT<F59>
(E)
|
8-98071-617-3 |
01 |
1 |
1005- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-618-3 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-618-3 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-618-3 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-634-5 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-634-5 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-634-5 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-635-5 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-635-5 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-635-5 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-636-6 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-636-6 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-636-6 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-637-6 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-637-6 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-637-6 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98071-655-6 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,MINI BUS
CHASSIS(V4B)
(F)
|
8-98071-655-6 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,MINI BUS
CHASSIS(V4B)
(F)
|
8-98071-655-6 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98071-656-2 |
01 |
1 |
0710-0710 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98071-656-2 |
01 |
1 |
0711-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98071-656-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98071-656-2 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98071-657-2 |
01 |
1 |
0710-0710 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98071-657-2 |
01 |
1 |
0711-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98071-657-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98071-657-2 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TY
PE<7KJ>
(B)
|
8-98071-522-1 |
01 |
1 |
0710-0802 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
G.V.W. 6.0-6.5TON(RPV)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TY
PE<7KJ>
(B)
|
8-98071-522-1 |
01 |
1 |
0803-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
G.V.W. 6.0-6.5TON(RPV)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TY
PE<7KJ>
(B)
|
8-98071-522-1 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-523-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-523-1 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-524-1 |
01 |
1 |
0710-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98071-524-1 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-624-2 |
01 |
1 |
0710-0710 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98101-574-3 |
01 |
1 |
0711-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98101-574-3 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98101-574-3 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-625-2 |
01 |
1 |
0710-0710 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98101-575-3 |
01 |
1 |
0711-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98101-575-3 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98101-575-3 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-626-2 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-626-2 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-626-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-626-2 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-627-2 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-627-2 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-627-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-627-2 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-644-3 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-644-3 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-644-3 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-644-3 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-645-3 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-645-3 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-645-3 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(E)
|
8-98071-645-3 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-646-2 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-646-2 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-646-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
|
8-98071-646-2 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-647-2 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-647-2 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-647-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98071-647-2 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98071-659-3 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98071-659-4 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,MINI BUS
CHASSIS(V4B)
(F)
|
8-98071-659-4 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,MINI BUS
CHASSIS(V4B)
(F)
|
8-98071-659-4 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98071-660-3 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98071-660-3 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98071-660-3 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98071-660-3 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98071-661-4 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98071-661-4 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98071-661-4 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98071-661-4 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98071-662-4 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98071-662-4 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98071-662-4 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98071-662-4 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98071-668-2 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98071-668-2 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98071-668-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98071-668-2 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98071-669-2 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98071-669-2 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98071-669-2 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FUEL TANK 140 LITTER<N19>
(F)
|
8-98071-669-2 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98088-796-1 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98088-796-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98088-796-1 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(F)
|
8-98088-796-1 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98088-797-1 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98088-797-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98088-797-1 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MZZ6U(RSF),M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(F)
|
8-98088-797-1 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(C)
|
8-98071-529-1 |
01 |
1 |
0710-0803 |
|
|
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(C)
|
8-98071-529-1 |
01 |
1 |
0804- |
|
|
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98071-529-1 |
01 |
1 |
0804- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(C)
|
8-98071-530-1 |
01 |
1 |
0710-0803 |
|
|
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(C)
|
8-98071-530-1 |
01 |
1 |
0804- |
|
|
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98071-530-1 |
01 |
1 |
0804- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(C)
|
8-98071-528-1 |
01 |
1 |
0710-0803 |
|
|
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB)
M/T MYY5T(RSM),M/T MYY6S(RST)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(C)
|
8-98071-528-1 |
01 |
1 |
0804- |
|
|
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TY
PE<7KJ>
(C)
|
8-98071-528-1 |
01 |
1 |
0804- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(G)
|
8-98071-630-2 |
01 |
1 |
0710-0710 |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(G)
|
8-98071-631-2 |
01 |
1 |
0710-0710 |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(G)
|
8-98071-632-2 |
01 |
1 |
0710-0710 |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98101-573-3 |
01 |
1 |
0711-0803 |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98101-573-3 |
01 |
1 |
0804- |
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(F)
|
8-98101-573-3 |
01 |
1 |
0804- |
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(G)
|
8-98071-633-2 |
01 |
1 |
0710-0710 |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(G)
|
8-98071-651-5 |
01 |
1 |
0710-0803 |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(G)
|
8-98071-651-5 |
01 |
1 |
0804- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(G)
|
8-98071-652-5 |
01 |
1 |
0710-0803 |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(G)
|
8-98071-652-5 |
01 |
1 |
0804- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(G)
|
8-98071-653-6 |
01 |
1 |
0710-0803 |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(G)
|
8-98071-653-6 |
01 |
1 |
0804- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(G)
|
8-98071-654-6 |
01 |
1 |
0710-0803 |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(G)
|
8-98071-654-6 |
01 |
1 |
0804- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(G)
|
8-98071-666-2 |
01 |
1 |
0710-0803 |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(G)
|
8-98071-666-2 |
01 |
1 |
0804- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(G)
|
8-98071-667-2 |
01 |
1 |
0710-0803 |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCN ENG(RDQ)
M/T MYY5T(RSM),M/T MYY6S(RST)
WHEEL BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(G)
|
8-98071-667-2 |
01 |
1 |
0804- |
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(G)
|
8-98088-798-1 |
01 |
1 |
0710- |
|
|
|
|
|
● |
| |
1 |
07.003 FRAME ASM
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(G)
|
8-98088-799-1 |
01 |
1 |
0710- |
|
|
|
|
|
● |
| |
123 |
07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
AUSTRALIA EQUIPMENT(B13)
EXC. NEW ZEALAND COUNTRY(CX6)
07.395
M12
|
8-97360-126-0 |
12 |
1 |
0710-0710 |
● |
● |
● |
|
|
|
| |
123 |
07.039 NUT
EXC. NEW ZEALAND COUNTRY(CX6)
07.395
M12
|
8-97360-126-0 |
12 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
123 |
07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
EXC. AUSTRALIA EQUIPMENT(B13)
07.395
M12
|
8-97360-126-0 |
16 |
1 |
0710-0710 |
● |
● |
● |
|
|
|
| |
123 |
07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
AUSTRALIA EQUIPMENT(B13)
NEW ZEALAND COUNTRY(CX6)
07.395
M12
|
8-97360-126-0 |
16 |
1 |
0710-0710 |
● |
● |
● |
|
|
|
| |
123 |
07.039 NUT
NEW ZEALAND COUNTRY(CX6)
07.395
M12
|
8-97360-126-0 |
16 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
123 |
07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
07.395
M12
|
8-97360-126-0 |
16 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
123 |
07.039 NUT
07.395
M12
|
8-97360-126-0 |
16 |
1 |
0710- |
|
|
|
|
|
● |
| |
130 |
07.014 MEMBER; CROSS,END
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98000-492-0 |
01 |
1 |
0710-0803 |
● |
|
|
● |
● |
|
| |
130 |
07.014 MEMBER; CROSS,END
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98000-492-0 |
01 |
1 |
0804- |
● |
|
● |
● |
● |
|
| |
130 |
07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
(B)
|
8-97205-394-0 |
01 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
130 |
07.014 MEMBER; CROSS,END
(B)
|
8-97205-394-0 |
01 |
1 |
0710- |
|
|
|
|
|
● |
| |
130 |
07.014 MEMBER; CROSS,END
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-872-0 |
01 |
1 |
0710-0803 |
● |
|
● |
|
|
|
| |
130 |
07.014 MEMBER; CROSS,END
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-872-0 |
01 |
1 |
0710-0803 |
|
● |
|
|
|
|
| |
130 |
07.014 MEMBER; CROSS,END
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
(A)
|
8-97080-872-0 |
01 |
1 |
0804- |
● |
● |
● |
|
|
|
| |
131 |
07.014 BOLT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
07.833
M10X25 FLANGE
|
0-28661-025-0 |
08 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
131 |
07.014 BOLT; END C/MBR
07.833
M10X25 FLANGE
|
0-28661-025-0 |
08 |
1 |
0710- |
|
|
|
|
|
● |
| |
132 |
07.014 NUT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
03.162
M10 FLANGE
|
0-91180-110-0 |
08 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
132 |
07.014 NUT; END C/MBR
03.162
M10 FLANGE
|
0-91180-110-0 |
08 |
1 |
0710- |
|
|
|
|
|
● |
| |
201 |
07.039 GUSSET; C/MBR
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97096-871-0 |
02 |
1 |
0710-0710 |
● |
|
|
● |
● |
|
| |
201 |
07.039 GUSSET; C/MBR
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-871-0 |
02 |
1 |
0710-0710 |
● |
|
● |
|
|
|
| |
201 |
07.039 GUSSET; C/MBR
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-871-0 |
02 |
1 |
0710-0710 |
|
● |
|
|
|
|
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
|
8-97096-871-0 |
02 |
1 |
0710-0710 |
● |
● |
● |
|
|
|
| |
201 |
07.039 GUSSET; C/MBR
|
8-97096-871-0 |
02 |
1 |
0710-0710 |
|
|
|
|
|
● |
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 3300MM(33W)
|
8-97096-871-0 |
02 |
1 |
0710-0810 |
|
|
|
● |
|
|
| |
201 |
07.039 GUSSET; C/MBR
|
8-97096-871-0 |
02 |
1 |
0710-0810 |
● |
● |
● |
|
● |
● |
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-97096-871-0 |
02 |
1 |
0811-1004 |
● |
● |
● |
|
● |
|
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-871-0 |
02 |
1 |
0811-1004 |
● |
|
|
|
|
|
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-97096-871-0 |
02 |
1 |
1005- |
● |
● |
● |
● |
● |
|
| |
201 |
07.039 GUSSET; C/MBR
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-871-0 |
02 |
1 |
1005- |
● |
|
|
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98045-170-2 |
01 |
1 |
0710-0803 |
● |
|
|
● |
● |
|
| |
325 |
07.039 EXTENSION; FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98045-170-2 |
01 |
1 |
0804- |
● |
|
● |
● |
● |
|
| |
325 |
07.039 EXTENSION; FRAME
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98045-169-2 |
01 |
1 |
0710-0803 |
● |
|
|
● |
● |
|
| |
325 |
07.039 EXTENSION; FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98045-169-2 |
01 |
1 |
0804- |
● |
|
● |
● |
● |
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W)
HONG KONG EQUIPMENT(B14)
(B)
|
8-97128-753-3 |
01 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W)
(B)
|
8-97128-753-3 |
01 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
(B)
|
8-97128-753-3 |
01 |
1 |
0710- |
|
|
|
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W)
HONG KONG EQUIPMENT(B14)
(B)
|
8-97128-752-3 |
01 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W)
(B)
|
8-97128-752-3 |
01 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
(B)
|
8-97128-752-3 |
01 |
1 |
0710- |
|
|
|
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W)
EXC. HONG KONG EQUIPMENT(B14)
(B)
|
8-97222-892-1 |
01 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W)
EXC. HONG KONG EQUIPMENT(B14)
(B)
|
8-97222-891-1 |
01 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL
BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(A)
|
8-98073-344-1 |
01 |
1 |
0710-0802 |
● |
|
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(A)
|
8-98073-344-1 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL
BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(A)
|
8-98073-344-1 |
01 |
1 |
0803-0803 |
● |
|
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(A)
|
8-98073-344-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL
BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(A)
|
8-98073-344-1 |
01 |
1 |
0804- |
● |
● |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL
BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98073-348-1 |
01 |
1 |
0710-0802 |
● |
|
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL
BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98073-348-1 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL
BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98073-348-1 |
01 |
1 |
0803-0803 |
● |
|
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL
BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98073-348-1 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-98073-348-1 |
01 |
1 |
0804- |
● |
● |
● |
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL
BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(A)
|
8-98073-345-0 |
01 |
1 |
0710-0802 |
● |
|
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(A)
|
8-98073-345-0 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL
BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(A)
|
8-98073-345-0 |
01 |
1 |
0803-0803 |
● |
|
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(A)
|
8-98073-345-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL
BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. AIR BAG DRIVER<AJ3>,AIR BAG
DRIVER & PASSENGER<AK5>
(A)
|
8-98073-345-0 |
01 |
1 |
0804- |
● |
● |
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL
BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98073-349-0 |
01 |
1 |
0710-0802 |
● |
|
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL
BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98073-349-0 |
01 |
1 |
0710-0802 |
|
● |
|
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL
BASE 4100MM(41W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98073-349-0 |
01 |
1 |
0803-0803 |
● |
|
● |
|
|
|
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL
BASE 4400MM(44W)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98073-349-0 |
01 |
1 |
0803-0803 |
|
● |
|
|
|
● |
| |
325 |
07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &
PASSENGER<AK5>
(A)
|
8-98073-349-0 |
01 |
1 |
0804- |
● |
● |
● |
|
|
● |
| |
414 |
07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
06.509
M12X30 FLANGE
|
0-28661-230-0 |
12 |
1 |
0710- |
● |
● |
● |
|
|
|
| |
414 |
07.011 BOLT
06.509
M12X30 FLANGE
|
0-28661-230-0 |
12 |
1 |
0710- |
|
|
|
|
|
● |
